Product name

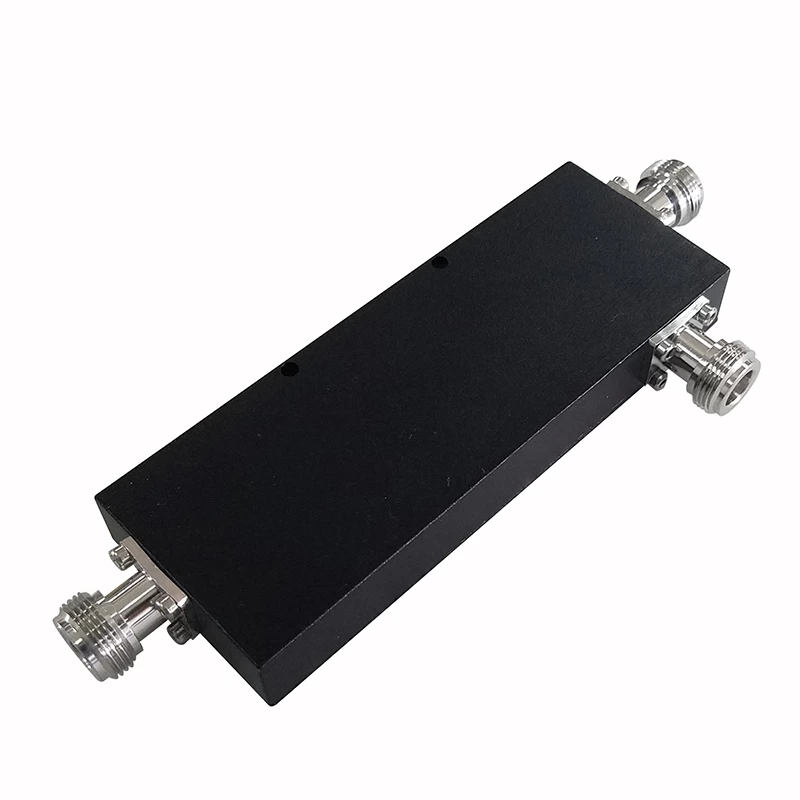

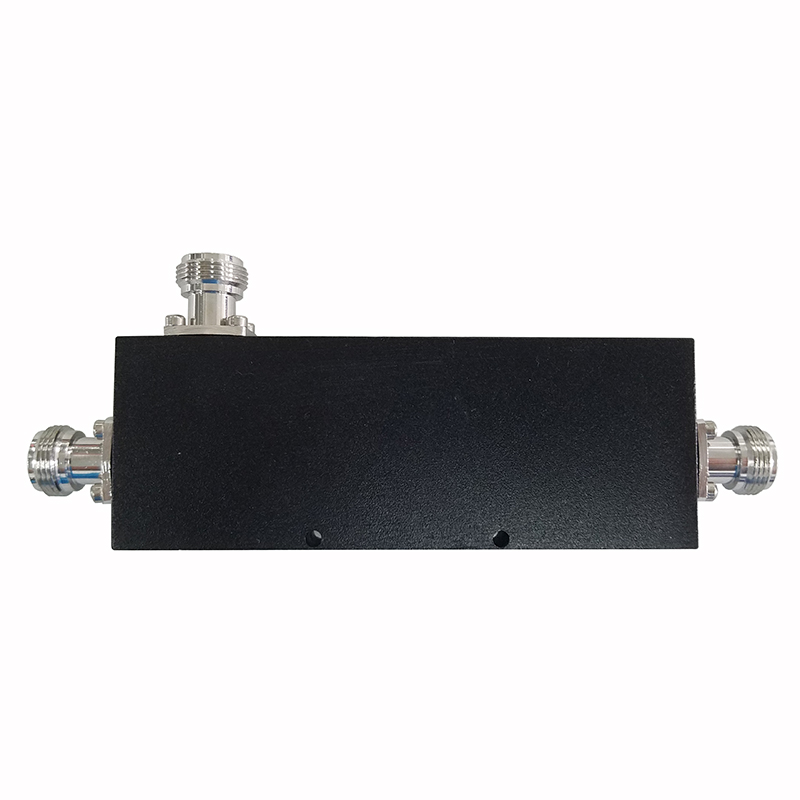

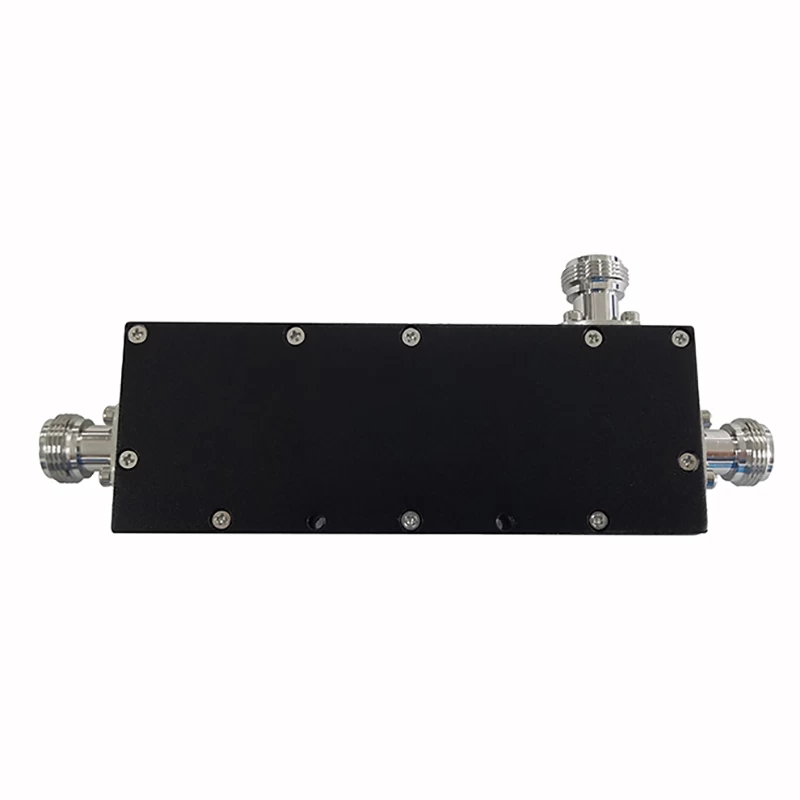

698-2700MHz Directional coupler for IBS BTS DAS
Product features
◆ Wide Frequency Band for IBS BTS DAS
◆ 2G/3G/4G/LTE Coverage
◆ Low Passive Intermodulation
◆ Low VSWR &Insertion Loss
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
YF-DC-727-150-04
|
YF-DC-727-150-06
|
YF-DC-727-150-07
|
YF-DC-727-150-10
|
|
Freq(MHz)
|
698-2700
|
|
Coupling(dB)
|
3/4.8
|
6
|
7
|
10
|
|
IL(dB)
|
3.5/≤2.85
|
≤1.95
|
≤1.45
|
≤0.8
|
|
Accuracy(dB)
|
±0.8
|
±0.8
|
±0.8
|
±1.0
|
|
Isolation(dB)
|
22/≥25
|
≥26
|
≥27
|
≥28
|
|
VSWR
|
≤1.25
|
|
PIM(dBc)
|
≤-150dBc@2*43dBm
|
|
Power(W)
|
200 (average)
|
|
Impedance
|
50 ohm
|
|
Connector
|
N-female
|
|
Color
|
Black
|
|
Temp(deg)
|
-35~+65
|
|
Application
|
Indoor
|
|
Humidity
|
5%-95%
|
|
Net Weight
|
0.25
|
