Product Name

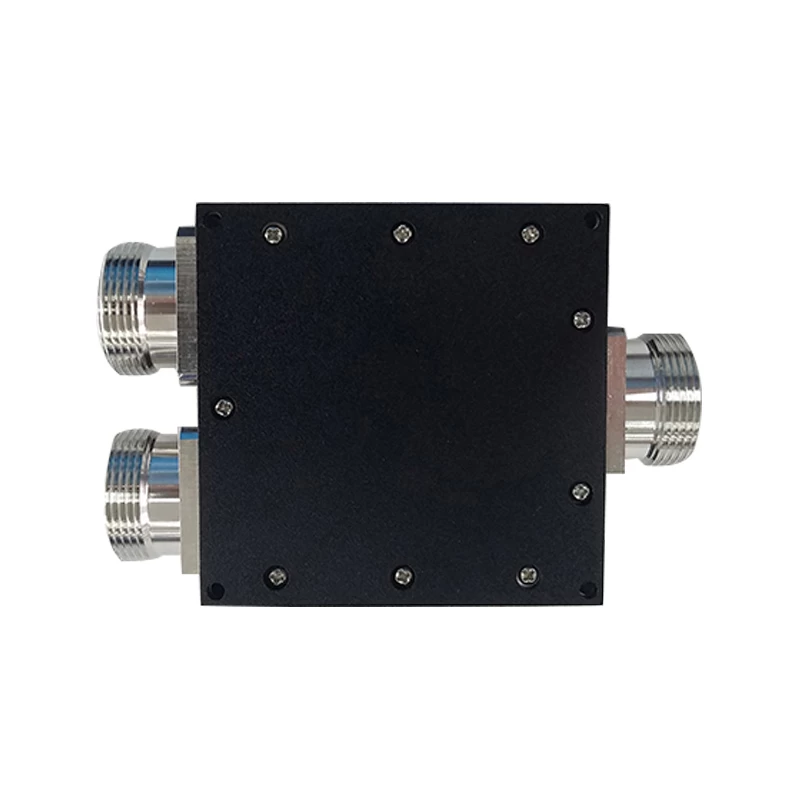

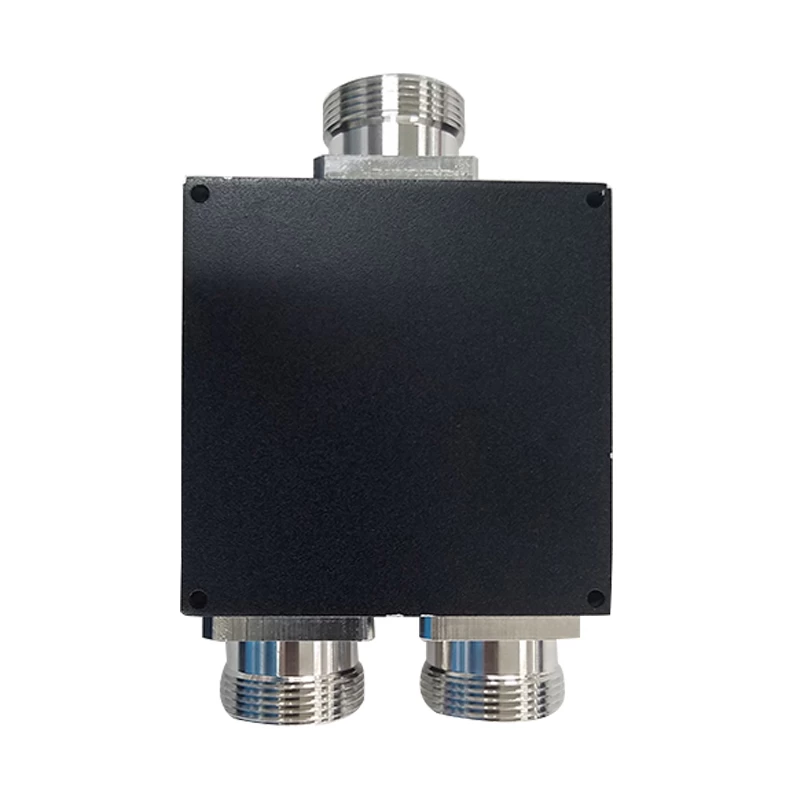

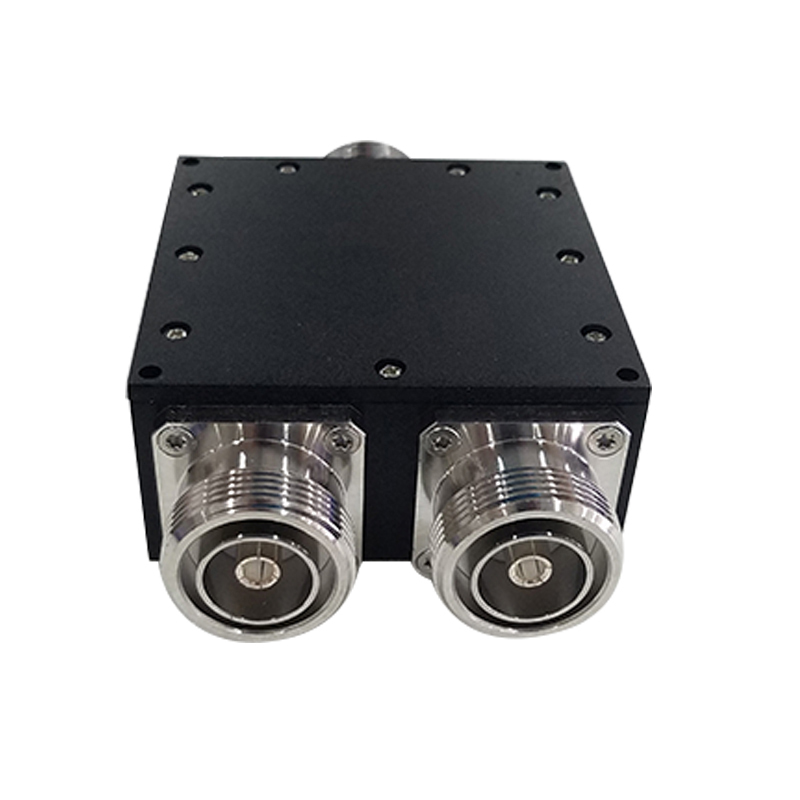

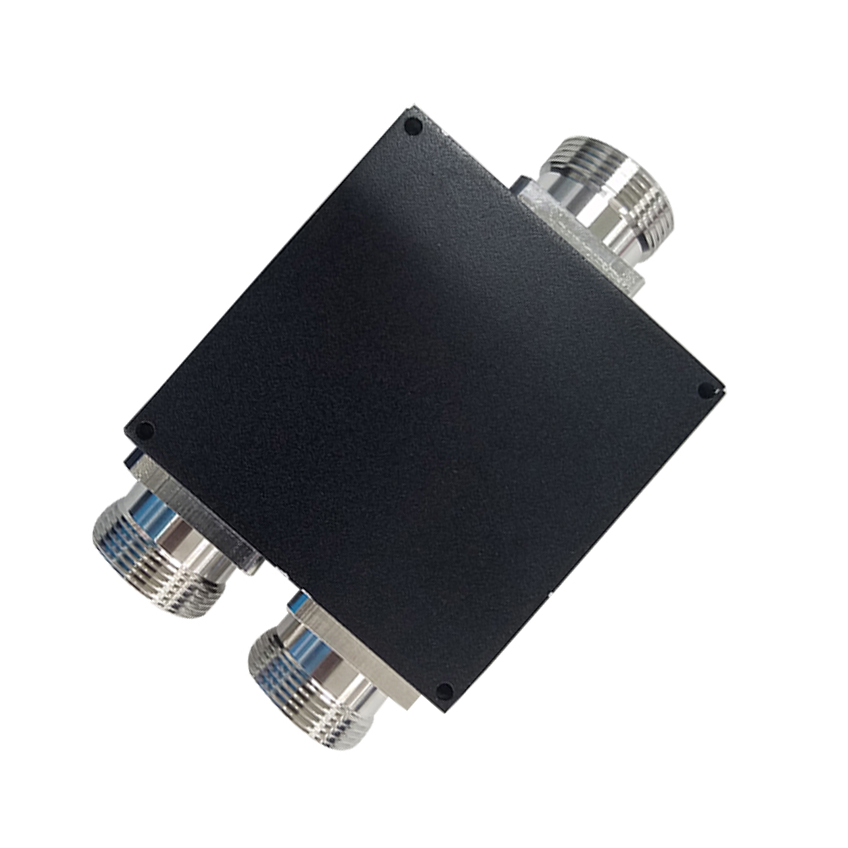

698-2700MHz Low PIM 2Way Wilkinson/Microstrip Power Splitter/Divider/Combiner with 7/16 DIN-F Connector
Maniron 2/3/4way wilkinson power dividers have reliable quality assurance with good performance
Product Features
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆PIM-160dBc@2*43dBm
◆ Widely used for In-building Solutions and Outdoor application.
Technical &Mechanical Specifications
|
Model No.
|
MPSW-727-03-DF-160
|
|
Freq(MHz)
|
698-2700
|
|
Input Port Number
|
1
|
|
Output Port Number
|
2
|
|
Split Loss(dB)
|
3.0
|
|
IL(dB)
|
≤0.5
|
|
Isolation(dB)
|
≧20
|
|
VSWR
|
≤1.25
|
|
3rd PIM (dBc)
|
≤-160dBc@2*43dBm
|
|
Average Power(W)
|
50
|
|
Impedance
|
50 ohm
|
|
Connector
|
7/16 DIN-Female
|
|
Color
|
Black
|
|
WorkingTemp(deg)
|
-35~+65
|
|
Application
|
Indoor or Outdoor, IP65
|
|
Relative Humidity
|
5%-95%
|
|

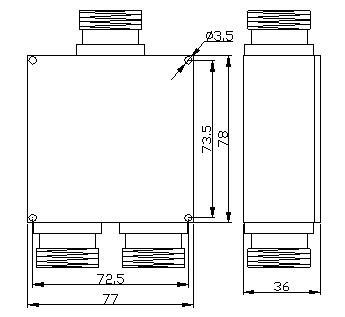

Dimensions(mm)
|
77*78*36
|
|
Net Weight(kg)
|
0.30
|
OUR SERVICES
1. Professional skills support for
698-2700MHz Low PIM 2Way Wilkinson/Microstrip Power Splitter/Divider with 7/16 DIN-F
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
