Product Name

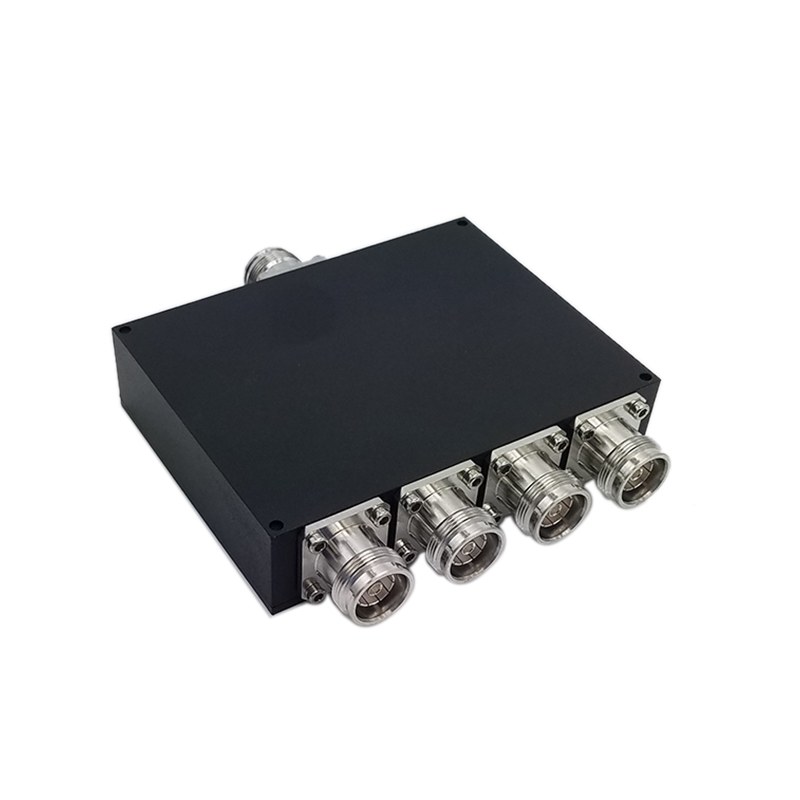

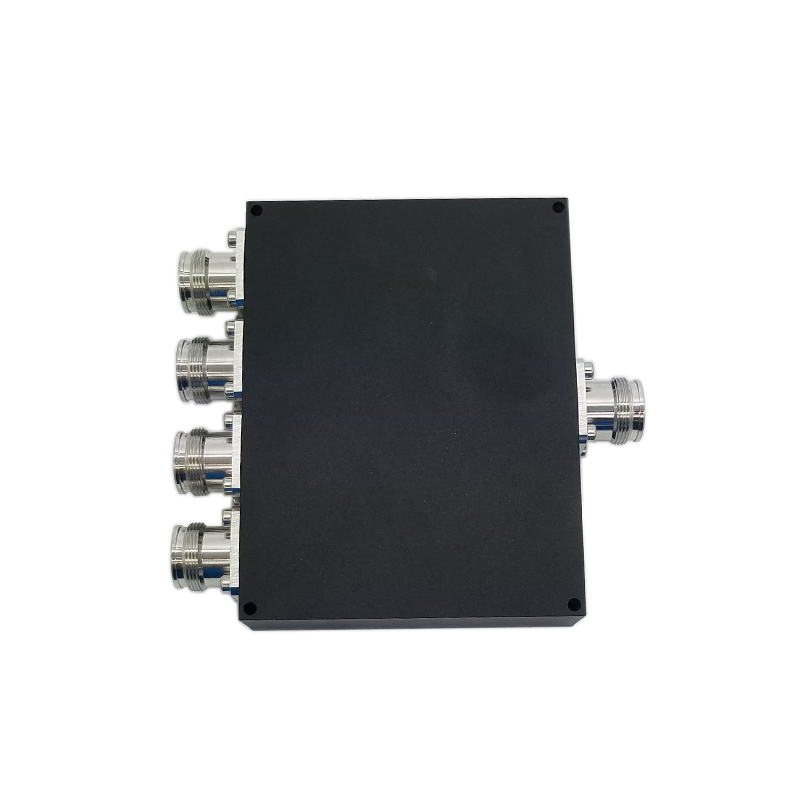

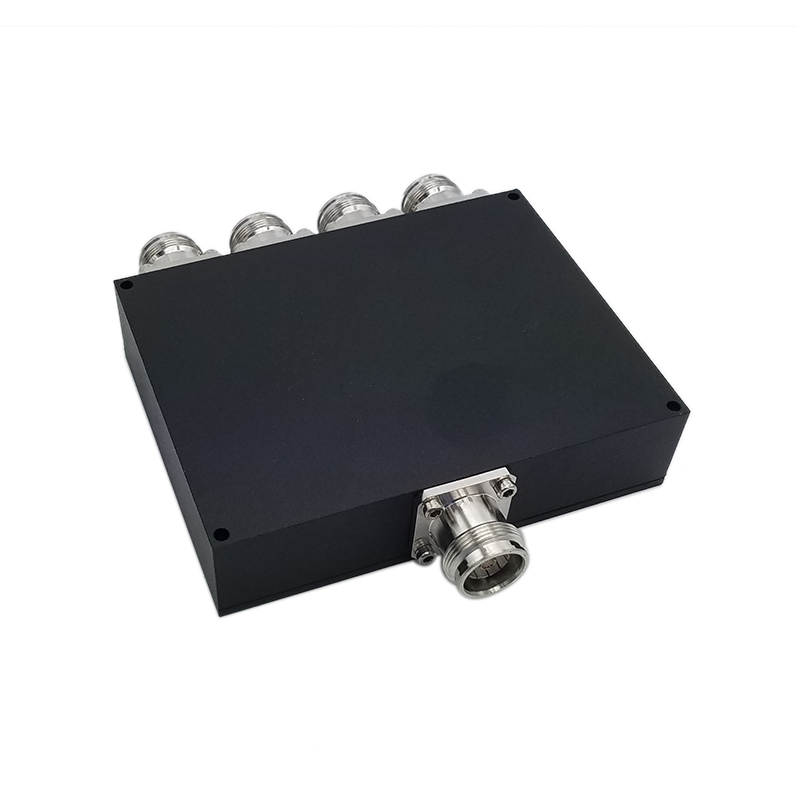

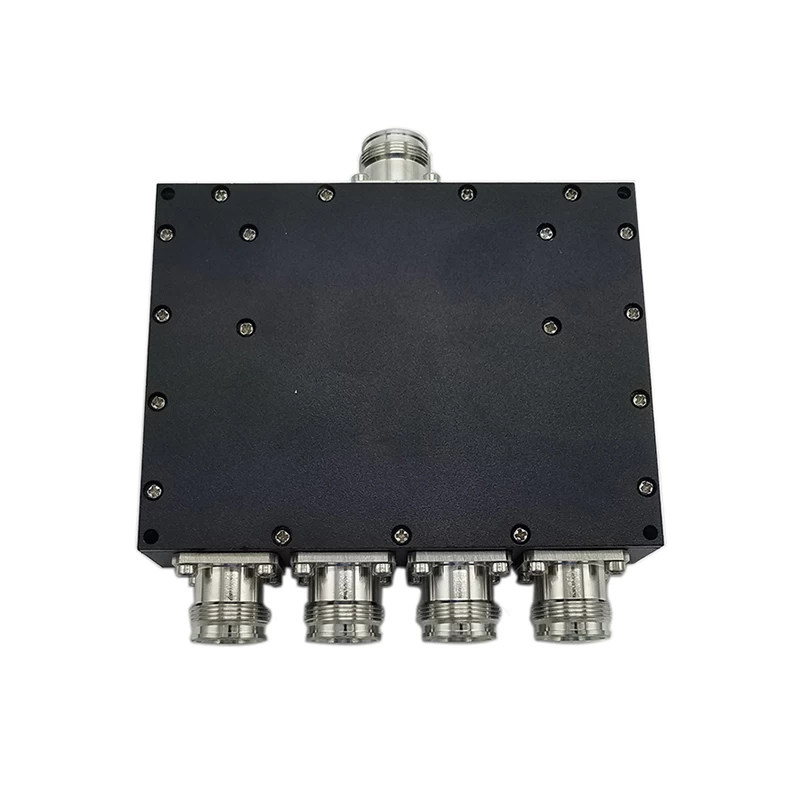

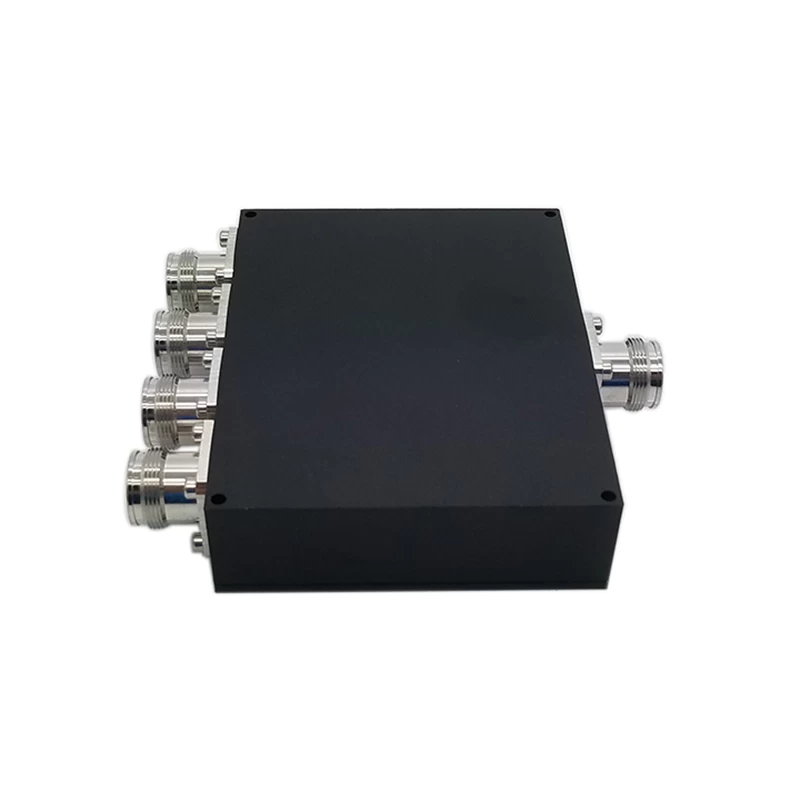

698-2700MHz 4Way Wilkinson/Microstrip Power Splitter/Divider/Combiner with 4310-F
Wilkinson Power Splitter is usually divided into 2way,3way,4way for combining with other components to form the whole system.
Product Features
◆Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆PIM-160dBc@2*43dBm
◆Widely used for In-building Solutions and Outdoor application.
Technical &Mechanical Specifications
|
Model No.
|
MPSW-727-04-4F-160
|
|
Freq(MHz)
|
698-2700
|
|
Input Port Number
|
1
|
|
Output Port Number
|
4
|
|
Split Loss(dB)
|
6.0
|
|
IL(dB
|
≤0.7
|
|
Isolation(dB)
|
≧18
|
|
VSWR
|
≤1.30
|
|
3rd PIM (dBc)
|
≤-160dBc@2*43dBm
|
|
Average Power(W)
|
50
|
|
Impedance
|
50 ohm
|
|
Connector
|
4.3-10 Female
|
|
Color
|
Black
|
|
WorkingTemp(deg)
|
-35~+65
|
|
Application
|
Indoor or Outdoor, IP65
|
|
Relative Humidity
|
5%-95%
|
|
Dimensions(mm)
|
123.5*95*29
|
|
Net Weight(kg)
|
0.63
|
OUR SERVICES
1. Professional skills support for
698-2700MHz Low PIM 4Way Wilkinson/Microstrip Power Splitter/Divider with 4310-F
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
