Product Name
698-2700MHz High Gain 7dBi Panel Antenna
Product Features
◆with Wide Frequency Band 698-2700MHz
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ High Gain with 7dBi
◆ Widely used for In-building Solutions
Panel Antenna Operates From 698 MHz to 2700 MHz With a Nominal 7 dBi Gain N Female Input Connector
Antenna from Maniron is featured in our extensive in-stock radio frequency omni directional antenna selection.It has a frequency range of and 7 dBi gain
Technical &Mechanical Specifications
|
Model No.
|
MNA-7987V9i65A
|
|
Freq(MHz)
|
698-960/1710-2700MHz
|
|
Polarization
|
Vertical
|
|
Gain(dBi)
|
≥7
|
|
Vertical beam width
|
58
|
|
Horizontal Beamwidth
|
70
|
|
Front-to-back ratio(dB)
|
≥18
|
|
Impedance- Ω
|
50
|
|
Maximum power(W)
|
100
|
|
VSWR
|
≤1.5
|

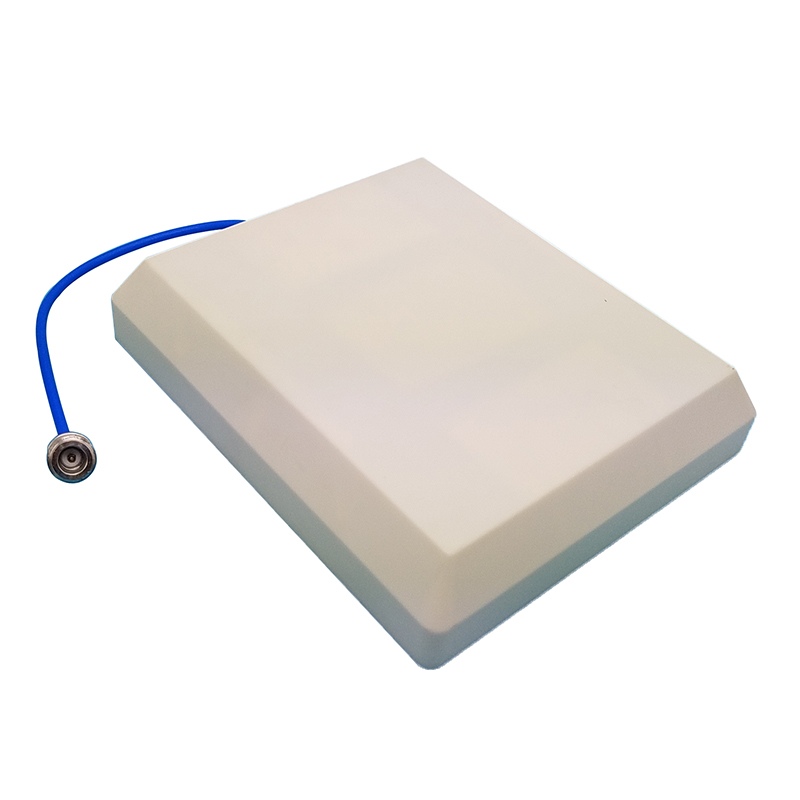

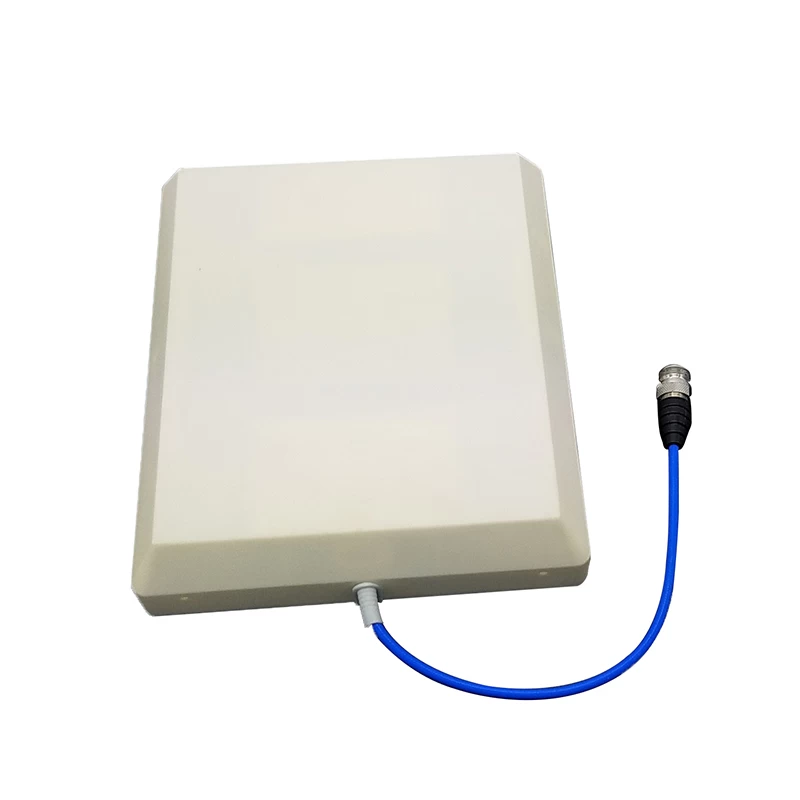

Products Pictures
