Product Name

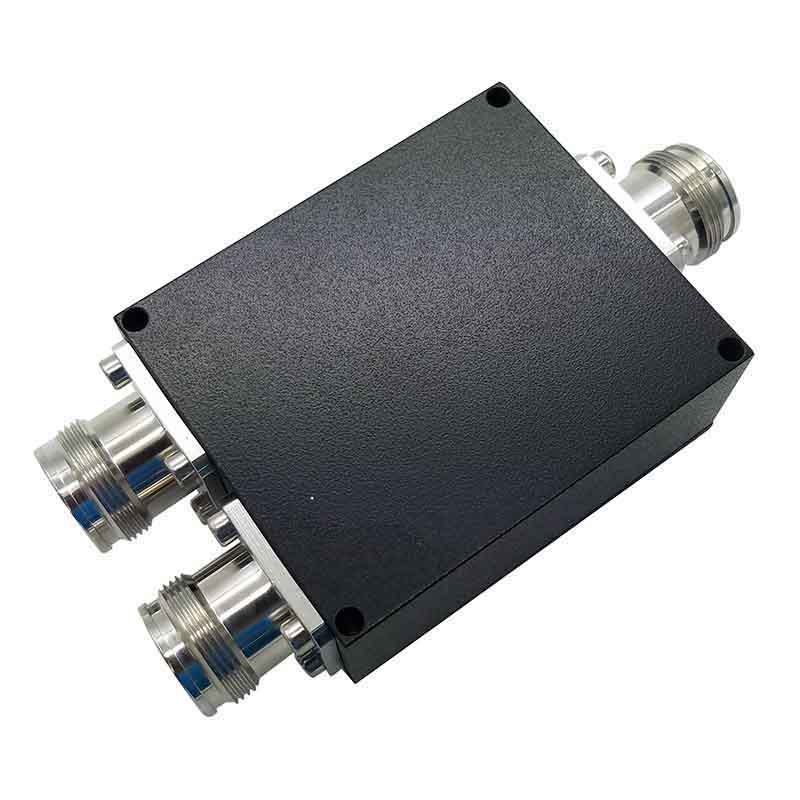

698-2700MHz 2Way Low PIM Wilkinson/Microstrip Power Splitter/Divider with 4310-F,
RF Passive components used in DAS (Distributed Antenna System) for enterprise, carrier and public safety applications. Components include couplers, power splitters, tappers, and loads.
Product Features
◆Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆PIM-160dBc@2*43dBm
◆Widely used for In-building Solutions and Outdoor application.
Technical &Mechanical Specifications
|
Model No.
|
MPSW-727-03-4F-160
|
|
Freq(MHz)
|
698-2700
|
|
Input Port Number
|
1
|
|
Output Port Number
|
2
|
|
Split Loss(dB)
|
3.0
|
|
IL(dB)
|
≤0.5
|
|
Isolation(dB)
|
≧20
|
|
VSWR
|
≤1.25
|
|
3rd PIM (dBc)
|
≤-160dBc@2*43dBm
|
|
Average Power(W)
|
50
|
|
Impedance
|
50 ohm
|
|
Connector
|
4.3-10 Female
|
|
Color
|
Black
|
|
WorkingTemp(deg)
|
-35~+65
|
|
Application
|
Indoor or Outdoor, IP65
|
|
Relative Humidity
|
5%-95%
|
|

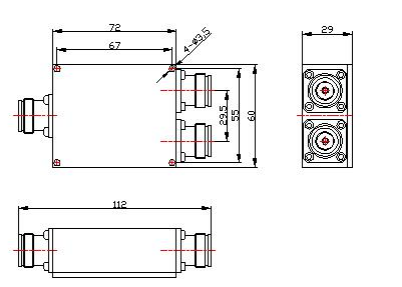

Dimensions(mm)
|
72*60*29
|
|
Net Weight(kg)
|
0.25
|
OUR SERVICES
1. Professional skills support for RF Passive Components 698-2700MHz Low PIM 2Way Wilkinson/Microstrip Power Splitter/Divider with 4310-F
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
