698-2700MHz SISO Directional Wall Mount Antenna Low PIM -150dBc -160dBc

The directional antenna is used as a system to determine the angular direction of incoming radio signals.



Product Name

698-2700MHz Low PIM SISO Directional Wall Mount Antenna


Product Features

Panel Antenna with Wide Frequency Band 698-2700MHz

2G/3G/4G/LTE Coverage

Low VSWR/Low PIM

High Gain with 8dBi

Widely used for In-building Solutions



Panel Antenna Operates From 698 MHz to 2700 MHz With a Nominal 8 dBi Gain N Female Input Connector

Antenna from Maniron is featured in our extensive in-stock radio frequency directional antenna selection.It has a frequency range of and 7 dBi gain.

It's low PIM -150dBc@2*2W




Technical &Mechanical Specifications

Model No.

MNL-PAT-627-NF-SISO

Freq(MHz)

698-960/1710-2700MHz

Polarization

Vertical

Gain(dBi)

≥7

Vertical beam width

65

Horizontal Beamwidth

75

Front-to-back ratio(dB)

≥10

Impedance- Ω

50

Maximum power(W)

50

VSWR

≤1.5

PIM
150dBc@2*2W

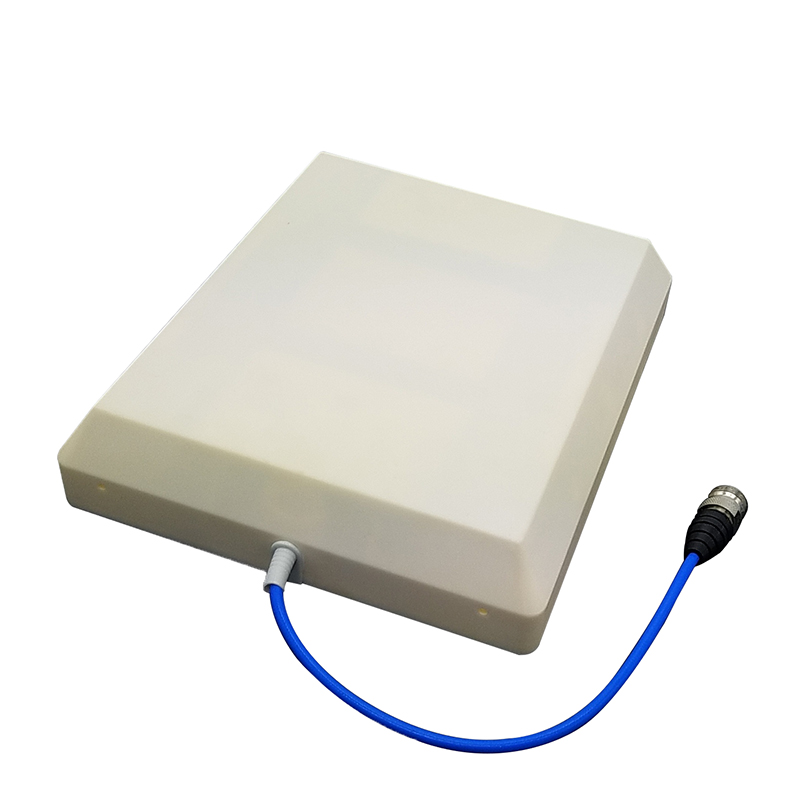

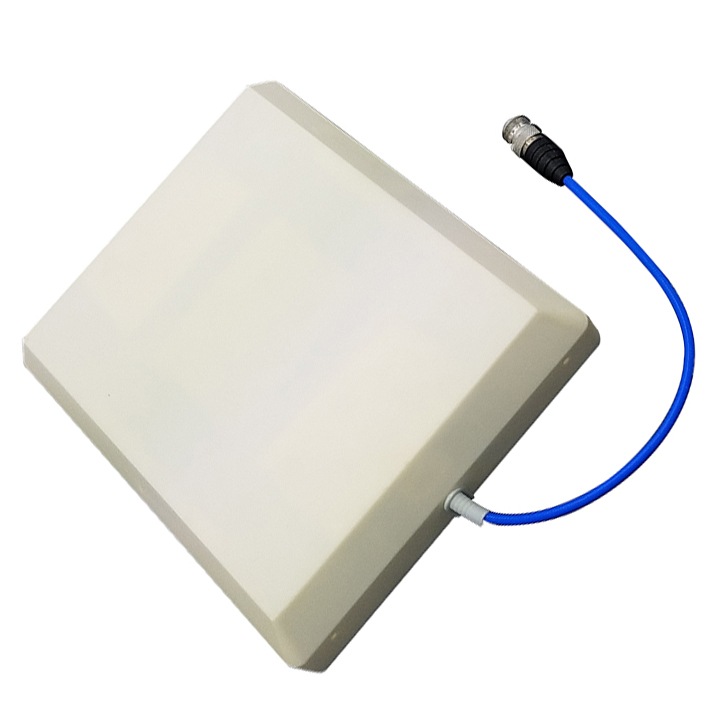

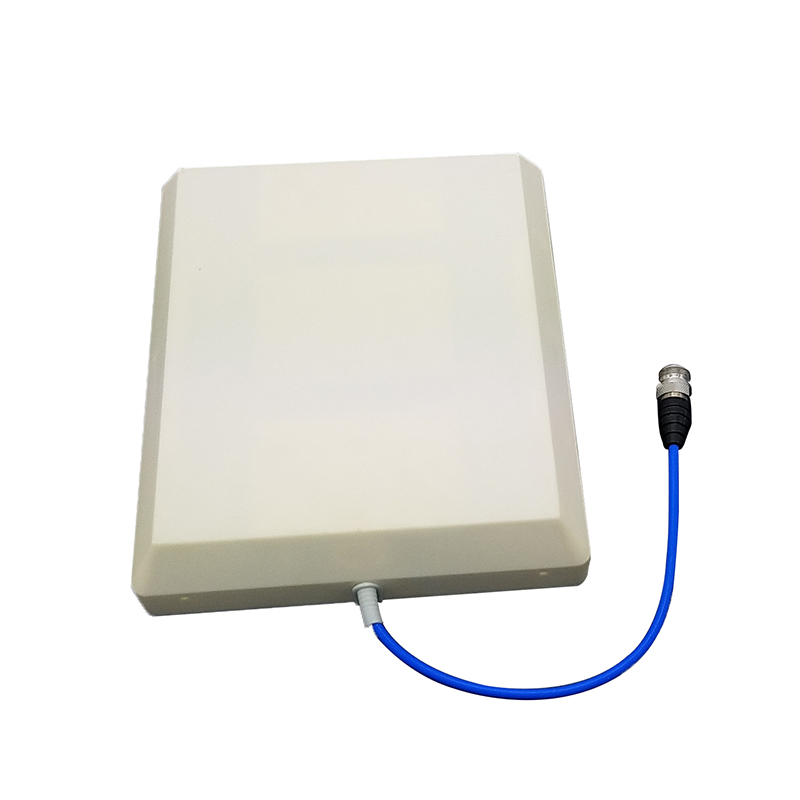

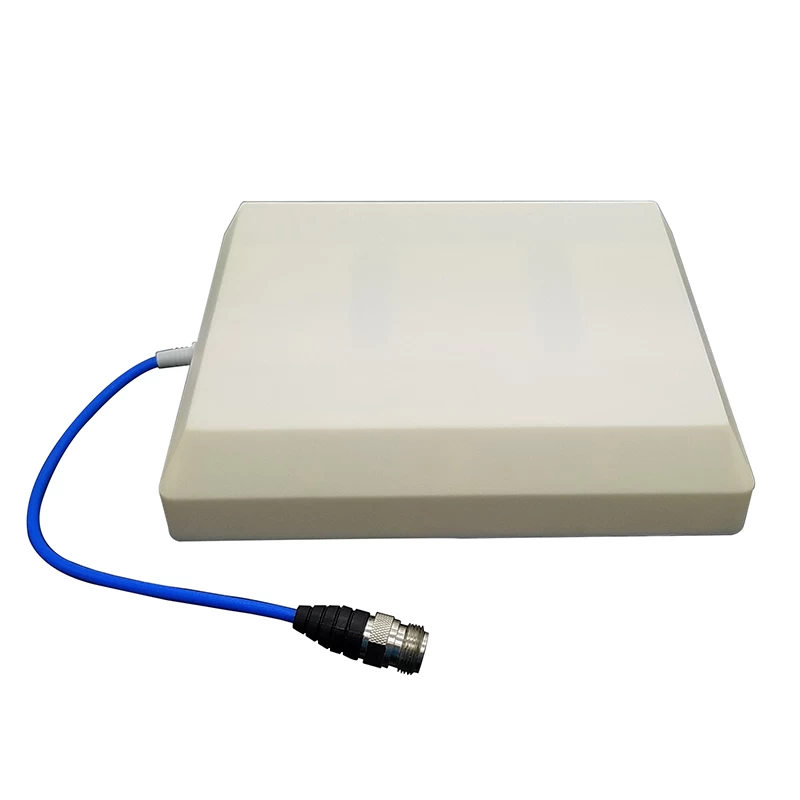

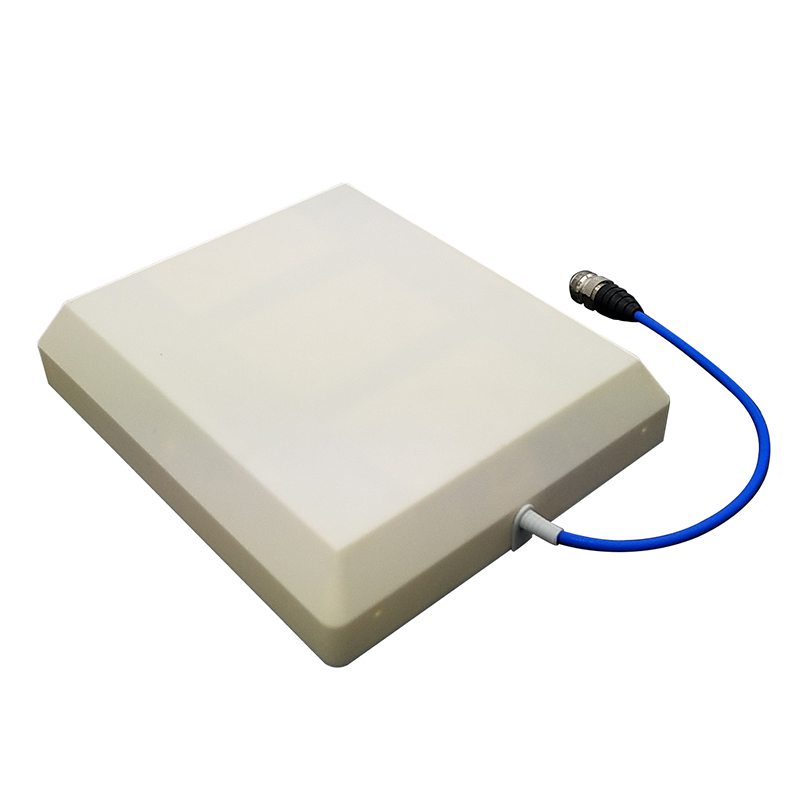

Products Pictures
