Product Name

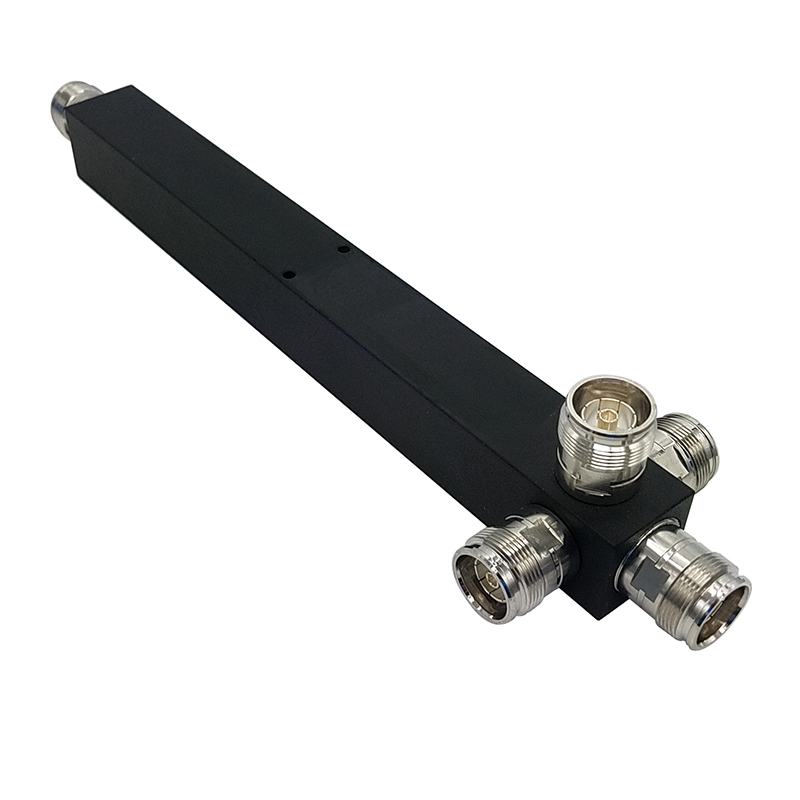

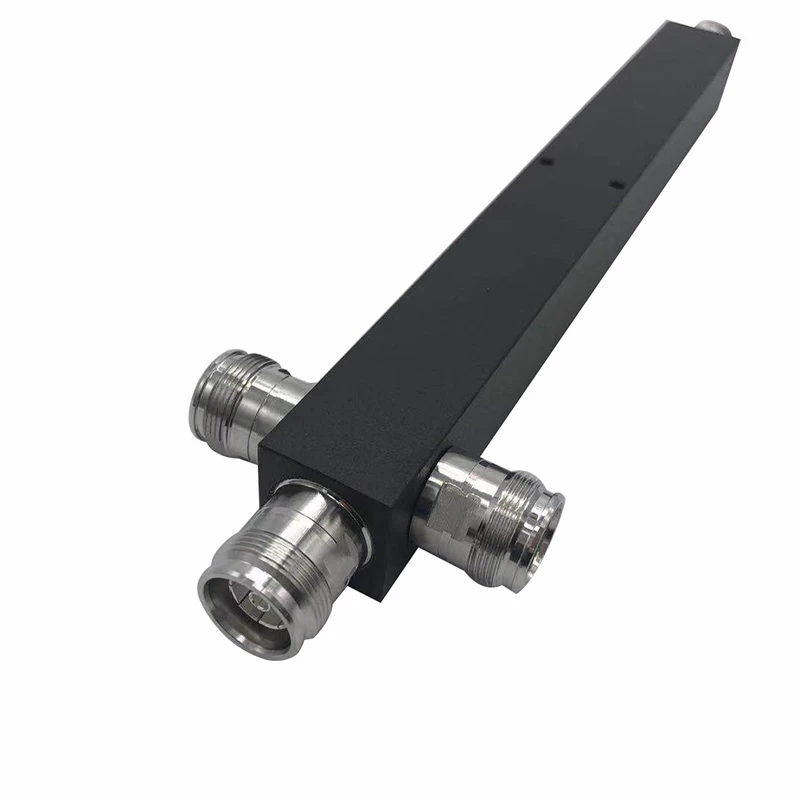

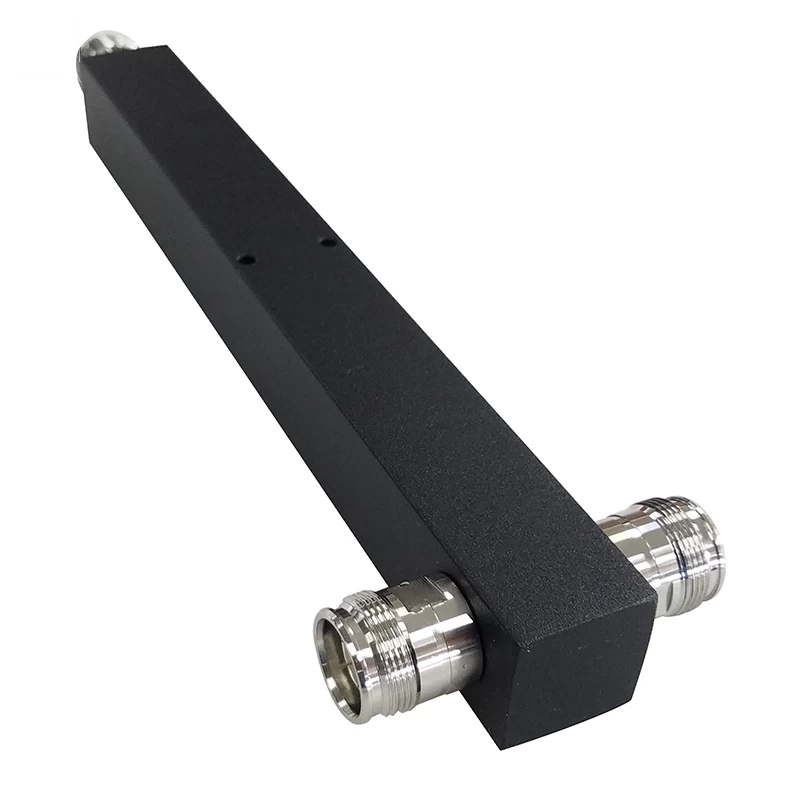

698-3800MHz 2Way/3Way/4Way Cavity Power Splitter/Divider with 4310-F
These Wideband Cavity Power Dividers are used for 5G market,NF and DIN F type are also available
Product Features
◆Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆PIM-160dBc@2*43dBm
◆ Widely used for In-building Solutions and Outdoor application.

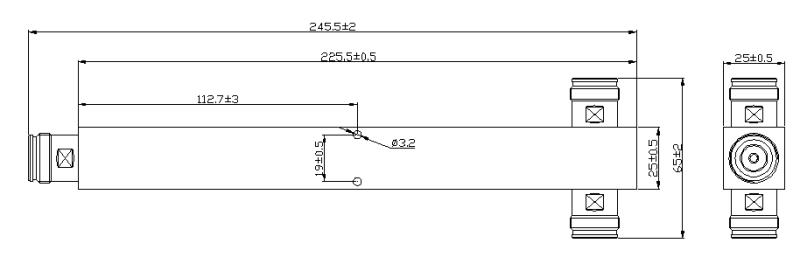

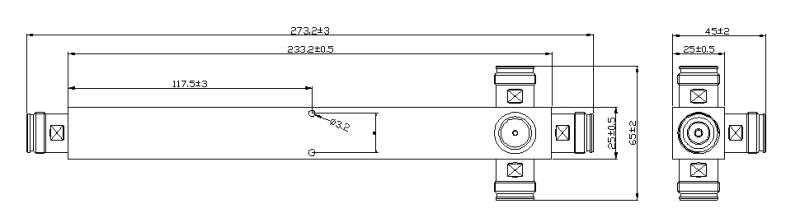

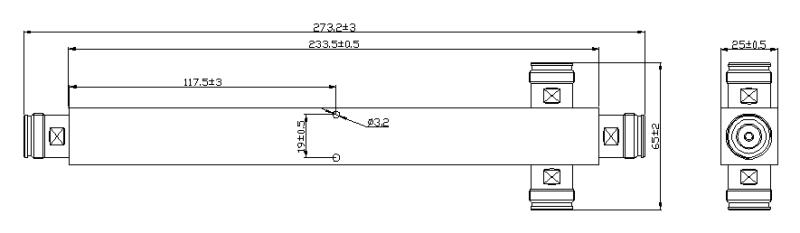

Technical &Mechanical Specifications
|
Model No.
|
MPS-738-02-4F-160
|
MPS-738-03-4F-160
|
MPS-738-04-4F-160
|
|
Freq(MHz)
|
698-3800
|
|
Input
|
2-way
|
3-way
|
4-way
|
|
Split Loss(dB)
|
3.0
|
4.8
|
6.0
|
|
IL(dB)
|
≤0.3
|
≤0.4
|
0.4
|
|
VSWR
|
≤1.3
|
|
PIM(dBc)
|
≤-160dBc@2*43dBm(698-3800)
|
|
Power(W)
|
300
|
|
Impedance
|
50 ohm
|
|
Connector
|
4310-female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|
OUR SERVICES
1. Professional skills support for
698-3800MHz High Power 2Way/3Way/4Way Cavity Power Splitter/Divider with 4310-F,PIM-160dBc
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
