Product Name

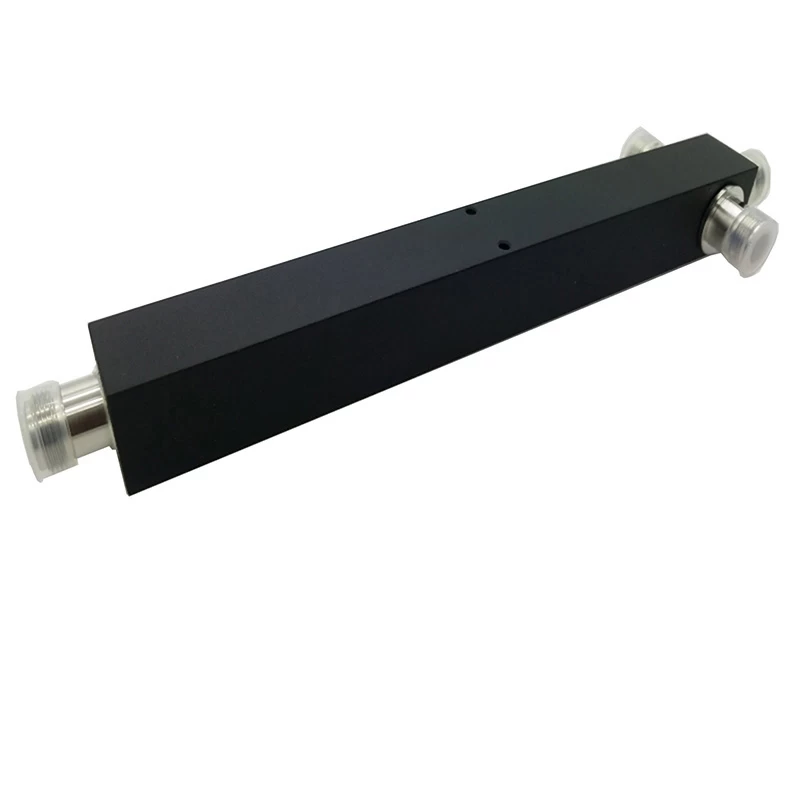

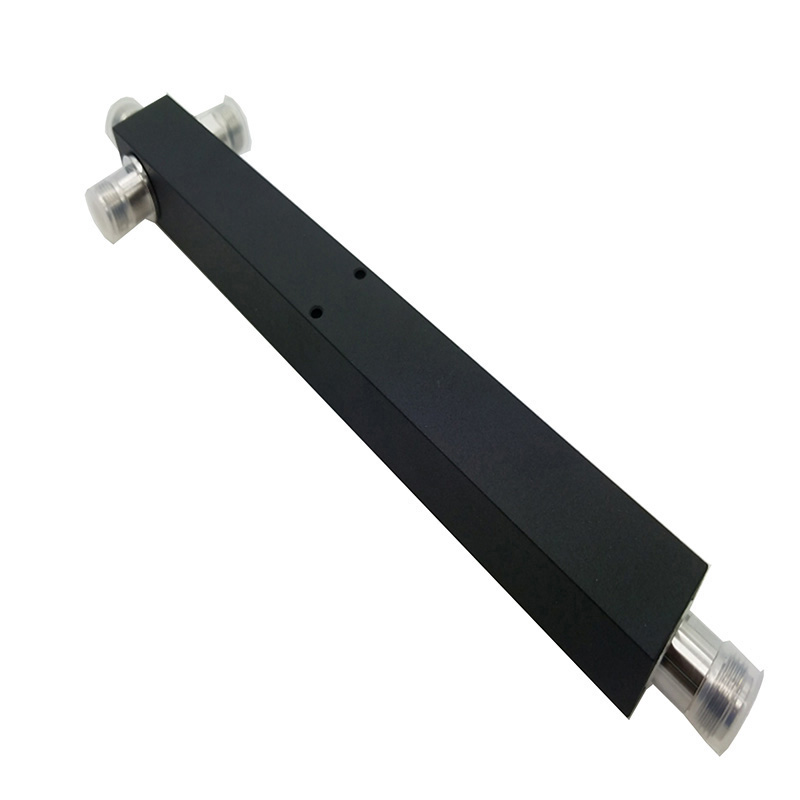

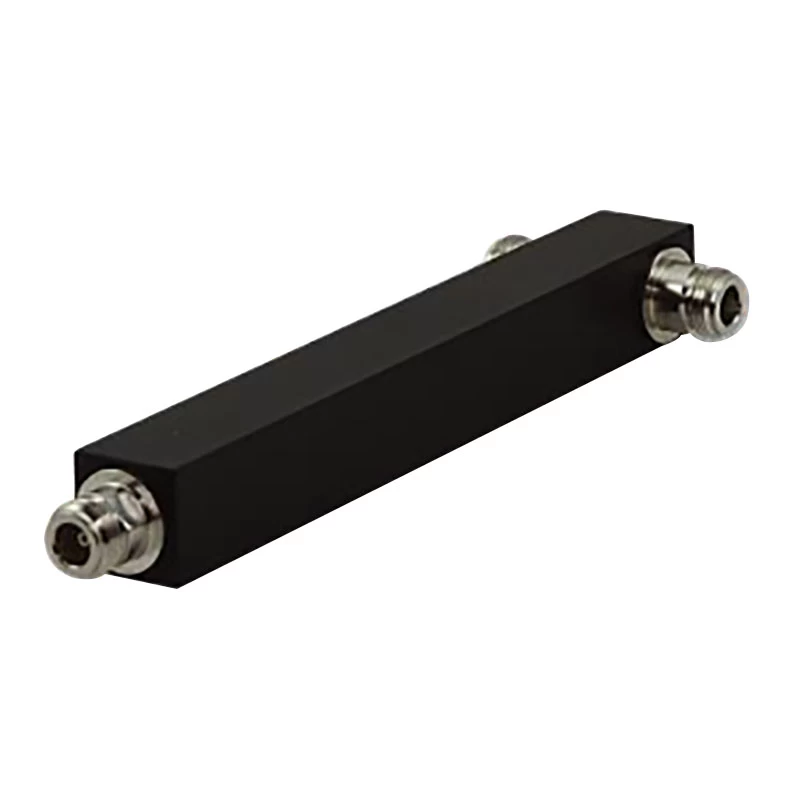

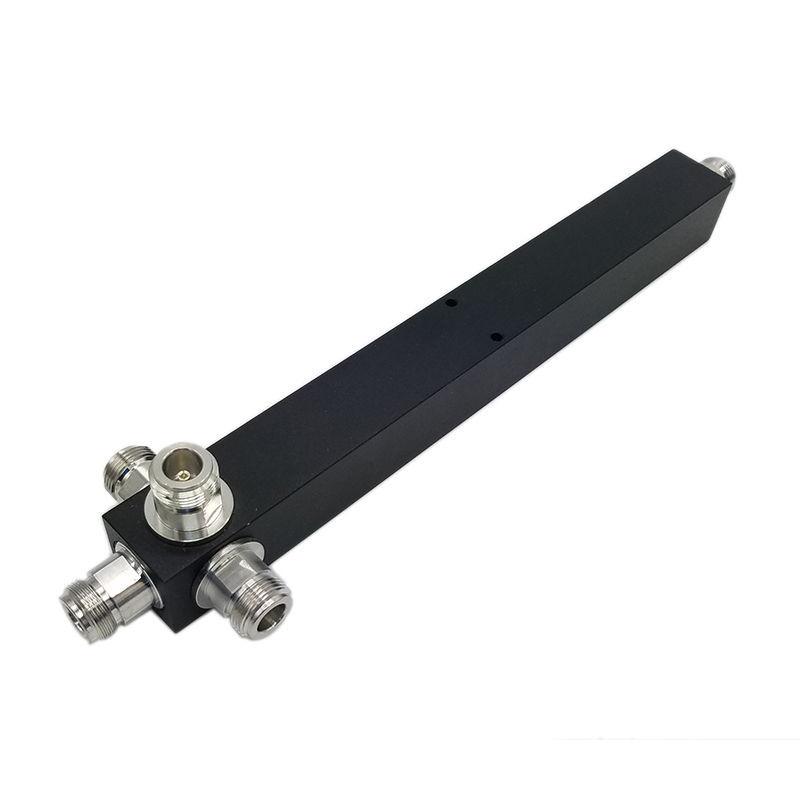

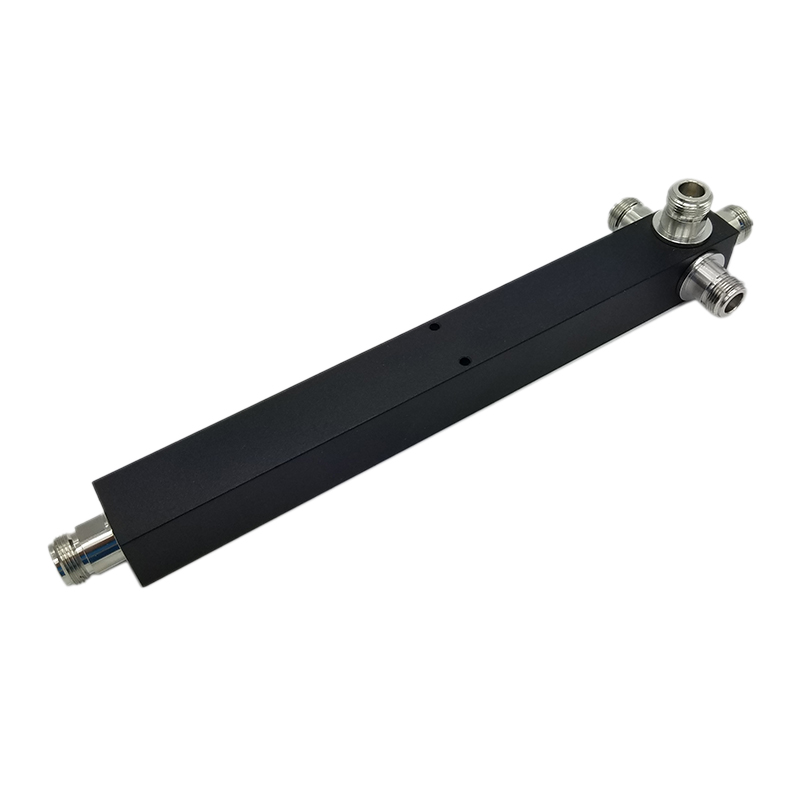

698-3800MHz 2Way/3Way/4Way Cavity Power Splitter/Divider with N-F
Wideband Splitters are use for 5G market with high quality and Good Performance
Product Features
◆Low VSWR
◆ Low Insertion Loss
◆ Indoor or outdoor Application
◆PIM-160dBc@2*43dBm
◆ Widely used for In-building Solutions and Outdoor application.

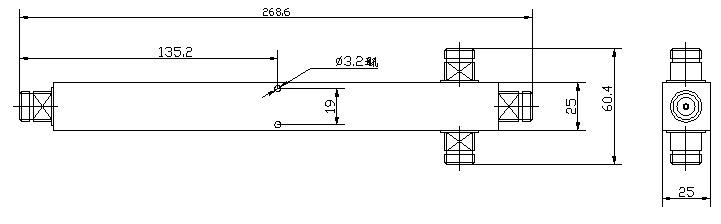

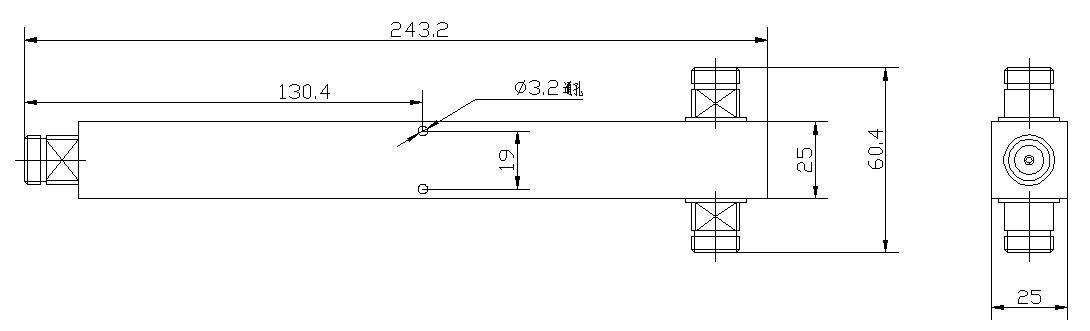

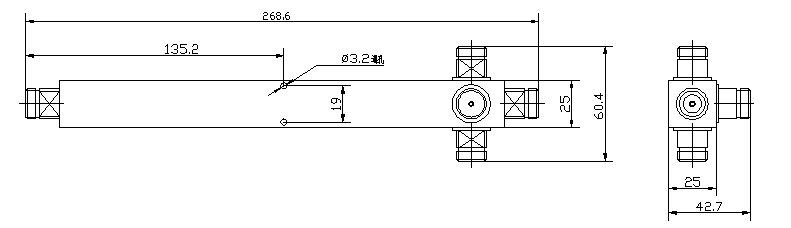

Technical &Mechanical Specifications
|
Model No.
|
MPS-738-02-NF-160
|
MPS-738-03-NF-160
|
MPS-738-04-NF-160
|
|
|
Freq(MHz)
|
698-3800
|
|
Input
|
2-way
|
3-way
|
4-way
|
|
|
Split Loss(dB)
|
3.0
|
4.8
|
6.0
|
|
|
IL(dB)
|
≤0.3
|
≤0.5
|
≤0.5
|
|
|
VSWR
|
≤1.3
|
|
PIM(dBc)
|
≤-160dBc@2*43dBm(698-2700MHz)
|
|
Power(W)
|
200
|
|
Impedance
|
50 ohm
|
|
Connector
|
N-female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|
|
Application
|
Indoor or Outdoor, IP65
|
OUR SERVICES
1. Professional skills support for
Good Performance Low PIM-160dBc 698-3800MHz 2Way/3Way/4Way Cavity Power Splitter/Divider with N-F
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
