Product Name

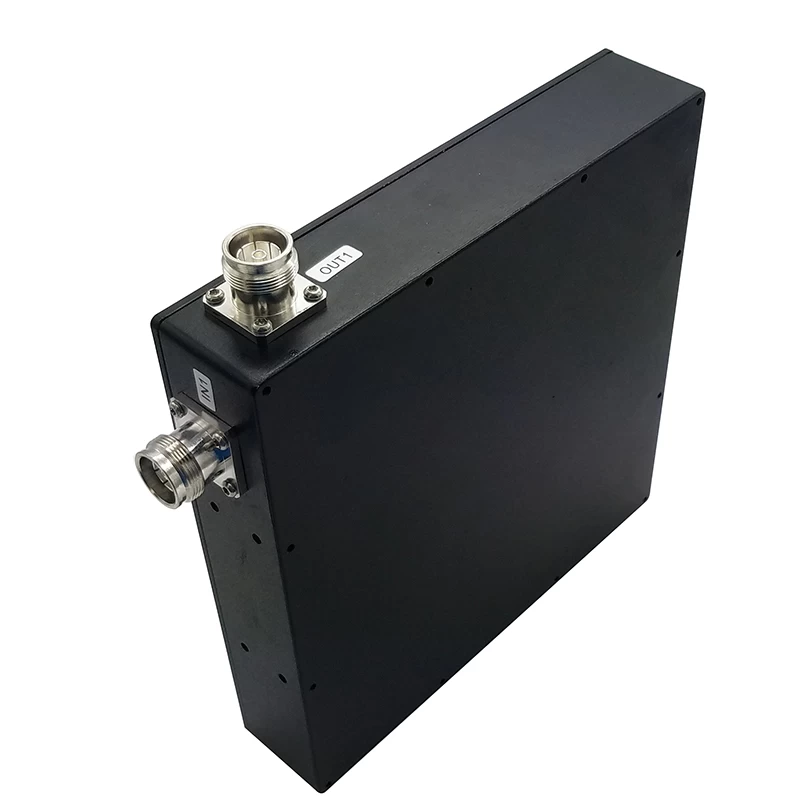

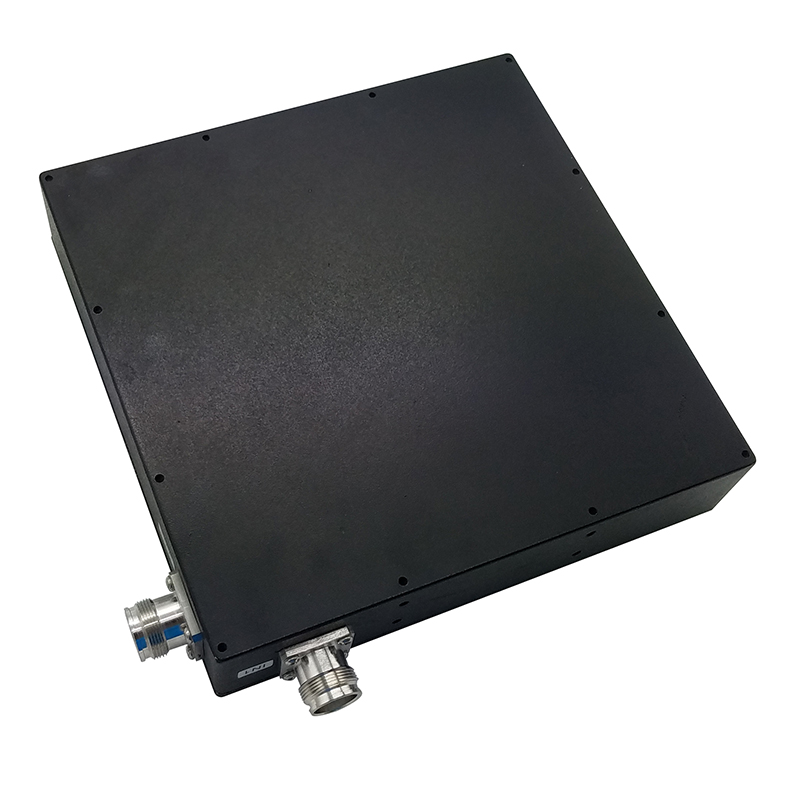

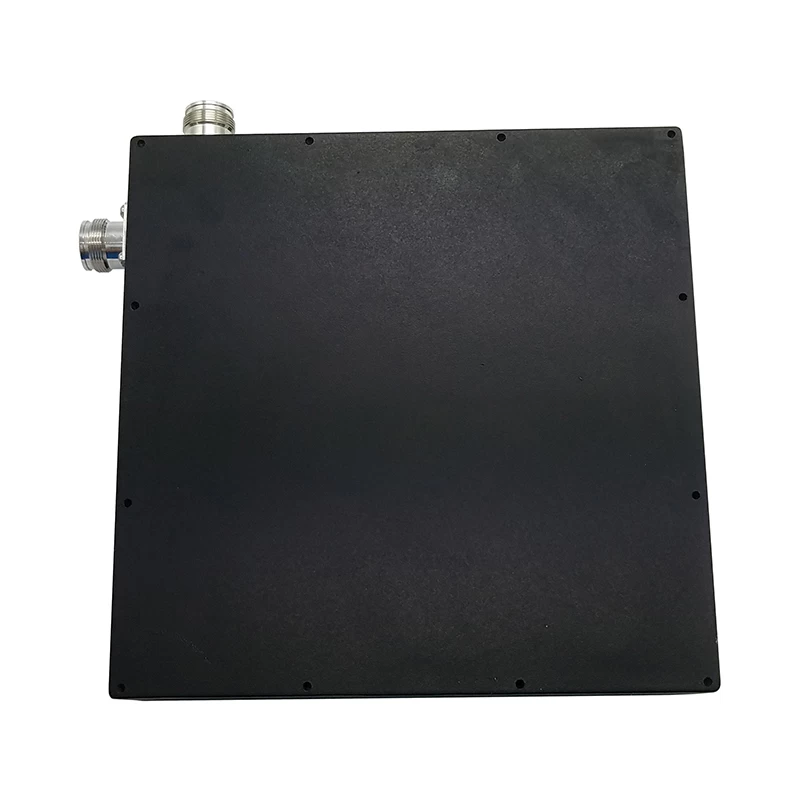

5W RF ATTENUATORS (698-4000MHz, 4.3-10-female/female, -160dBc)
698-4000MHz 5W Low PIM RF Attenuator is widely frequency band( 2G/3G/4G/LTE Coverage) and Low Attenuation Accuracy.5W Low PIM RF Attenuator is Low PIM and widely used in IBS &DAS system.
Product Features
◆ Wide Frequency Band 698-4000MHz
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Low Passive Intermodulation -160dBc
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
MNA-740-5-XX-41-160
|
|
Freq(MHz)
|
698-4000
|
|
VSWR
|
≤1.25
|
|
Attenuation(dB)
|
3/5/6
|
10
|
15
|
20
|
30
|
/
|
|
Accuracy(dB)
|
±0.8
|
±0.8
|
±1.0
|
±1.2
|
±1.5
|
/
|
|
PIM (dBc)
|
≤-160dBc@2*43dBm (698-2700)
|
|
Average Power(W)
|
5W
|
|
Impedance
|
50 ohm
|
|
Connector
|
4.3-10- female/female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|
Mechanical Drawing
