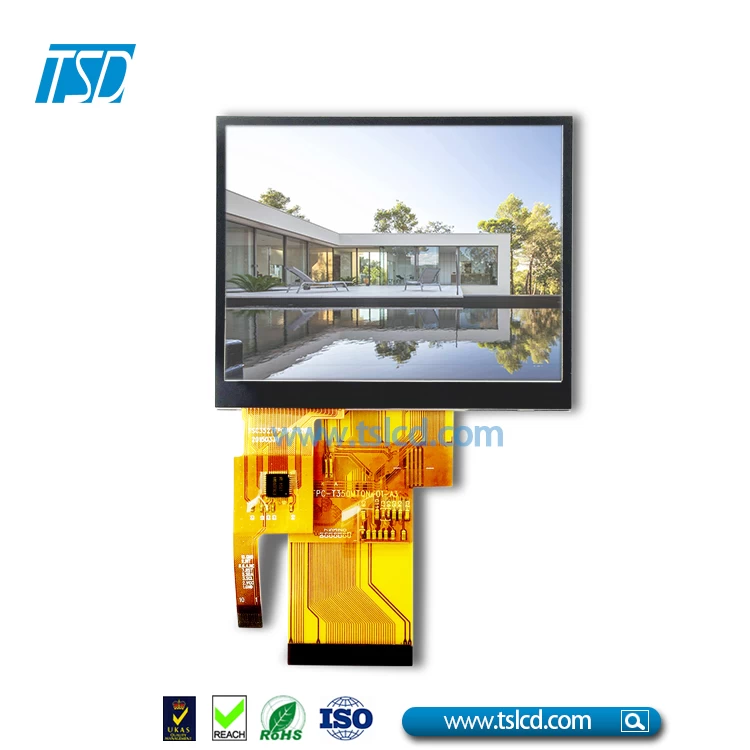

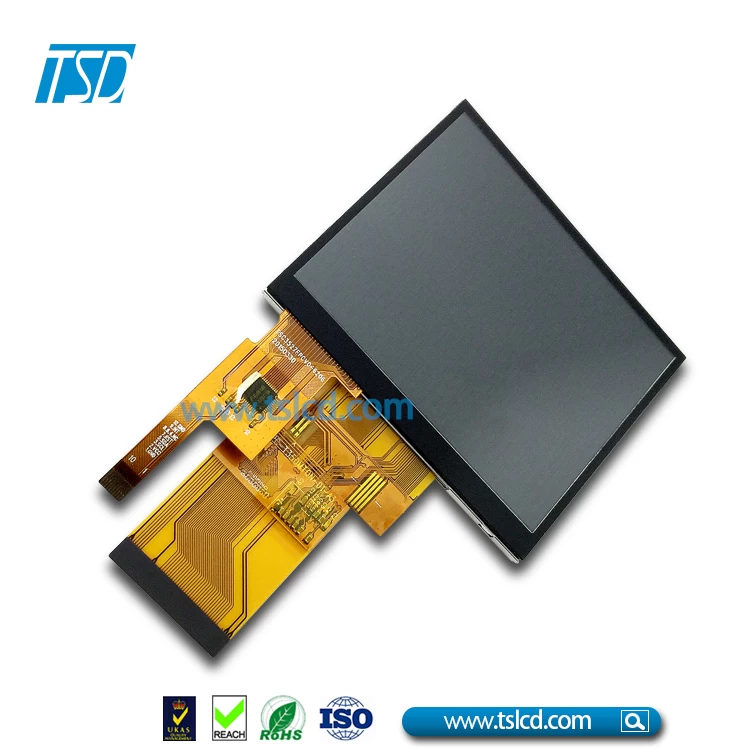

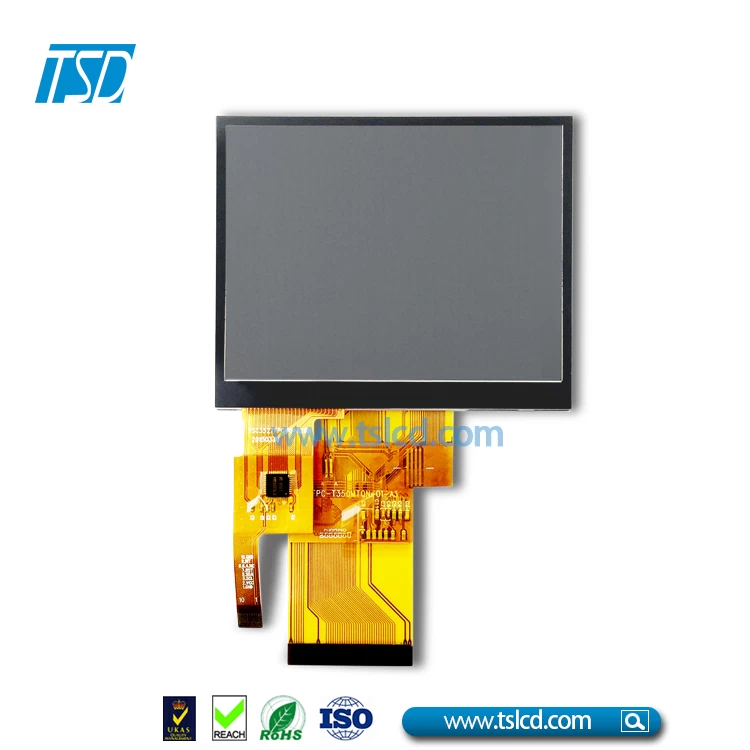

3.5 inch tft LCD
DISPLAY QVGA 320x240 dots landscape type
6H viewing angle 3.5inch 320x240 Dots with 54pin RGB interface
|
Specification
|
|
LCD type
|
3.5 inch tft lcd, Transmissive
|
|
Display type
|
3.5 inch TFT,16.7M color, normal white
|
|
Item description
|
3.5" tft lcd screen, 12H view direction, 54pins
|
|
Driver element
|
a-si TFT Active matrix
|
|
Outline Dimension(mm)
|
76.75(W) x 63.7(H) x3.27(D)
|
|
A.A.(mm)
|
70.08(W) x 52.56 (H)
|
|
Driver IC
|
HX8238
|
|
Resolution(dots)
|
320x240 resolution
|
|
Viewing Direction
|
12H
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
240(H)x 3RGB x 320(V)
|
|
Pixel Pitch
|
0.219x0.219
|
|
Logic Volatge
|
2.8v
|
|
Pixel arrangement
|
RGB Vertical Stripe
|
|
Display mode
|
Normally white
|
|
Interface
|
54pins, RGB interface
|
|
Backlight
|
6 LEDs serial, White
|
|
Weight(g)
|
29.3
|
|
Interface
|
RGB
|
|
Module lifetime(Hours)
|
50,000-100,000
|
