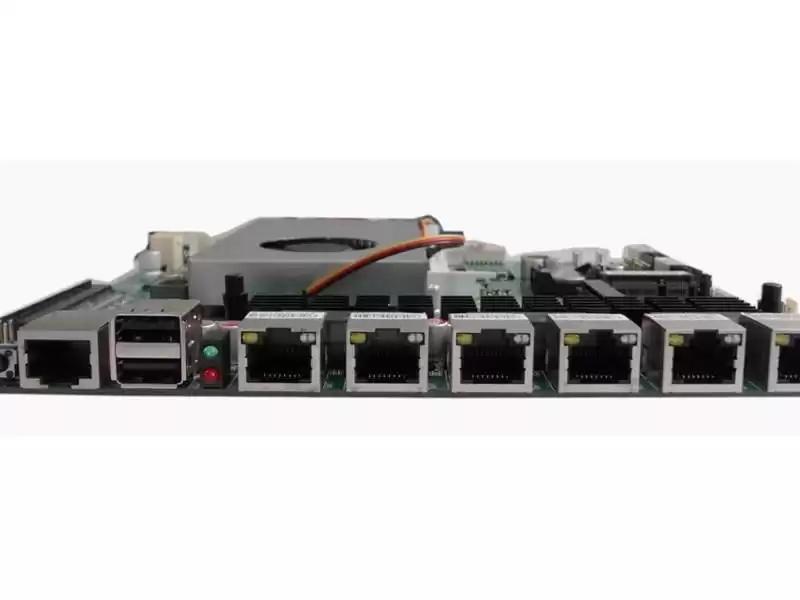

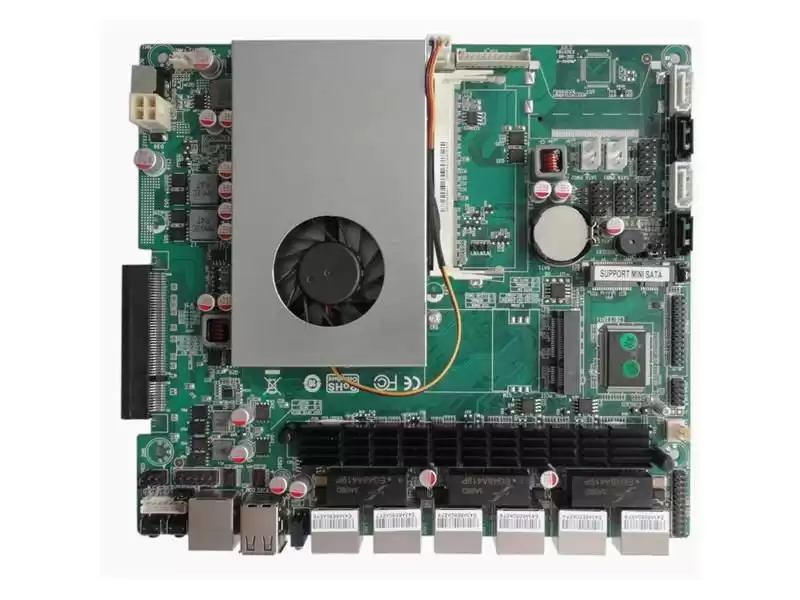

6LAN motherboard 6 Intel i226 2.5GbE network ports, Network Security Platform

NSP-HM76V6N

6LAN motherboard, Network Security Platform, Intel® HM76 chip support 2nd 3rd notebook CPU , 6 Intel i226 2.5GbE network ports, 1 PCIEx8 expansion slot



Network Security Platform motherboard,Intel® HM76 chip, 6 Intel i226 2.5GbE network ports, 1 PCIEx8 expansion slot



Product Introduction

Network security platform motherboards are usually equipped with powerful processors, memory and other hardware resources to support complex security algorithms and real-time traffic analysis. These hardware capabilities ensure high-performance network traffic processing and threat detection.



Specification

CPU/GPU

Supports 2nd and 3rd generation notebook CPUs, such as: I3 3110M; I5 3230M; I7 3520M; I7 3630QM, etc..

System Chip

Intel@ PCH HM76

Memory

1 x DDR3 SO-DIMM notebook slot, up to 8GB SDRAM

Storage

3×SATA ,1×M-SATA

NIC

6 Intel i226 2.5GbE NIC

Graphic Card

CPU integrated graphic

Display interface

1×VGA

USB2.0

6

USB3.0

None

Wireless

None

COM

2COM  RS232(1 × RJ45,1 board pin)

Backplane  I / O

Power, Reset switch; RJ45COM; 2USB2.0; PWR, HDD indicator; 6RJ45 LAN

Board I / O

4USB, 1COM,CLR_CMOS,CPU fan power, System fan power,GPIO,Front panel , 4P DC in,        Print, Debug

Expansion

PCIE x8

System

Support Windows(WIN 7,  WIN 10...),  Linux

Mechanical & Environmental

Power supply

DC  12V

Heat dissipation

Heat sink

Size(L×W)

241mm×244mm

Working temperature

-15~55℃

Storage temperature

-40~75℃

Environmental humidity

0~90% air humidity,non-condensing

Packing List

NSP-HM76V6N motherboard ×1,   SATA data cable ×1,   SATA power cable×1



Product Features

  • Intel HM76 chip, supporting 2nd and 3rd generation notebook CPU
  • 6 Intel i226 2.5GbE network ports
  • VGA pin display interface
  • 2COM (1 RJ45), 6USB2.0
  • 1 MSATA, 1 MINI PCIE, optional CF card holder
  • Ultra Slim



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.
