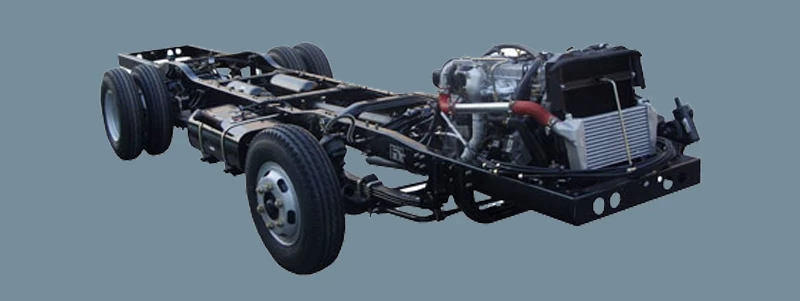

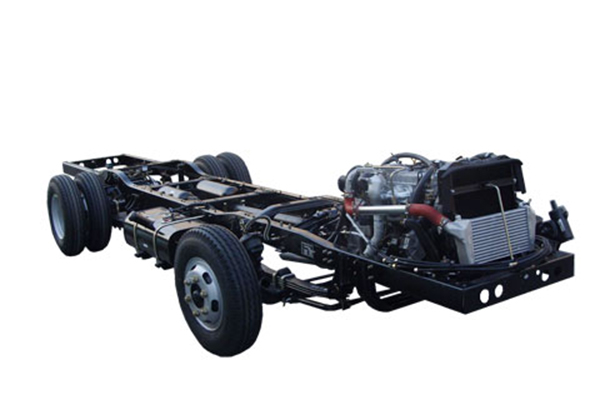

7.7 m front engine Coaster chassis
|
|
|
|
|
Dimension（mm）
|
7525*1979
|
|
wheel base（mm）
|
4435
|
|
front /rear tread (mm)
|
1665/1525
|
|
front suspension/rear suspension (mm)
|
1080/2010
|
|
Max speed(km/h)
|
100
|
|
self weight(kg)
|
2800
|
|
Max weight(kg)
|
6650
|
|
Engine
|
Cummins EBQ140-20 diesel ;front mounted,
Rated power 103/1500 (kw/rpm)
Max torque 502/1500 (Nm/rpm)
|
|
Gearbox
|
LC6T55
Ratio: 6.482/3.654/2.263/1.477/1/0.770 R=5.99
|
|
Clutch
|
single dry spring clutch 350 diameter
|
|
Front axle
|
JAC axle 2.5T
|
|
Rear axle
|
HEFEI axle 4.5T ratio 4.875
|
|
Suspension
|
steel leaf spring with front stablizor bar
|
|
Steering
|
power steering
|
|
Brake system
|
air brake with air dryer, size 320,100/100
|
|
cooling
|
copper radiator
|
|
electrical
|
alternator 24V70A
Battery 120Ah x 2
|
|
Tyre
|
7.50R16 14PR, with spare tyre
|
|
ABS
|
YES
|
|
exhaust brake Assist
|
YES
|
Note: we are able to customize different chassis length with different specification for citybus and coach.
Chassis length can be 6m to 12m, low entry and low floor type.
Engine can be Cummins, Yuchai, Weichai and other brands.
for other specification, welcome to enquiry.
