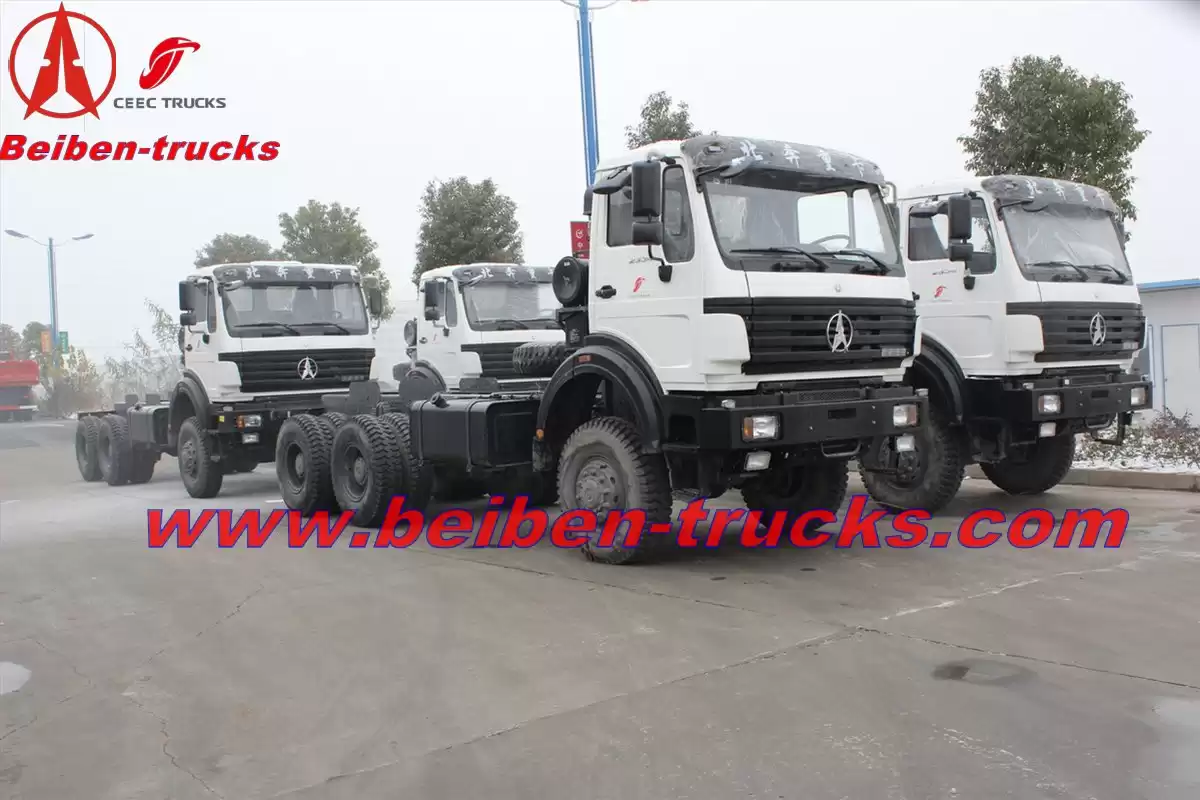

mercedes benz tractor heads/beiben tractor heads/ beiben truck price
North Benz tractor truck
Wheel base (mm)
|
3450+1450
|
Curb weight (kg)
|
9360
|
Engine
|
Model
|
WD12.375/280,water-cooled,four strokes,6 cylinders straight in line,turbocharged,
|
Power(kw)
|
380HP
|
Emission
|
|
Clutch
|
Model
|
Φ430, Single dry frictional disc,Hydraulic boosting
|
Gearbox
|
Model
|
12JS160T
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
Steering system
|
Model
|
ZF8098,whole circulation in ball type, hydraulic boosting
|
Frame
|
Fish belly shape, variable width, variable sections
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Tyre
|
12.00R20
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|
Cab
|
Long cab
color:White color with strip
Full steel skeleton structure, covered with double layer steel plate;Can be tipped forwardly;
Seat: shock absorption seat for the driver
|
Delivery date
|
35 work days after receipt the deposit
|
