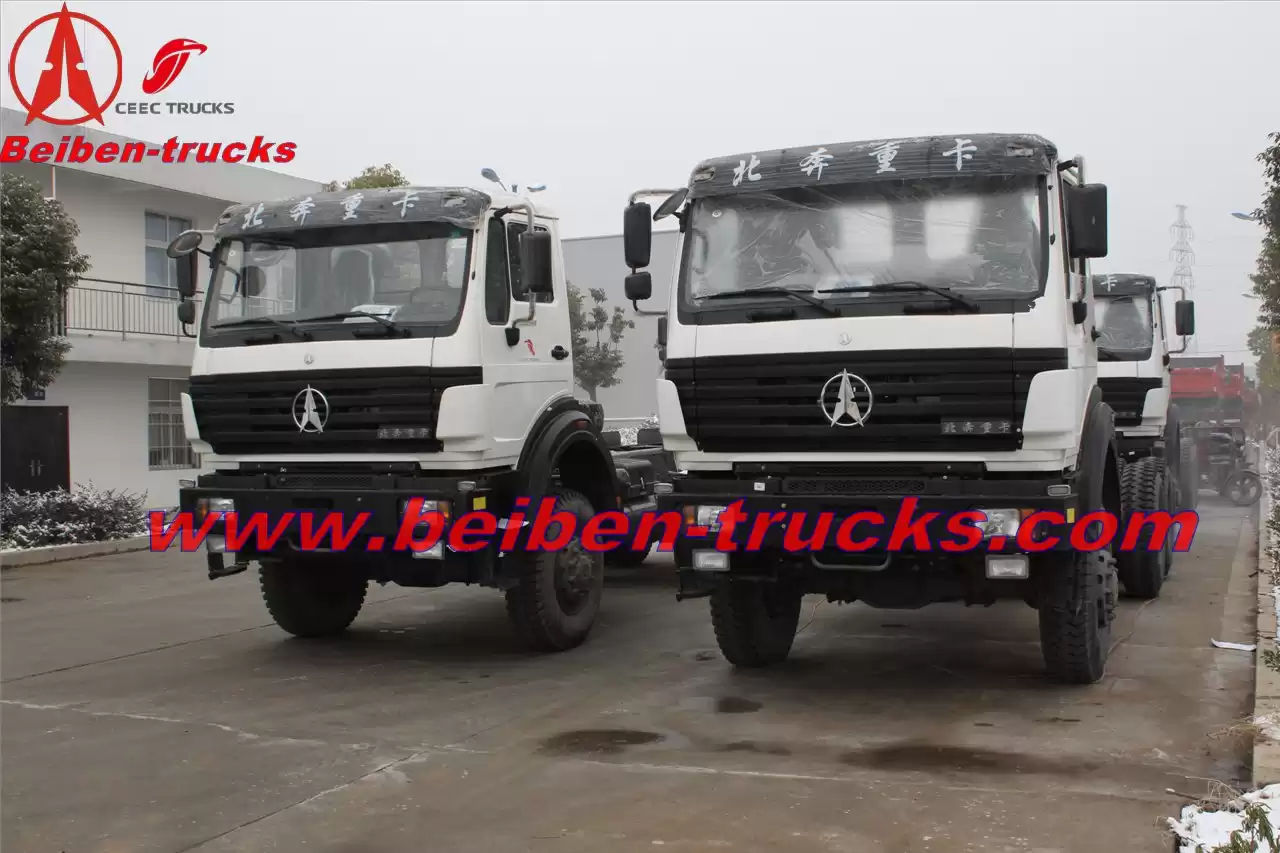

6x4 Beiben V3 tractor truck /north benz tractor heads

Mercedes Benz technology
Engine: WEICHAI
Driving type: 6x4
Standard: Euro3



Mercedes Benz technology
Engine: WEICHAI
Driving type: 6x4
Standard: Euro3



Beiben 6x4 tractor truck
Model ND4250W362JJ
Traction type 6x4
Driving type LHD
Cabin Mercedes Benz

Engine brand Steyr (Weichai)
Engine model WD615.46
Engine type 4-stroke direct injection diesel engine, inline 6-cylinder with water cooling, turbo-charging & intercooling
Displacement 9.726 liters
Max. output 360hp@2200rpm
Max torque 1460NM@1400-1600rpm
Bore/Stroke(mm) 126/130
Mean Pistion Speed 9.53m /s
Compression ratio 15.5:1
Specific fuel consumption 198g /Kwh

Gear box Fuller 12-speed (12JS160T)
Clutch GF420 spring type
Steering TAS85

Front axle Benz
Rear axle Benz
Ratio 1:5.2
Frame Strengthened
Tyre 12.00-20
Fuel consumption (L/100km) 36
Fuel tank capacity (L) 300
Max. speed (km/h) 90
Max. gradeability (%) 28
Curb Weight 9,200 kg
Total Mass 38,500kg
Wheel base (mm) 3,450+1,450
Front overhang (mm) 1,410
Rear overhang (mm) 740
Front track (mm) 1,995
Rear track (mm) 1,800
Turning circle diameter (m) 14.2 m
Approach angle 26°
Departure angle 64°
Dimension (mm) 7,050x2,495x3,260
5th wheel 3.0"
