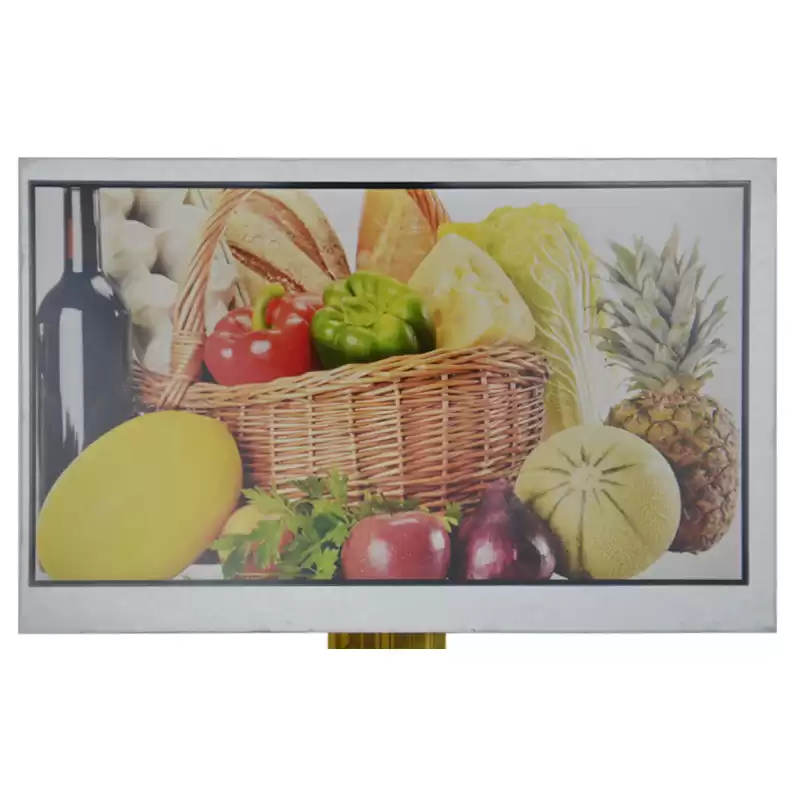

7.0 Inch IPS 1024(RGB)*600 LCD module with a PCAP

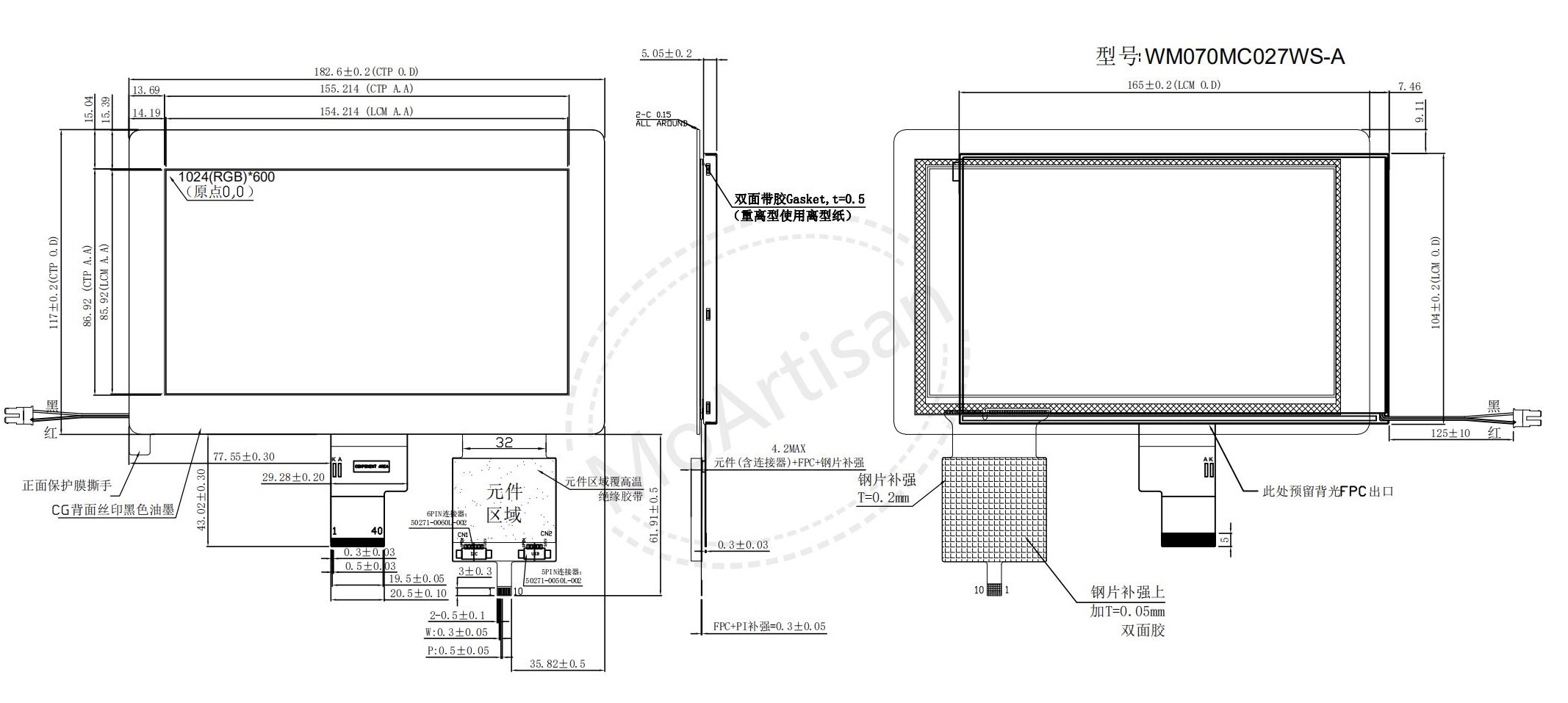

Production Drawings
WM070MO027WS-A/B/G Introduction
-
7.0 (17:10 Diagonal) inch
diagonally measured active display area.
-
WSVGA (1024 horizontal by 600 vertical pixel) resolution.
-
7.0 inch IPS WSVGA LCD module with a Pcap, I2C and USB interface.
-
1200/900/400 nits brightness for A/B/G version.
-
40 PIN FPC, LVDS.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
7.0
|
WSVGA, 1024RGB*600, IPS, land view screen, I2C and USB PCAP
|
182.6*117*7.6
|
7X4 LED (50K)
|
40 PIN FPC, 8-Bit, LVDS
|
1200 nits/800
900 nits/800
400 nits/800
|
Topa: -20~+70
Tstg: -30~+80
|
80/80/80/80
|
WM070MO027WS-A/B/G
|
Production Applications
Mobile, Digital photo frame, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Notes:
It is our main line of products.
A variety of surface brightness models are available.
Projects designed and manufactured in accordance with high reliability.
