7.0 Inch IPS1200(RGB)*1920 display module 550 nits brightness

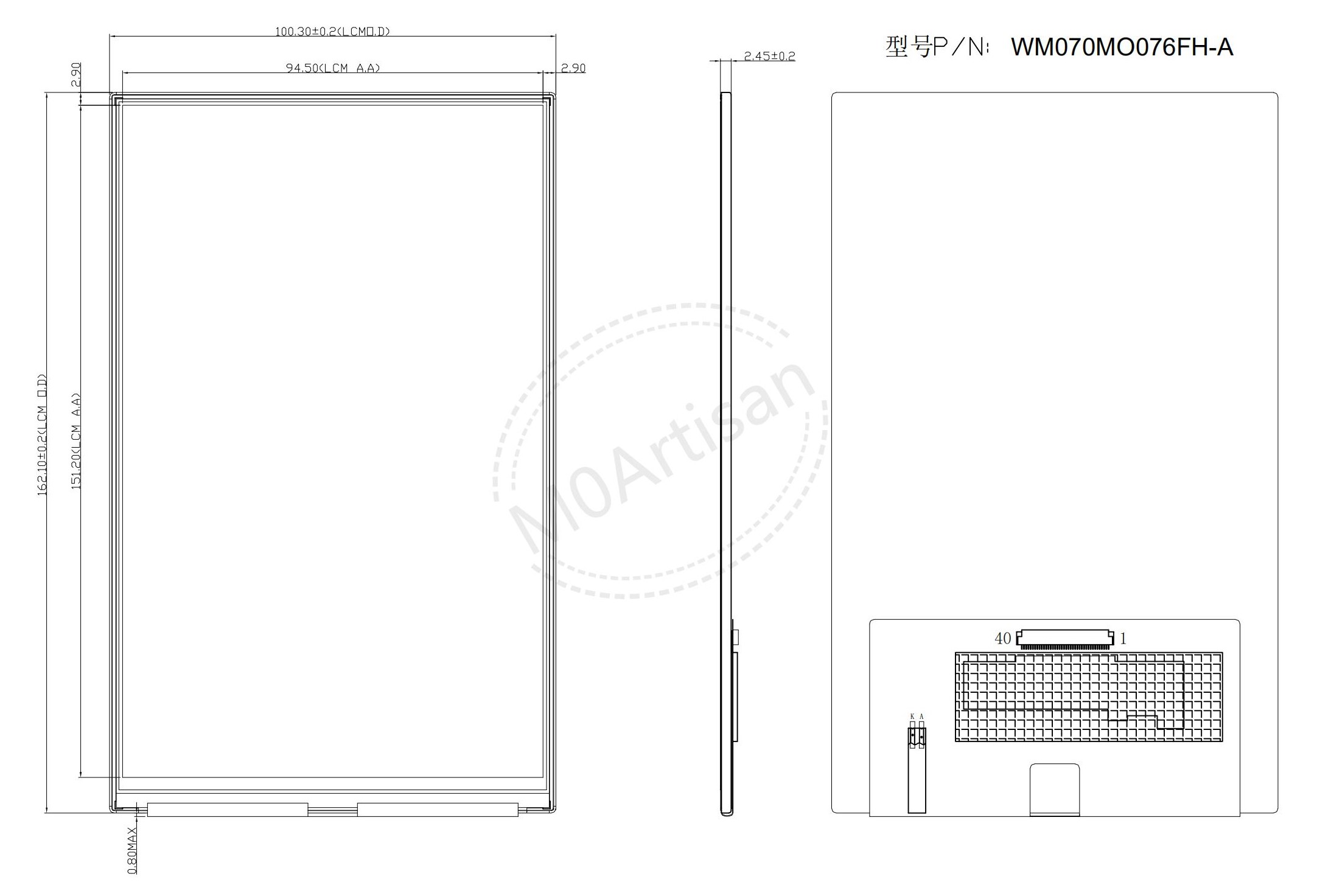

Production Drawings
WM070MO076FH-A Introduction
-
A 7.0 inch
diagonally measured active display area.
-
FHD (1200 horizontal by 1920 vertical pixel) resolution.
-
7.0 inch IPS 1200RGB1920 LCD module with 550 nits brightness.
-
incell TDDI touch panel.
-
40 PIN FPC, MIPI.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
7.0
|
FHD, 1200RGB*1920, IPS, portrait screen, TDDI incell touch function
|
100.3*162.1*2.45
|
6X3LED (50K)
|
40 PIN FPC, 8-Bit, MIPI
|
550 nits/1200
|
Topa: -20~+70
Tstg: -30~+80
|
80/80/80/80
|
WM070MO076FH-A
|
Production Applications
Mobile, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for sample: 3~4
weeks.
Notes:
This product features high definition and incell capacitive touch function.
Many people choose an external capacitive touch panel instead of the incell for better experience to some application scenarios.
