7.0 Inch TFT 800(RGB)*480 display module with 600 nits brightness，or with interface invert and power board

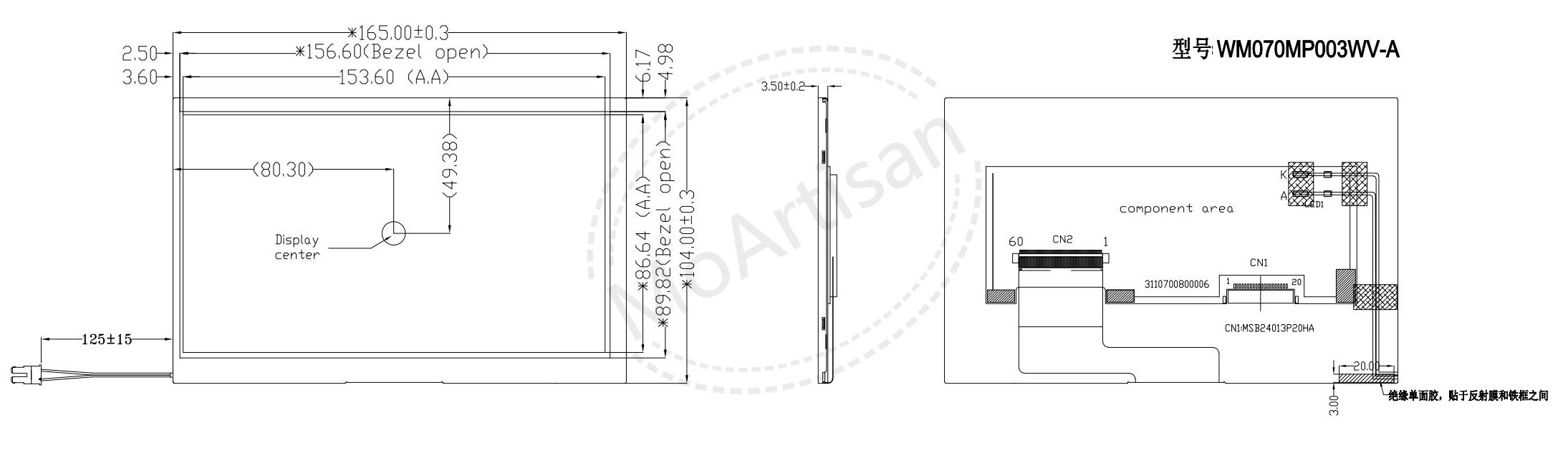

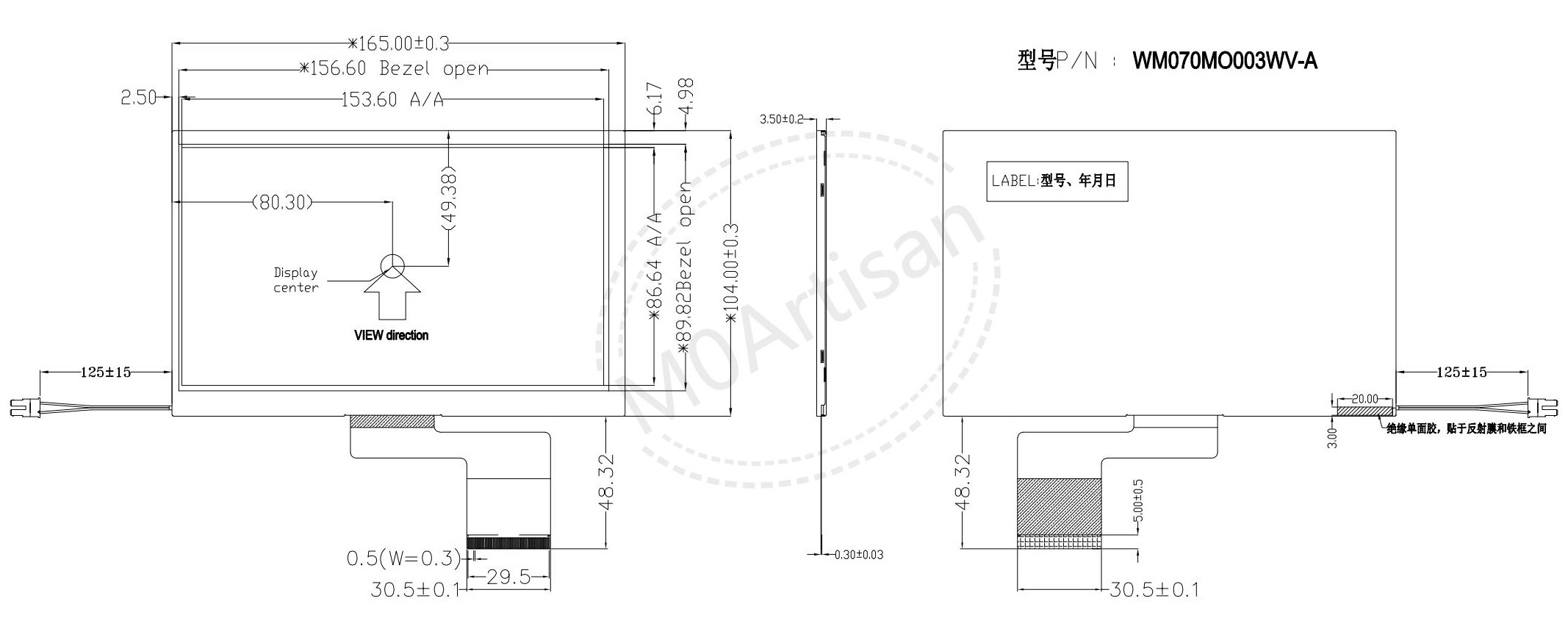

Production Drawings

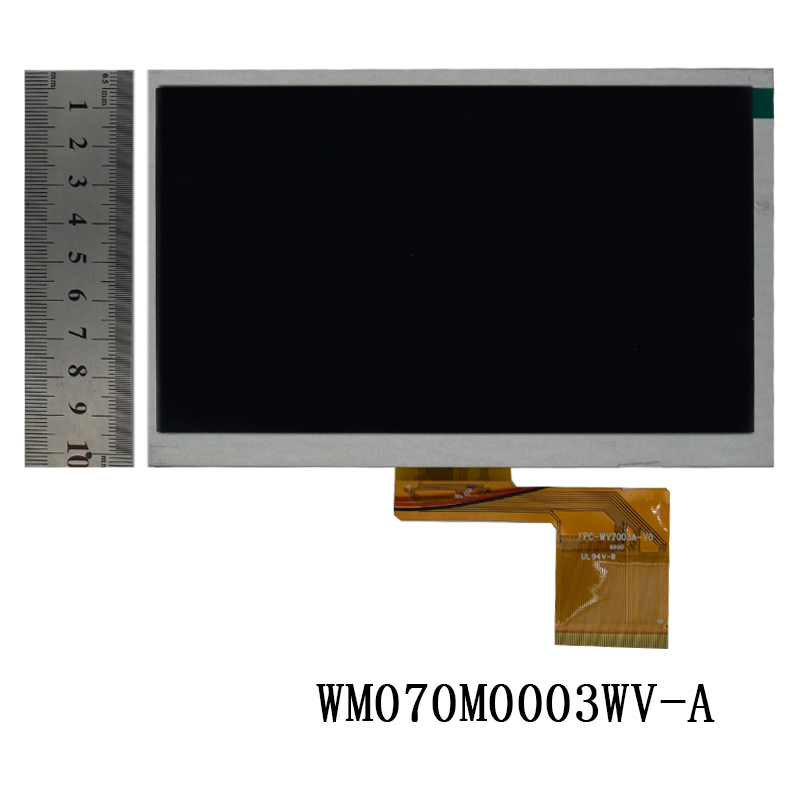

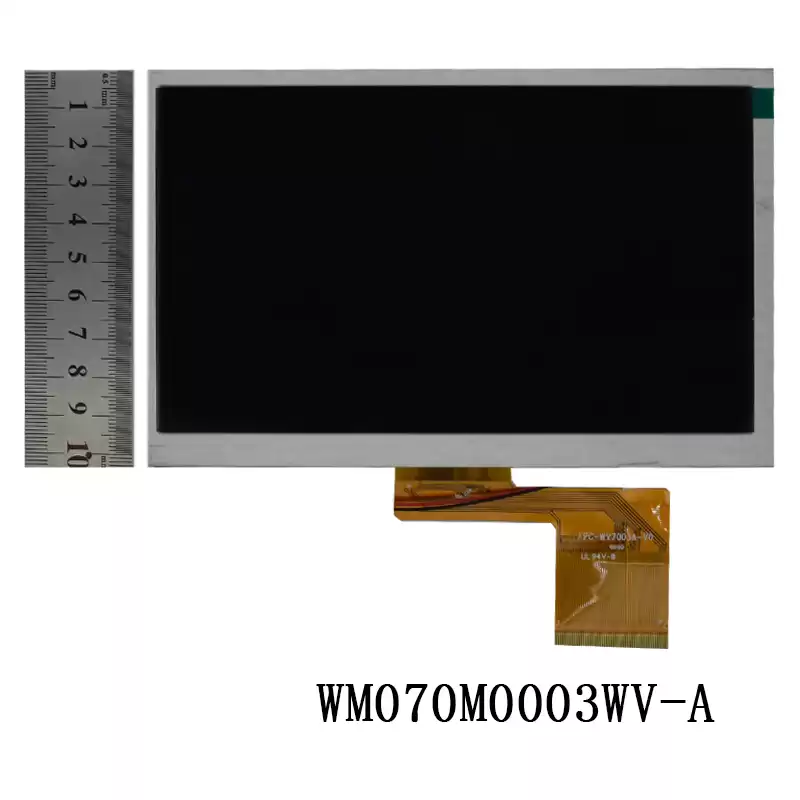

WM070MO003WV-A Introduction
-
A 7.0 (15:9 Diagonal) inch
diagonally measured active display area.
-
WVGA (800 horizontal by 480 vertical pixel) resolution.
-
7.0 inch TN WVGA LCD module with 600 nits brightness.
-
60 PIN FPC, RGB interface.
-
WM070MP003WV-A with 20 PIN fpc 6-bit LVDS.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
7.0
|
WVGA, 800RGB*480, TN, 6 O'clock, landscape view Screen.
or with interface invert and power board.
|
165*104*3.5
|
7X4 LED (50K)
|
60 PIN FPC, 24-Bit, RGB
|
600 nits/500
|
Topa:
-20~+70
Tstg:
-30~+80
|
60/70/75/75
|
WM070MO003WV-A
WM070MP003WV-B
|
Production Applications
Mobile, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Note:
This one is just an ordinary product.
