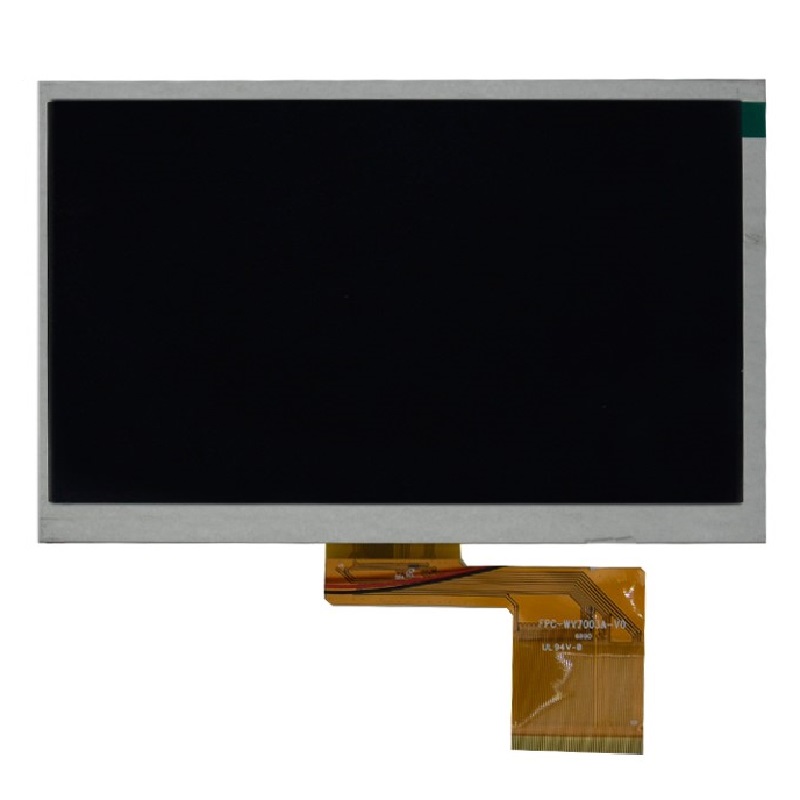

7.0 Inch TFT 800(RGB)*480 module 500 nits brightness short FPC, or same as CMI TN94

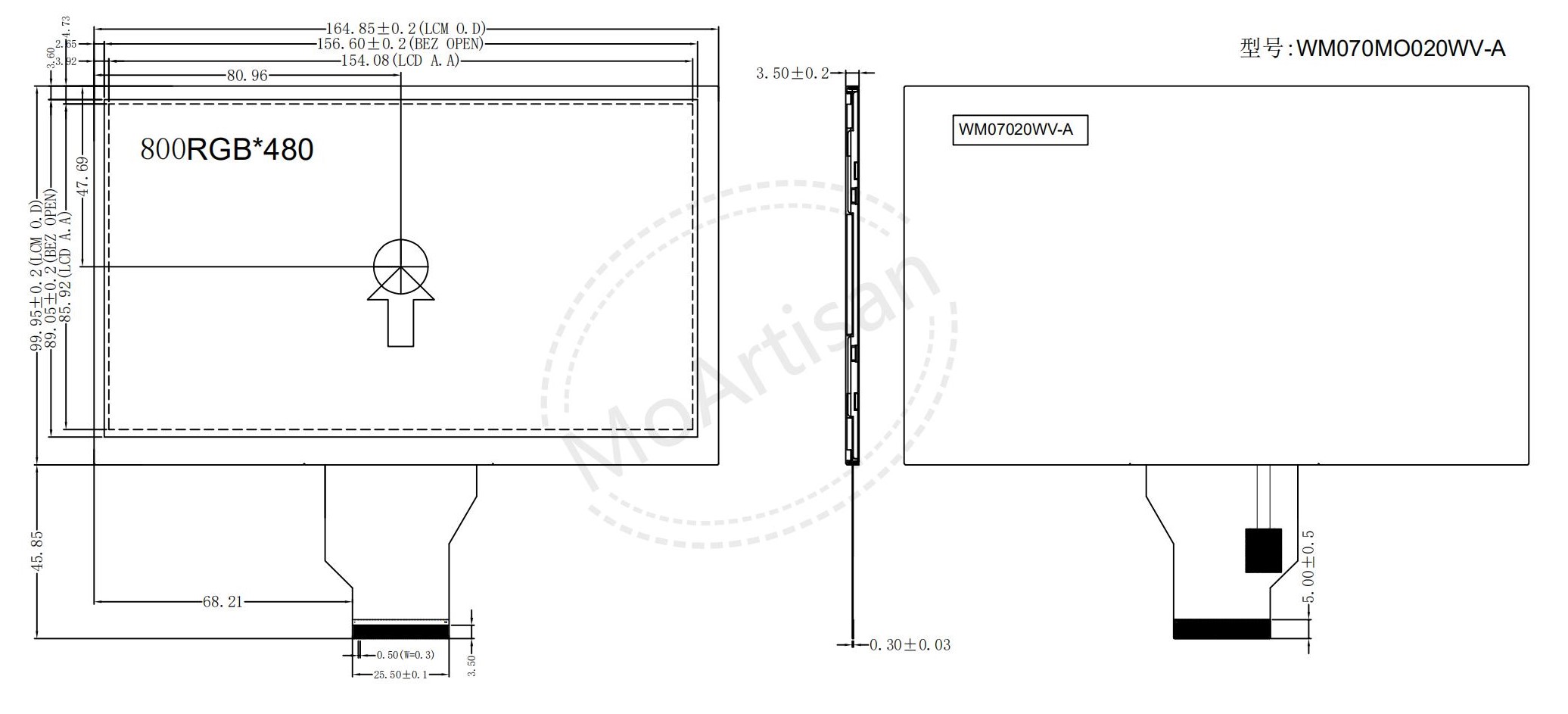

Production Drawings
WM070MO020WV-A Introduction
-
A 7.0 (16:9 Diagonal) inch
diagonally measured active display area.
-
WVGA (800 horizontal by 480 vertical pixel) resolution.
-
7.0 inch TN WVGA LCD module with 500 nits brightness.
-
shorter FPC. 50 PIN FPC, RGB.
-
WM070MO016WV-C as CMI TN94.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
7.0
|
WVGA, 800RGB*480, TN, 6 O'clock, land view Screen(short FPC).
same as CMI TN94
|
165*100*3.5
165*100*5.7
|
9X3 LED (50K)
|
50 PIN FPC, 24-Bit, RGB
|
500 nits/500
450 nits/500
|
Topa: -20~+70
Tstg: -30~+80
|
60/70/70/70
|
WM070MO020WV-A
WM070MO016WV-C
|
Production Applications
Mobile NB, GPS, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for sample: 3~4
weeks.
Note:
This product was developed specifically for the short FPC, the another one as well as a replacement for the Chimei TN94.
