7.0 Inch TFT 800(RGB)*480 module with high brightness, or with interface invert and power board

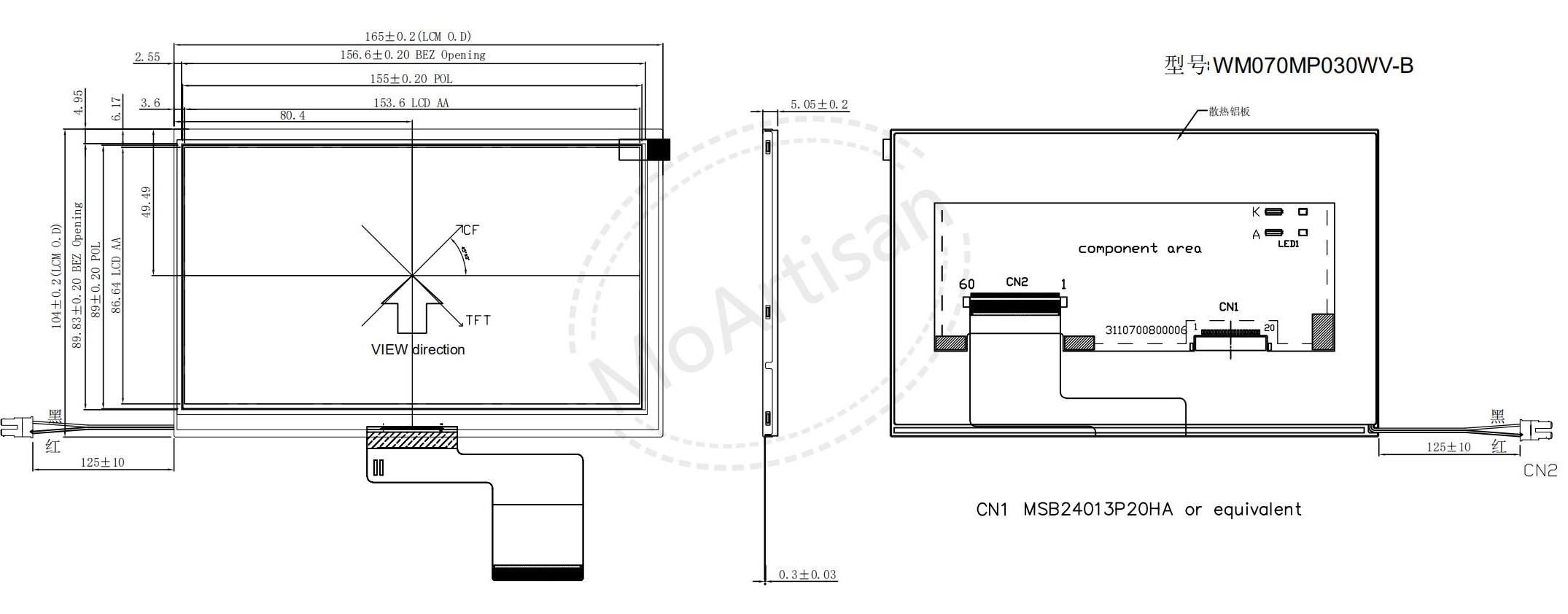

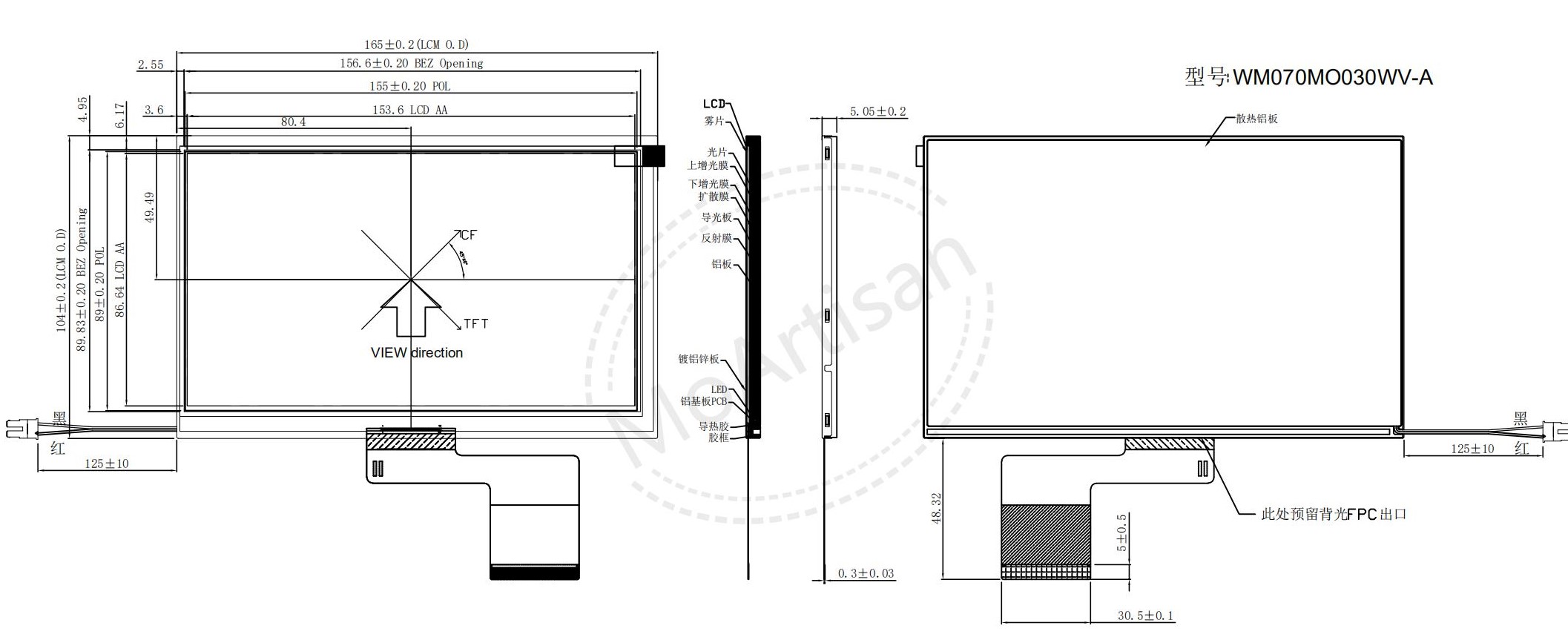

Production Drawings

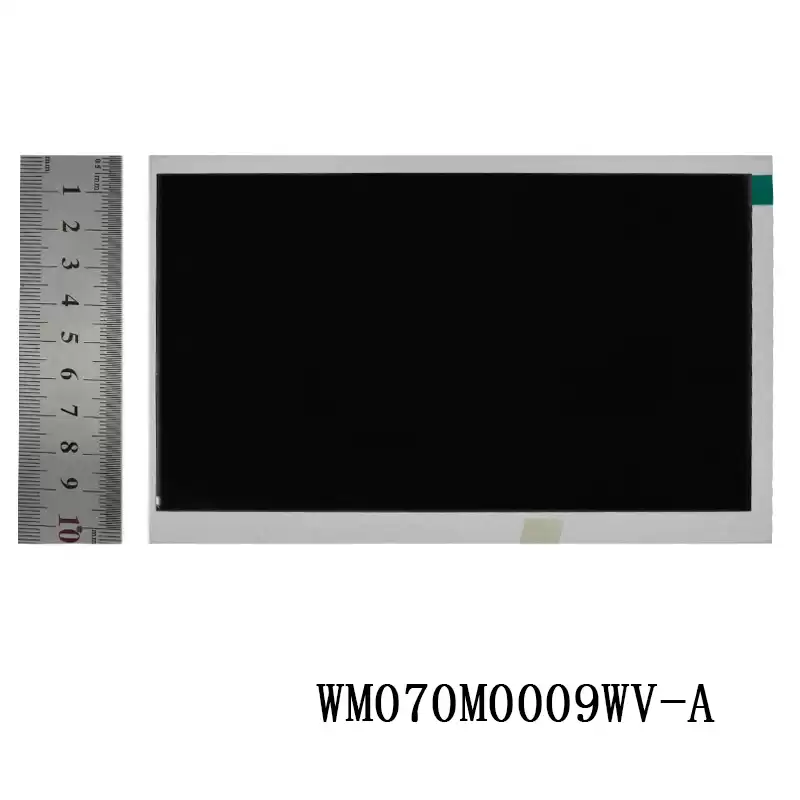

WM070MO030WV-A/B Introduction
-
A 7.0 (15:9 Diagonal) inch
diagonally measured active display area.
-
WVGA (800 horizontal by 480 vertical pixel) resolution.
-
7.0 inch TN WVGA LCD module with 1800/2500 nits brightness for each.
-
60 PIN FPC, RGB interface.
-
WM070MP030WV-B with 20 PIN Con, LVDS interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
7.0
|
WVGA, 800RGB*480, TN, 6 O'clock, landscape view screen,
high brightness.
or with invert and power board
|
165*104*5.05
|
7X4 LED (50K)
|
60 PIN FPC, 24-bit, RGB
60 PIN FPC
24-bit RGB
20 PIN Con,
6-bit LVDS
|
1800 nits/500
2500 nits/500
2500 nits/500
|
Topa:
-20~+70
Tstg:
-30~+80
|
60/70/75/75
|
WM070MO030WV-A
WM070MO030WV-B
WM070MP030WV-B
|
Production Applications
Mobile NB, GPS, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
NOTE:
This product is just an normal brightness product.
