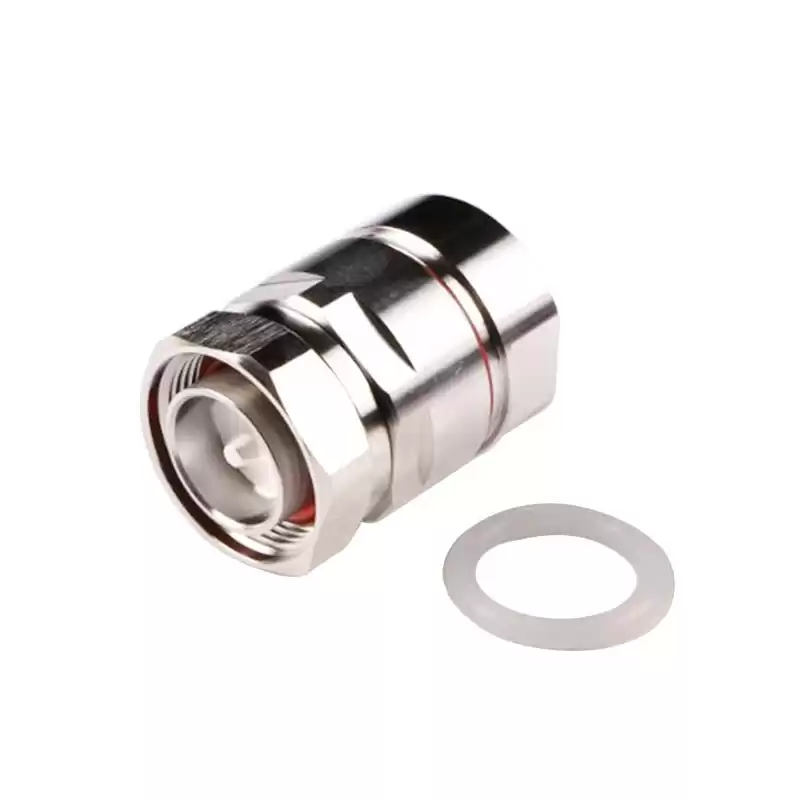

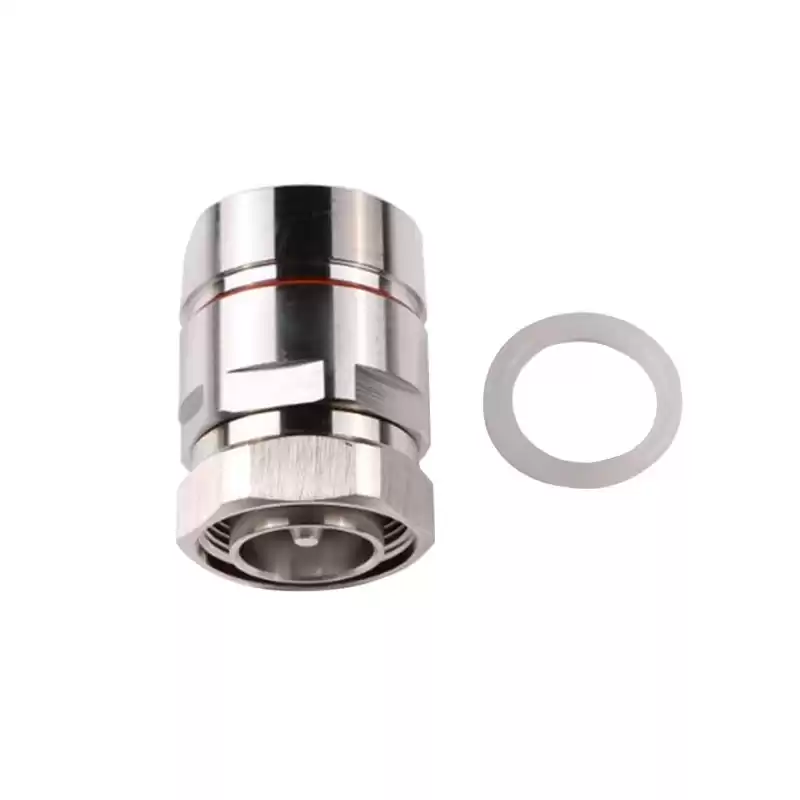

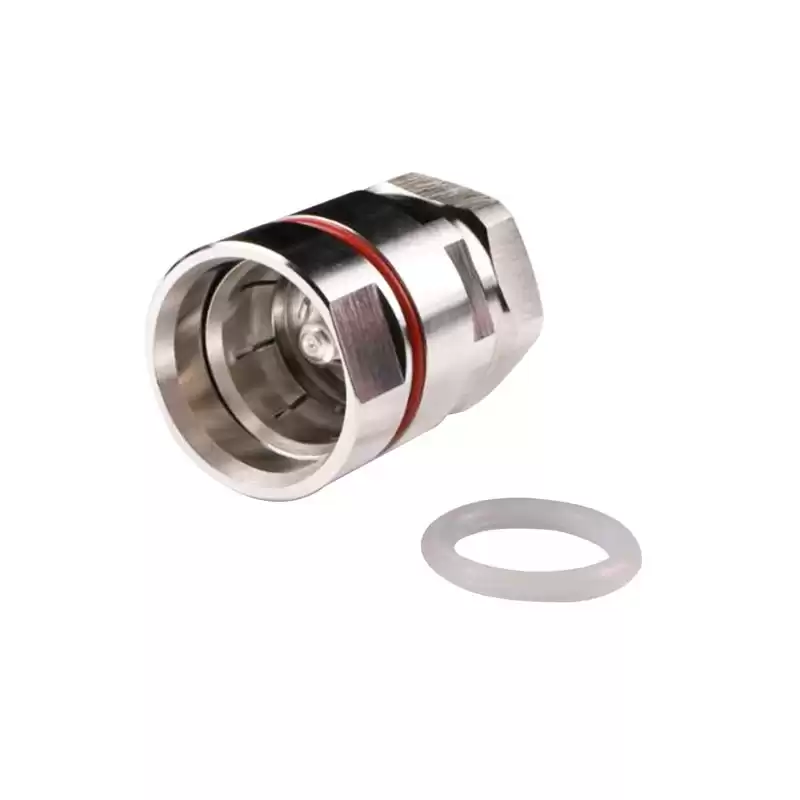

7-16 DIN Male Connector Clamp Solder Attachment for 7/8" Corrugated Cable
The 7-16 DIN connector are from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact; These RF coaxial connectors are very robust, extremely stable and waterproof, frequency max up to 7.5GHz; this 7-16 DIN male coaxial connector has an interface type of Corrugated Cable and a 50ohm impedance, attachment method uses shield/contact clamp/solder, its straight body is brass with nickel plating.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50Ω |
| Frequency Range |
7.5GHz |
| Dielectric withstanding voltage (at sea level) |
4000 V rms,50Hz |
| Working voltage (at sea level) |
2500 V rms,50Hz |
| Insulation resistance |
≥ 100000 mΩ |
| Contact resistance |
Inner conductor: ≤0.4mΩ |
| Outer conductor: ≤1.5mΩ |
| RF leakage (at 1 GHz) |
≥128dB |
| MECHANICAL DATA |
|
| Coupling nut torque |
Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs |
| Proof torque: 35 Ncm / 310 in.lbs |
| Coupling nut retention force |
≥1000N / 225.0 lbs |
| Contact captivation |
≥200N / 45.0 lbs |
| Durability (matings) |
≥500 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
-65°C to +165°C |
| MATERIAL DATA |
|
| Bodies |
Brass--ternary alloy plating |
| Pin contacts |
Brass--Au/Ag plating |
| Socket contacts |
Phosphor bronze / Beryllium copper--Ag plated |
| Crimp ferrules |
Copper--ternary alloy plating |
| Insulator |
PTFE |
| Gaskets |
Silicone rubber |
Applications
- Wireless Infrastructure
- Base Stations
- Lightning Protection
- Satellite Communications
- Antenna Systems
