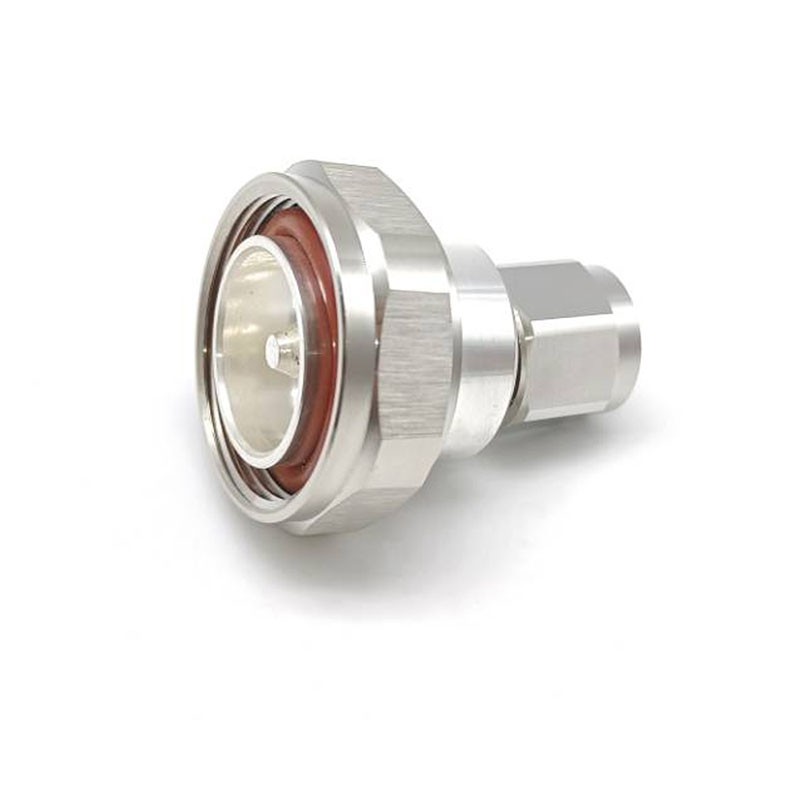

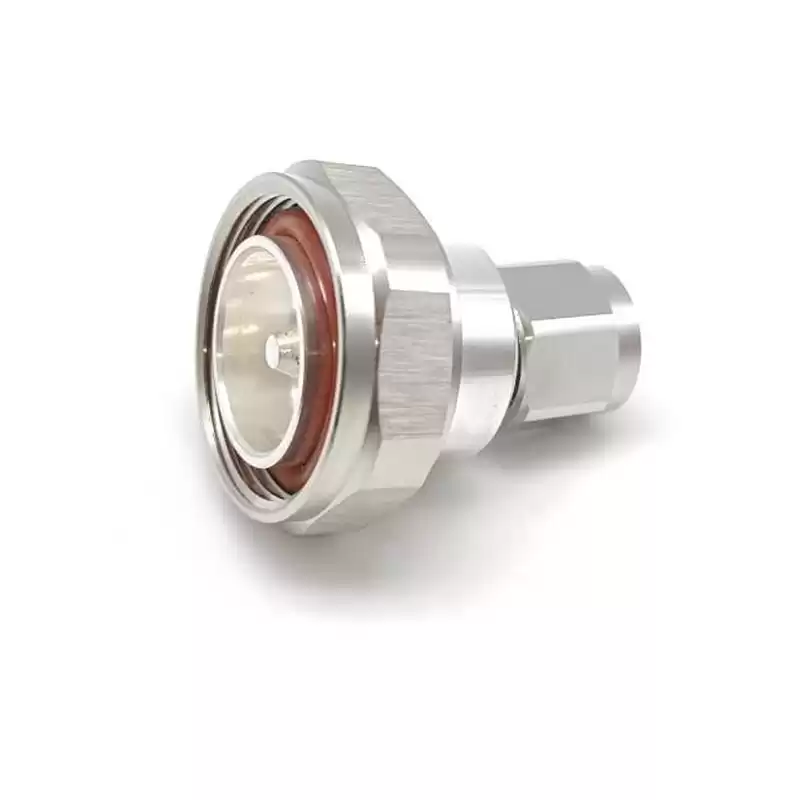

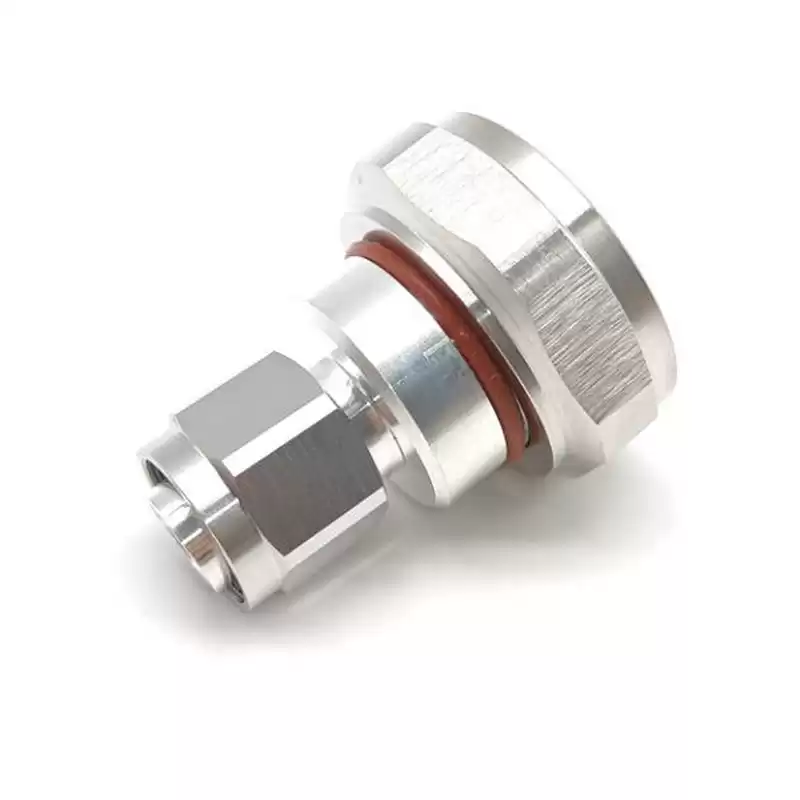

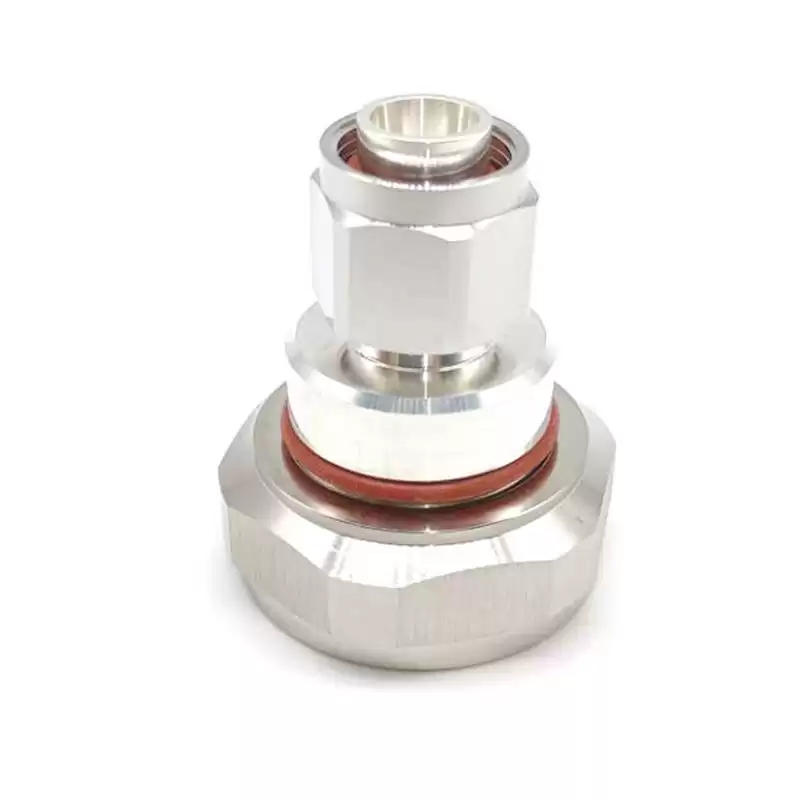

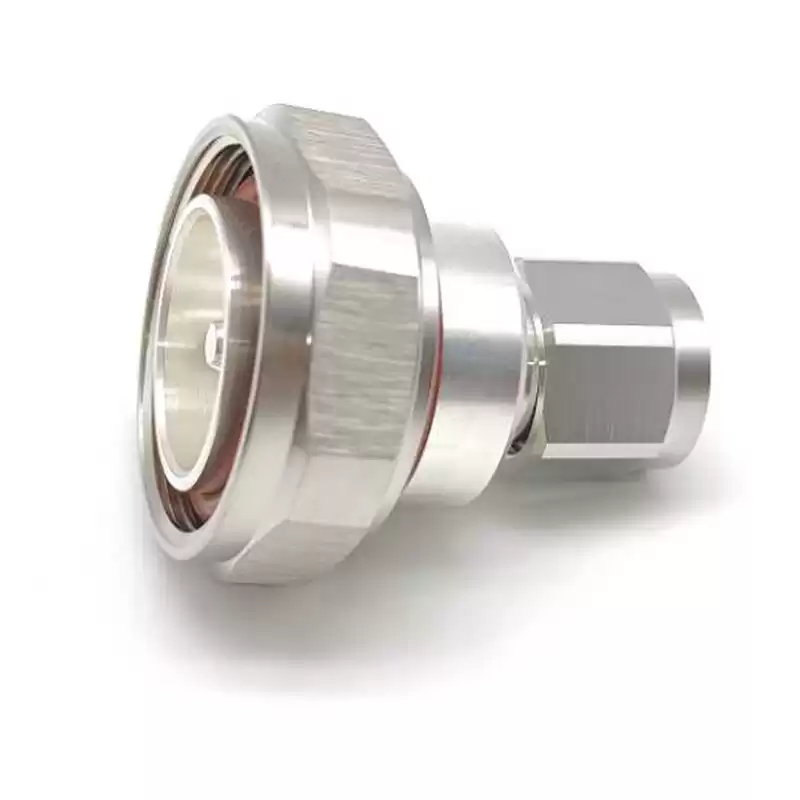

7-16 DIN Male to N Male RF Coaxial Connector Adapter
The 7-16 DIN Adapter has different 7-16 DIN to N adapter gender. The 7-16 DIN to N adapters has female to female, female to male, male to female or male to male gender. ROHO offers 7-16 DIN to N adapters in standard or low PIM designs. This 7-16 DIN male to N male adapter has a maximum frequency of 8GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
7-16 DIN |
| Adapter Side 1 Style |
Male |
| Adapter Side 2 Series |
N |
| Adapter Side 2 Style |
Male |
| Frequency (Max GHz) |
8 |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Wireless LAN
- Broadcast systems
- Outdoor antennas
- Radar equipment
- Microwave Radio
- Base stations
- Satellite systems
