Product Name
RF Connector (DC-6GHz,DIN male , Low Insertion loss)
Product Features

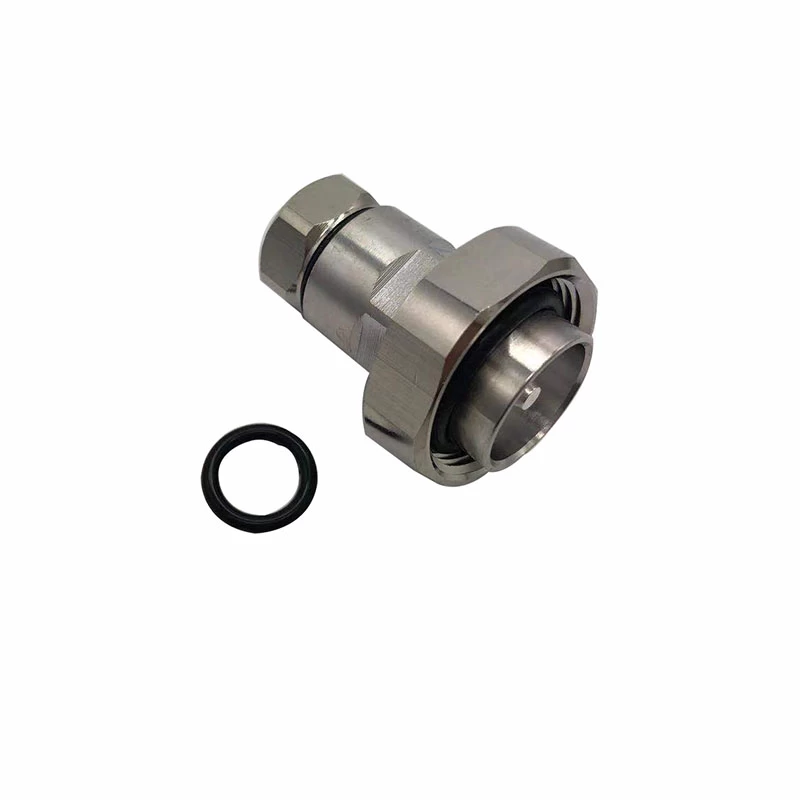

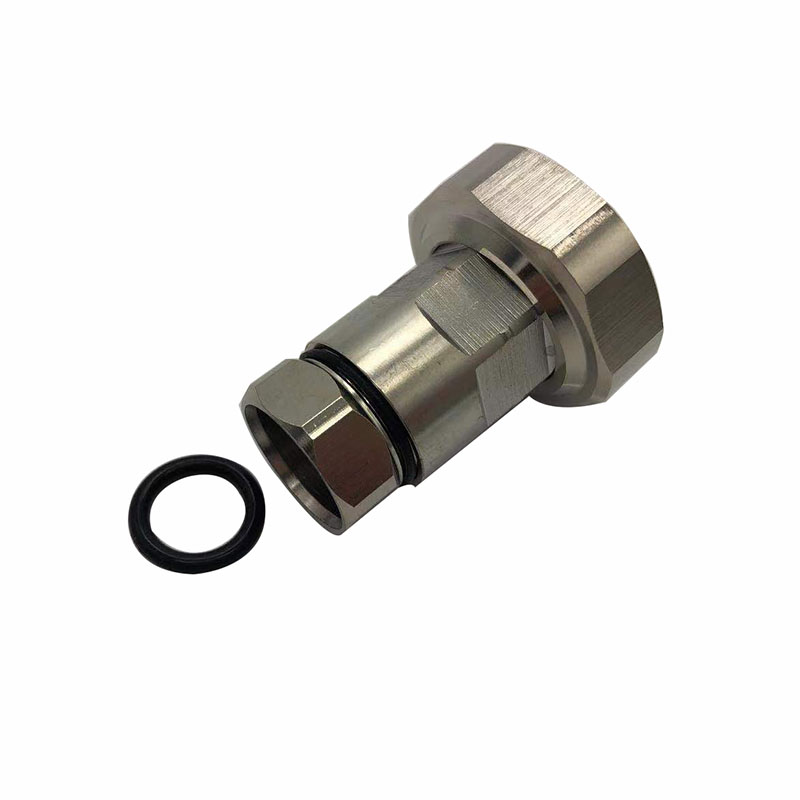

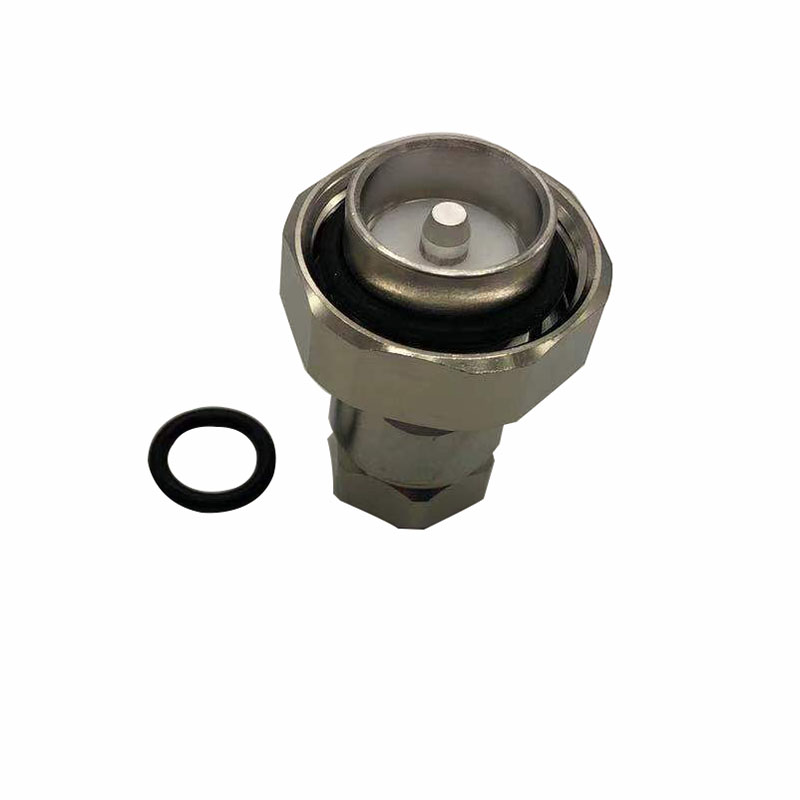

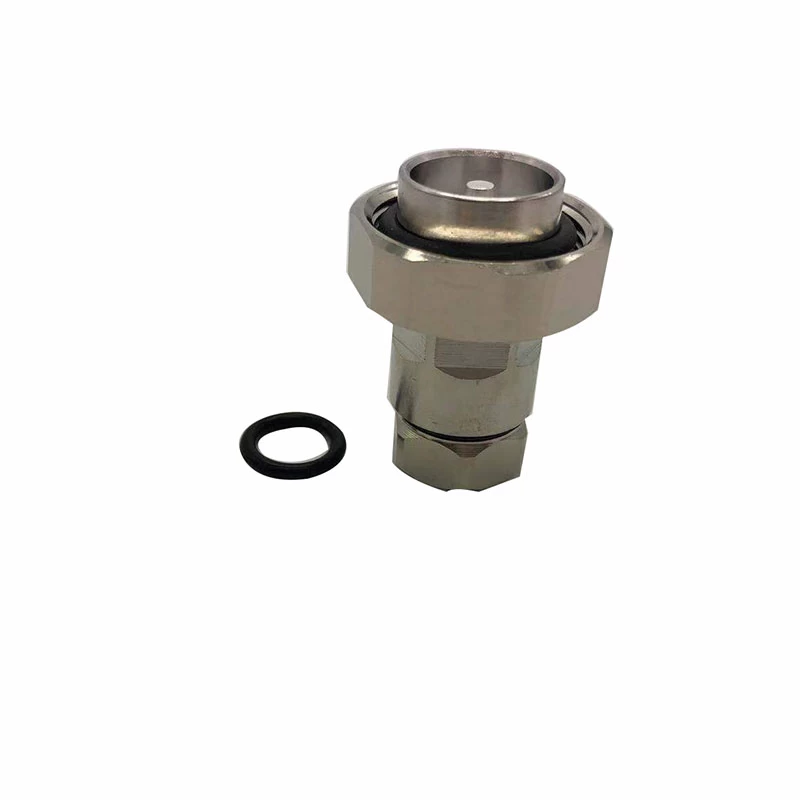

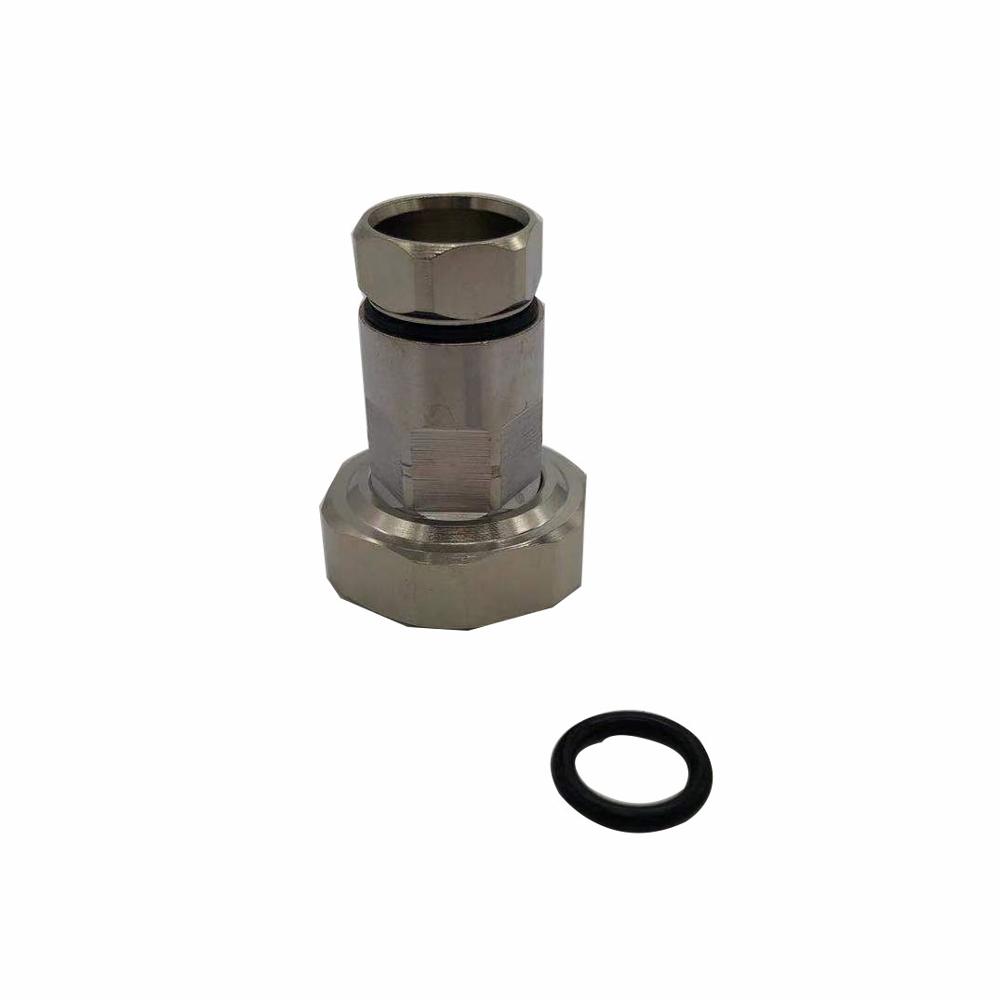

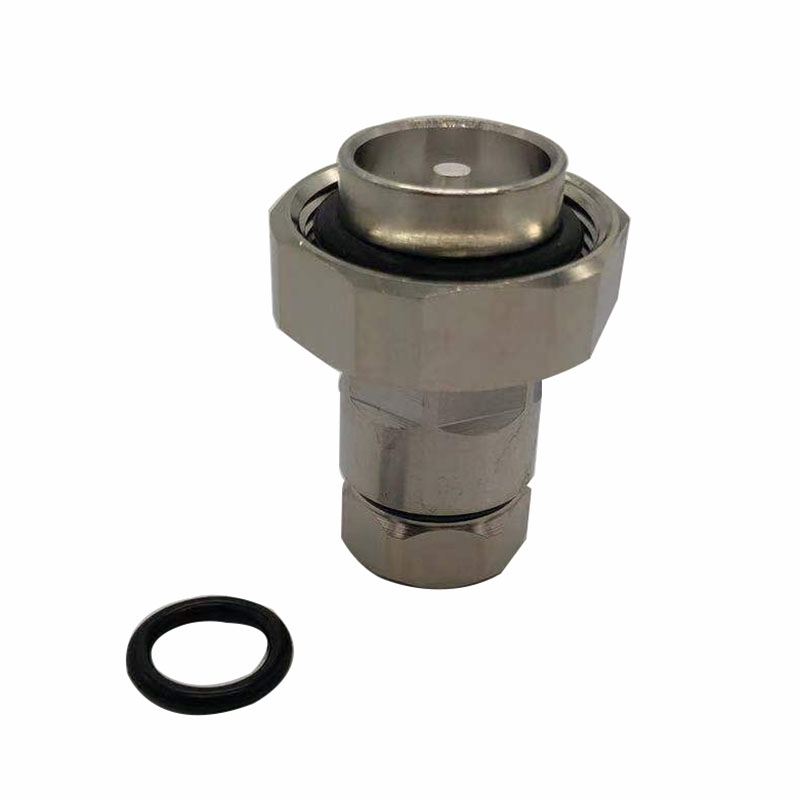

7/16 male RF DIN plug coaxial connector is Low Insertion loss and excellent impedance matching
Technical &Mechanical Specifications
|
Model No.
|
MPRC-1/2FC-DMS
|
|
Interface
|
According to IEC 61169-35
|
|
Electrical
|
Characteristic Impedance
|
50 ohm
|
|
Frequency Range
|
DC-6GHz
|
|
Insertion Loss
|
≤0.3dB
|
|
Dielectric Resistance
|
≥5000M ohms
|
|
Contact Resistance
|
Center Contact≤3M ohms
Outer Contact≤2M ohms
|
|
VSWR
|
≤1.20
|
|
Mechanical
|
Durability
|
Mating cycles≥500
|
|
Material and plating
|
Body
|
Brass Ni or Tri-Alloy
|
|
Insulator
|
PTFE
|
|
Center Conductor
|
Phosphor Bronze or Ag
|
|
Coupling Nut
|
Brassi Ni
|
|
Temp
|
-55~+125
|
Mechanical Drawing (mm)
