Main Advantage
1. All systems has LCD digital display. (Can see the system working condition, such as system voltage, system power, charge current, etc)
2. All systems have AC and DC output, and also have AC charger function for backup.
3. When the electricity off, it can switch automatically and take use of battery power to run load. When power on it also can switch automatically and take use of main power(utility electric/generator electric), at the same time charging battery.
4. The inverter is pure sine wave inverter, it can load inductive load such as air condition very smooth.
5. Each component has single chip detect which protected itself.(Over-voltage protection, low-voltage alarm, overload protection, over-heat protection, short-circuit protection, etc)

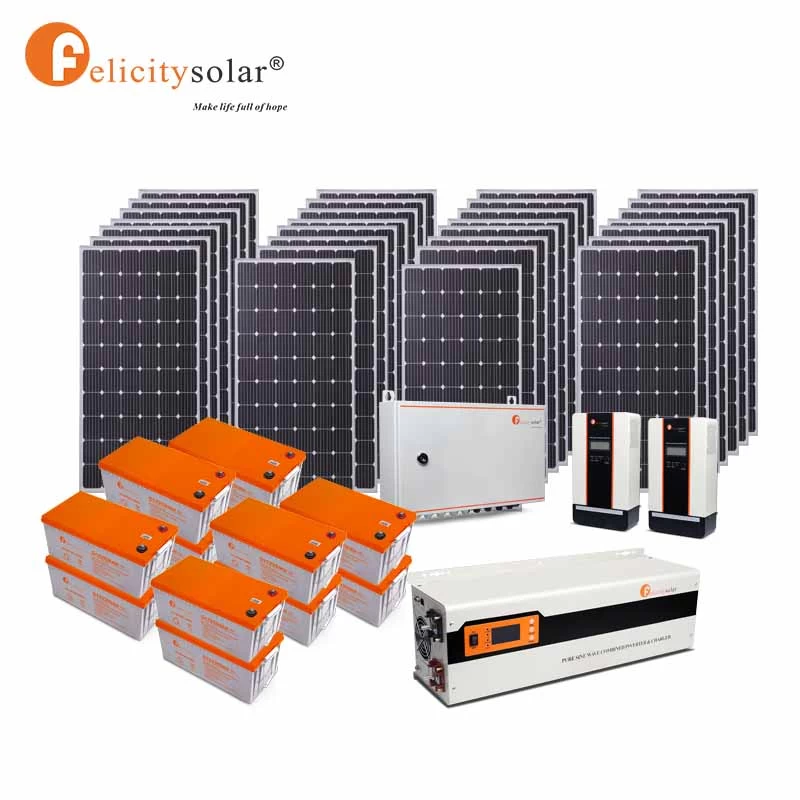

Data Sheet
|
|
|
|

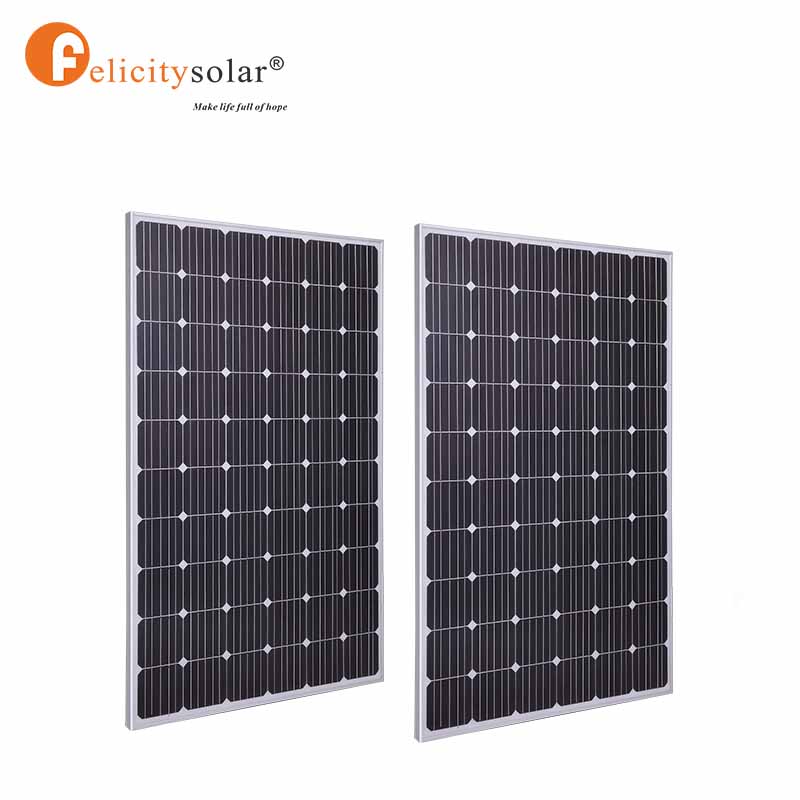

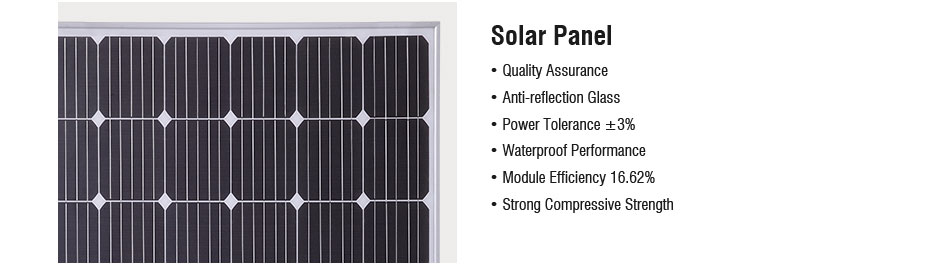

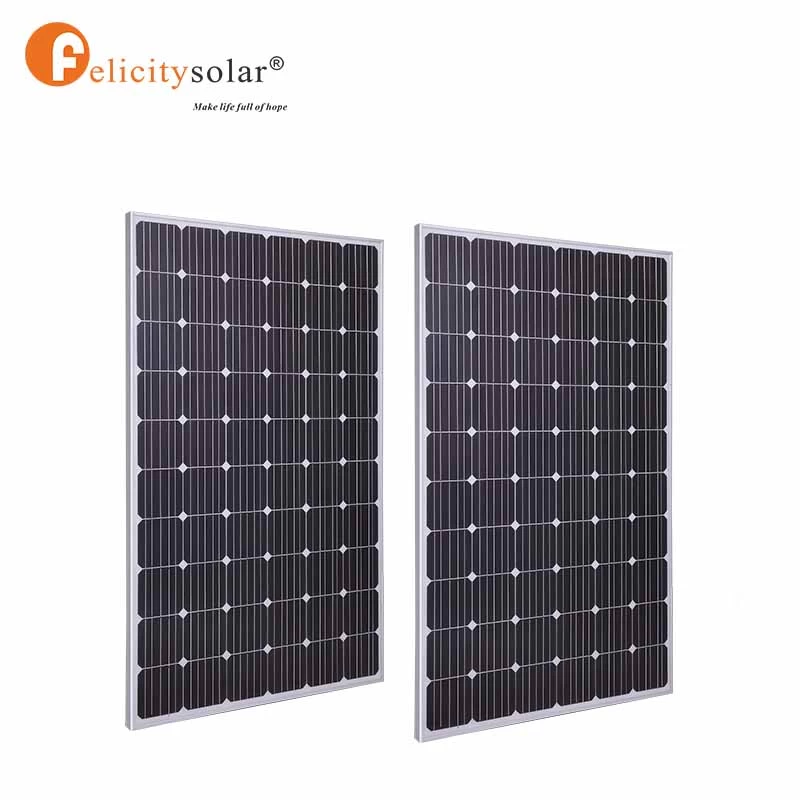

Solar Power
|
|
|

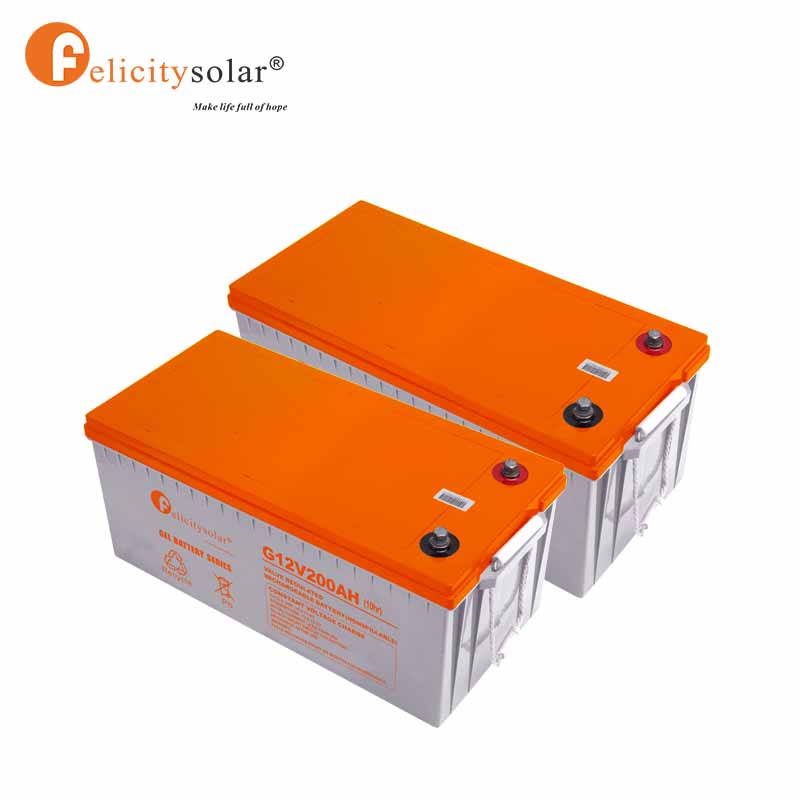

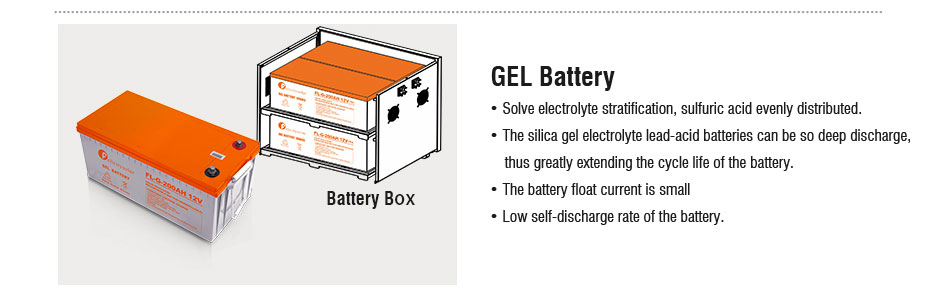

GEL Deep Cycle Battery
|
|
|

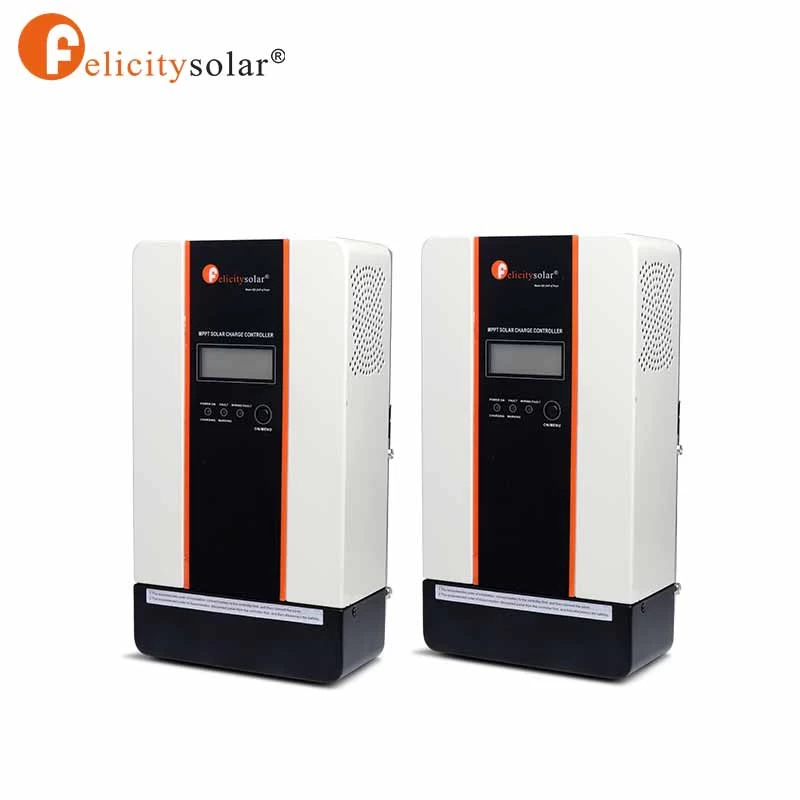

Controller
|

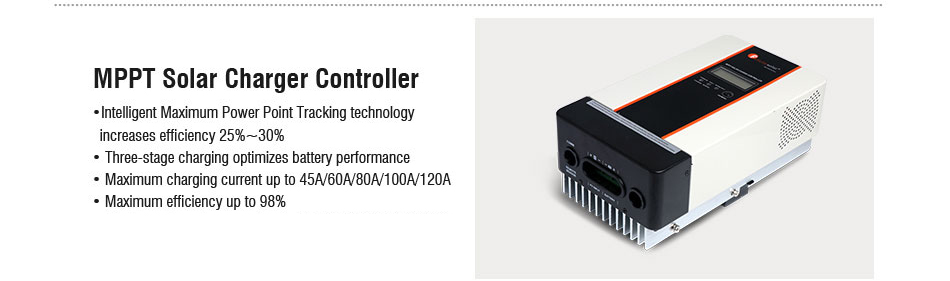

MPPT charge controller 80A DC12/24V/48V with LCD * 2PCS
|
|

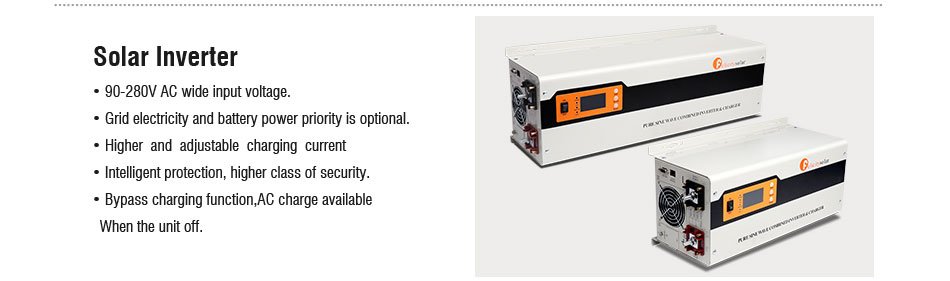

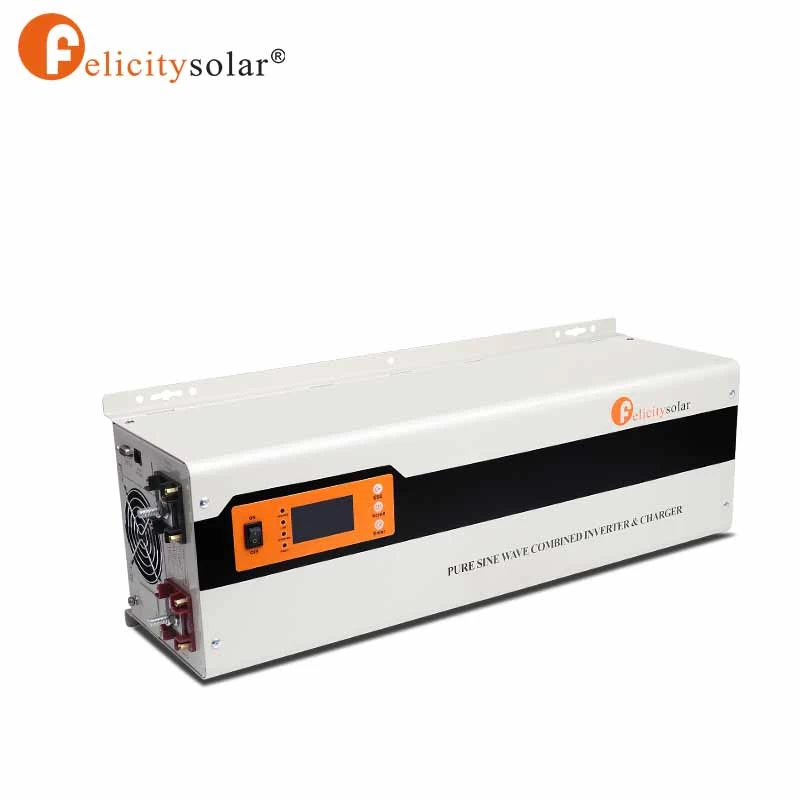

Inverter
|
Pure Sine Wave Inverter 7500VA 24V * 1PCS
|
|

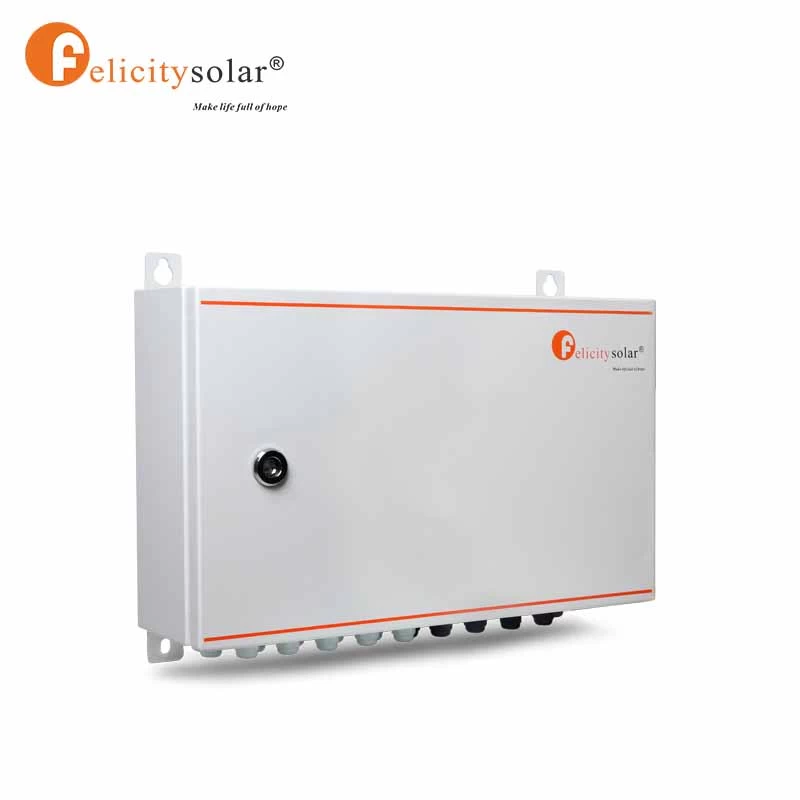

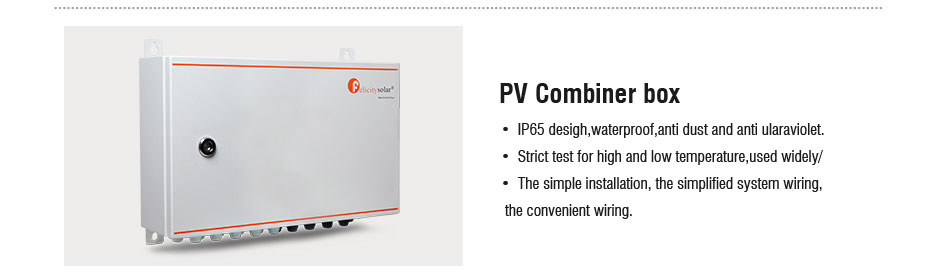

Photovoltaic Box
|
6 Combine 1 Photovoltaic Box* 2PCS
|
|
Battery Box
|
12PCS battery in 3 battery Box
|
|
|
FL-POWER-7500VA 48V:

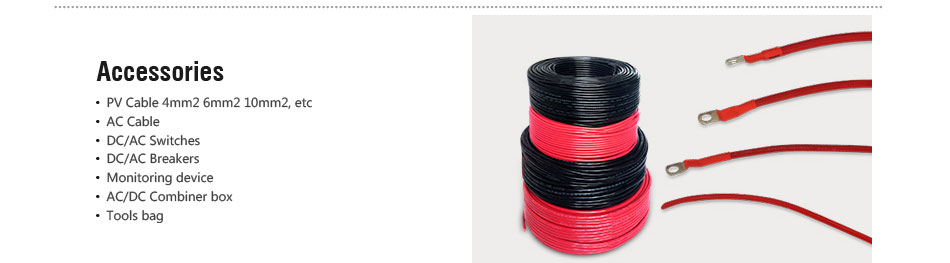

6MM² 25M 4 pcs; 6MM² 1M 4pcs; 16MM² 0.8M 8 pcs; 16MM² 0.2M 6 pcs
|

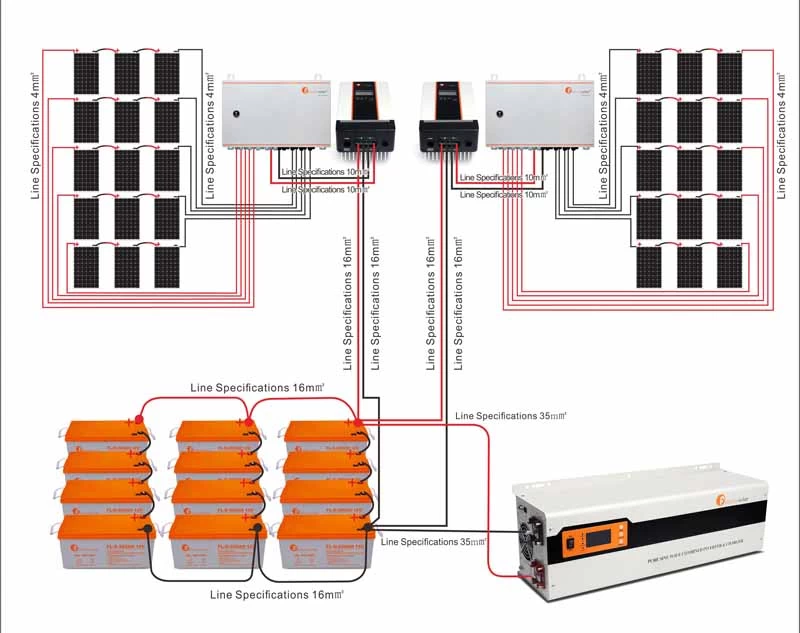

System Connection Diagram
Panel: 3 in series 4 in parallel (two groups)
battery：4 in series 3 in paralle
Product details
