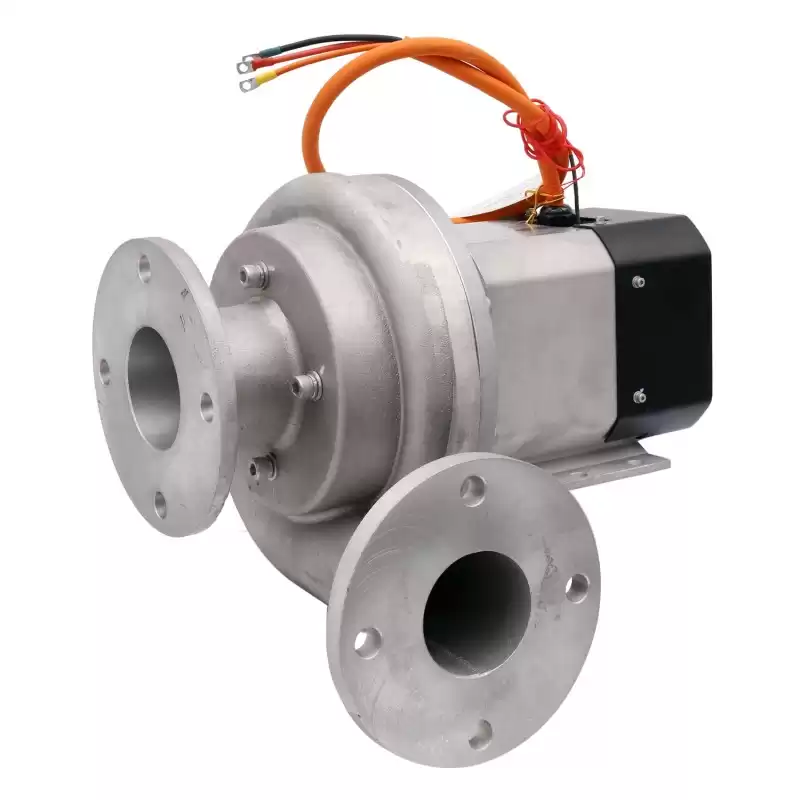

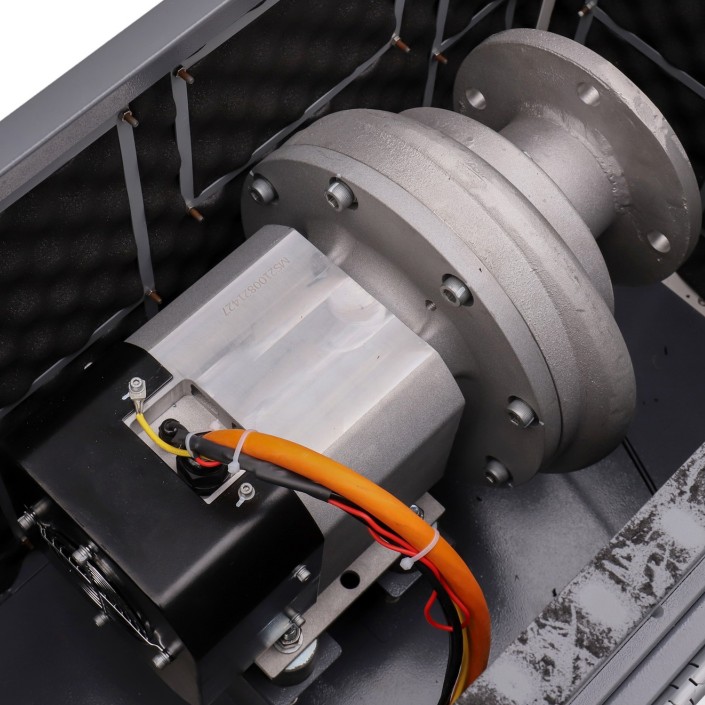

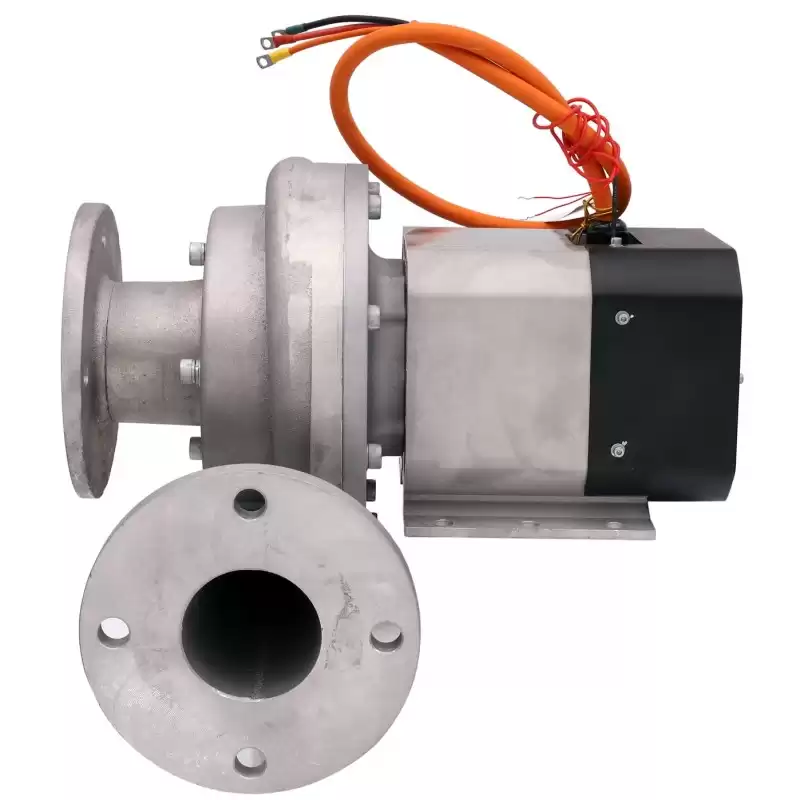

7.5KW High Speed Blower Motor

High Speed Synchoruous PM Motor Manufacture which supplied custom blower head  as well when you integrate controller/cabinet by yourself.


BDIT will supply series High Speed PM Motor as Customer's requirment.



For further information, please kindly contact us.




  • Model NO.:SZTL7.5-25

7.5kw High Efficiecy Small Size Centrifugal Turbo Blower Motor

High Efficiency High Speed motor for Tubro Blower make High Energy Saving. We Supply not only Motor but also whole Blower Solution.


Products Feature:


1.Small Size and Light Weight.

2.Less on-site working noise. Low Virbration Motor

2.Less the energy consumption will be used.

3.With the self-learning and self-adjustment adaptive function;

4.Re-developed by the request of any input signals from IoT

5.The autonomous patented cooling structure


Specification for Blower

Model HSZTL7.5-25
Max.Power (kw) 7.5
rotation speed rpm) <=24000
Pressure mmH2O) <=2500
Flow (m3H) 1200
Dimension (L*W*H mm) 800*650*610
Gross Weight (KG) 75
Flange Diameter DN80


Show Details:




Main Service
We can provide customers with customized services, according to your motor application scenarios and needs, thus providing the best solution at a competitive price.


Customizing Range:

Power: 5KW-2MW
Speed: 2500rpm-100000rpm
Voltage: 110v-690v

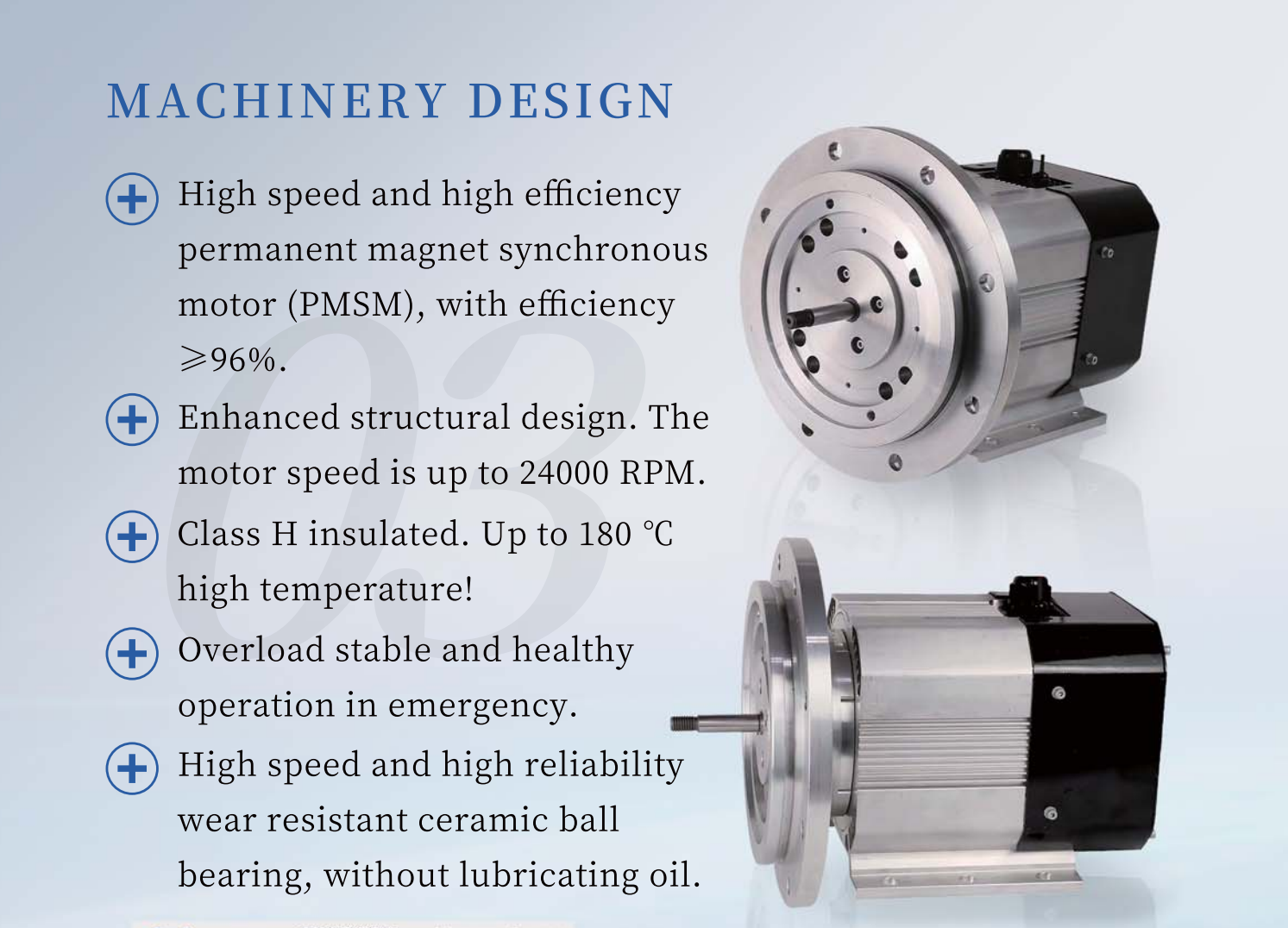

Machinery Design:







If you need more information, please kindly contact us.
