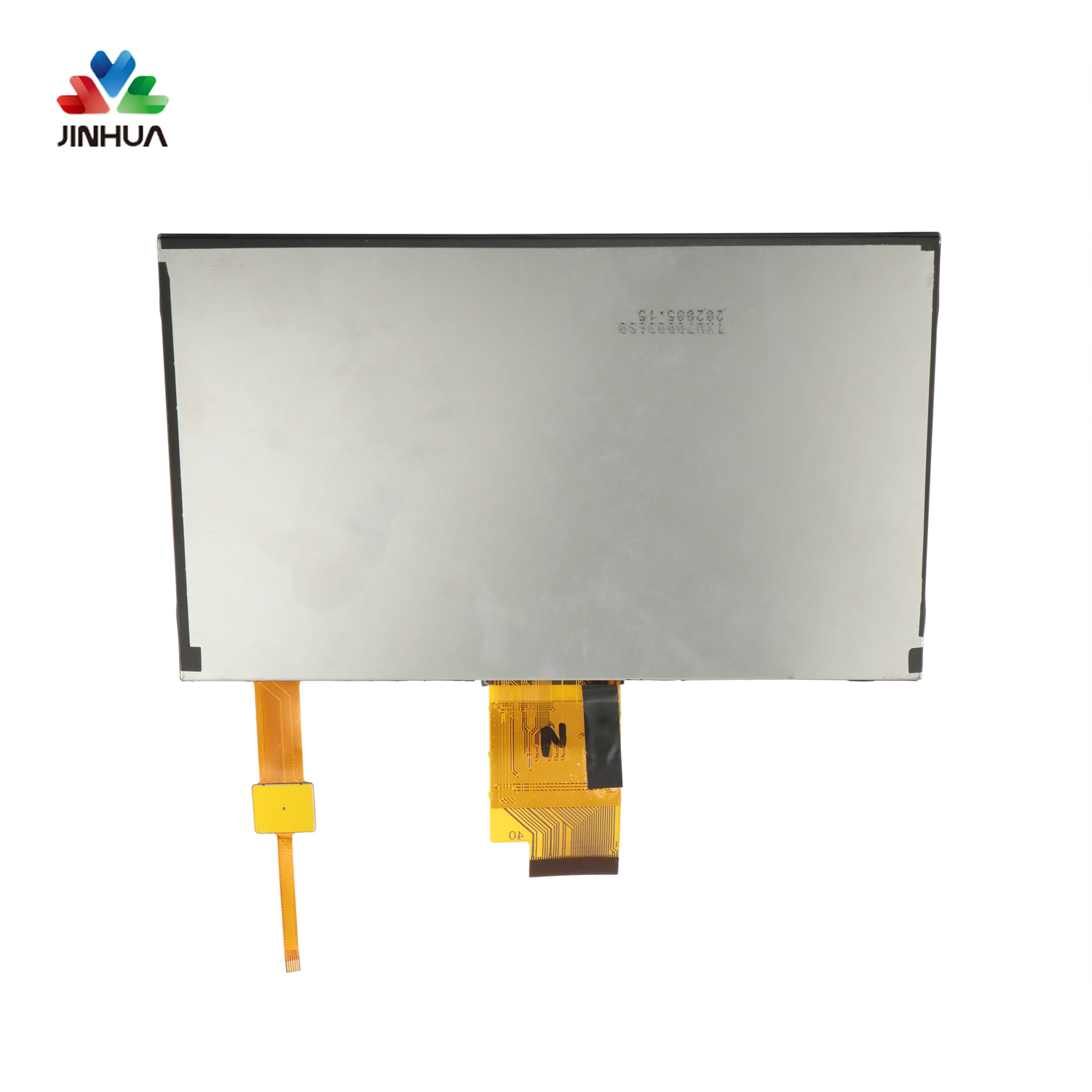

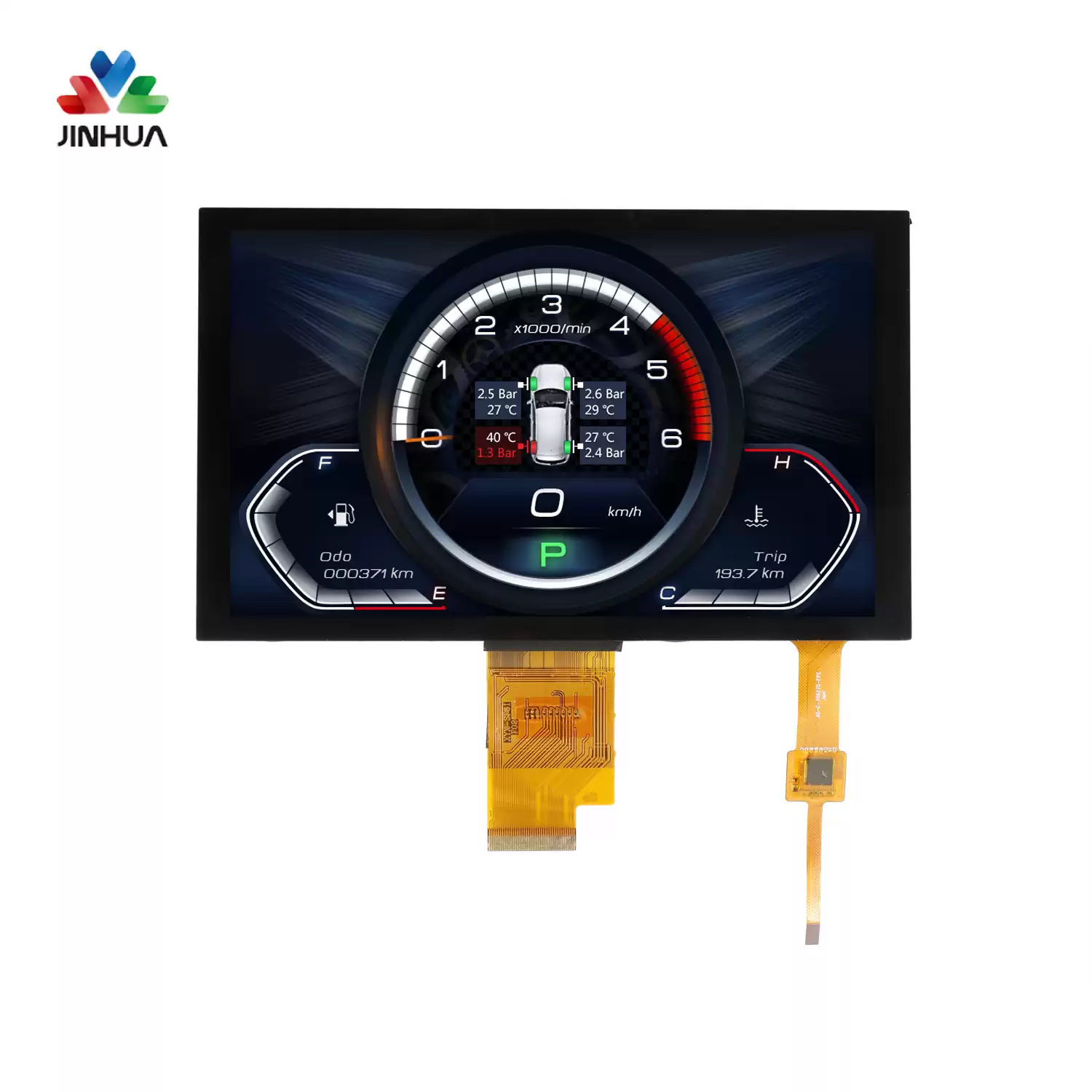

7 Inch 1024X600 Resolution IPS Touch Panel TFT Screen Module OEM
It is a 1024x600 resolution 7 inch TFT screen module product. The view area of this display is 85.92x154.21mm and it's brightness could rech 350 cd/m2.
The touch screen display is IPS type which the viewers are able to get the best visual effect no matter watch the display from any angle.
Middle Size TFT Screen
Product Parameters
| Display Type |
TFT Display |
| Display Size |
7 Inch |
| View Angle |
IPS/TN |
| Resolution |
1024x600 |
| AA |
85.92x154.21mm |
| Backlight Color |
White LED |
| Brightness |
350cd/m2 |
| Interface |
I2C/SPI/MIPI/LVDS/RGB/MCU/UART |
| Control IC |
ST7796S |
| Connector |
FPC |
| Operating Temperature |
-20-70°C |
| Operating Voltage |
2.8V |
| Touch Panel |
Capacitive/Resistive |
| Requirements On Environmental Protection |
ROHS HSF |
Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Middle Size TFT Display has different type interms of view angle either IPS display or TN display. Generally speaking, the IPS type display has better view effect comparing with TN type which makes IPS type comes with more extensive application such as medical equipment, consumer electronics, smart home control, etc.
