7 inch TFT RTP Touch LCD Display with 800 x 480 resolution Digital 18bit RGB interface

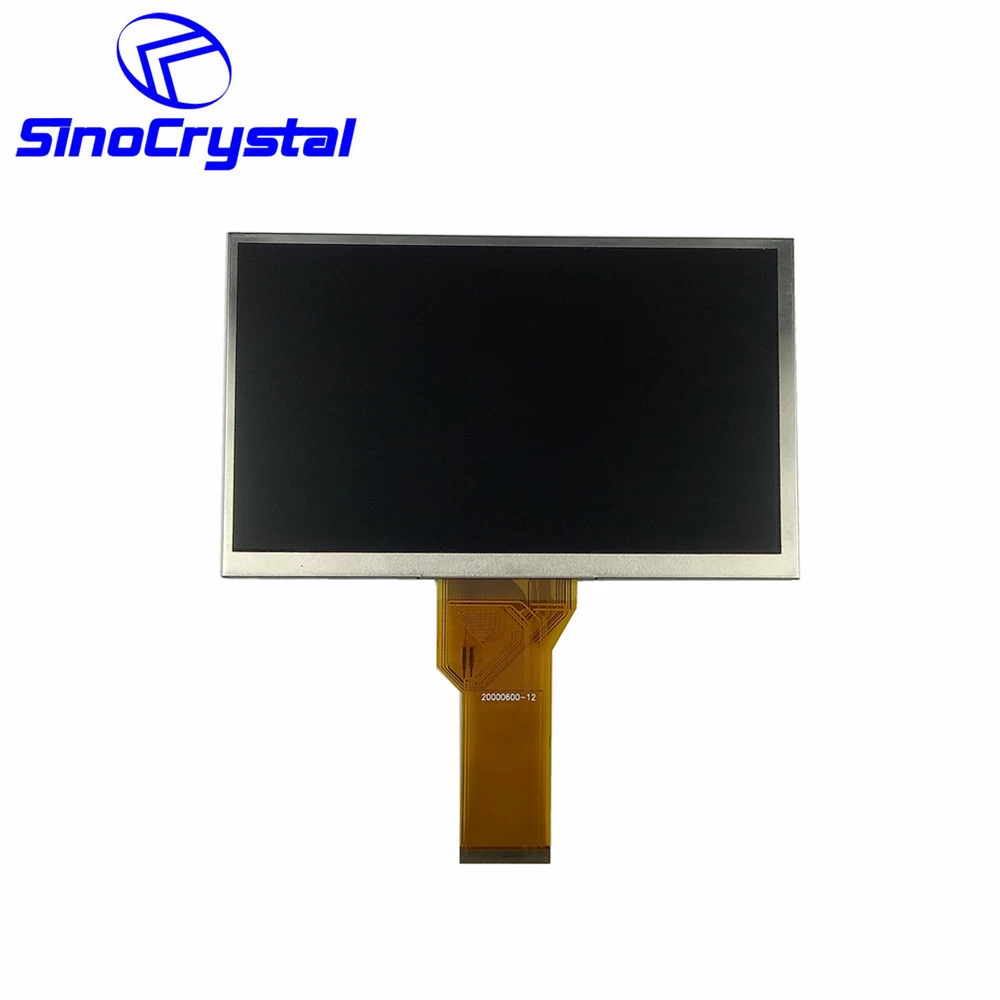

SCT070002-V01 is a 7 inch IPS TFT LCD Display with 800 x 480 resolution, it supports Digital 18bit RGB interface, 40 PIN


  • Temperature (℃)-20°C~70°C
  • Touch ScreenNo
  • Brightness (cd/m²)300
  • InterfaceDigital RGB (6bits/color) Data Transfer
  • IC Part No.-
  • View Direction6
  • Active Area (mm)153.6*86.64
  • Viewing Area (mm)155.00*88.44
  • Outline Dimension (mm)165.00*104.00*6.5
  • Resolution800*480

Basic Information


Resolution:                    720 x RGB x 1280

Outline Dimension:       64.30*118.30*1.55

Active Area:                  61.78*109.82

View Area:                  155.00*88.44

Interface:                      Digital RGB (6bits/color) Data Transfer

View Direction:              6 o'clock

PIN:                                40

Backlight:                      White LED

Touch Screen:               Resistive Touch Screen




Description


SCT070002-V01 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit, touch Panel and a back-light unit. Graphics and texts can be displayed on a WVGA 800 (W) x 3 x 480 (H) dots (16:9 aspect ratio) with 262,144 colors by supplying 18 bits data signal (6bits/each color). The following table described the features of SCT070002-V01.


 Features
-          Transmissive and back-light with 18 LEDs are available.
-          TN (Twisted Nematic) mode.
-          Digital RGB (6bits/color) data transfer.
-          Data enable mode.
-          Back-light Dimming control



Touch Screen Panel Technical parameters:


  • Electrical Characteristics



Item

Min.

Typ.

Max.

Unit

Note

Linearity

-1.5

-

1.5

%

Analog X and Y directions

Terminal resistance

200

-

400

W

Y(Glass side)

200

-

800

W

X(Film side)

Insulation resistance

20

-

-

MW

DC 25V

Voltage

-

5.0

7.0

V

DC

Response time

-

15

       -

  ms



Transparency

-

80

-

%

Non-glare



  • Mechanical & Reliability Characteristics



Item

Min.

Typ.

Max.

Unit

Note

Activation force

-



80

g

(1)

Hitting Durability

1,000,000

-

-

times

(2)

Sliding Durability

100,000





times



Surface hardness

3

-

-

H

JIS K5400






General Specification


Item Specification Unit
Screen Size 7 inch tft lcd display Diagonal
Display Resolution 800 (H) x 480 (V) Pixel
Active Area 153.6 (H) x 86.64 (V) mm
Outline Dimension 165.00 (H) x 104.00 (V) x 6.5 (T) mm
Display Mode Normally white mode/ Transmissive --
Surface Treatment Anti-glare(AG) --
Pixel Arrangement R,G,B Vertical Stripe --
Pixel Size 192 x 180.5 um
Display Color Full Colors --
Viewing Direction 6 o'clock --
Input Interface Digital RGB (6bits/color) Data Transfer --


Interface Definition

Pin No. Symbol I/O Function
1 GND P Ground
2 GND P Ground
3 ADJ I Back-light Dimming control
4 VLED P Power Supply LED voltage
5 VLED P Power Supply LED voltage
6 VLED P Power Supply LED voltage
7 VCC P Power Supply Logic voltage
8 VCC P Power Supply Logic voltage
9 DE I Data Enable Timing Signal
10 GND P Ground
11 GND P Ground
12 GND P Ground
13 B5 I Blue data signal (MSB)
14 B4 I Blue data signal
15 B3 I Blue data signal
16 GND P Ground
17 B2 I Blue data signal
18 B1 I Blue data signal
19 B0 I Blue data signal (LSB)
20 GND P Ground
21 G5 I Green data signal (MSB)
22 G4 I Green data signal
23 G3 I Green data signal
24 GND P Ground
25 G2 I Green data signal
26 G1 I Green data signal
27 G0 I Green data signal (LSB)
28 GND P Ground
29 R5 I Red data signal (MSB)
30 R4 I Red data signal
31 R3 I Red data signal
32 GND P Ground
33 R2 I Red data signal
34 R1 I Red data signal
35 R0 I Red data signal (LSB)
36 GND P Ground
37 GND P Ground
38 DCLK I Data Clock
39 GND P Ground
40 GND P Ground
