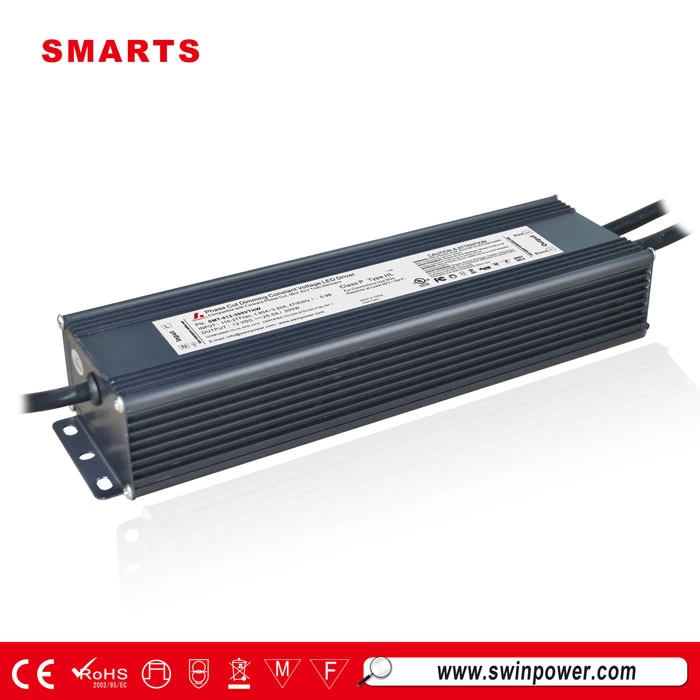

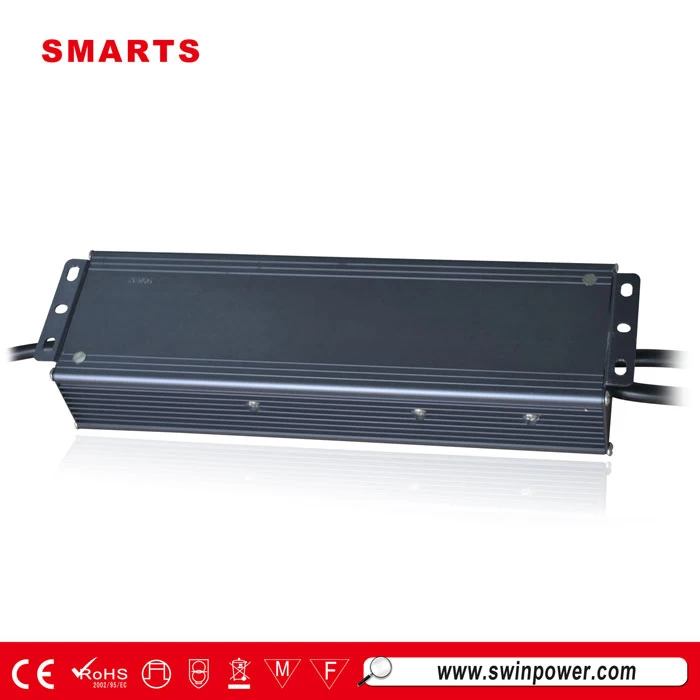

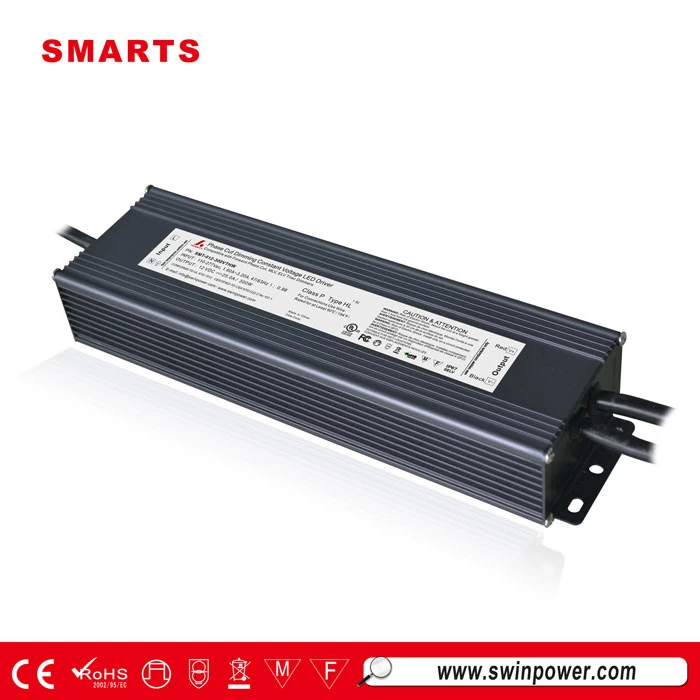

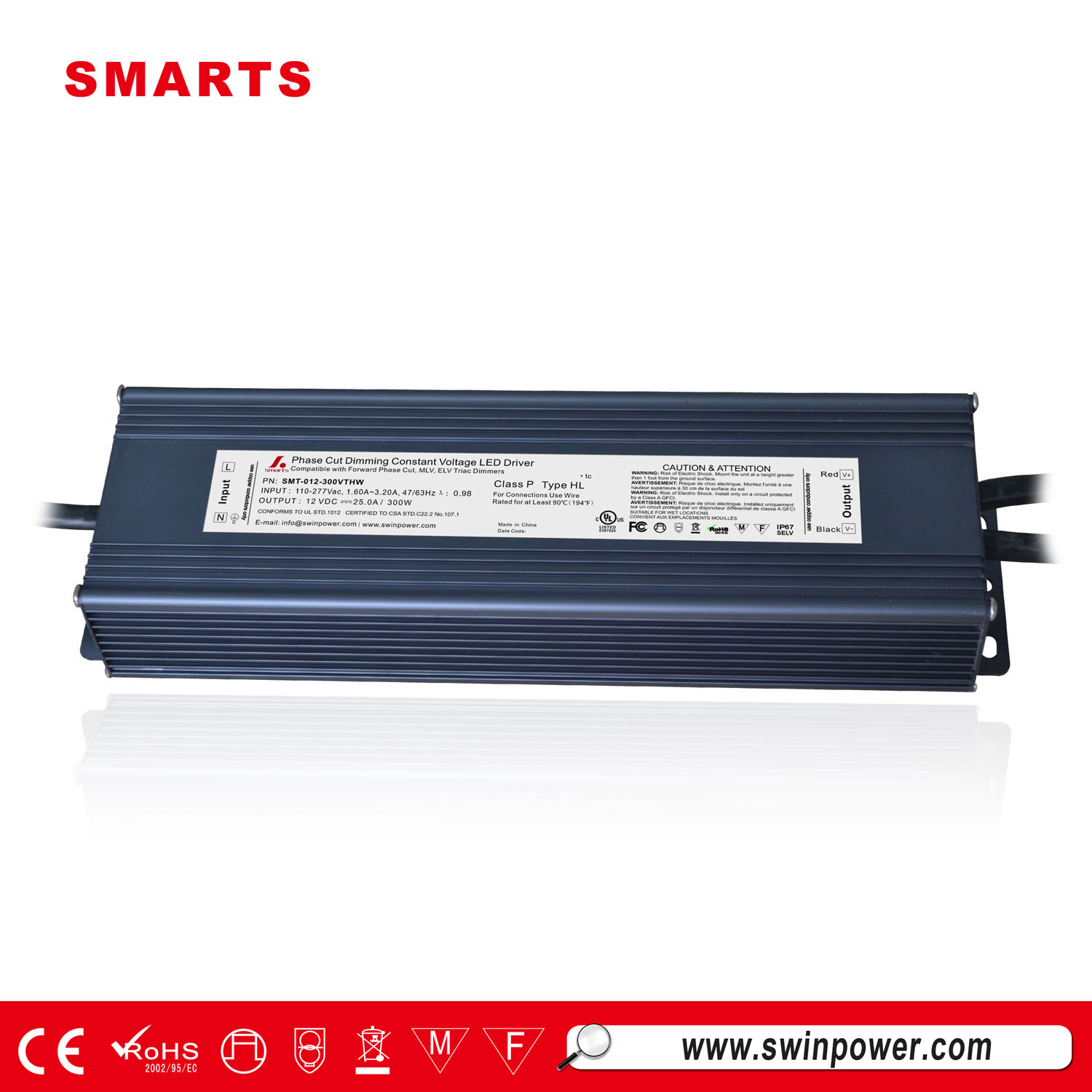

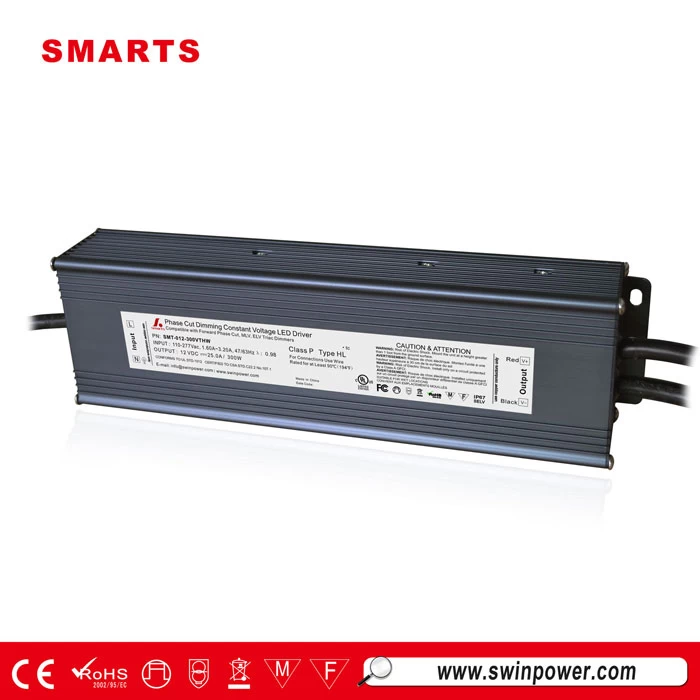

7 years warranty 300W Waterproof power supply 100V to 277V AC input Isolated led driver for LED lighting
12v 24v 300w waterproof triac dimmable led driver takes about 7 years warranty,and it is have short circuit/overload temperature protection.Through 100% full load burn-in test. It application with indoor & outdoor illuminating lights.
Feture
|
|
-
Case material: plastic case
-
Cooling by free air convection
-
100% full load burn-in test
-
High reliability
-
Universal AC input (90~135VAC, 170~ 265VAC)
-
designing standard: Ul1310 Class 2 power unit
-
Cooling by nature
-
Suitable for dry location
-
Follow the global lighting safety regulations
|
Specification
|
Model
|
SMT-012-300VTHW
|
SMT-024-300VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Load Regulation
|
±2%
±1%
|
±1%
|
|
|
Rated current
|
25.0A
|
12.5A
|
|
|
Rated power
|
300W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor（Typ.）@ full load
|
0.98@120VAC 0.97@277VAC
|
0.98@120VAC 0.97@277VAC
|
|
|
THD（Typ.）@ full load
|
<20%
|
|
|
Inrush Current （Typ.）
|
20A, 50%, 1.4ms
|
|
|
Full Load
Efficiency（Typ.）
|
>83%
|
>83%
|
|
|
AC Current（Typ.）
|
3.4A@110VAC 1.76A 1.76A
|
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition
is removed
|
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,
Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
|
Withstand voltage
|
I/P-O/P: 3.00KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
Compliance to FCC Part 15 B
|
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11（Surge 4KV）
|
|
Others
|
Weight
|
1.75Kg
|
|
|
Size
|
276*78*47mm (L*W*H)
|
|
|
packaging
|
10PCS/CTN
385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated
load and 25℃of ambient temperature.
2..Tolerance:includes set us tolerance,line regulation and load regulation.
|
|
