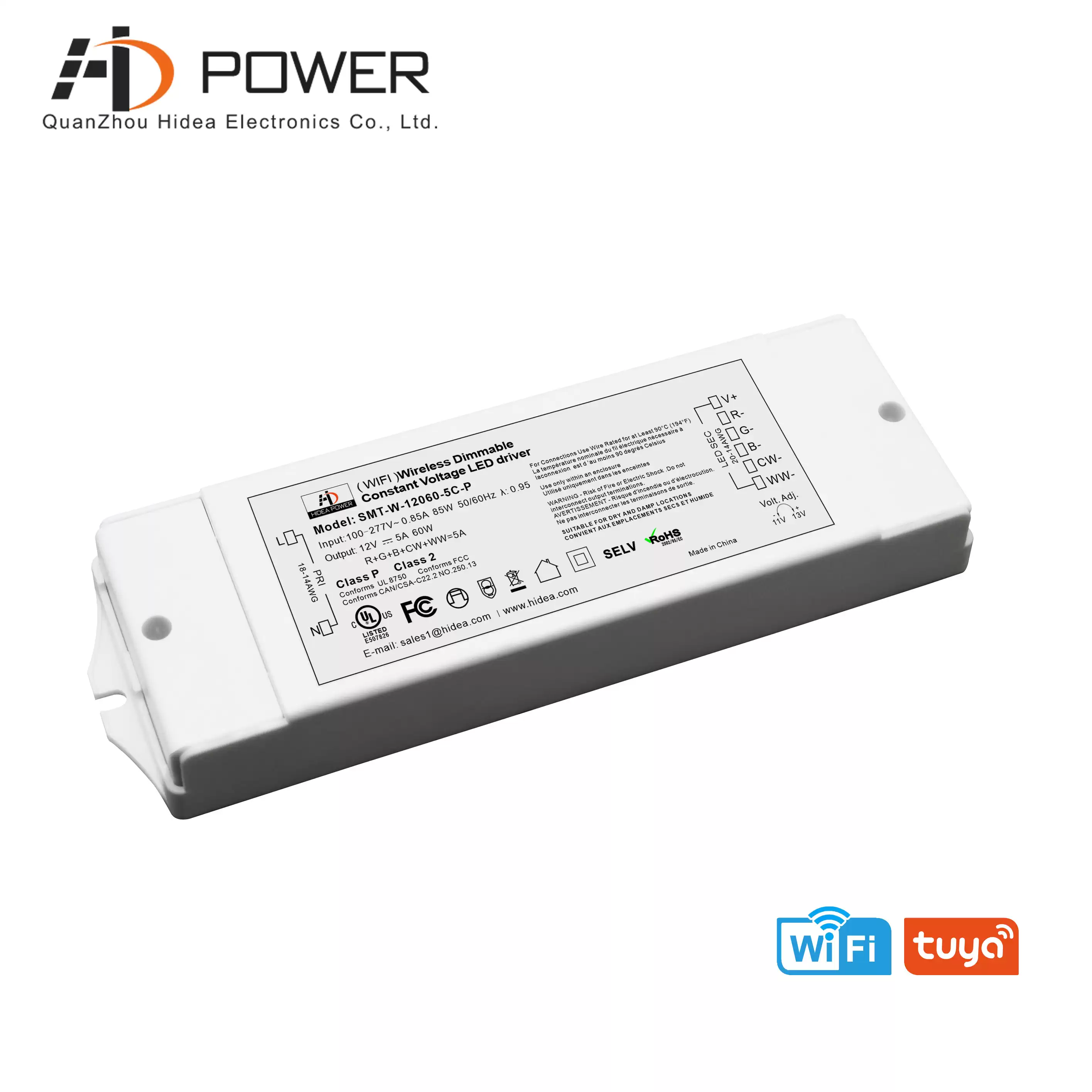

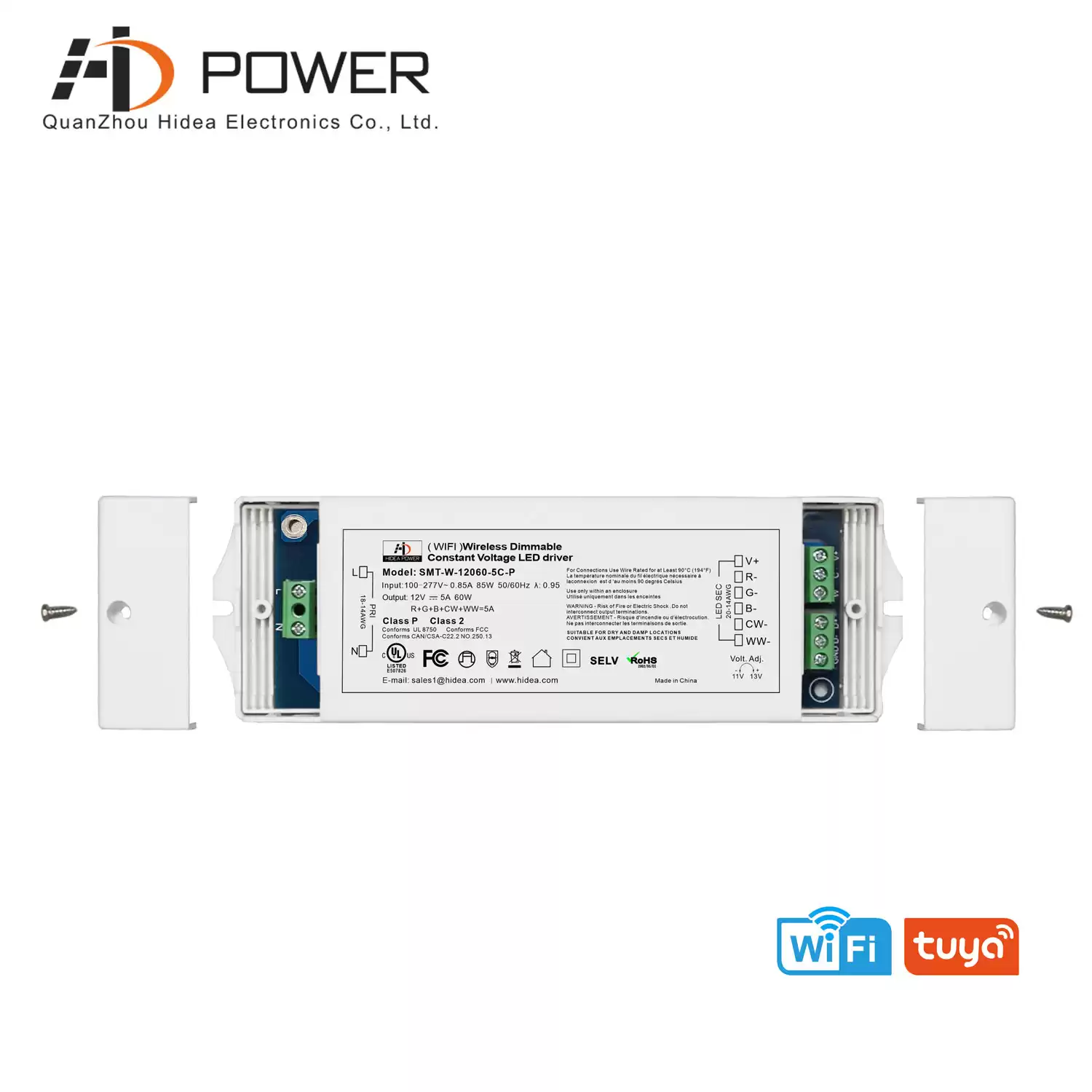

7 years warranty12v 60w dimmable led driver
After installing the 12v 60w dimmable led driver related software on our ios or Android phones, tablet PCs and other mobile devices. It makes the led lighting control more intelligence, networking and humanization.
Specification
|
Model
|
SMT-W-12060-YC-P
|
SMT-W-24060-YC-P
|
|
Y=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT
|
|
Output
|
DC Adj. Voltage Range
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
CH1+CH2+CH3+CH4+CH5=5A
|
CH1+CH2+CH3+CH4+CH5=2.5A
|
|
Rated power
|
60W
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.)@ full load
|
PF≥0.95/ 230VAC (Full loading)
|
|
THD(Typ.)@ full load
|
<15%
|
|
Efficiency(Typ.)@ full load
|
87% @230VAC
|
88%@230VAC
|
|
AC Current(Max.)
|
0.72A
|
0.72A
|
|
Inrush Current (Typ.)
|
45A (Twidth 145us measured at 50% I peak, COLD START, 230VAC)
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Over temperature
|
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
|
|
Protection Class
|
II
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 90%RH ,non-condensing
|
|
StorageTEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.5KVAC (US)
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Net Weight
|
0.40KG
|
|
Dimension
|
192.5*62*24mm (L*W*H)
|
|
packing
|
195*65*28mm /1PC/box 280*210*160mm/20PCS/CTN G.W.:8.3KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
It is 60w dimmable led driver, which is an energy-saving alternative to traditional incandescent bulbs. LED light bulbs can be used as replacement bulbs in most common light fixtures, including accent lighting, lamps, track lighting and even outdoor flood lights.
Related Products
|

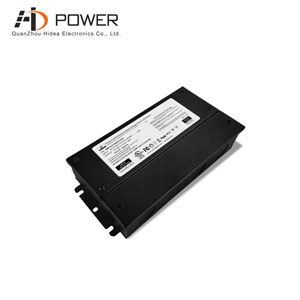

 The 12vdc 60w triac dimmable led driver is for dry, damp and wet location and they are compatible weill with LED tape and LED strip lighting.
Mode：SMT-012-060VTHV2
Dimming Mode : Triac Dimming
Output Power : 60W
intput voltage：100-277V AC
Size：188*94.5*40MM （L*W*H）
|
