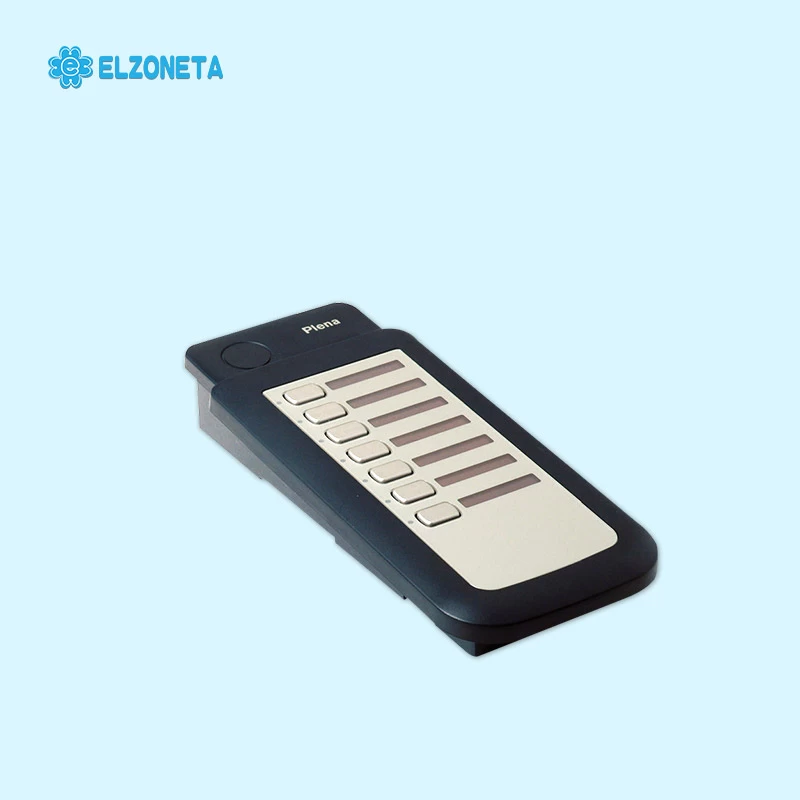

EC-PVS-CSK7Z 7 Zones Call Station Keypad
7 Zones Call Station Keypad is one of the accessories of public address and voice alarm system,accept to connect maximum eight keypads together.
Features
1.Seven zone selection keys
2.LED indications for zone selection
3.Up to eight keypads can be connected together
Specification
|
Power Supply
|
|
|
Voltage range
|
24VDC supplied by LBB 1956/00
|
|
Current consumption
|
＜15 mA
|
|
|
|
Base dimensions
|
40 x 100 x 235mm(1.57 x 3.97 x
9.25 in)
|
|
Weight
|
Approx. 1kg
|
|
Mounting
|
Bracket coupled with LBB 1956/00 or
other LBB 1957/00
|
|
Color
|
Charcoal with silver
|
|
|
|
Operating temperature
|
-10ºC to +45ºC (14 ºF
to +113ºF)
|
|
Storage and transport temperature
|
-40ºC to +70ºC
(-40ºF to +158ºF)
|
|
Relative humidity
|
＜95%
|
