700C 28mm Width 30mm Depth Carbon Tubeless Rims
Product Feature
-
Super lightweight,700c 28mm wide 30mm deep carbon tubeless rims are constructed from Toray T700&T800 that structure minimize rotational weight.
-
700c road bicycle rims have flyweight version and weigh 370±15g.
-
Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
-
Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing, also to ensure an easy mounting and a safe tire seat on the rim.
-
U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
-
High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.
-
Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.
Specification
Item NO.:
|
RX30L
|
Braking System:
|
Rim Brake/Disc Brake
|
Applicable Bicycle:
|
Road Bicycles
|
Appearance:
|
UD/3K/12K
|
Finishing:
|
Matte/Glossy
|
Material:
|
Full carbon fiber (Toray T700)
|
Spoke Hole:
|
16H-36H
|
Outer width:
|
28mm
|
Depth:
|
30mm
|
ERD:
|
583mm
|
Type:
|
Tubeless
|
Weight:
|
Standard:430±15g Flyweight:370±15g
|
Standard:
|
En Standard
|
Assembly Hole Dia:
|
8.5mm
|
Spoke Hole Dia:
|
4.5mm
|
Valve Hole Dia:
|
6.5mm
|
Roundess:
|
<0.25mm
|
Flatness:
|
<0.15mm
|
Max Spoke Tension:
|
>350kgf
|
|
Weight limit:
|
<100kg
|
Teleport to the wheel page.

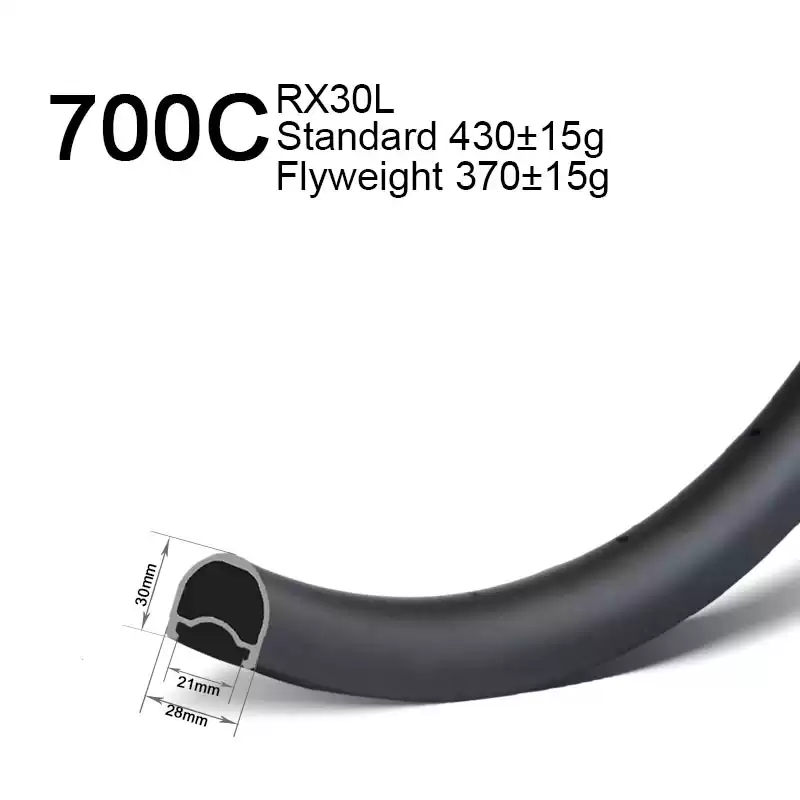

Geometry
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read More For Testing Of Carbon Rims By DCH Factory
