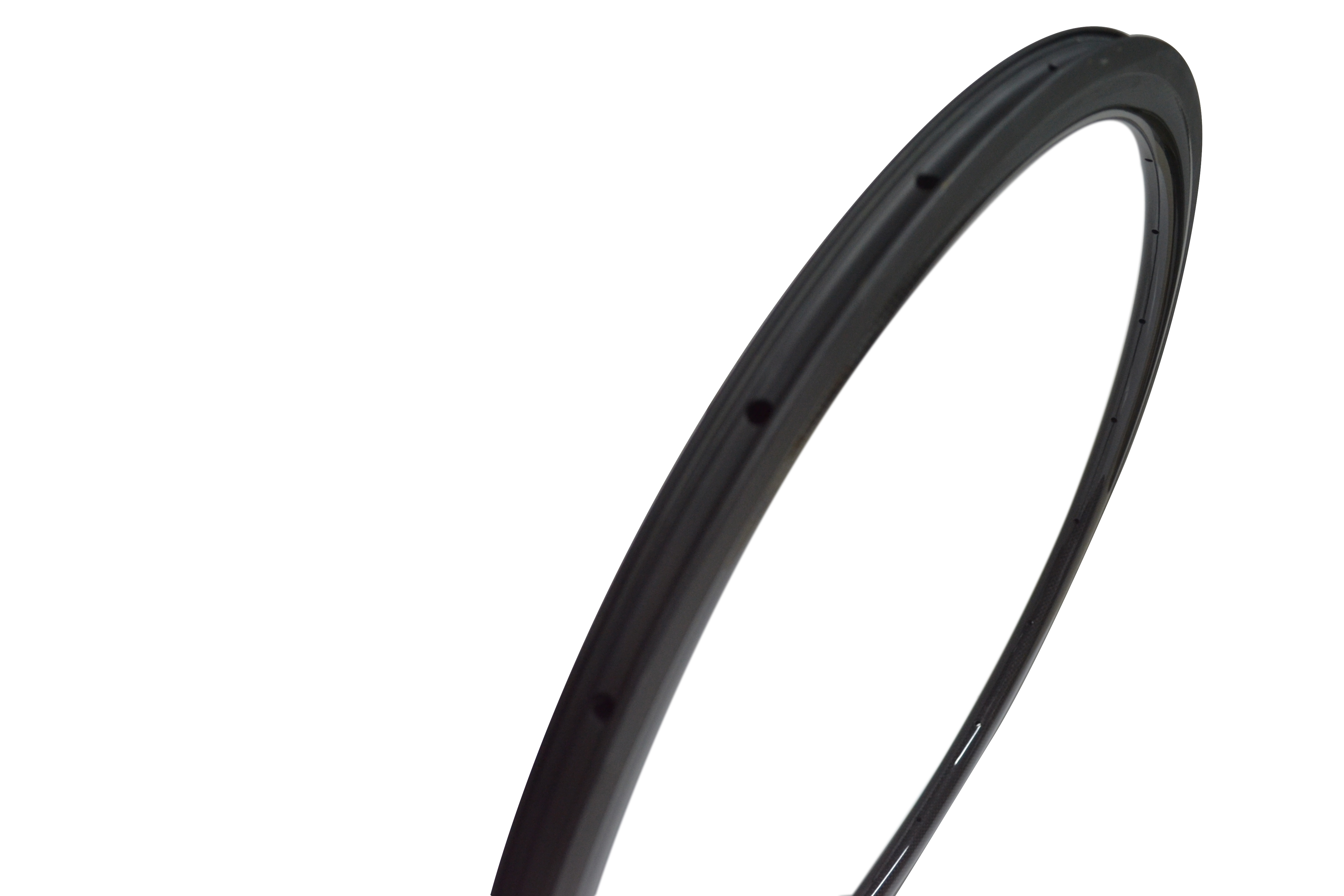

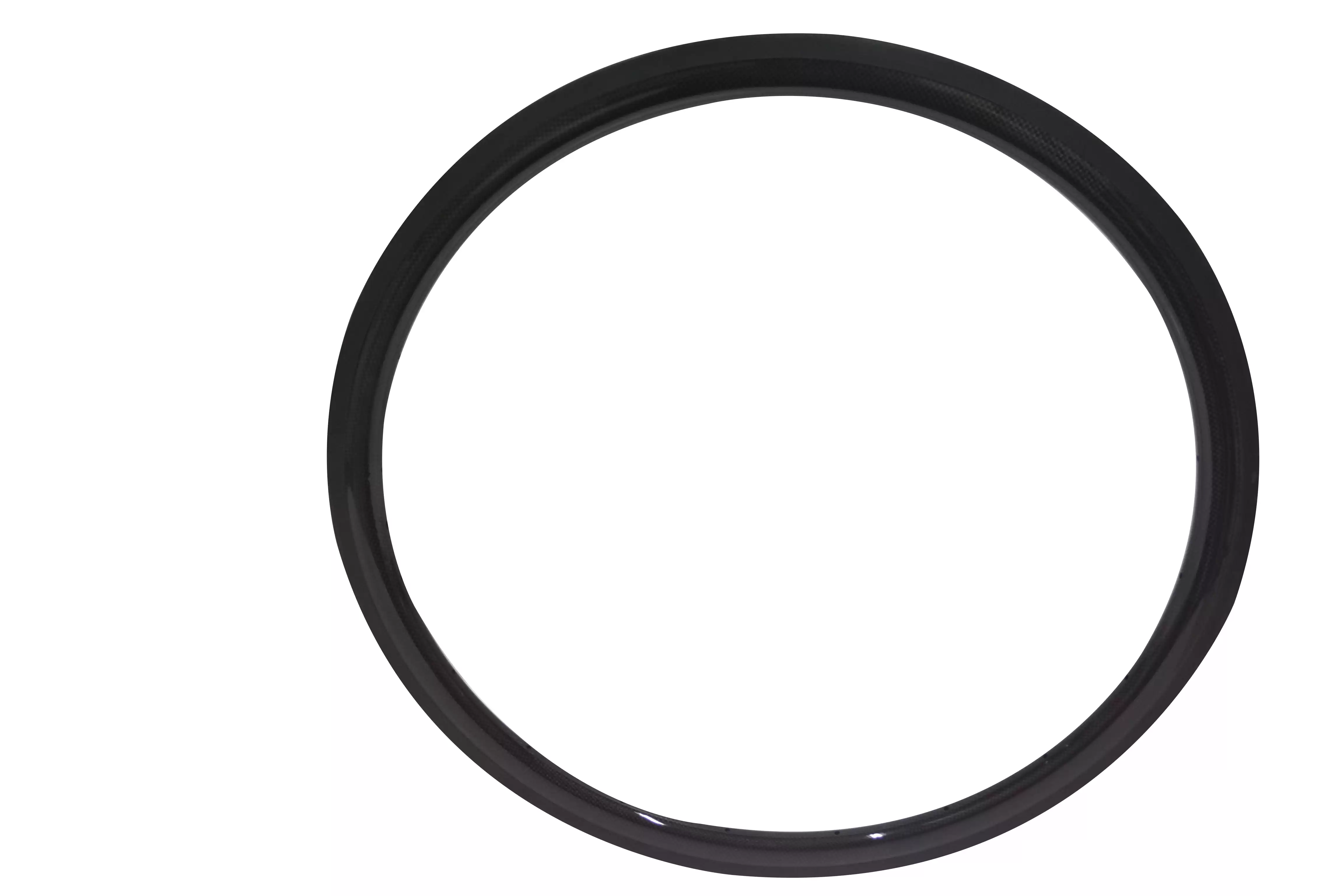

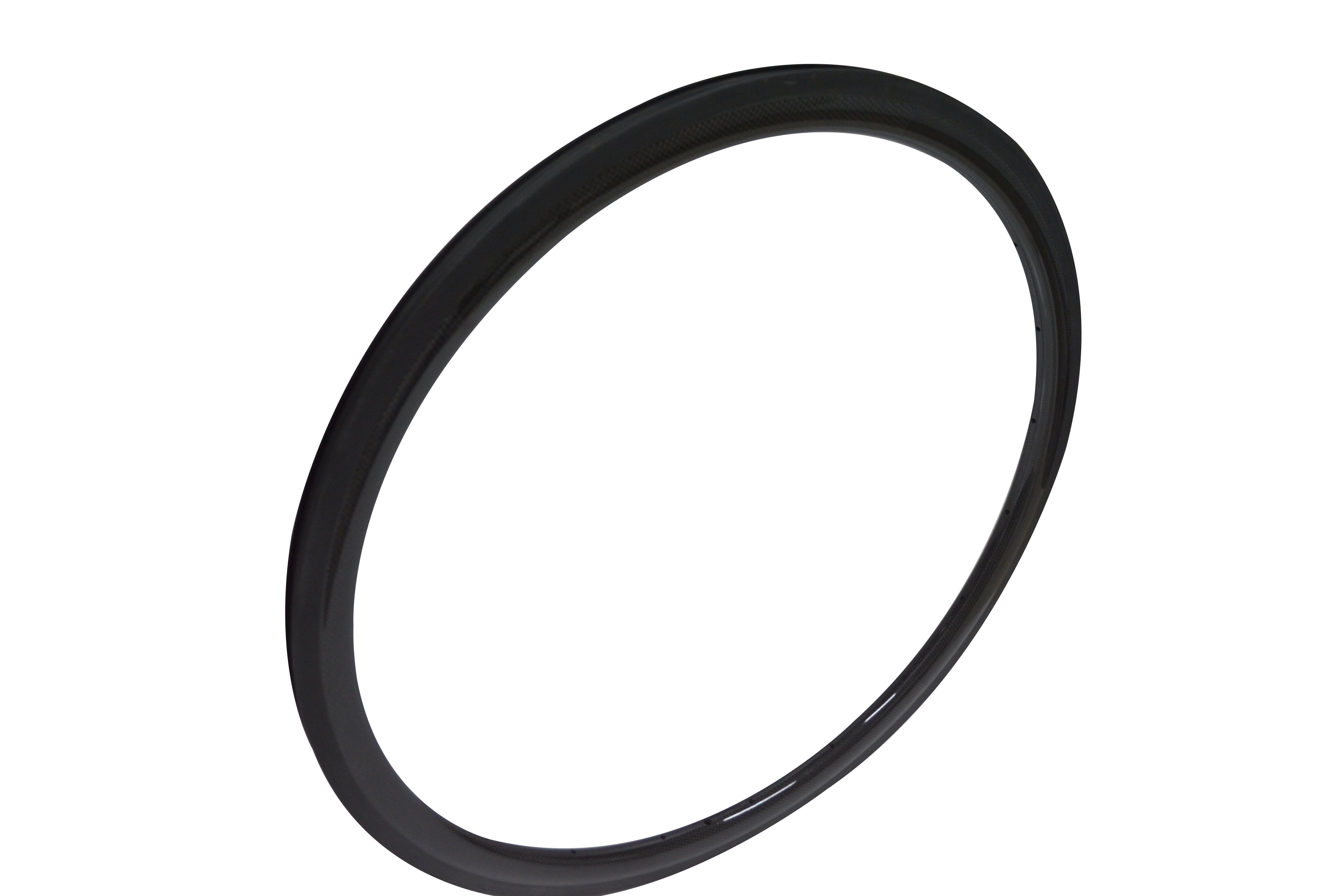

Product Model：700C 38mm Deep Clincher bicycle rims
38mm Deep clincher carbon rims U shape Lightweight road bike rims offers improved aerodynamics.better handing in crosswinds condition and faster riding.comfot for climbing and flat bike.
27mm wide clincher rims with 250°C high TG resin system.better for braking sysytem.UD Appearance to be more resistant to high temperature.
25mm wide carbon wheels made of Toray T700 and T800 carbon fiber.better for the stiffness and strength.Different patterns of brake surface optional. comfort for track road bike wheels.
We can finish Disc brake or basalt brake,matte or glossy.
High quality carbon clincher rims manufacturer,wholesale price,good service and fast delivery.
Features:
1.Our rims use 250°C high TG resin system, it can tolerated max 250°C high temperature from braking.
2.Super lightweight rims product with Full Toray T700 & T800 carbon fiber, high quality wheels.
3.For the wheels in fewer broken spokes and nipples,used Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress.
4.25mm width with U-shape,better strong and stiff.
5.We offer decal and painting service for OEM your brands.

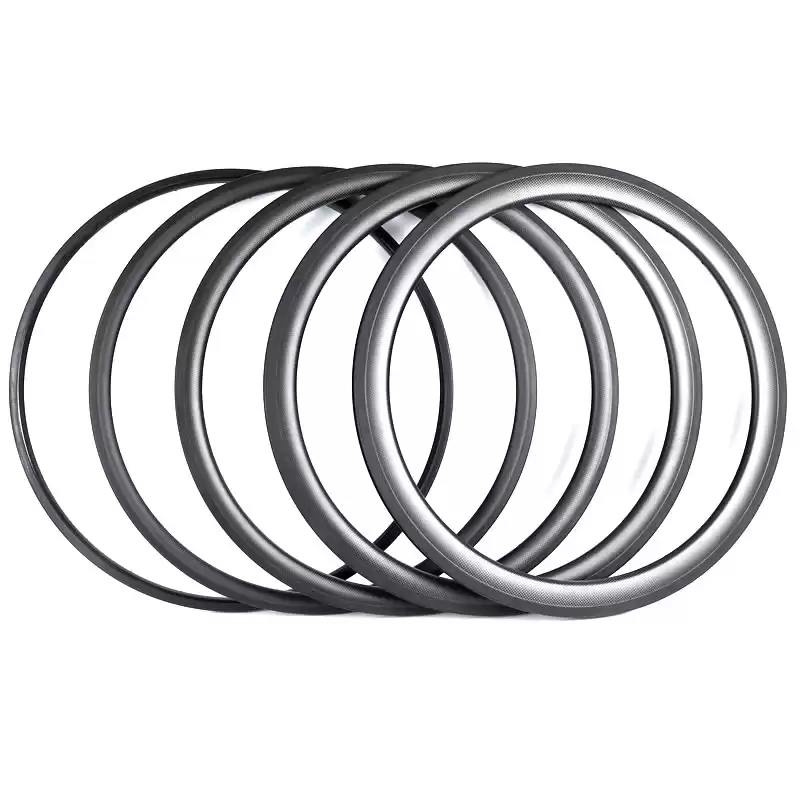

6.We can customized Different patterns of brake surface .
7. 5 years warranty
Specification:
|
Model
|
R38C-21
|
R38C-23
|
R38C-25
|
R38C-27
|
|
Size
|
700C
|
700C
|
700C
|
700C
|
|

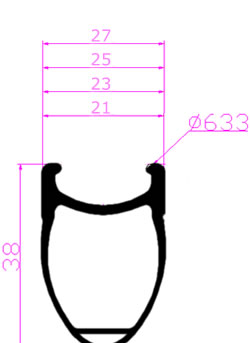

Sectional Drawing
|
|
|
|
|
|
Material
|
Toray T700 & T800
|
Toray T700 & T800
|
Toray T700 & T800
|
Toray T700 & T800
|
|
Depth
|
38mm
|
38mm
|
38mm
|
38mm
|
|
Wide
|
21mm
|
23mm
|
25mm
|
27mm
|
|
Weight
|
425+/-15g
|
440+/-15g
|
465+/-15g
|
475+/- 15g
|
|
Appearance
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
564mm
|
564mm
|
564mm
|
564mm
|
|
Assembly Hole Dia.
|
7.6mm
|
7.6mm
|
7.6mm
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
4.2mm
|
4.2mm
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>280kg
|
>280kg
|
>280kg
|
>280kg
|
|
Ultimate Strength
|
>200kg
|
>200kg
|
>200kg
|
>200kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|
>50kg
|
>50kg
|
|
Tire Size Recommended
|
700*21-23c
|
700*25-28c
|
700*25-28c
|
700*25-28c
|
|
Max Tire Pressure
|
125psi/8.6bar
|
125psi/8.6bar
|
125psi/8.6bar
|
125psi/8.6bar
|

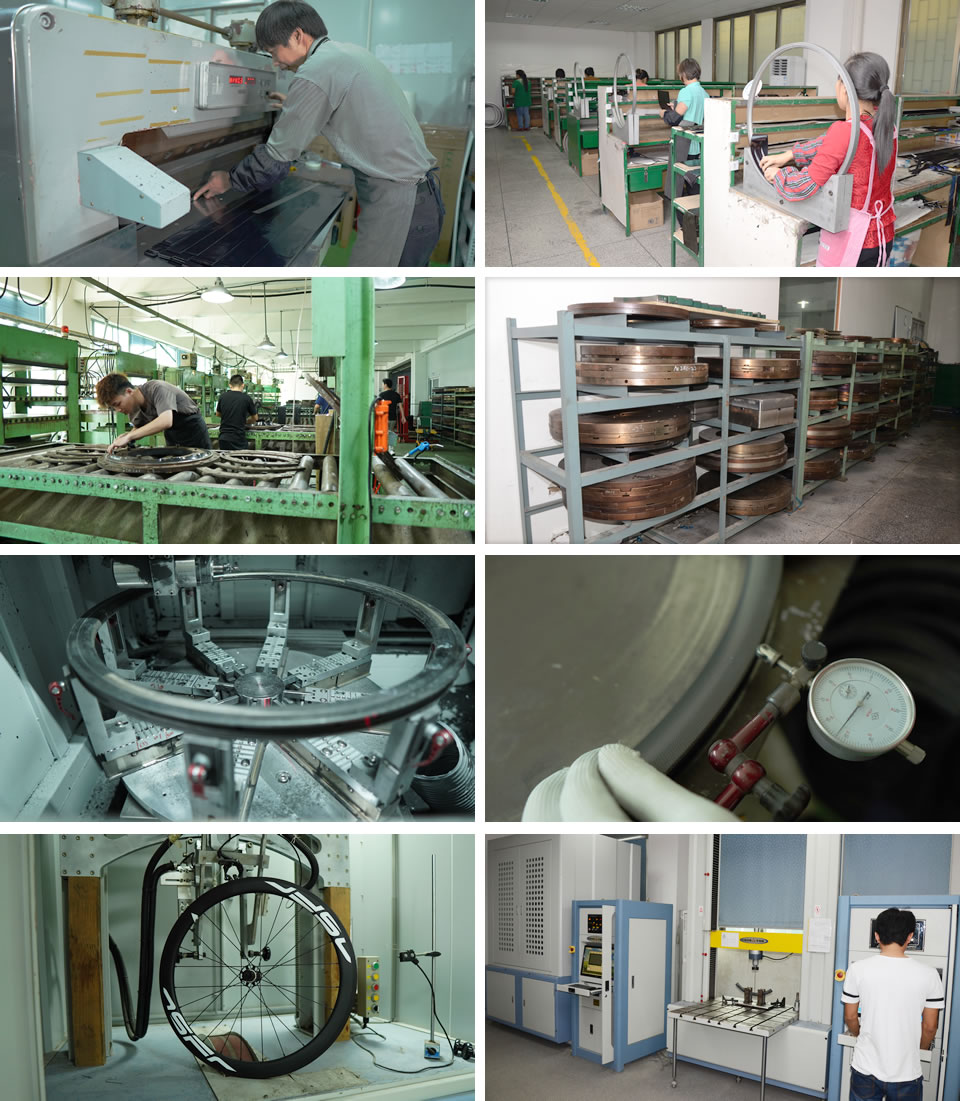

Factory production manufacture
100% Quality Inspection:
Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Please keep your proof of purchase for any future warranty problems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Any man-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
