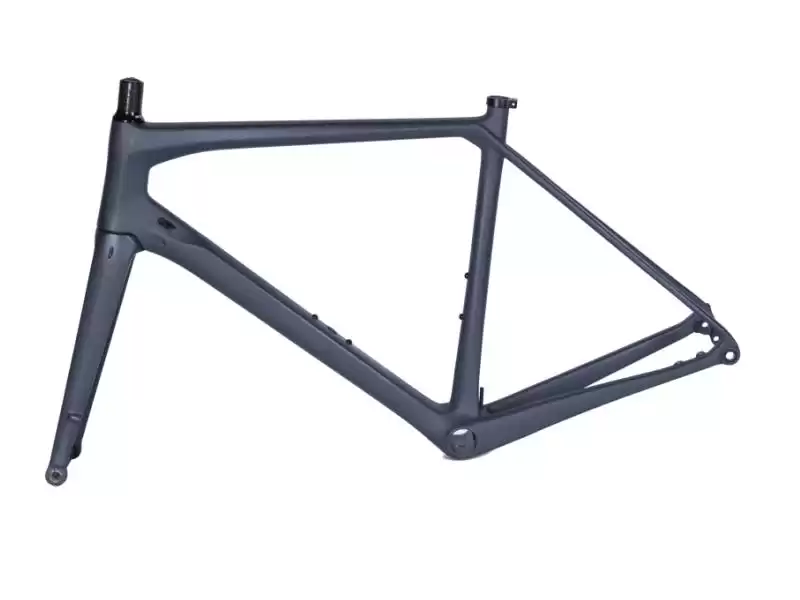

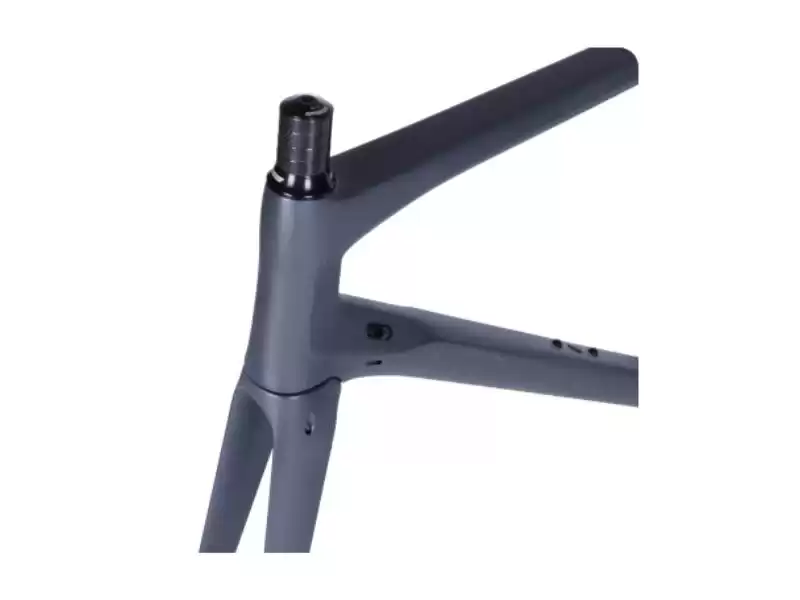

700C Flat mount Carbon Disc Brake Bicycle Road Frame Factory

 700C Flat mount Carbon Disc Brake Bicycle Road Frame

• Type: Road 700C (Disc Brake)
• Size: 440/470/500/540(C to T)
• Head Tube: Tapered 1 1/8" - 1 1/2"
• Bottom Bracket: BB86.5
• Seat Post: TDC-E03
• Fork model: TDC-F06

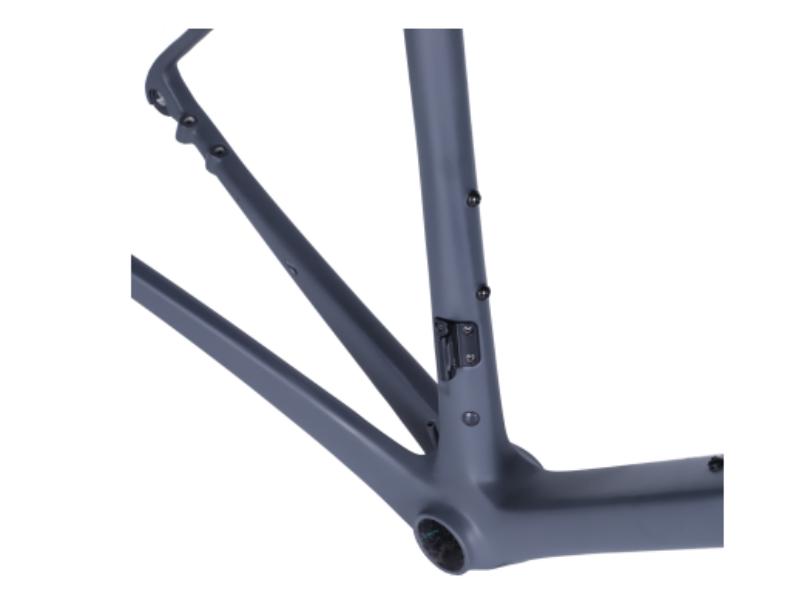

• Cable Routing: Internal and Di2 compatible
• Brake type: Flat mount
• Tire Spec.: 700*28C
• Hub Spec.: 12x10mm / 12x142mm
• Weight:990g+/-35g(M Size)
• Material : Toray  T800 / T700

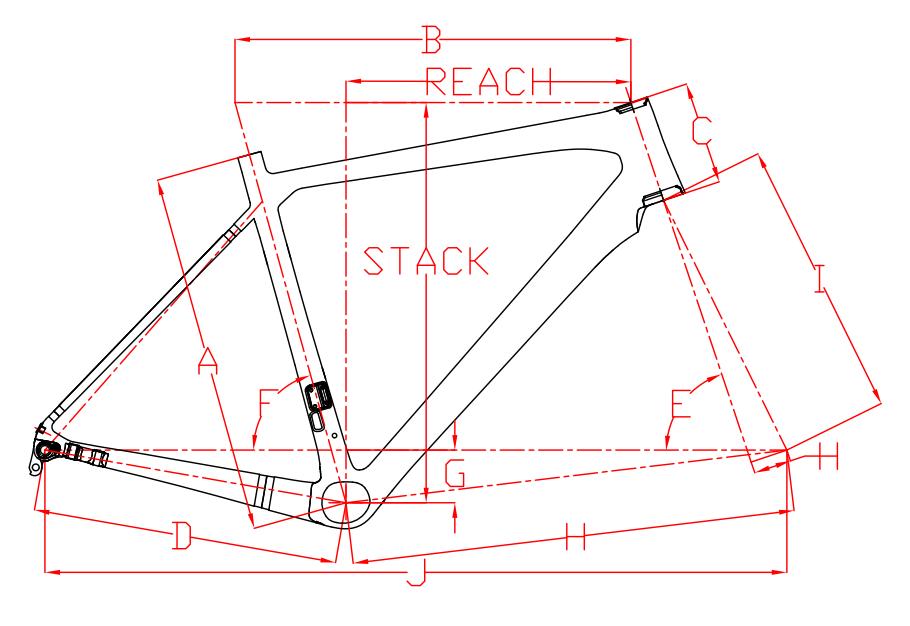

Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

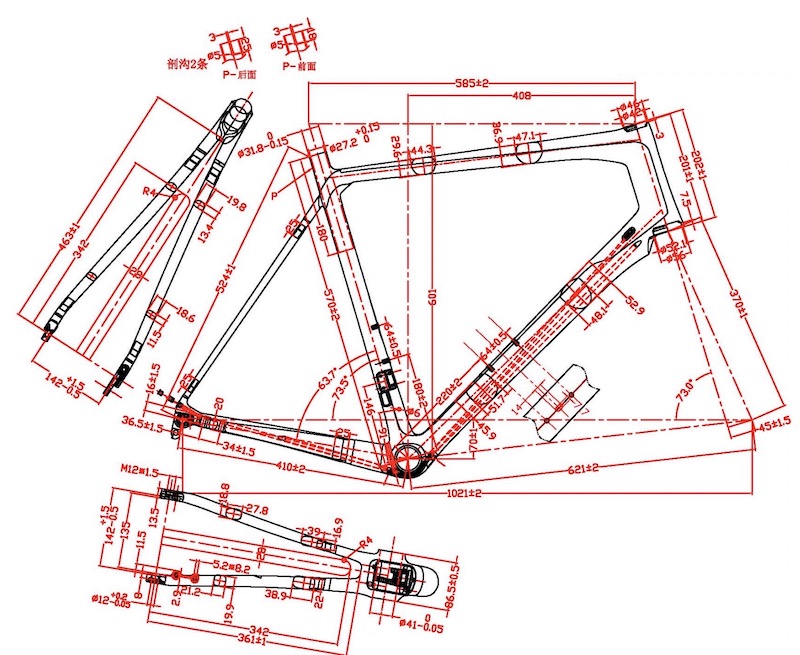

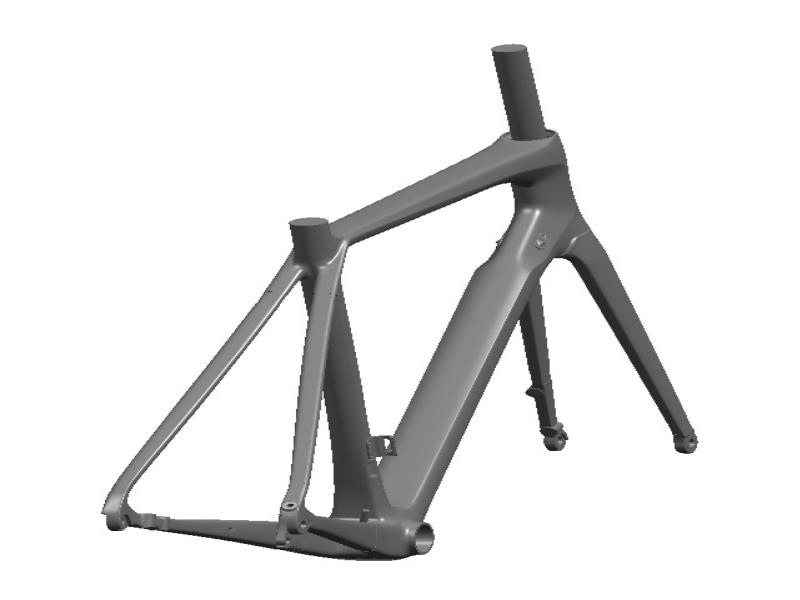

Technical drawings can help customer find the frame detail parameters and structure they are interested.

TECHNOLOGY

	Italy Design Team we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.

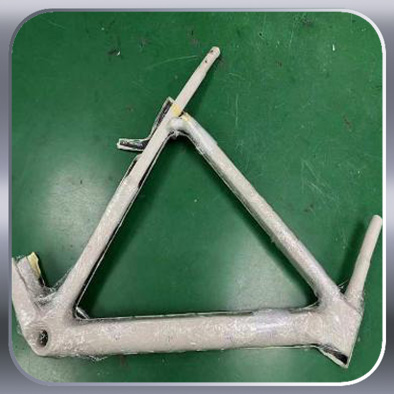

	3D latex mandrel technology we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.

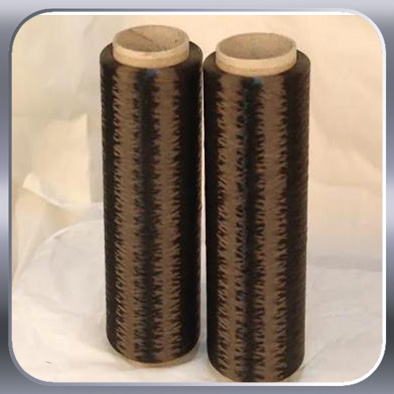

	Carbon Fiber Material Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.  Combining with stable resin system to make consistent quality and light weight frame.

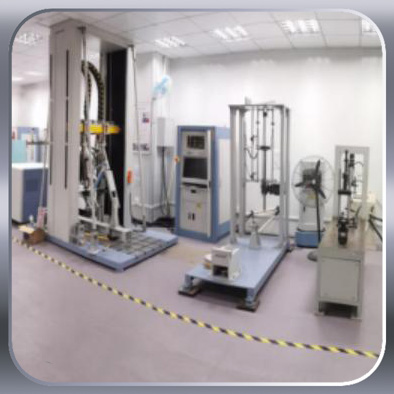

	Lab Test All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.
	2-Year Warranty We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed). Click Warranty  to see more details in another page.

Why choose us ?

Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.. Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.

FAQ:

Q1:Why are road bikes using disc brakes?

A1:Disc brakes can provide substantially more stopping power than rim brakes. This will help the riders reduce less force to the lever before the bike stopping. At the same time, it decreases muscle fatigue in your hands and keep better control to make rider more safety.

Q2:What is the advantages of disc brakes?

A2:Disc brakes bike can help rider provide increased stopping power.The most importantce of disc brakes can give you better braking control versus rim brakes. It allow you can stop more quickly, accurately but with control.

Q3:Do disc brakes need often maintenance?

A3:There is no need to have to maintain your disc brakes very often! When you do need to do some disc brake maintenance, it's also very easy to process by yourself.

Q4:Whether disc brakes need oil?

A4:It's better to wipe down and lightly lubricate your brake cables every few months when you have mechanical disc brakes.You can put a little bike oil to the cable near the cable guides and housings.
