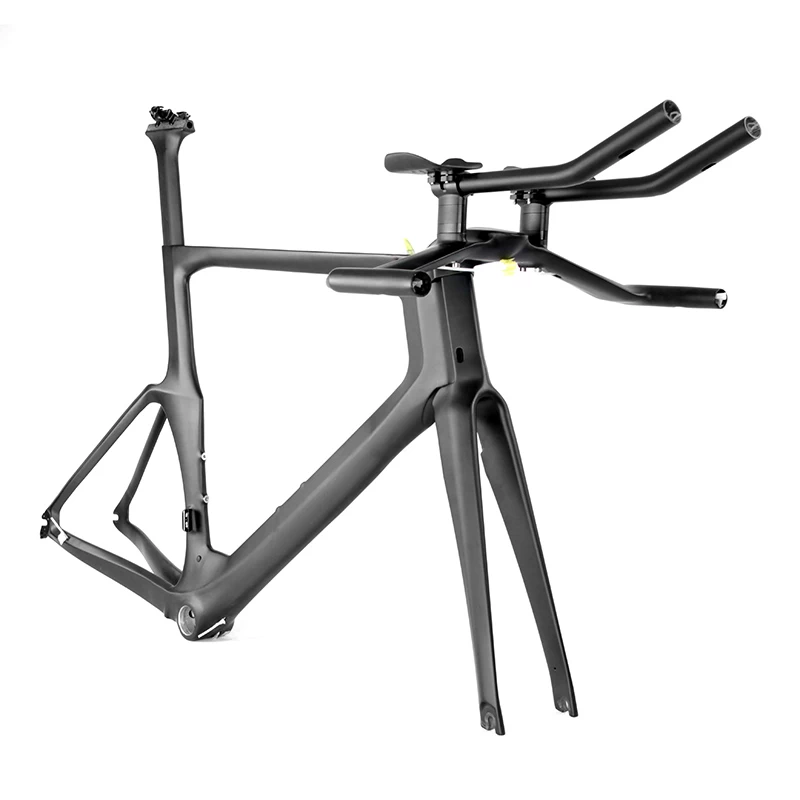

700C Full Carbon Super Aero Time Trial Frame Kit TT001

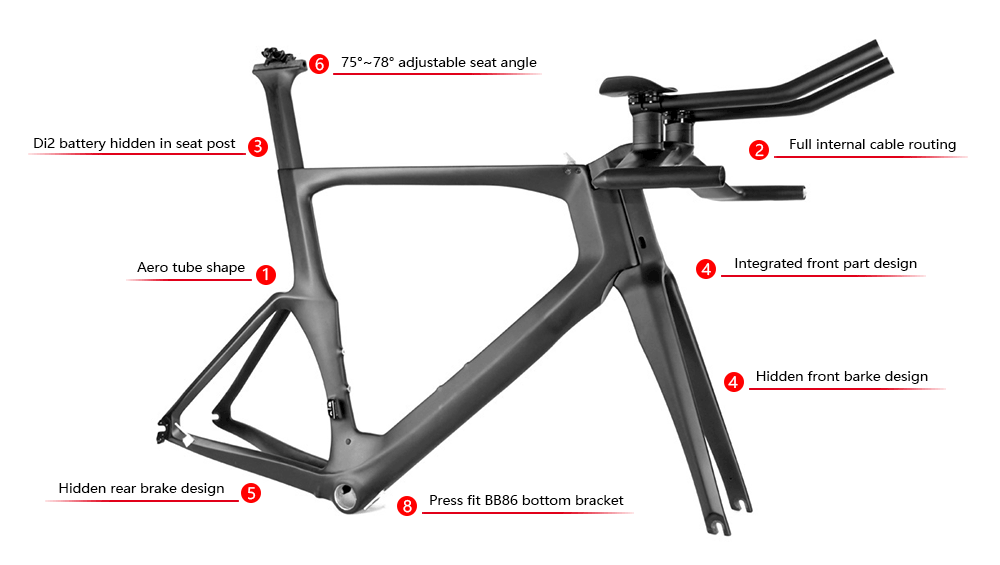

- Aerodynamic tube design

- TRP&Tektro brakes

- Hidden brake design

- Di2 compatible

- Full internal cable



TT001

700C Full Carbon Aero TT Bike Frame


TT001

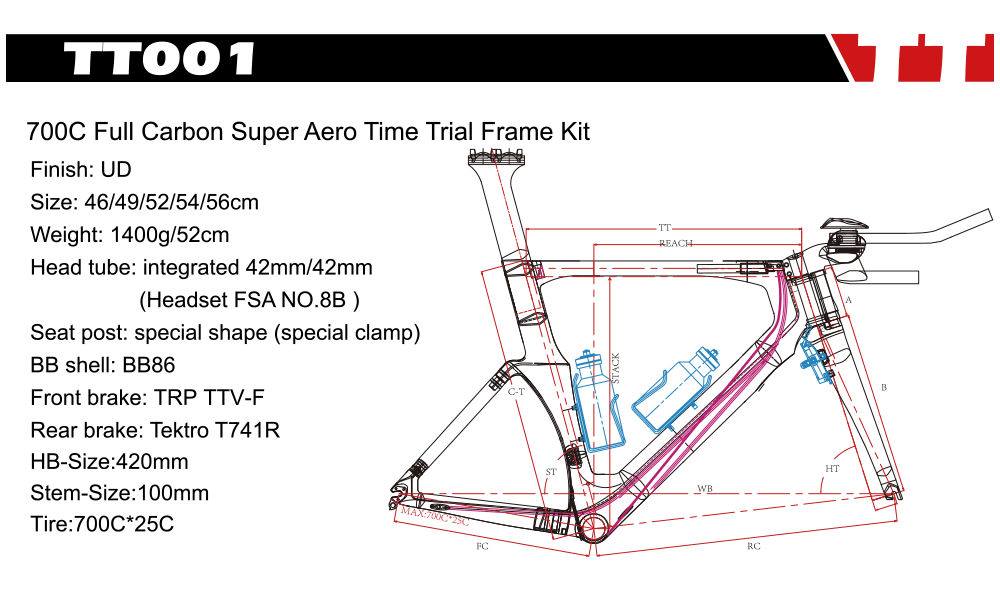

 SIZE
C-T A Offset TT HT ST BB RC WB FC RD FD POST STACK PEACH H/T INSERT BB INSERT
460 460 70 45 495 71 75 70 395 950.3 958.7 Inner
Inner

Special

74°-78°

469.4 369.2

FSA

NO:88

ACB

BB86
490 515 75 45 515 72.5 75 70
395 951.7 567.4

478.9

386.9
520 535 82 45 530 72.5 75 70
395 966.9 582.3 502.3 399.9
540 555 102 45 550 72.5 75 70 395 987.7 603 521.3 414.7
560 575 122 45 570 72.5 75 70 395 1008.7 623.9 540.6 429.7

Super Aero Carbon Time Trial Bike Frameset


Frame

Aerodynamic time trial carbon frameset

Material

High modulus Toray T700  carbon fiber

Size

46, 49, 52, 54, 56

Fork

Specify carbon fork

Headtube

Integrated headtube 42/42mm(FSA NO.8B standard headset)

Weight

1400g/52cm

Seatpost

Specify aero seat post

Bottom bracket

Press fit BB86

Max tire clearance

700*25c

Integrated handlebar 420mm width
Integrated stem 100mm length

Brake type

Front TRP TTV-F, Rear Tekro T741R

Dropout
Standard 9*100mm and 9*130mm QR
Groupset Machanical and Di2 compatible
Test Standard ISO4210
Warranty  2 years
