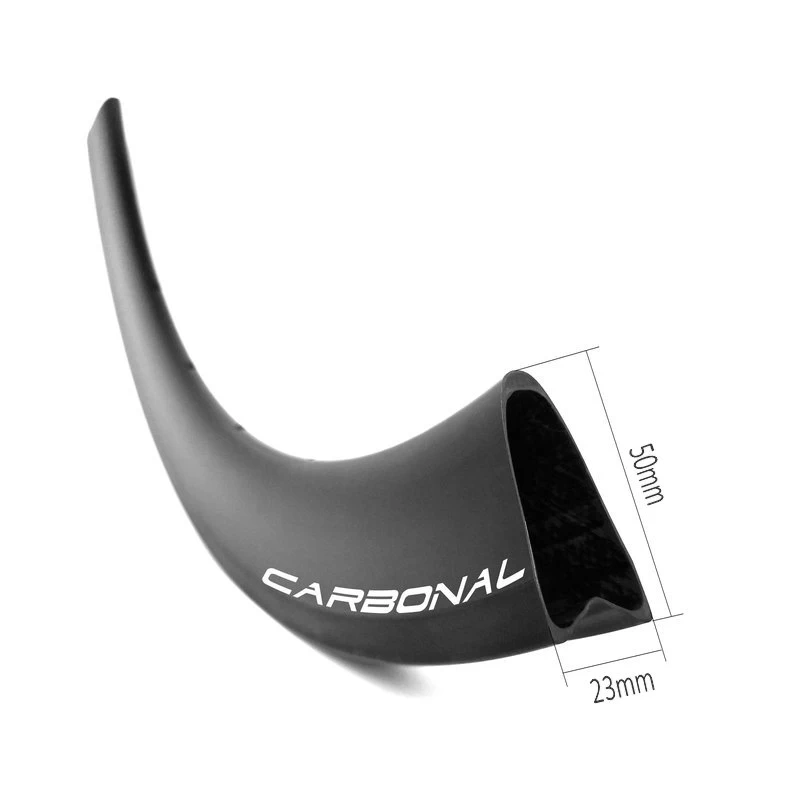

700C road bicycle 23mm wide V shape 50mm depth tubular carbon rim

Item RT50W, weight: 380g, ERD 546mm. 700C road V shape 50mm tubular carbon rim is lightweight and aerodynamics, build into a light 700C carbon road bicycle wheelset. Available in rim brake and disc brake for training, racing and cyclocross.


  • Max weight limit125kgs
  • Max spoke tension140kgf
  • Depth50mm
  • Width23mm
  • ERD546mm
  • Weight380g±15
  • BrakeRim brake or Disc brake
  • TypeTubular
  • Materialfull carbon Toray T700
  • Size700C

Product Item: 700C road bicycle 23mm wide V shape 50mm depth tubular carbon rim

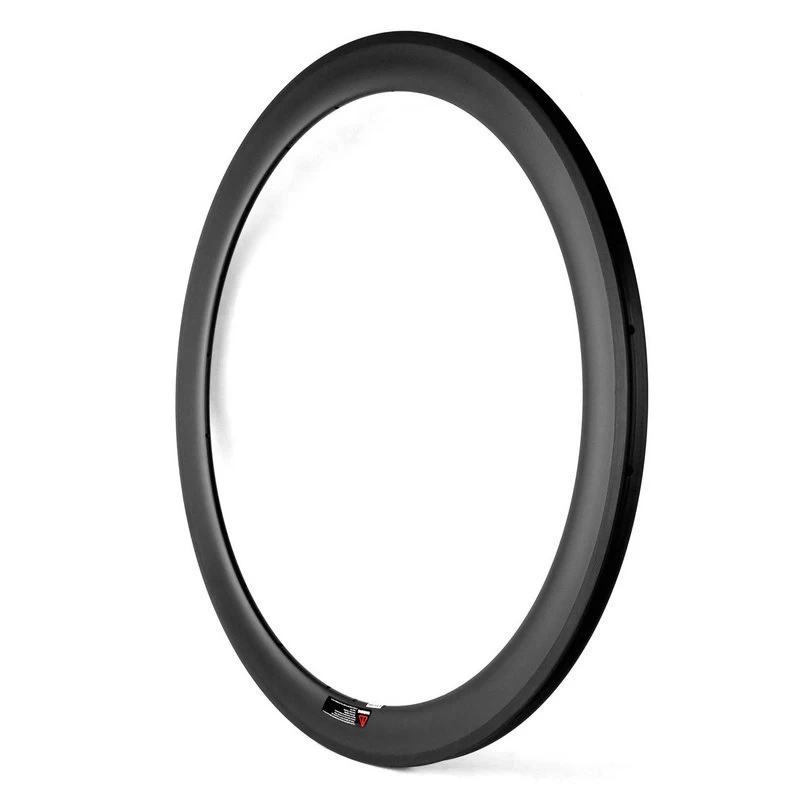

50mm tubular carbon road rim

700C road V shape 50mm tubular carbon rim is lightweight and aerodynamics, build into a light 700C carbon road bicycle wheelset. Available in rim brake and disc brake for training, racing and cyclocross.


Specification:

 Item:
 RT50W
 Use:
 road bike, cyclocross
 Rim type:
 700C tubular - rim brake or disc brake *
 Material:
 Toray T700 carbon fiber
 Width:
 23mm
 Weight:
 380g±15
 Depth:
 50mm
 ERD:
 546mm
 Weave:
 UD, 3k, 6k, 3k twill, marble
 Finish:
 Matte, gloss
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max / Min tire pressure:
 N/A / 90psi (6.5 bar)
 Decal:
 Customized
 Weight limit:
 125kgs
 TG resin temperature:
 210°C
 Standard:
 EN standard


*Disc brake, we will manufacture this rim without braking surface accordingly.

*Rim brake track available in 3k twill (recommended why 3k twill brake track is better?) or basalt surface.

carbon rim with basalt & 3k twill brake track


Features:

  • Aero V shape design, 50mm depth tubular rim available in V-brake and Disc brake (without brake track).
  • Super lightweight, rim constructed with premium Toray T700 carbon fiber, precise layup, achieve a most lightweight.
  • One piece molding, a rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is strongest.
  • High TG 210°C resin temperature brake track, use pregreg carbon fiber, which is carbon with resin together already, high TG resin be used to make rim is good enough at high temperature heating on wheels during braking.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control.
