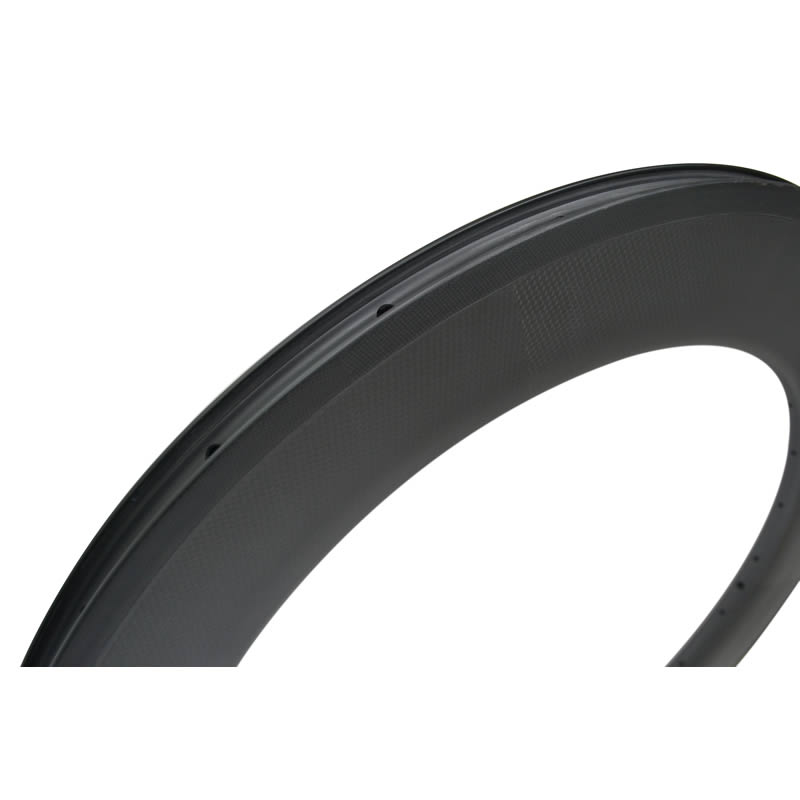

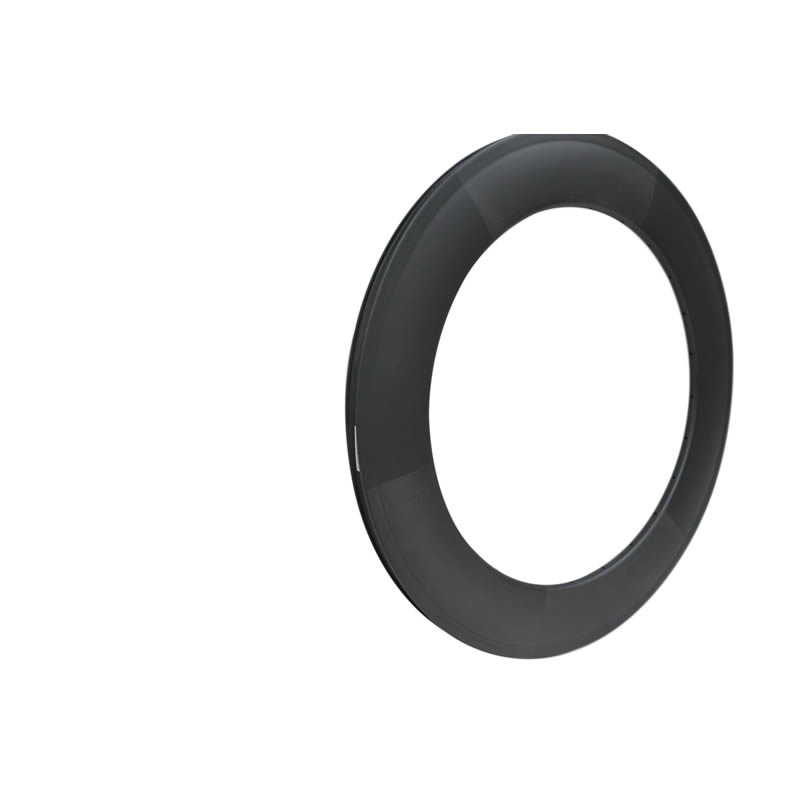

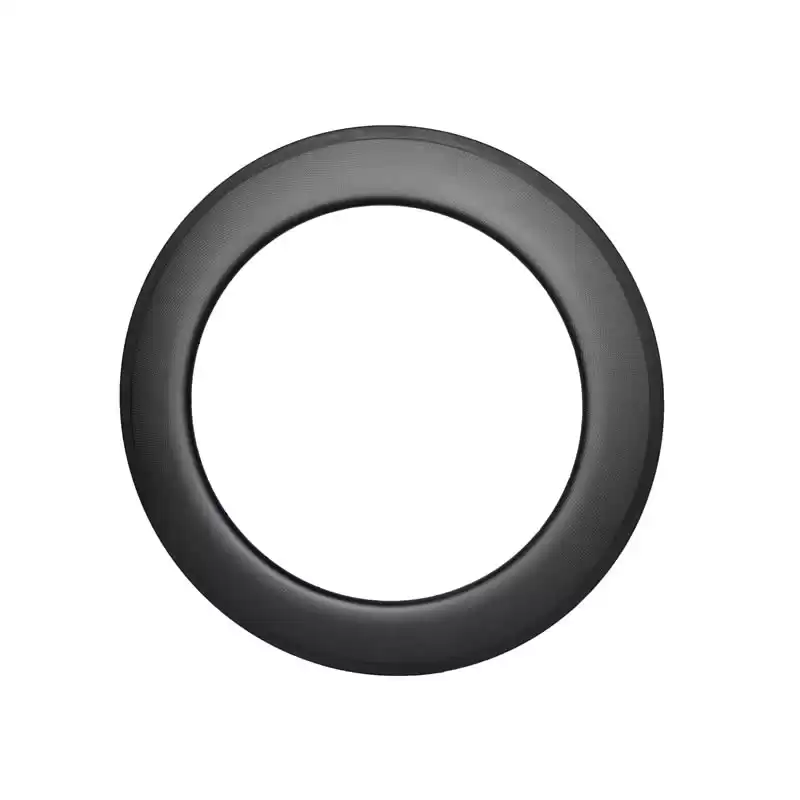

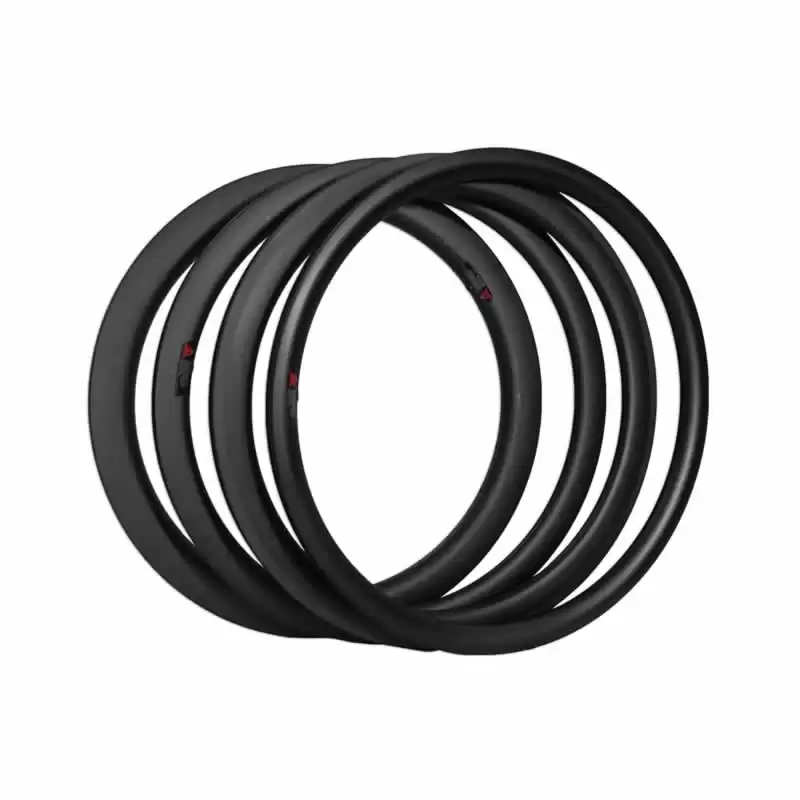

Product Model:Classical 88mm Deep Disc braking carbon rims
700C 88mm Deep carbon rims is the classic rims with 25mm wide U shape.Made of Full carbon Toray T700.The deeper rims are faster,better for aerodynamic and stiffness.
88mm Deep rims comfort in Road triathlon and track bikes.if you are choosing the track carbon rims,this model is very OK.The rim used 250°C High TG resin system,better for the braking system.
Our Factory offer high quality carbon clincher rims with competitive price,specially designed,fast delivery.
Different braking surface can be made for you.
Features:
1.UD Appearance 88mm Deep clincher carbon rim is the classical road track bike wheels.
2.700C Super lightweight rims,best strength to weight ratio with no expense spared.
3.88mm Deep clincher rims are faster,getting more aerodynamic and stiffness.better for road ,triathlon and track bike.
4.Wide U sahpe design,classical standard model for flat bike.
5.We offer decal and painting service for OEM your brands.
6.We can customized Different patterns of brake surface.
7.The manufature for High quality carbon clincher carbon rims.
8. 5 years warranty
Specification:
|
Model
|
R88C-21
|
R88C-23
|
R88-25
|
|
Size
|
700C
|
700C
|
700C
|
|

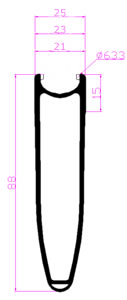

Sectional Drawing
|
|
|
|
|
Material
|
Toray T700 & T800
|
Toray T700 & T800
|
Toray T700 & T800
|
|
Depth
|
88mm
|
88mm
|
88mm
|
|
Wide
|
21mm
|
23mm
|
25mm
|
|
Weight
|
630+/-15g
|
710+/-15g
|
720+/-15g
|
|
Appearance
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
464mm
|
464mm
|
464mm
|
|
Assembly Hole Dia.
|
7.6mm
|
7.6mm
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
4.2mm
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>300kg
|
>300kg
|
>300kg
|
|
Ultimate Strength
|
>300kg
|
>300kg
|
>300kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|
>50kg
|
|
Tire Size Recommended
|
700*21-25c
|
700*25-28c
|
700*25-28c
|
|
Max Tire Pressure
|
125psi/8.6bar
|
125psi/8.6bar
|
125psi/8.6bar
|

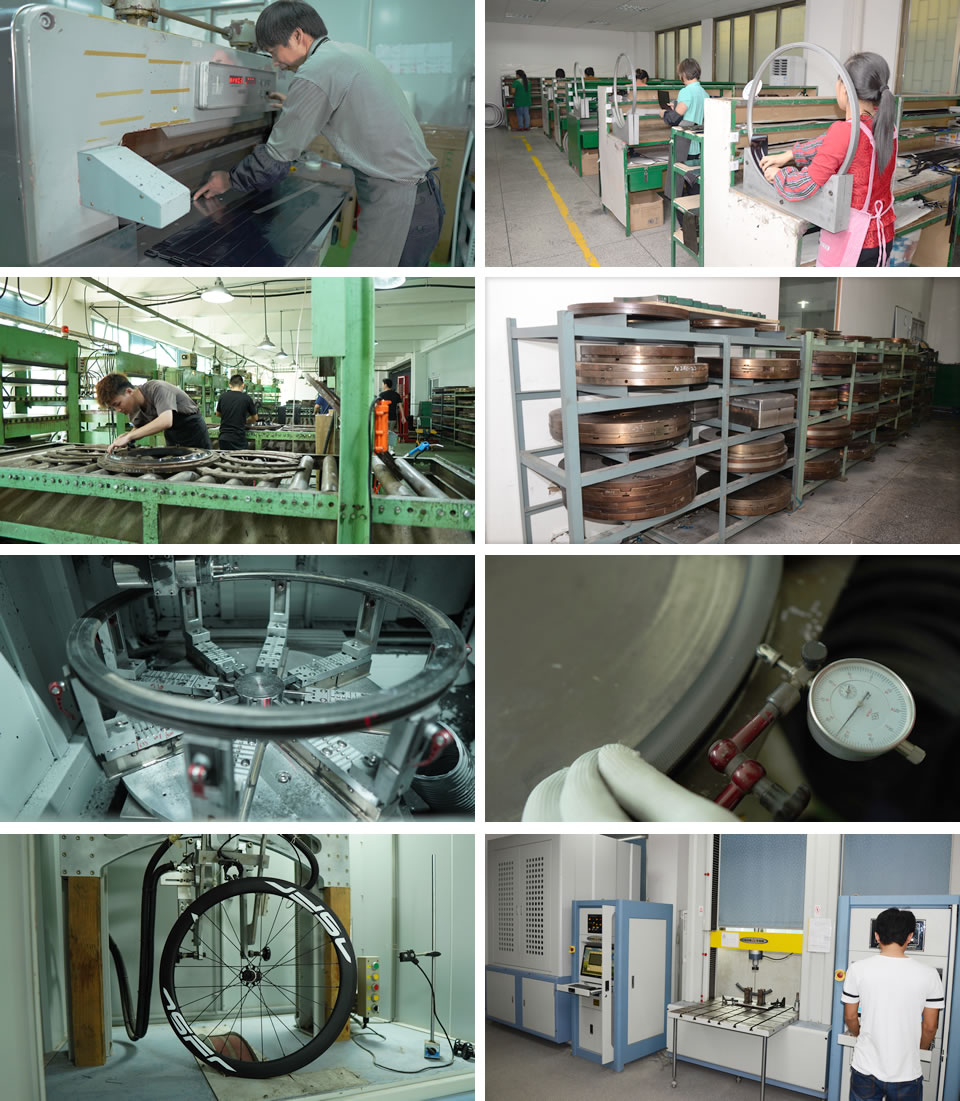

Factory production manufacture
100% Quality Inspection:
Our rims are made of100%Full carbon fiber material to ensure the highqualityof the goods. Each carbon rim by us has its unique serialID number, whichfollow every step of the product. And confirmevery rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Pleasekeep your proof of purchase for any future warrantyproblems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Anyman-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
