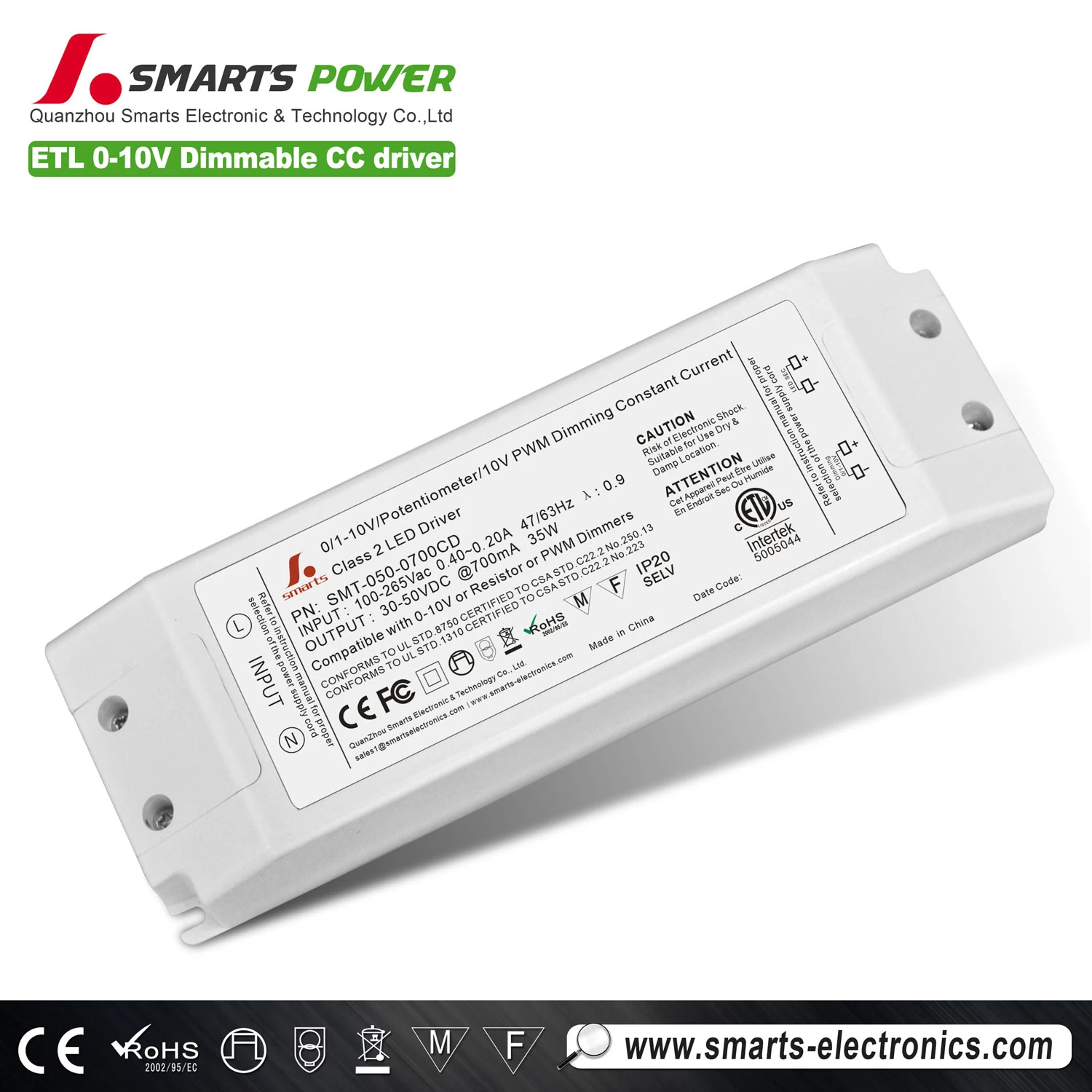

700mA 35W 0-10V/PWM dimmable Constant Current LED driver

700mA 35W 0-10V/PWM led dimming driver;700ma constant current dimmable led driver;35w 0-10v dimmable driver



700mA 35W 0-10V/PWM dimmable Constant Current LED driver



Product Description



plastic cover 700ma ELV pwm dimmable led driver

Model

Input voltage(vAC)

Working

Frequency

 (Hz)

Output voltage

(vDC)

Output

Current

power

(Watt)

Working.

 Temp

Protection

grade

SMT-050-0700CD

100-265V

47~63Hz

20-50V

700mA

35W

-40~50°C

IP40



Features:

  • Input range :100-265VAC
  • Built-in PFC function
  • Efficiency > 84%  / PF>0.9
  • Protections:Short circuit/over Voltage
  • Fully isolated plastic cover
  • Easy installation
  • Cooling by free air convection
  • Work with leading edge and trailing edge TRIAC dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 3 years warranty
  • Lifespan:(MTBF)50,000 hours

Protection:

  • Short Circuit:  Hiccup mode, recovers automatically after fault condition
  • Over voltage: <270VAC 0r =270VAC

Environment parameter:

  • Working temperature: -40~+60℃
  • Working humidity:20~90%RH,non-condensing
  • Storage TEM.,Humidity:  -40~+80℃,10~95%RH
  • TEMP.coefficient:  ±0.03%/℃(0~50℃)
  • Vibration:  10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes

Safety &EMC:

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC
  • EMC EMISSION:   Compliance toEN55015,EN61000-3-2 (> or=50%load)
  • EMC IMMUNITY :  Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)

Applications:

  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels
plastic cover 700ma ELV pwm dimmable led driver
Packaging & Shipping
700mA 35W 0-10V/PWM dimmable Constant Current LED driver
 Net weight (g) Gross Weight/ctn  Qty/ctn  Carton size(mm)
300 g 16kg 50 pcs 324*298*188mm
