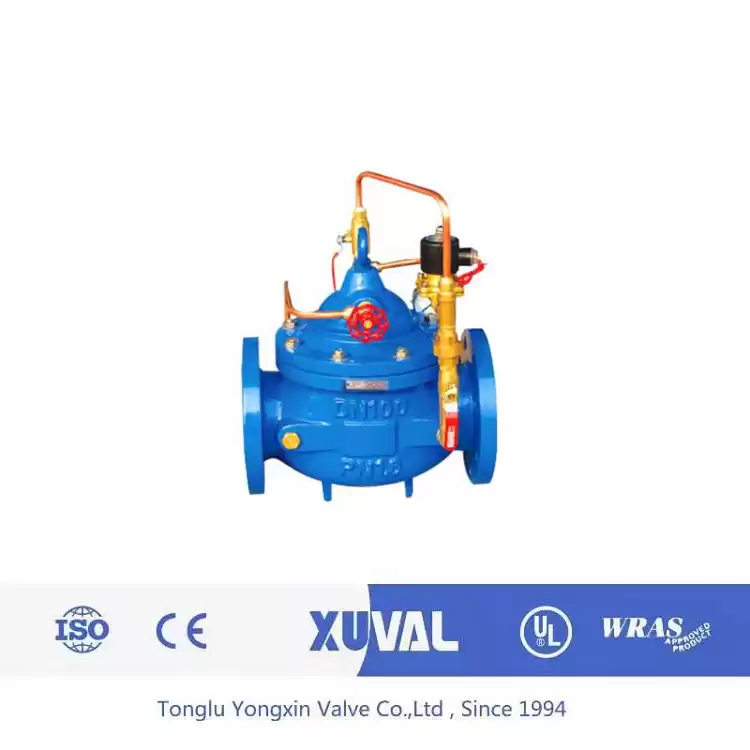

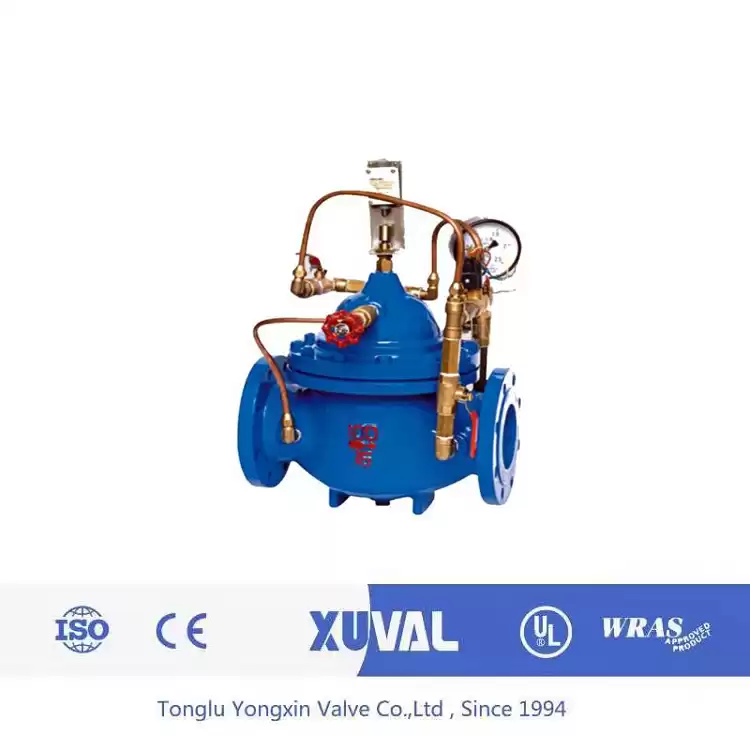

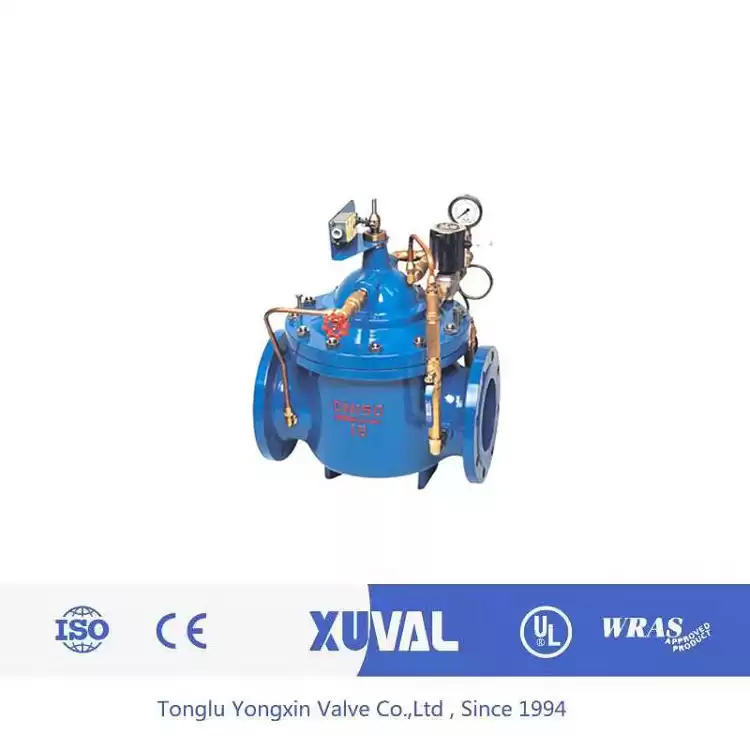

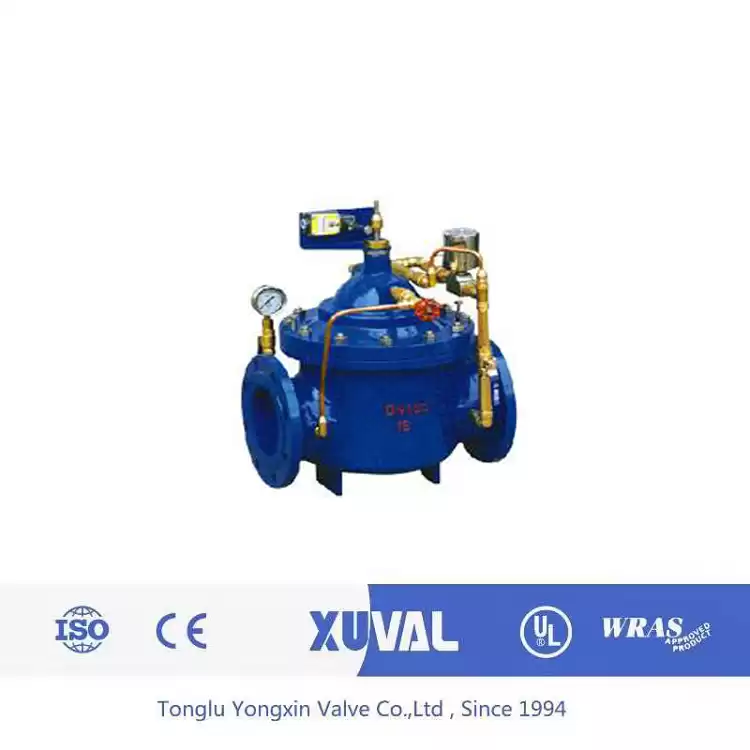

700X water pump control valve is a kind of reverse valve installed at the outlet of water pump in high-rise buildings and other water supply systems to prevent the backflow of media.When the pump is about to stop supplying water.Close the valve slowly at first to prevent water hammer or sound of water hammer caused by sudden stop of the pump;When the pump is completely stopped, the valve is completely closed to prevent the backflow of the pumped water and effectively protect the pump from backflow impact and reverse.The product is an essential protective device for pump outlet.The valve is streamlined in design.Accurate opening and closing is achieved through the guidance and control of solenoid valve.Safe and reliable use, effectively prevent water hammer and water hammer sound, long service life, easy installation and maintenance.
Main description:
Hydraulic control valve is a hydraulic control valve, hydraulic control valve by a main valve and its attached pipe, guide valve, needle valve, ball valve and pressure gauge composition.According to the purpose of use, function and different places can be evolved into remote floating ball valve, pressure reducing valve, slow stop check valve, flow control valve, pressure relief valve, hydraulic electric control valve, water pump control valve.700X water pump control valve before the installation of filters, and should facilitate the sewage requirements.
Specification
|
|
Work Pressure
|
1.0Mpa
|
1.6Mpa
|
2.5Mpa
|
|
Shell Test
|
1.5Mpa
|
2.4Mpa
|
3.75Mpa
|
|
Seal Test
|
1.1Mpa
|
1.76Mpa
|
2.75Mpa
|
|
Maximum Inlet Pressure
|
P1≥0.07Mpa
|
|
Electromagnetic Valve a.c. voltage
|
220V
|
|
Electromagnetic Valve d-c voltage
|
24V
|
|
Temperature
|
0~80℃
|
|
Medium
|
Water
|
Main Demisions
|
|
DN
|
L
|
A
|
A1
|
H
|
H1
|
F
|
|
50
|
230
|
240
|
155
|
395
|
278
|
170
|
|
65
|
250
|
255
|
165
|
405
|
298
|
180
|
|
80
|
260
|
280
|
175
|
430
|
315
|
210
|
|
100
|
320
|
332
|
195
|
510
|
350
|
275
|
|
125
|
370
|
375
|
220
|
560
|
365
|
310
|
|
150
|
410
|
408
|
230
|
585
|
420
|
355
|
|
200
|
480
|
485
|
255
|
675
|
450
|
460
|
|
250
|
580
|
550
|
300
|
730
|
470
|
500
|
|
300
|
690
|
630
|
340
|
760
|
490
|
580
|
|
400
|
860
|
788
|
430
|
910
|
570
|
715
|
|
500
|
980
|
905
|
490
|
1135
|
665
|
830
|
|
600
|
1100
|
970
|
530
|
1270
|
725
|
920
|
|
700
|
1650
|
1050
|
560
|
1460
|
865
|
980
|
|
800
|
1850
|
1135
|
610
|
1640
|
975
|
1050
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
