70V 5A Charge 10A Discharge Lithium Battery Pack Tester Aging Testing Machine Battery Pack Capacity Tester
FEATURE
The aging cabinet is mainly used for testing the charging and discharging cycle of finished lithium batteries. The testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has charging, discharging, shelving, and cycling four testing steps. The battery can be tested according to the set process by editing the corresponding steps.
We also supply all kinds of Aging Machine,Aging Tester for you!
30V 10A 20A / 70V 5A 10A
70V 10A 20A / 85V 10A 20A
100V 10A 20A / 100V 20A 40A
ADVANTAGES
1. Single Point Control Technology
2. Each channel is independent of each other.
3. Anti-backup protection function
4. Automatic real-time data preservation
5. Two communication modes: serial port and network
SPECIFICATION
|
Technical Parameter
|
|
Input Power Supply
|
Measuring Range
|
7-70V
|
|
|
Accuracy
|
±(0.2% of reading +0.2% of range)
|
|
Current
|
Charging Range
|
50-5000mA
|
|
Charging Accuracy
|
±(0.2% of reading +0.2% of range)
|
|
Discharge Range
|
50-10000mA
|
|
Discharge Accuracy
|
±(0.2% of reading +0.2% of range)
|
|
Charge
|
Constant Voltage Cut-off Current
|
Minimum 50mA
|
|
Capacity
|
Accuracy
|
±1%
|
|
Power
|
Discharge Power
|
≤700W
|
|
Time
|
Inspection Time
|
Real-time Collection<2S
|
|
|
Timing Range
|
0-999h/step
|
|
Data Recording Interval
|
≥5S
|
|
Middle Machine Version
|
1:1 series
|
|
Number of Passages Per Cabinet
|
12 channels, four rows and three column
|
|
|
Charge
|
Charging Mode
|
Constant Current and Constant Voltage Charging
|
|
Cut-off condition
|
Voltage, Current, Relative Time, Overcharge Protection
|
|
Discharge
|
Discharge mode
|
Constant current discharge
|
|
|
Cut-off condition
|
Voltage, Relative Time and Over-discharge Protection
|
|
Loop
|
Cyclic measurement range
|
1-999 times
|
|
|
Single cycle step number
|
100
|
|
Voltage and Current Detection Sampling
|
Four-wire sampling
|
|
Data Base
|
Using SQL database to manage test data
|
|
Upper computer communication mode
|
Based on TCP/IP Protocol/Serial Port
|
|
Data Output Mode
|
EXCEL/TXT/Chart
|
|
Communication Interface
|
Mesh port
|
|
Chassis dimensions
|
300x450x170mm
|
|
Cabinet size
|
900x600x1900mm
|
|
Spatial Dimension of Discharge Battery
|
900x600x130mm
|

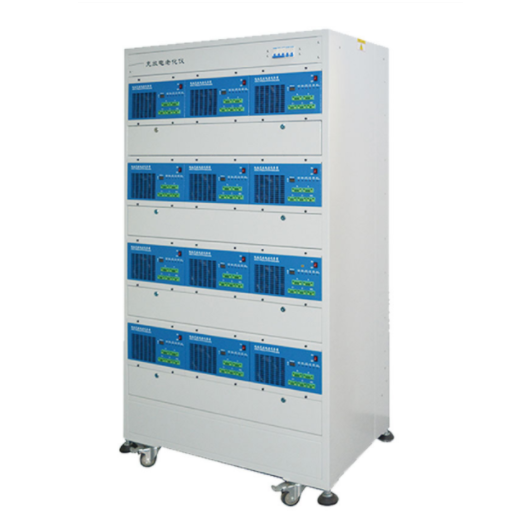

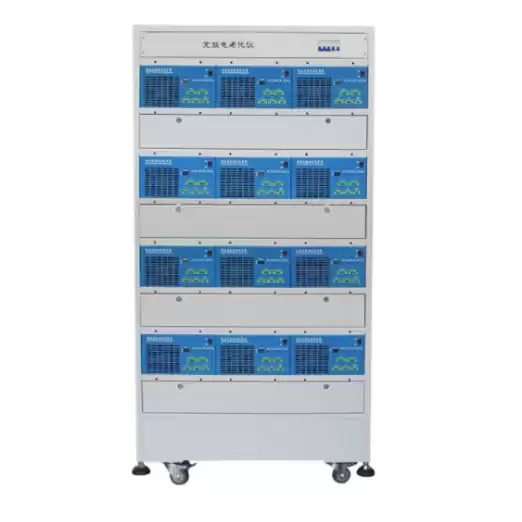

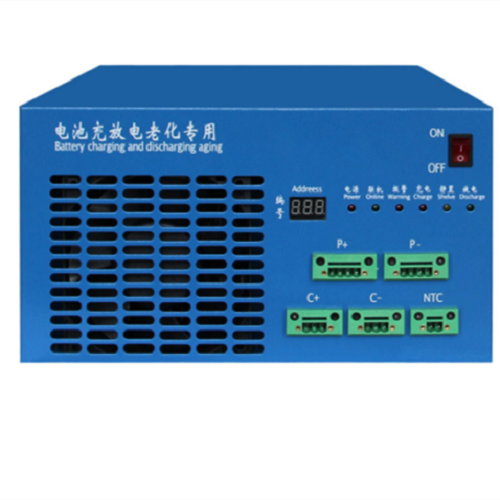

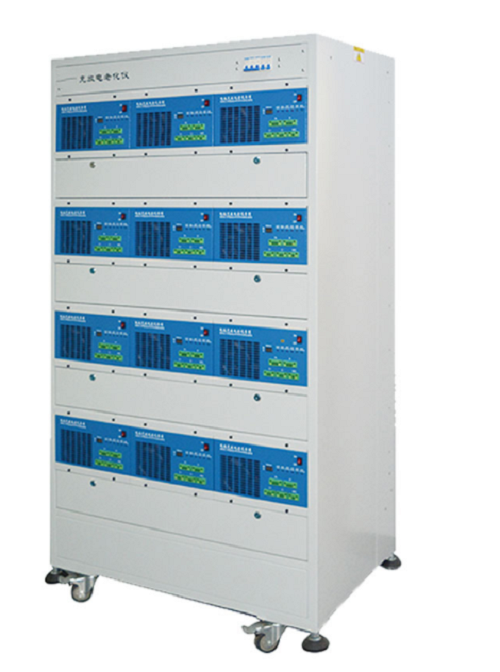

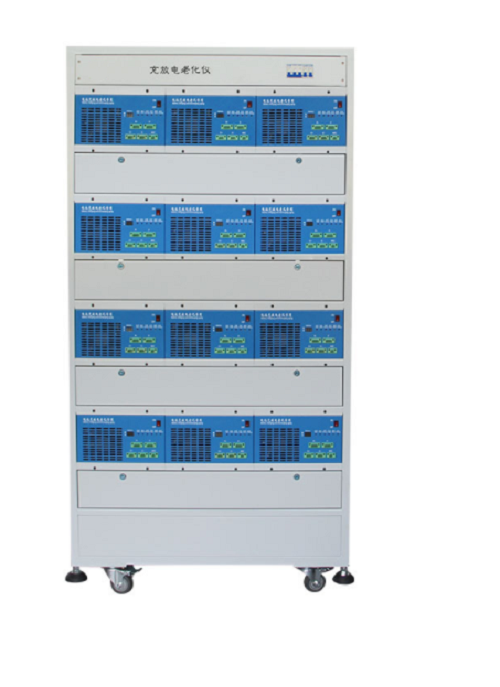

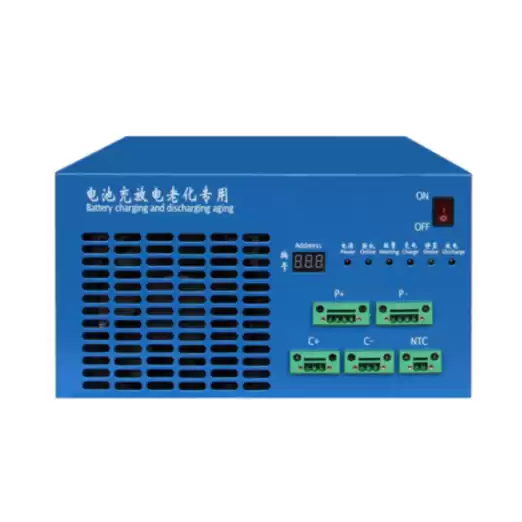

PRODUCT IMAGES
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
