System
|
OS
|
Embedded Linux OS
|
|
system security
|
Three-level user authority
management
|
|
Online user
|
support 4 visitors
simultaneously
|
|
Processor
|
Hi3518E V200
|
|
Collection
|
Image sensor
|
1/4 inch 720P, line by line
scan CMOS sensor
|
|
CMOS
|
support AWB, AGC, BLC
|
|
CMOS size
|
3.84mm×2.16mm
|
|
SNR
|
≥39dB
|
|
Minimum illumination
|
0.5Lux/F2.1（colorful mode）,0.1Lux/F2.1（B&W mode）
|
|
Lens/viewing angle
|
2.8mm/horizontal 120° vertical 70° diagonal 160°
|
|
Night version
|
9pcs SMT IR LED,3m IR
distance
|
|
IR control
|
IR turned on: night vision
enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in
daytime view mode.
|
|
Video
|
Compression Format
|
H.264 Main
Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
|
|
Video coding process
|
Multi-stream：720P/25fps+VGA/25fps+QVGA/25fps
+720P @1fsJPEG snapshot
|
|
Resolution
|
720p/VGA/QVGA
|
|
Bit rate
|
CBR/VBR, output bit
rate range：128～4096kbps
|
|
Frame rate
|
25fps
|
|
Picture Adjustment
|
Contrast, brightness,
saturation, hue are adjustable
|
|
RF
|
Encode mode
|
ASK 100W
|
|
Frequency band
|
433MHz
|
|
Feature
|
More universal
|
|
Communication
|

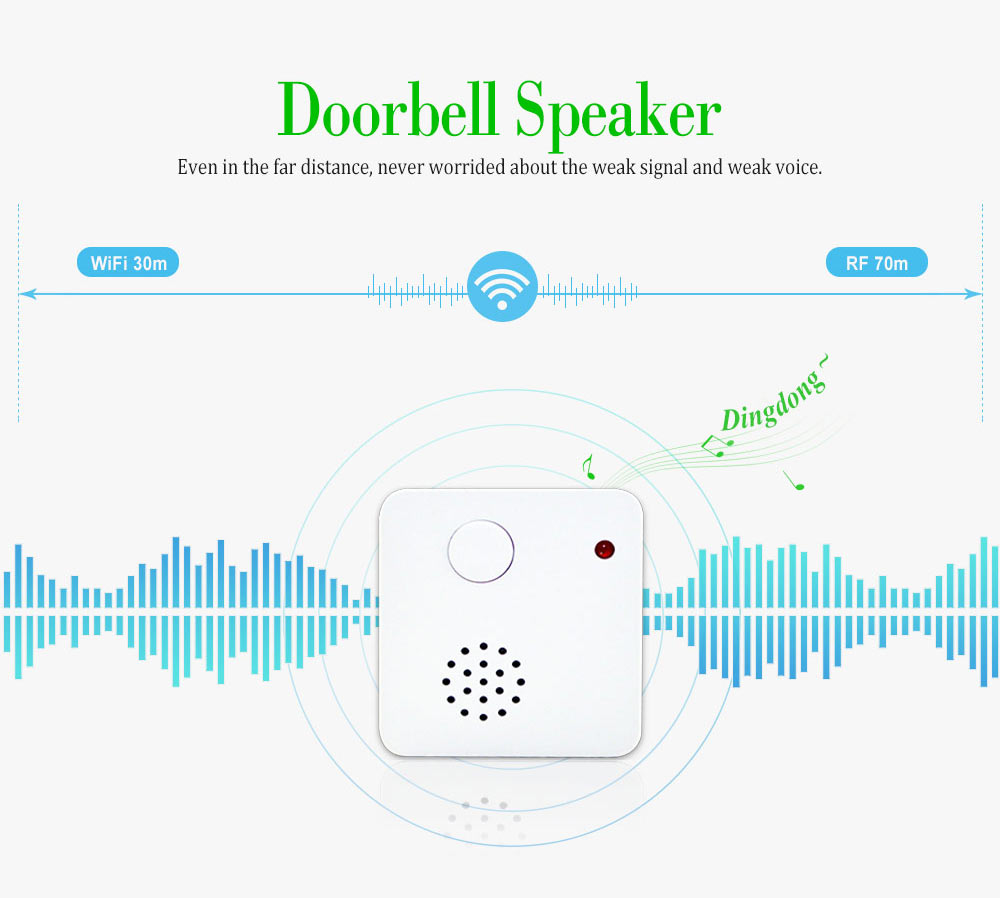

One-way reception mode, reception distance: 70m
|
|
Audio
|
Input
|
One built in－48dB microphone
|
|
Output
|
Built in (8Ω1W)`
|
|
Sampling frequency / width
|
8KHz/16bit
|
|
Compression format/
|
ADPCM/32kbps
|
|
Network
|
Interface
|
10Base-T / 100Base-TX
|
|
Network protocol
|
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P
etc.
|
|
WiFi
|
WiFi802.11b/g/n
|
|
Wi-Fi Security
|
Wi-Fi Protected Setup (WPS)
|
|
Pan-Tilt
|
P/T
|
No
|
|
Preset position
|
No
|
|
Alarm
|
Motion detection
|
Support motion detection
alam
|
|
Alarm action
|
APP push notification
|
|
Communication
|
UART
|
Serial communication
|
|
Storage
|
Storage mode
|
Local storage，SD card recording ( up to 128G Micro SD card)
|
|
Interface
|
Micro SD
|
|
Physical index
|
Related Voltage
|
DC 5V±5%
|
|
Power consumption
|
Related power：1W(IR ON) / Maximum：1.85W(Pan-tilt ON)
|
|
Working environment
|
Working temperature：-10～50℃，working humidity <90%
|
|
Weight
|
Gross Weight ：332 g with packing box
|
|
Package Size
|
(L×W×H)15*13*9
cm
|
