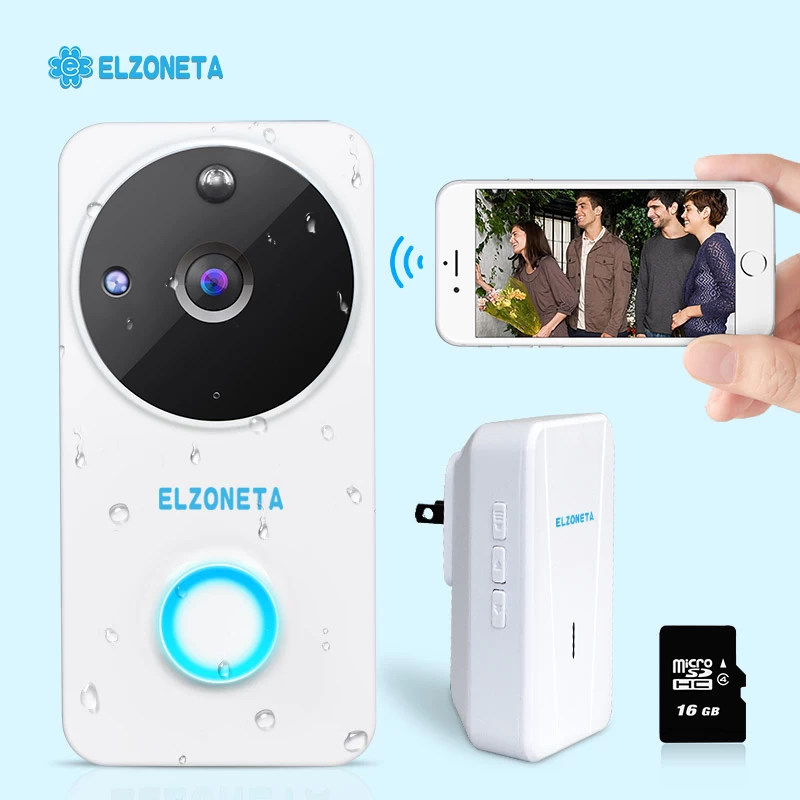

EC-D03 720P Wireless Video Doorbell
Specification
Image Sensor: 1/4'' 720P CMOS sensor
Resolution & frame rate: Multi stream: 720P/24fps
Compression standard: H.264/ motion JPEG ( when RF quality dropped )
Bit Rate: CBR/VBR, output bit rate range：128～4096kbps TBD
Image adjustment: Brightness, Contrast, Saturation are adjustable.
Sensor support options: AWB AGC, IR filter and BLC
Minimum brightness: 1 Lux ( Color mode ) No blur, 0.3 Lux ( B&W mode ) No blur

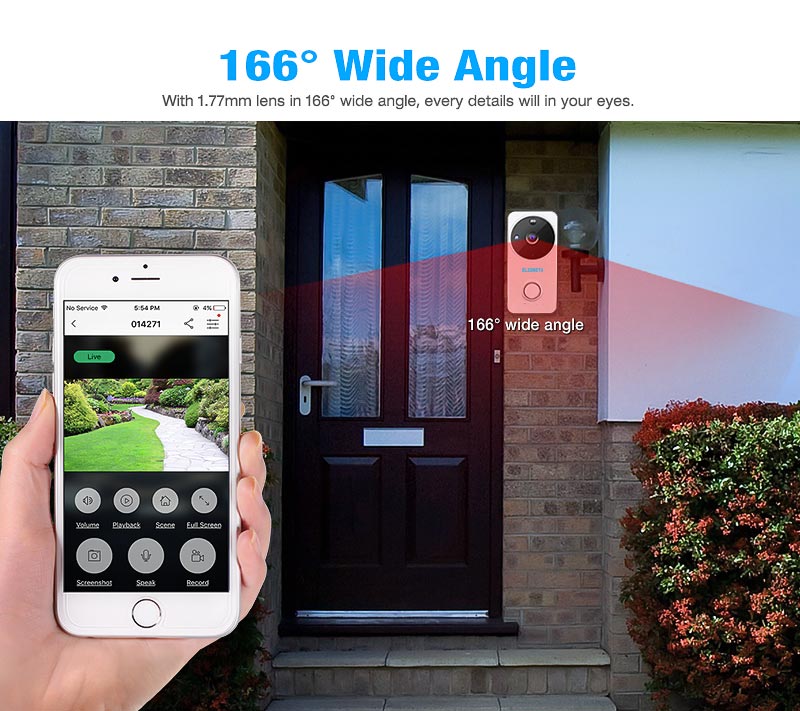

Lens/Viewing angle: 166°
Lens spec & material: 1.4mm @ F2.4 , 6 layers

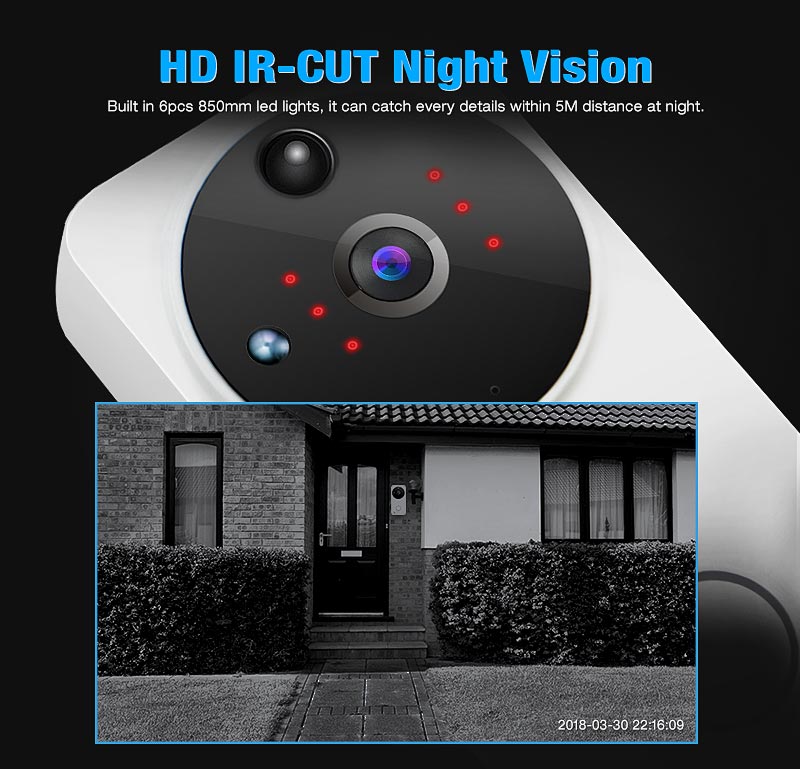

Night Vision: 850 nm diameter, 5M distance IR-cut
IR turned ON: night vision view enabled, infrared Ray, ICR auto detect.
IR turned OFF: night vision view disabled, infrared Ray OFF, ICR stay in day view mode.
MIC input: 1 Channel Internal -48dB microphone
Speaker output: Internal speaker (8Ω/1W)
Effective Volume: Indication tone 75dB @ 0.5m
SNR: > = 39 dB
Protocol: TCP/IP, HTTP, DHCP
WiFi: 802.11b/g/n
Network security: WEP, WPA, WPA2 encryption
Wireless Connection: AP hotspot / STA (Station Mode - Client)
RF receiving sensitivity:
802.11n: HT20/MCS 7 10% PER @ -70 dBm, typical
802.11g: 54Mbps 10%PER @ -72 dBm, typical
802.11b: 11Mbps 10%PER @ -86 dBm, typical
Solution / OS: RTOS
System Security: Three level user authority management
Recording mode: Motion detection recording, doorbell button trigger recording, scheduled recording/ remote recording
Motion Sensor: PIR
Detection range: 5m/ 110 degrees
Sensitivity: High/ Medium High/ Medium/ Low for selection
Storage way: SD Card or TF Card, up to 32GB
Max recording duration: Depends on capacity of the storage device
Storage device full management: overwrite the most earliest recorded video
Product Colour: black and silver
Plastic Material (External):
Housing: PC plastic
Camera Lens: PC plastic
Surface Finishing (Plastic & Metal part):
Housing: glazed
Rated input voltage: AC 8-24V

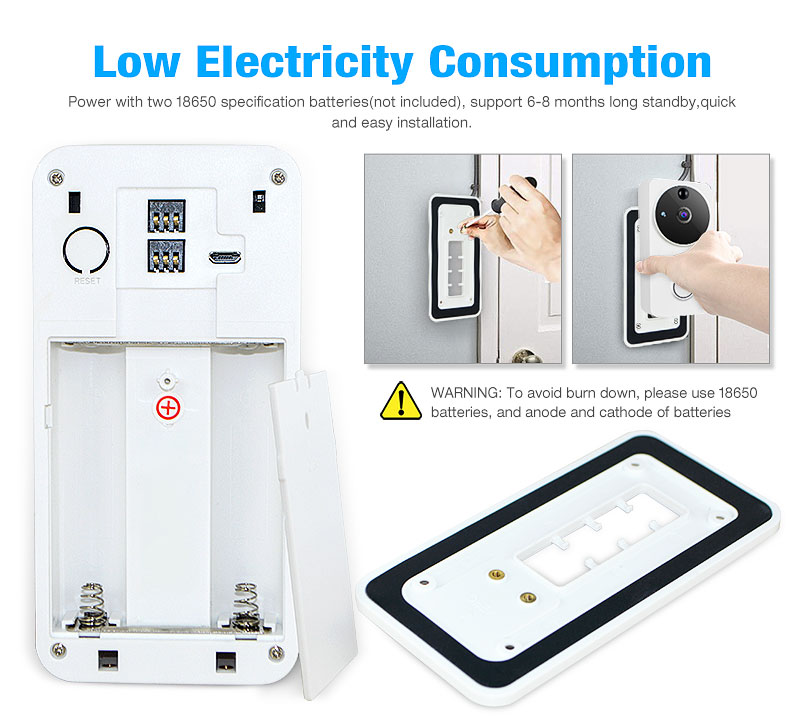

Battery: Built-in Rechargeable（18650）
Power supply: 4.3V
Power consumption: work: 150 ma, stand by: 150 uA
Operating temperature: -20 ~ 50 ℃
Operating humidity: 80% max
Protection grade (IP): IP55
Mobile App Requirement:
Android: Android 4.3 or higher
IOS: IOS 9.X - 10.X ( iPhone 5/6S/7 ) or higher
Mobile APP : Support Configuration/ Live browsing/ Recall/ Talking/ Audio volume adj/ Video adj./ Recording/ Format SD card
Support cloud uploading: Yes
Amazon Cloud: Yes

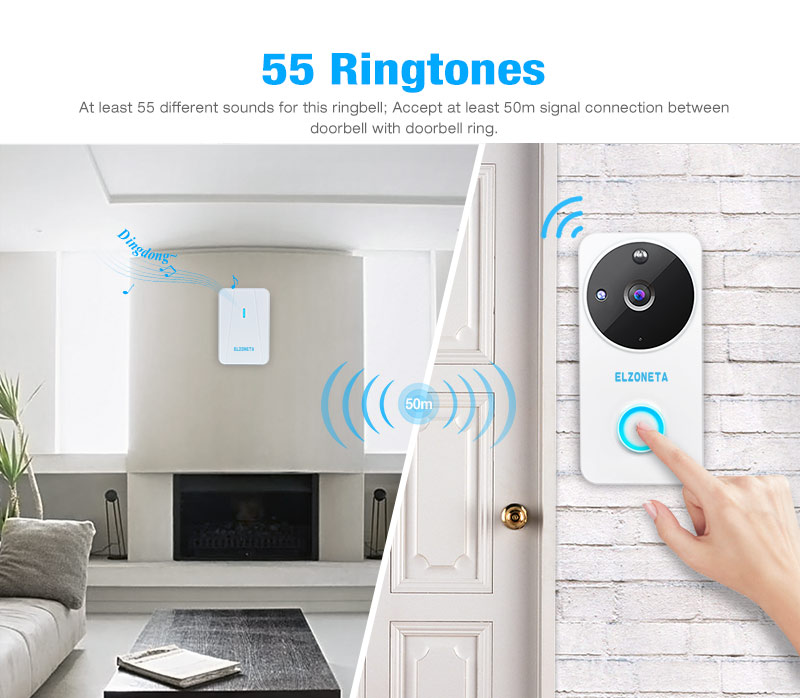

Ring tone: Fixed
Gross Weight: 280g
Size: 180mm*105mm*65mm
