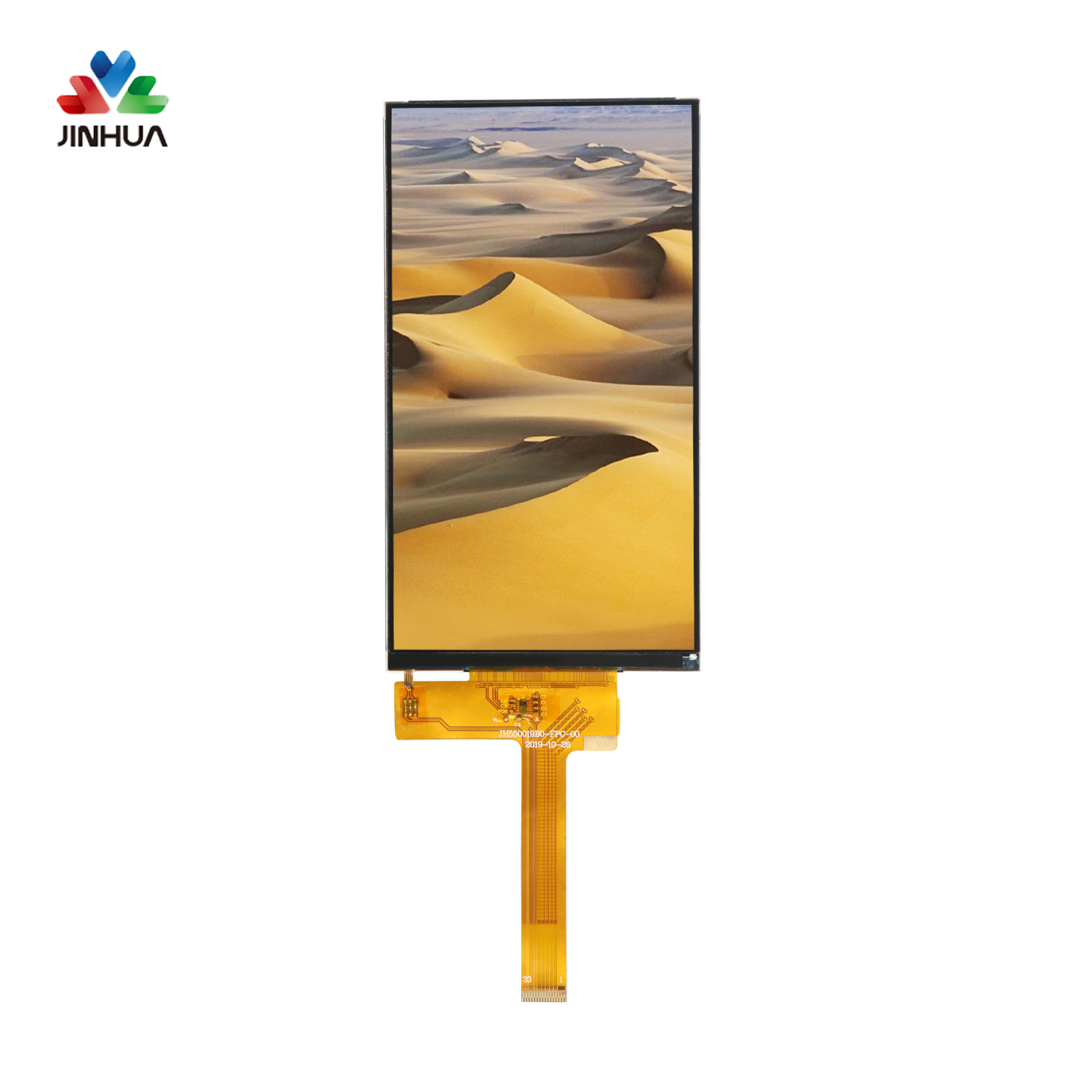

720X1280 Resolution IPS 5.5 Inch TFT Display RGB Interface Touch Screen
It is a 5.5 inch 720x1280 resolution tft display product with touch screen. The touch screen is able to be capacitive touch or resistive touch depends on clients' requirement. And it's working temperature is from -20°C~60°C both indoors and outdoors.
The custom tft display module is able to be equipped with many types of interface such as LVDS, MCU, RGB, MIPI, etc.
Middle Size TFT Screen
Product Parameters
| Display Type |
TFT Display |
| Display Size |
5.5 Inch |
| View Angle |
IPS/TN |
| Resolution |
720x1280 |
| AA |
68.04x120.96mm |
| Backlight Color |
White LED |
| Brightness |
350cd/m2 |
| Interface |
I2C/SPI/MIPI/LVDS/RGB/MCU/UART |
| Control IC |
ST7703 |
| Connector |
FPC |
| Operating Temperature |
-20-60°C |
| Operating Voltage |
2.8V |
| Touch Panel |
Capacitive/Resistive |
| Requirements On Environmental Protection |
ROHS HSF |

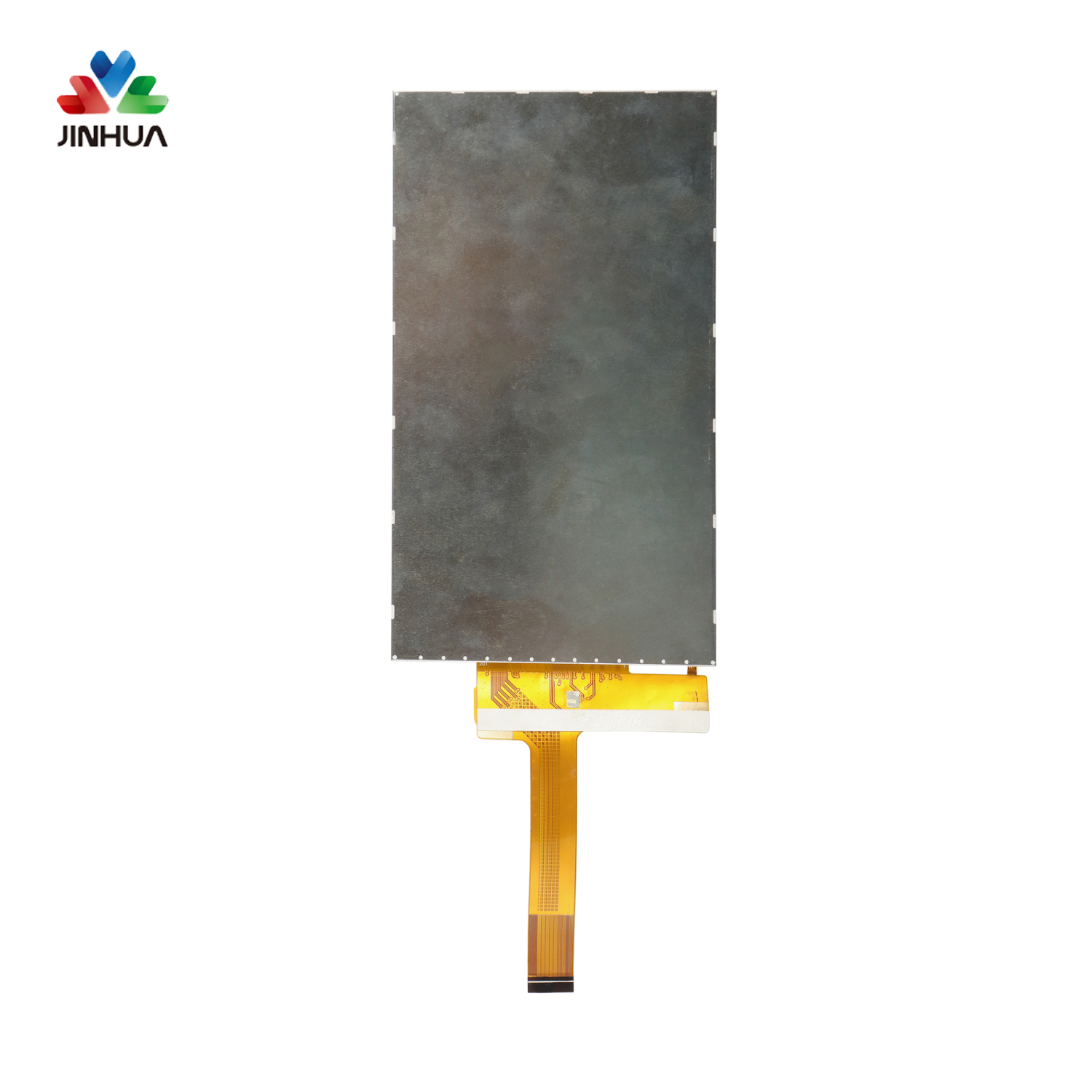

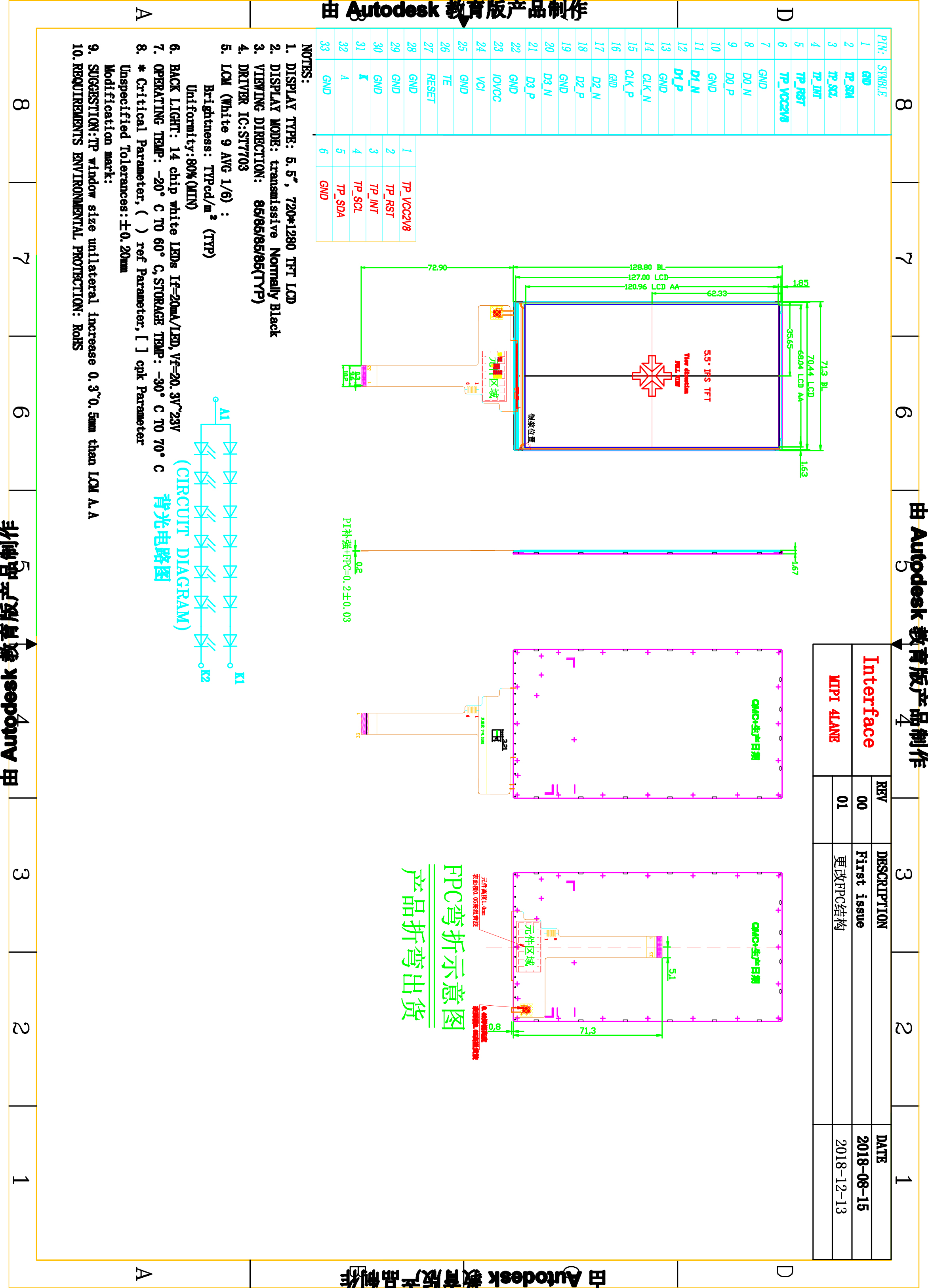

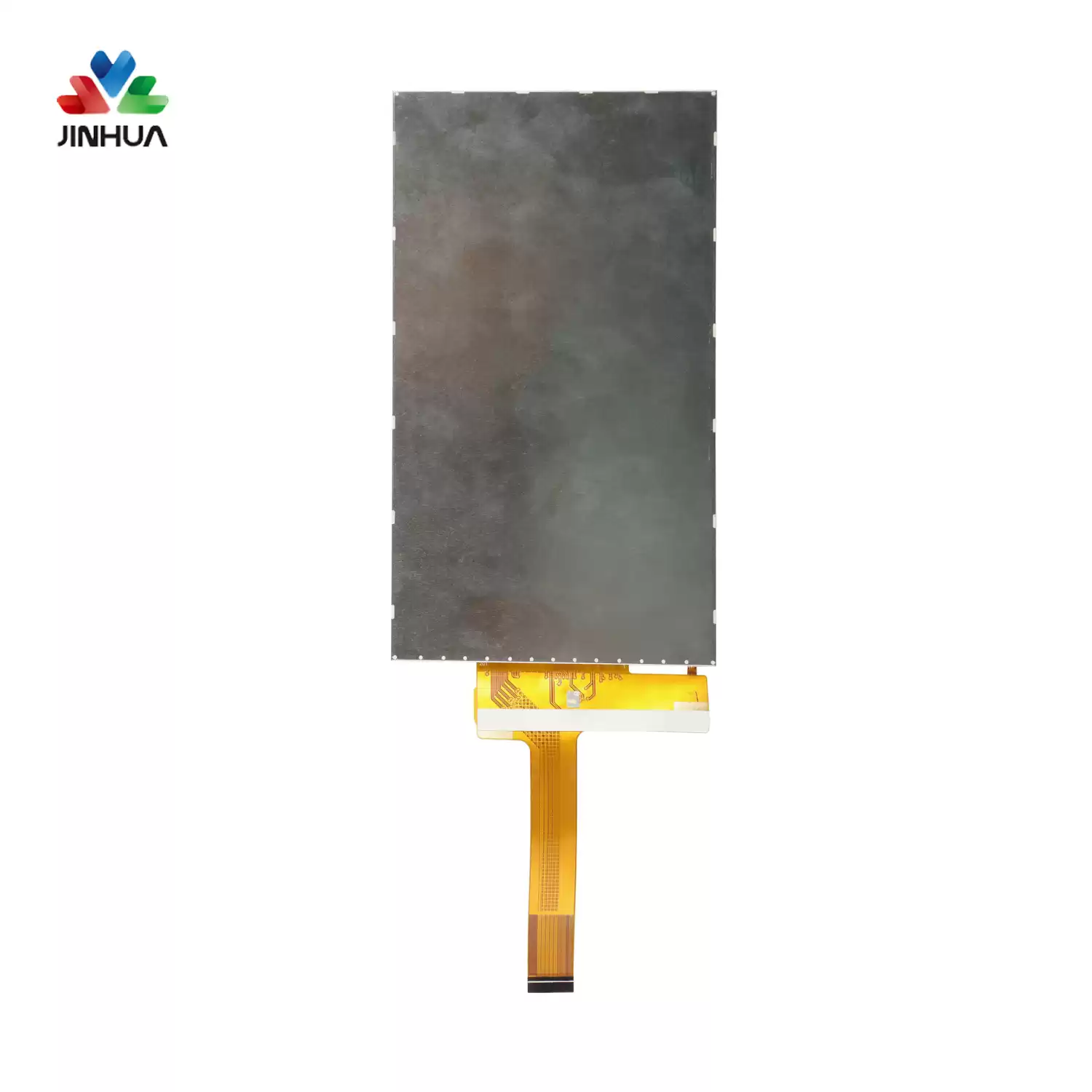

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Middle Size TFT Display is widely used in many application because it has broad ranges of working temperature to bear all kinds of ambient. And it's easy to programm with only need some simple codes to drive it.
