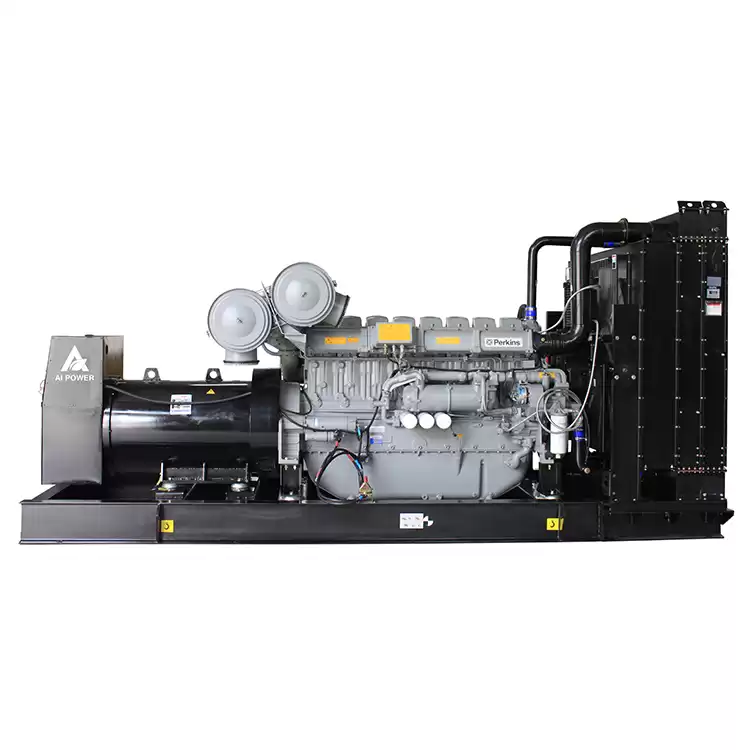

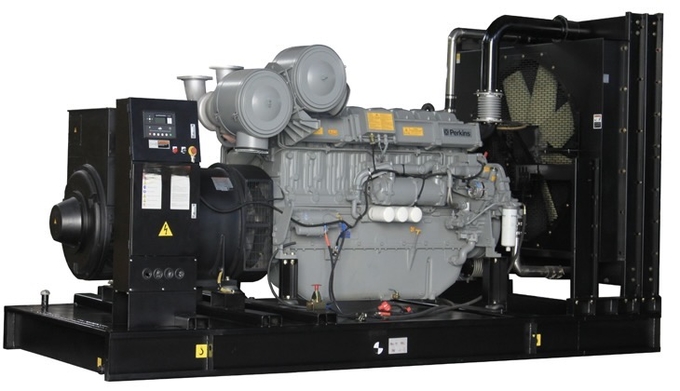

Emergency Diesel Generator In Power Plant Perkins Generator Manufacturer In The World 4008TAG1A
Standard Configuration
• Engine include air,fuel,oil filters, starting motor and charge alternator etc.
• Brushless AC alternator,single bearing, flange connection, w/AVR
• Radiator with engine driven fan mounted on skid
• Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
• Anti-vibration pads between engine/alternator and base frame
• Circuit breaker 3P as standard, 4P optional
• Auto control panel
• Start battery w/ connecting cable and floating battery charger
• Flexbile pipe, exhaust elbow, industrial silencer etc.
• Standard tools kit
• Electric drawing, test report ,operation & maintaince manual of generator etc.

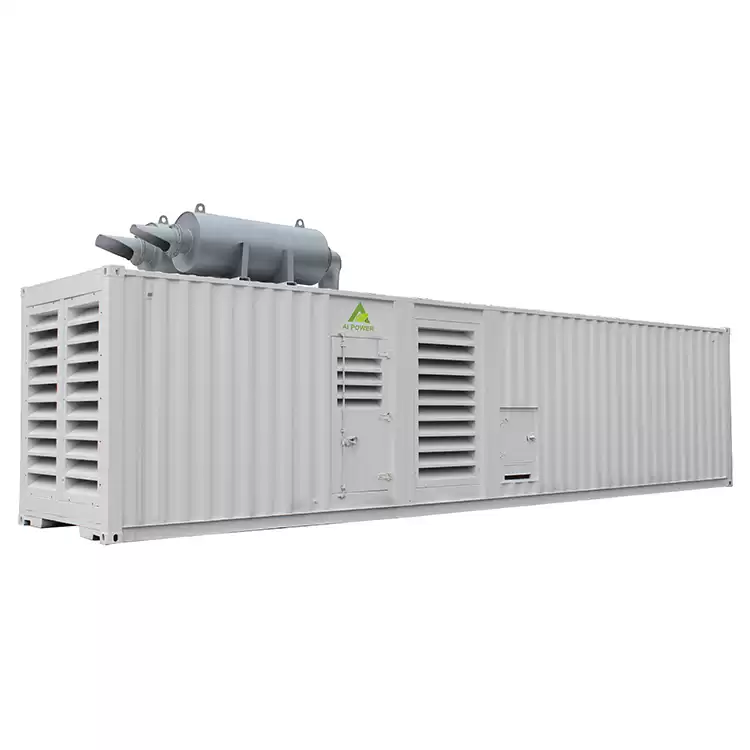

•Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc
Output Ratings
|
Generator set model
|
Voltage
|
Hz
|
Phase
|
P.F.
|
Prime Power
|
Standby Power
|
|
(V)
|
|
|
|
KVA
|
KW
|
KVA
|
KW
|
|
AP1000
|
230/400
|
50
|
3
|
0.8
|
900
|
720
|
1000
|
800
|
GENERAL ENGINE DATA
|
Engine manufacture
|
Perkins Engines Company Limited
|
|
Engine brand
|
Perkins
|
|
Engine model
|
4008TAG1A
|
|
Engine speed (rpm)
|
1500
|
|
Baseload power
|
Prime power
|
Standby power
|
|
Gross engine power (kWb)
|
644
|
805
|
882
|
|
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)
|
586
|
739
|
812
|
|
Cylinders
|
8-cylinder, in line
|
|
Cycle
|
4 stroke
|
|
Induction system
|
Turbocharged
|
|
Combustion system
|
Direct injection
|
|
Compression ratio
|
13.6:1
|
|
Bore * Stroke (mm)
|
160 * 190
|
|
Cubic capacity (Litre)
|
30.561
|
|
FUEL SYSTEM
|
|
|
Injection system
|
Direct
|
|
Governor type
|
electronic
|
|
Fuel Consumption (litre/hour)
|
|
|
Standby
|
218
|
|
Prime
|
195
|
|
Baseload
|
154
|
|
75% output power
|
143
|
|
50% output power
|
98
|
|
25% output power
|
52
|
Optional-addtional parts :800 kw diesel generator price
|
Engine
|
Fuel System
|
Cooling system
|
Exhaust system
|
|
Coolant Heater
Lube oil heater
Electronic governor
Engine oil temperature
|
External Tank
Water Separator
|
50-60 Radiator,
Remote radiator
Cooling tower
|
Heavy Duty air filter
Silencer Enclosures
|
|
Alternator
|
Control System
|
Others
|
Voltage Connections
|
|
Anti Condensation
Heater
Permanent
Magnet Generator-PMG
Drop CT-for paralleling
|
Remote Control Panel
Auto Transfer Switch
ATS-Control Panel
Paralleling System
Electricity Output Cabinet
|
Rainproof Type
Soundproof Type
Containerized Type
Trailer Type
Spare Parts
|
480/277V
440/254V
416/240V
400/230V
380/220V
240/139V
220/12 V
208/120V
|
|
High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available
|
About US

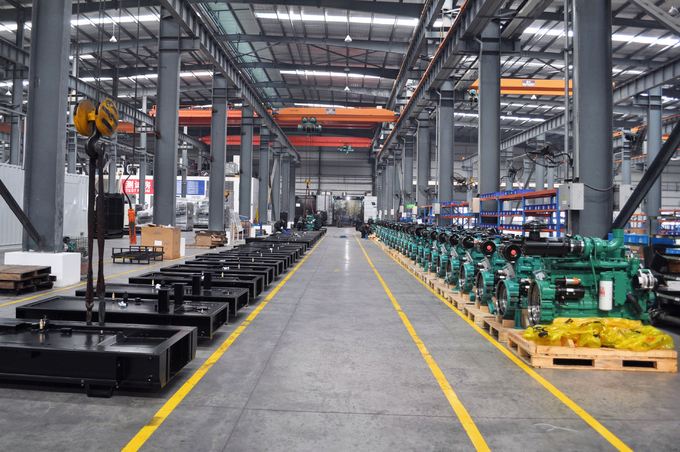

AI Power Factory Introduction
High quality, reliable and complete power unit
Compact design
Easy start and maintenance possibility
Every generating set is subject to a comprehensive test program which includes full load testing, checking and provision of all control and safety shut down functions testing
Fully engineered with a wide range of options and accessories: Canopy, sound proof canopy and on - road trailer
