72W 12V PCB Switching Power Supply
Description:
KPS80QC Series can fulfill the requirements of general medical or industrial applications.
Features:
1,72W Switching power supply 12v with wide range DC input voltage;
2, 72W SMPS with Short circuit, overload, overvoltage protection;
|
Parameter
|
|
Item No
|
KPS80QC-5
|
KPS80QC-12
|
KPS80QC-24
|
KPS80QC-36
|
KPS80QC-48
|
|
Output
|
Output Voltage
|
5V
|
12V
|
24V
|
36V
|
48V
|
|
Rated Current
|
10A
|
6A
|
3.3A
|
2.2A
|
1.7A
|
|
Current Range
|
0-10A
|
0-6A
|
0-3.3A
|
0-2.2A
|
0-1.7A
|
|
Rated power
|
50W
|
72W
|
79.2W
|
79.2W
|
81.6W
|
|
Ripple
|
100mVp-p
|
100mVp-p
|
150mVp-p
|
300mVp-p
|
300mVp-p
|
|
Adjustable output range
|
4.6~5.8V
|
10.8~13.2V
|
21.6~26.4V
|
32~40V
|
43-51V
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,20ms
|
|
Input
|
Input Voltage range
|
90-264V AC
|
|
Input current
|
0.3A @ 220V AC
|
|
Input frequency
|
47-63 Hz
|
|
Efficiency
|
80%
|
86%
|
88%
|
89%
|
89%
|
|
Inrush current
|
Cold start15A/115V，30A/230V
|
|
Leakage Current
|
<0.3mA@240V AC
|
|
Protection
|
Over load protection
|
110~200%,Hiccup protection, automatic recovery
|
|
Output over voltage
|
130~150% Vout
|
|
Input over voltage
|
-------
|
|
Other Function
|
|
|
|
Environment
|
Working Temp.,Humidity
|
-10~45℃ 100% LOAD,45~60℃ 60% LOAD，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Safety&EMC Standards
|
Safety standards
|
EN60950; GB4943; UL60950
|
|
Pressure
|
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
Meet FCC.PART15.CLASS B; EN55022 CLASS B
|
|
Others
|
Dimension
|
88*80*27mm
|
|
Weight
|
0.3Kg
|
|
Note
|
1. All parameters 220VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output from 0% to 100% load change load measured.
|

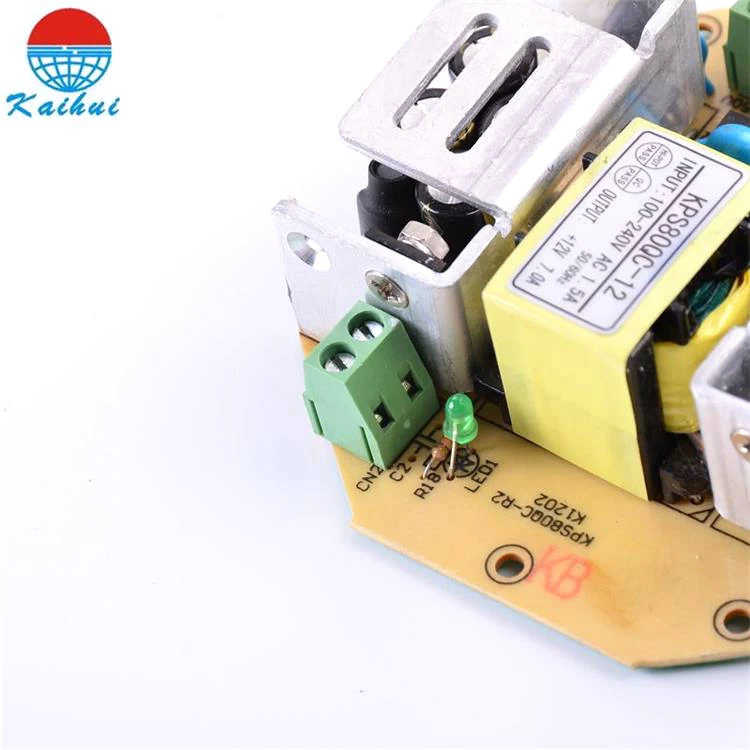

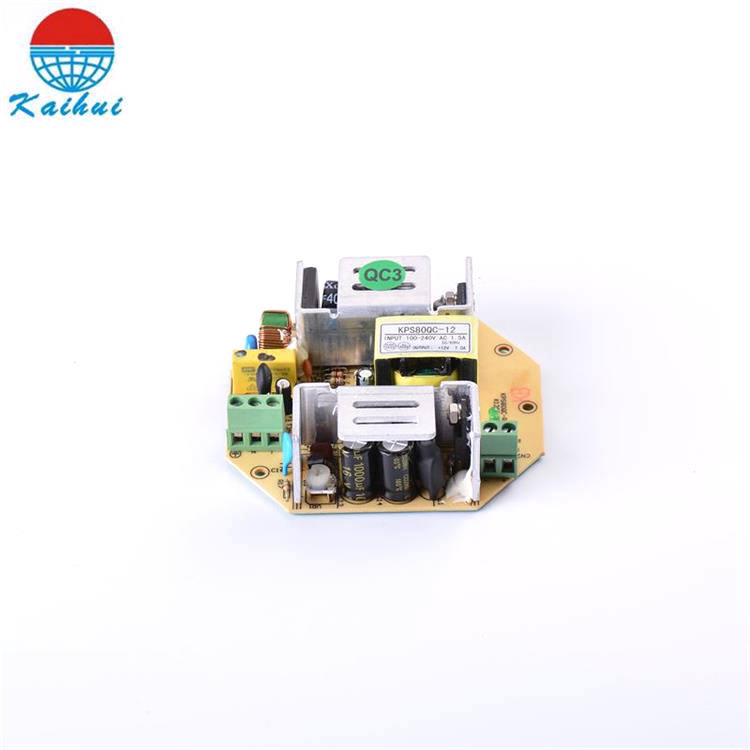

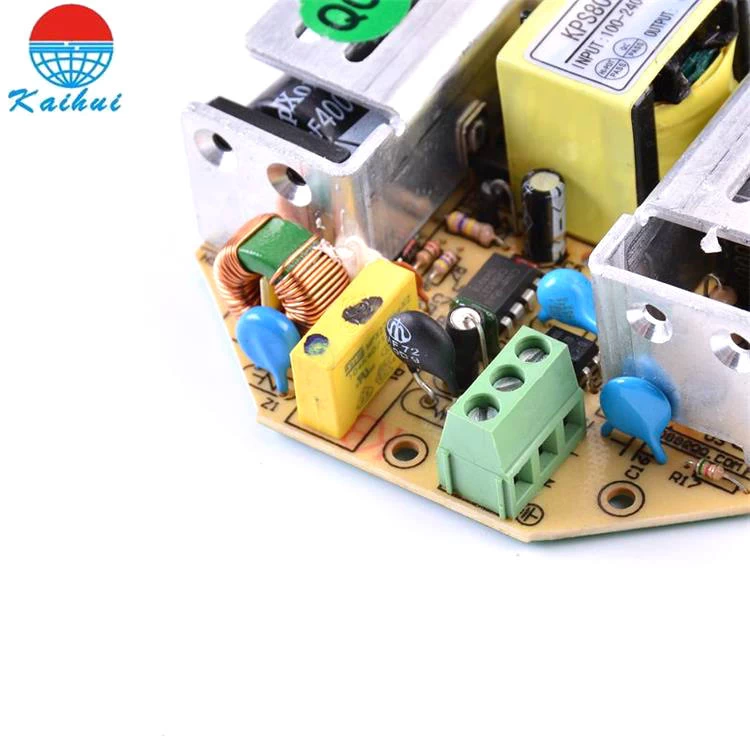

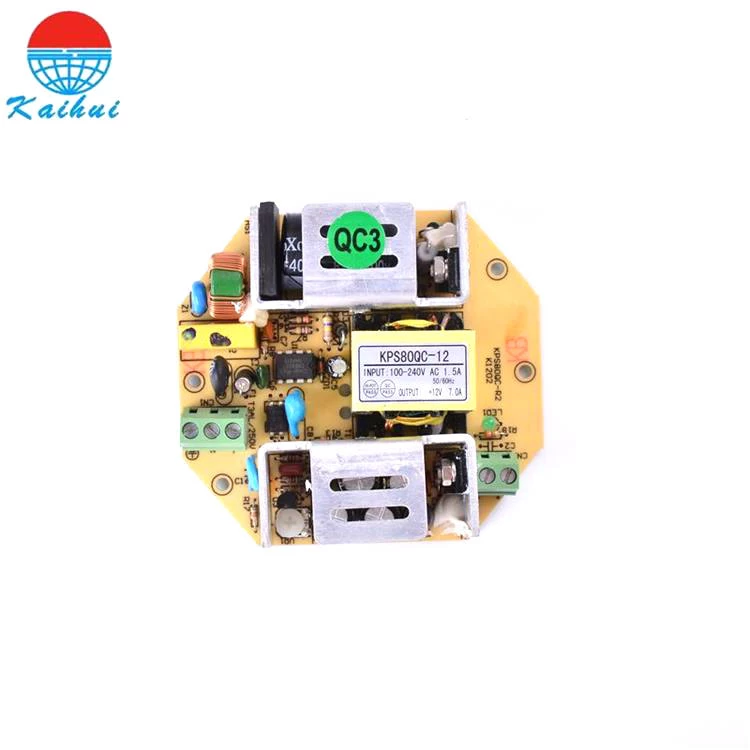

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
