Home Appliance switching power supply +24VDC 2A -24VDC 1A
Description:
100-240VAC input dual 24V switching power supply,it is designed for one of our customers,at present it is widely used to the stage lights and home appliance.
Features:
1, dual power supply 24V with high efficiency, low temperature rise;
2, 72W switching power supply;
3, Dual output power supply 24V with short circuit, overload, overvoltage protection.
|
Parameter
|
|
Item NO.
|
K05-U60D24
|
|
CH1
|
CH2
|
|
Output
|
Output Voltage
|
+24V
|
-24V
|
|
Rated Current
|
2A
|
1A
|
|
Current range
|
0.2-2.5A
|
0.1-1A
|
|
Rated power
|
72W
|
|
Ripple
|
240mVp-p
|
240mVp-p
|
|
Adjustable output range
|
CH1:±10%
|
|
Output Accuracy
|
±1%
|
±6%
|
|
Line Regulation
|
±0.5%
|
±2%
|
|
Load Regulation
|
±0.5%
|
±5%
|
|
Set up,Rise,Keep up time
|
500ms,100ms,30ms
|
|
Input
|
Input Voltage range
|
85V-264V AC,120V-360V DC
|
|
Input current
|
AC230V 1.2A
|
|
Input frequency
|
47-63Hz
|
|
Efficiency
|
82%
|
|
Inrush current
|
30A@230V AC
|
|
Protection
|
Overload protection
|
105~150%,Hiccup protection, automatic recovery
|
|
Output overvoltage protection
|
130~160% of rated output voltage, hiccup protection, automatic recovery
|
|
other functions
|
|
|
|
Environment
|
Working temperature, humidity
|
-10~+60℃@100% LOAD，10~90% RH，No condensation
|
|
Storage temperature, humidity
|
-20~85℃，10~95% RH
|
|
Temperature drift
|
±0.03%/℃(0~50℃)
|
|
vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety and EMC standards
|
Safety standard
|
GB4943，EN60950,EN55022 CLASS A
|
|
Withstand voltage
|
I/P-O/P，I/P-FG：1500V；O/P-FG:0.5KV DC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
Others
|
dimension
|
110*78*35mm
|
|
weight
|
0.35Kg
|
|
Connection
|
8.25 Terminal
|
|
Notes
|
1. All parameters 230V AC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output from 0% to 100% load change load measured.
|

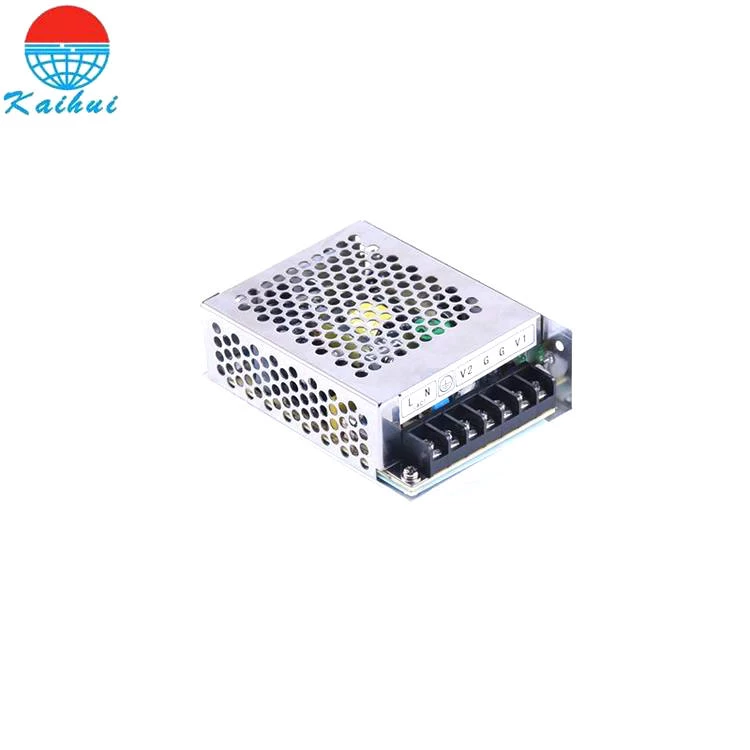

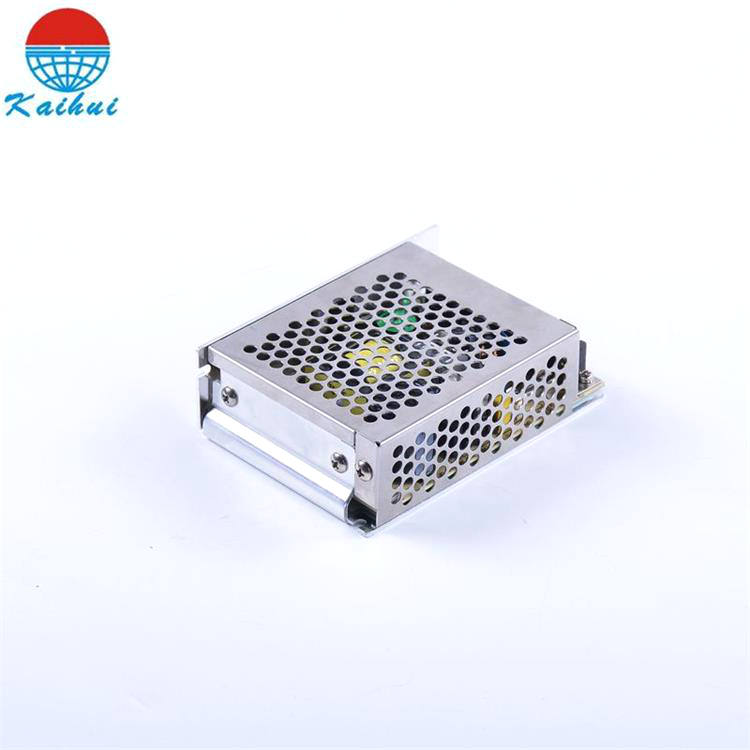

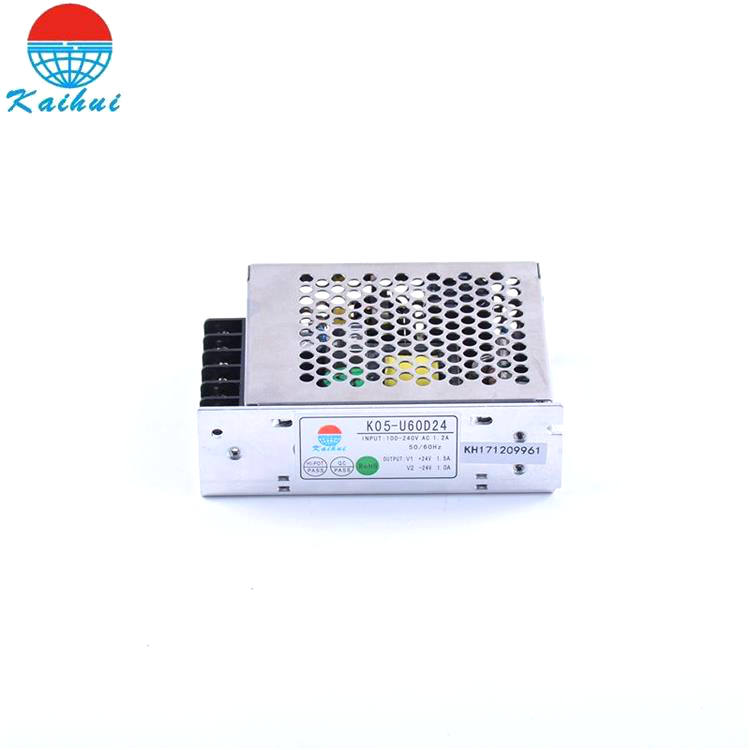

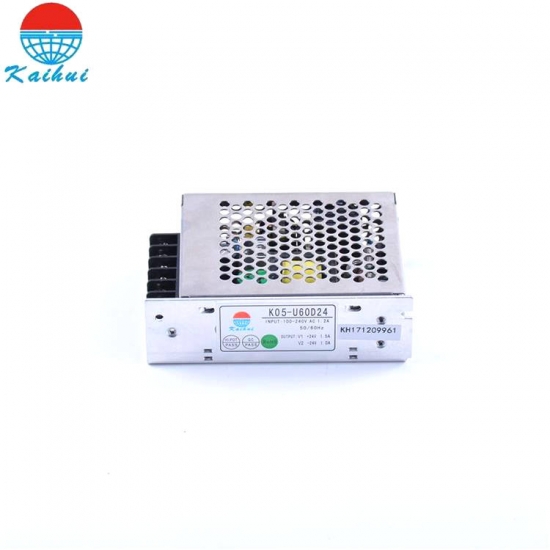

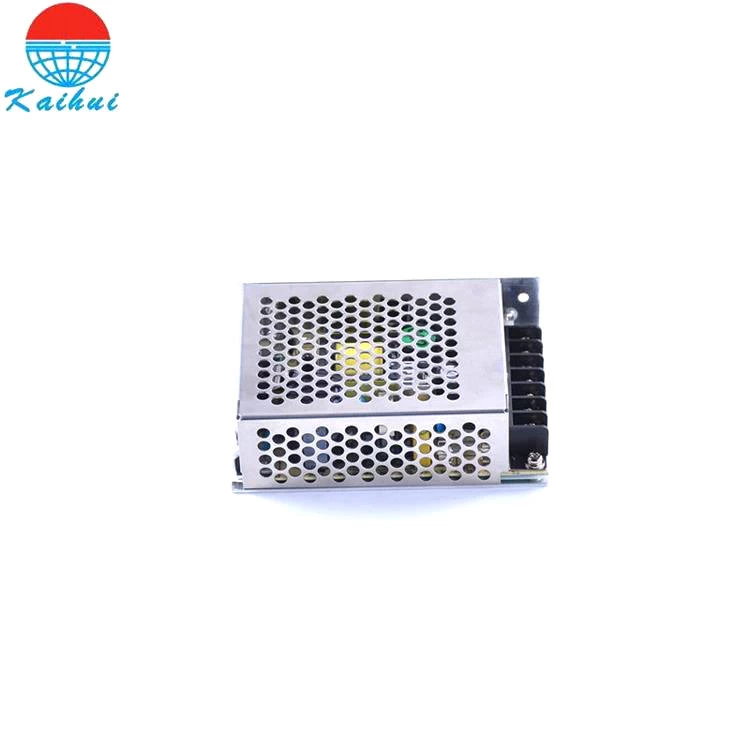

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
