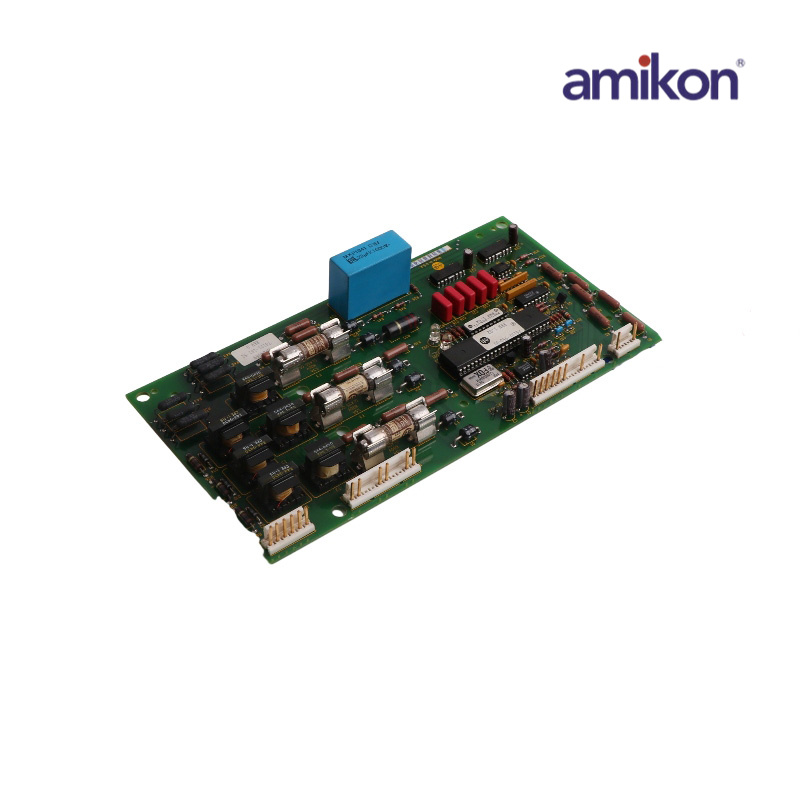

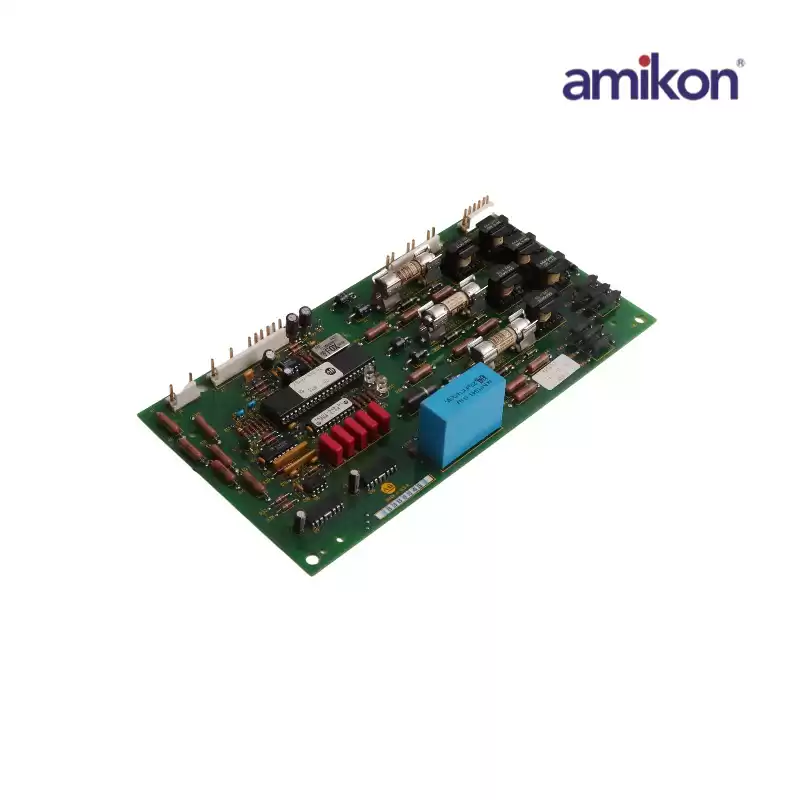

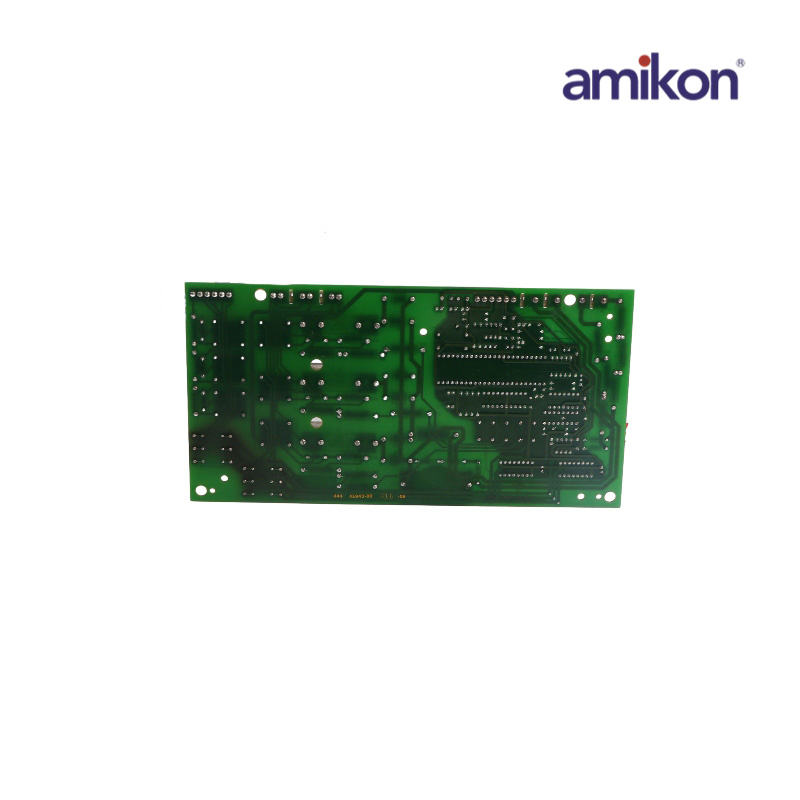

74101-181-51
|
|
Dimensions:24.5x12.7x3.5cm
|
Backplane Current：40 milliamps
|
IInput Voltage range : 85-260V AC
|
|
Weight: 0.28KG
|
Country of Origin: United States
|
Minimum Insulation Rating : 300V 60 degrees℃ (140 degrees F)
|
|
74101-181-51
|
The 74101-181-51 drive is shipped with a jumper installed between I/O Terminals 01 and 11. Remove this jumper when using I/O Terminal 01 as a stop or enable input.I/O Terminal 01 is always a coast to stop input except when P036 [Start Source] is set to “3-Wire” control. In three wire control, I/O Terminal 01 is controlled by P037 [Stop Mode]. All other stop sources are controlled by P037 [Stop Mode].
To improve noise immunity, the I/O terminal block Common must be connected to ground terminal/protective earth. If using the RS485 (DSI) port, I/O Terminal 16 should also be connected to ground terminal/protective earth.
|
|
