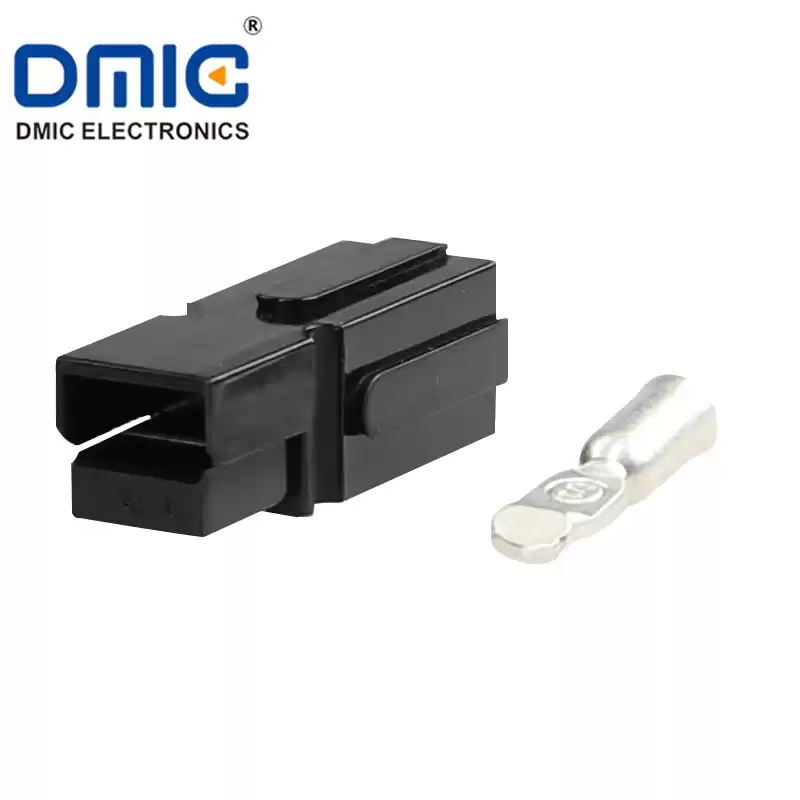

75A 600V Black Power Unipolar Connector Terminals
video link
1.Product Introduction:
Designed to thrive across diverse applications, from power supply and outdoor setups to electric vehicles, medical equipment, industrial machinery, and military systems, this connector is the epitome of versatility. The point-to-point interface design simplifies connections, while the precision cold pressing manufacturing process ensures consistent quality and performance.
Customization is at your fingertips, allowing you to tailor the connector to your specific requirements. Whether you're in need of a single pole configuration or seek to amplify connectivity within a complex network, our 75A 600V Black New Energy Power Connector delivers unmatched reliability and adaptability. Elevate your power connections today.
2.Technical Parameters：
| Rated current(Amperes) |
75A |
| Rated voltage(Volts) |
600V |
| Insulation Resistance |
5000MΩ |
| Without load(Contact/Disconnect Cycles) |
To 10000 |
| Flammability |
UL94 V-0 |
The insertion force of finished products
|
≥1.5kgf
|
The pullout force of finished products
|
≥2kgf
|
| （AWG）Contact Barrel Wire Size(AWG) |
6~ 12AWG |
| Environment Temperatures(℃) |
-20℃---125℃
|
| Material of terminal |
Red copper |
| Process of production |
Precision punching |
| Fully Ag-plating on surface, it’s Ag-plating thickness |
1μm |
| Shrapnel |
Stainless steel |
| Process of production |
Precision punching Plastic Injection |

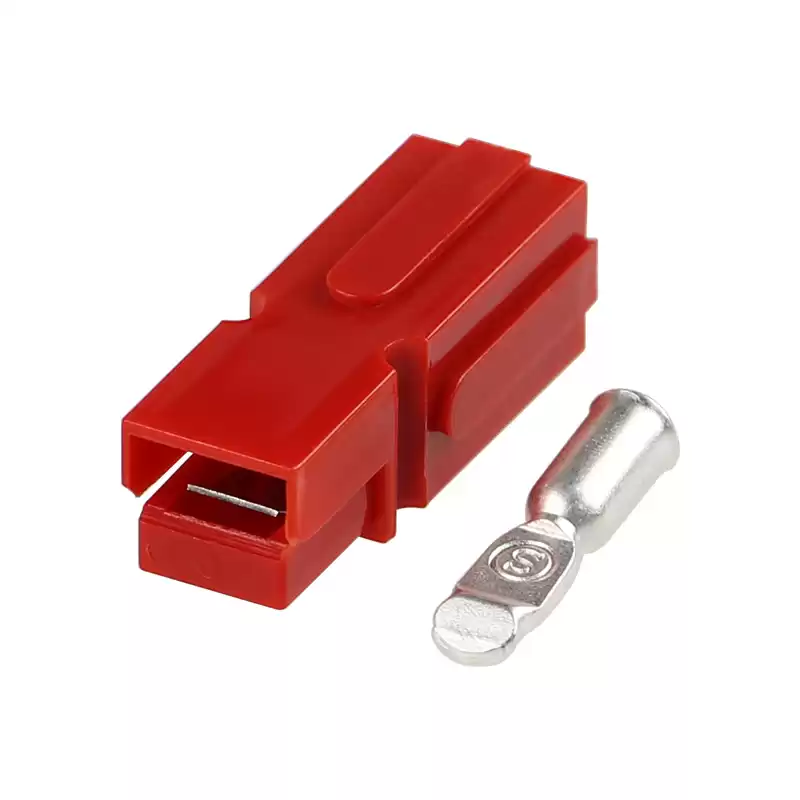

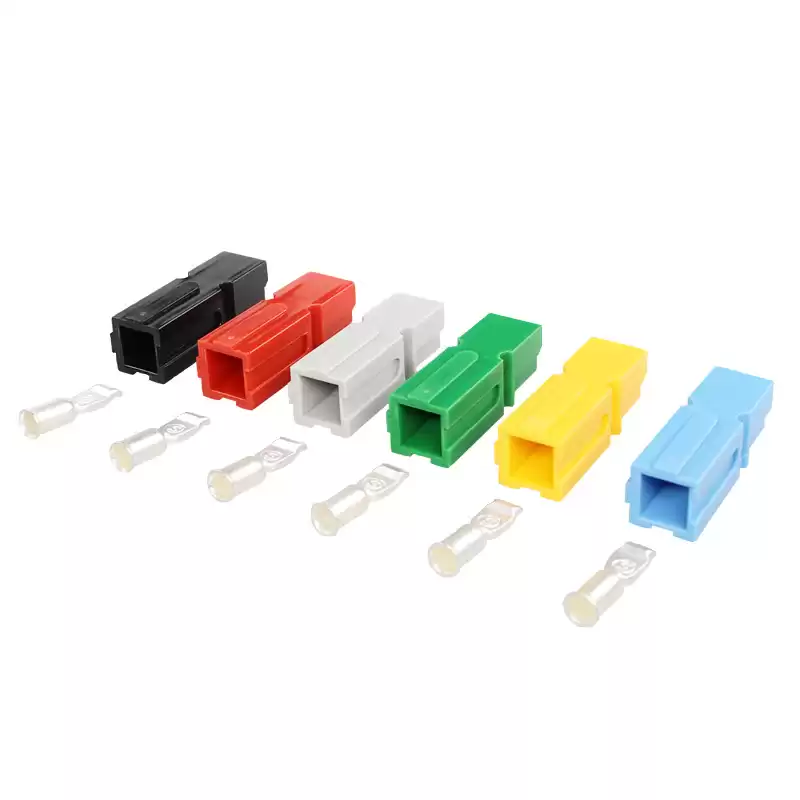

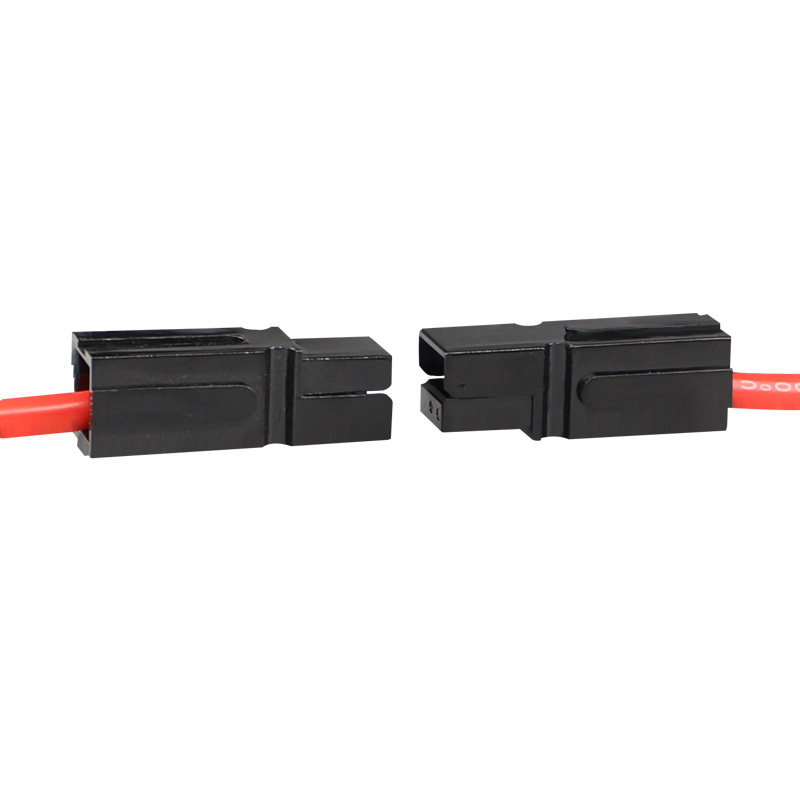

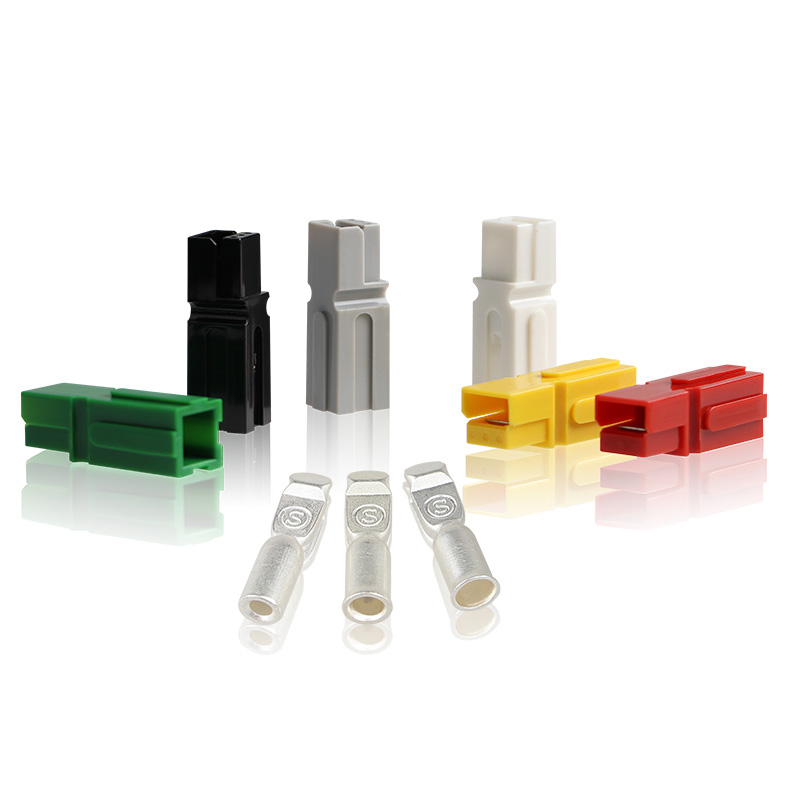

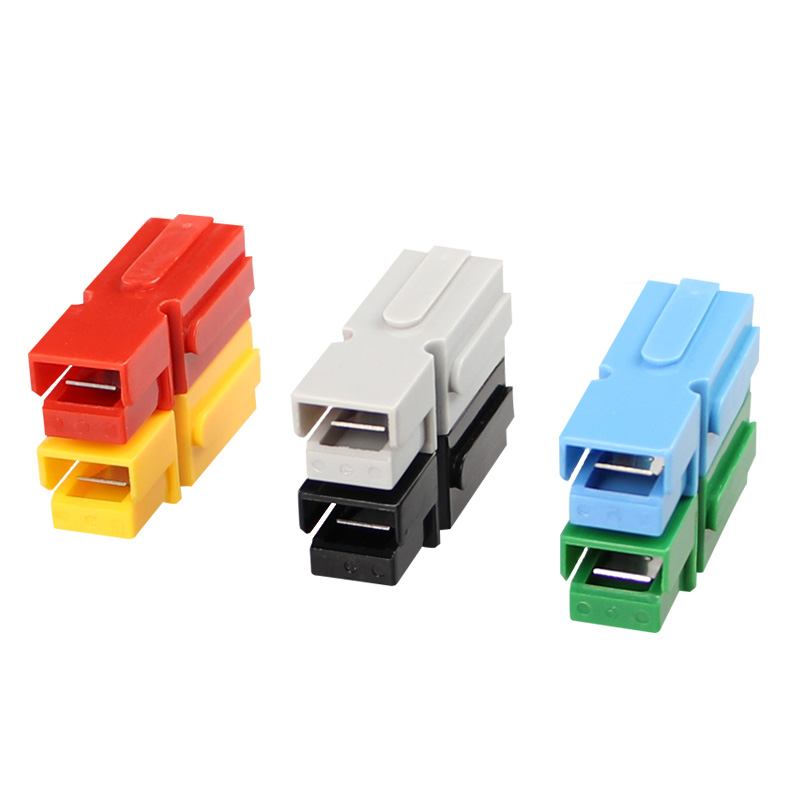

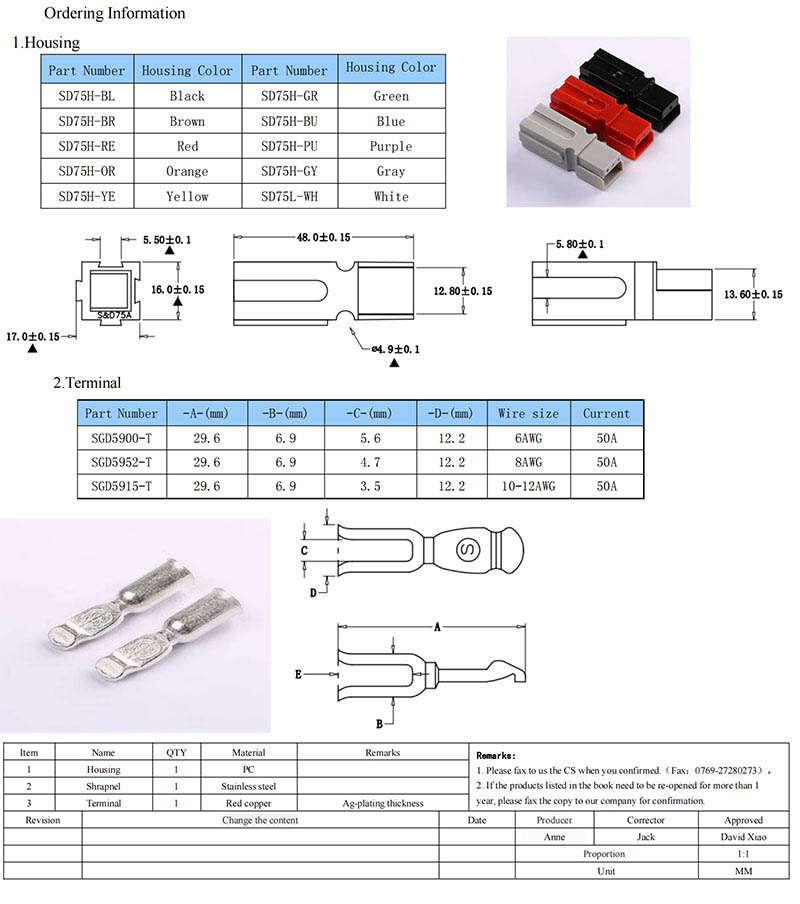

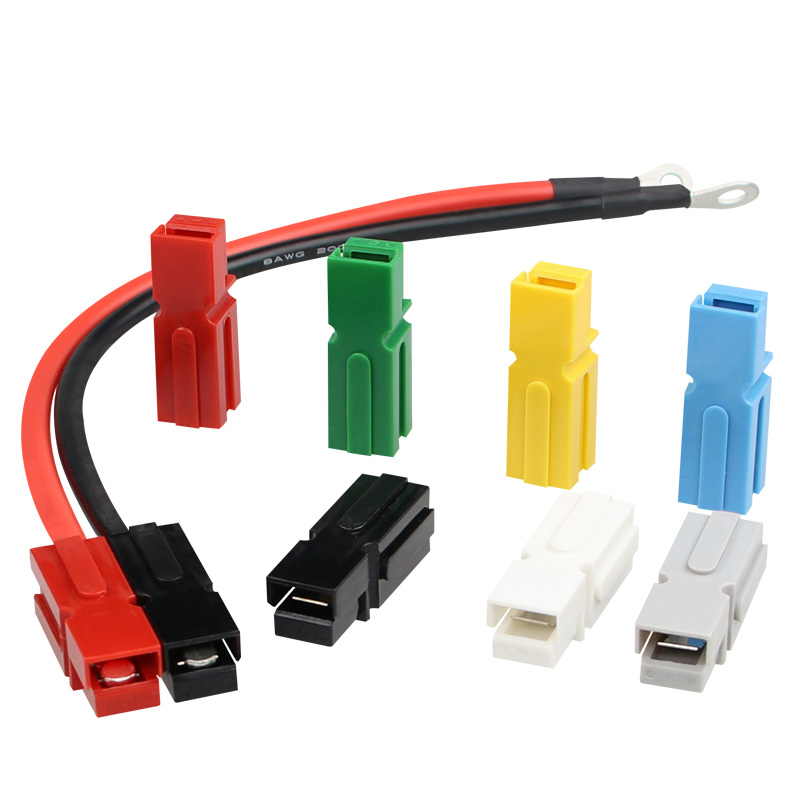

3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
