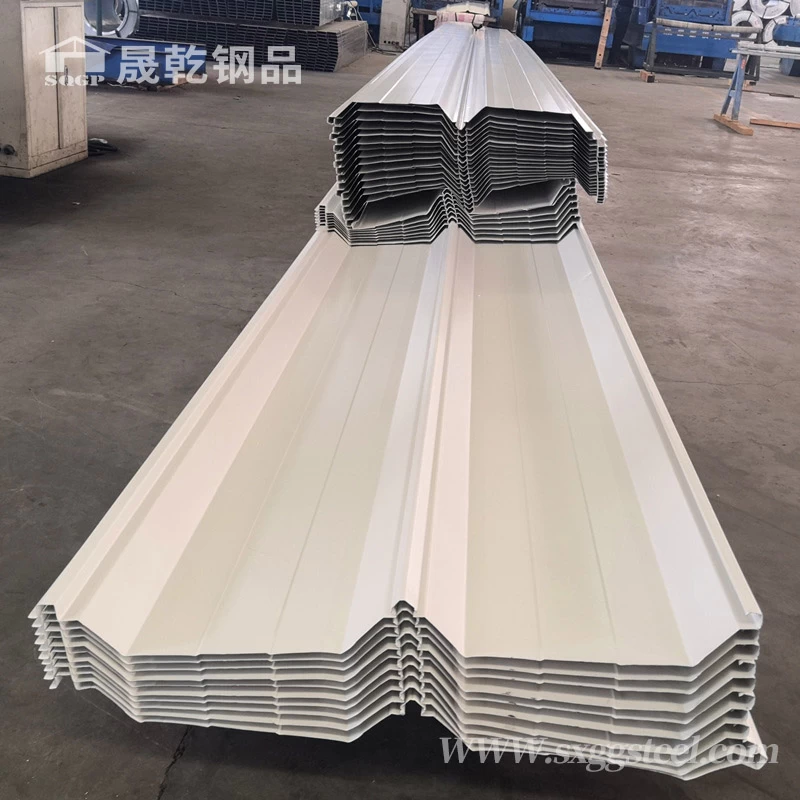

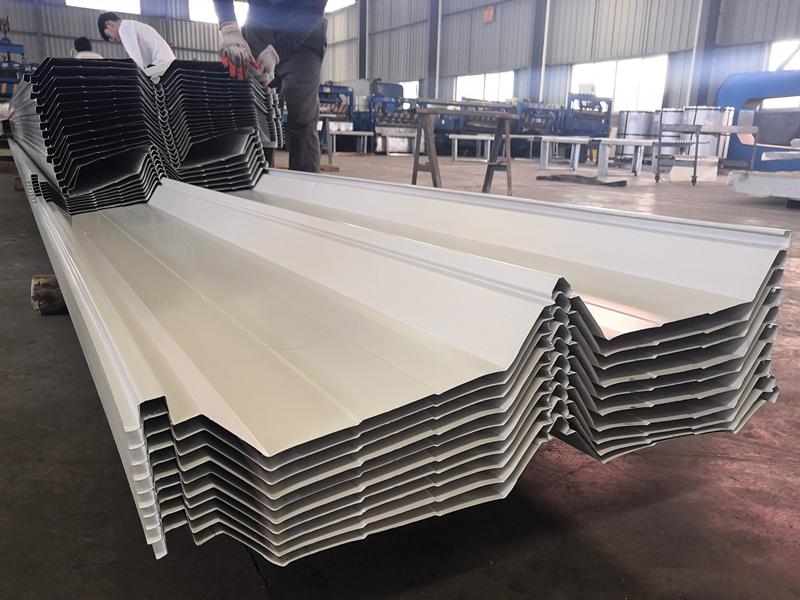

760 Bite Type Corrugated Galvanized Hidden Screw Roofing Sheets

This 760 bite type corrugated galvanized Hidden Screw roofing sheets could be better to solve the heavy rainfall caused by water leakage.



Product Parameters:

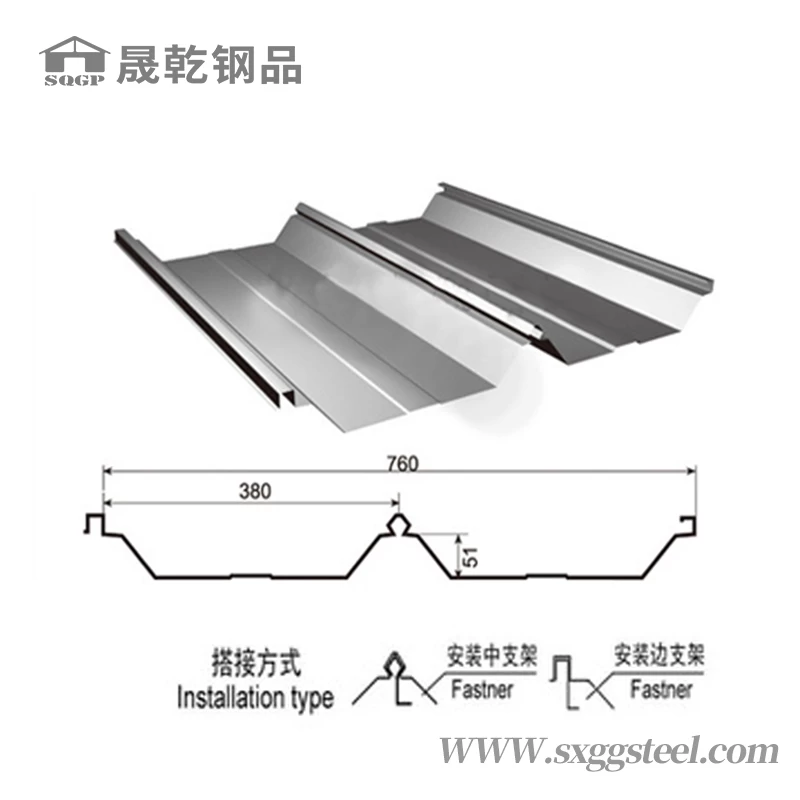

Profiled Steel Sheets Type

YX51-380-760

Effective Width

760mm

Feeding Width

1000mm

Crest Height

51mm

Crest Distance

380mm

Panel Thickness

0.3-0.8mm

Panel Length

20FT container:  ≤ 5.95m
40FT container: ≤ 11.95m

Section Inertia

21.4-47.24cm⁴/m

Section Resistance

16.62-27.21cm³/m

Product Advantages:

1、Using hidden style to set up,surface without screw penetration phenomenon,bite completely.

2、Use the double bracket to firm,bracket can slip on sheet effectly,can be firmly and can bear the impact of expansion changes.

3、Using a double tier shipment,utilization more than 80%,economical and practial.

4、Specialized transportation skills to provide accurate protection for the site to press each other.
