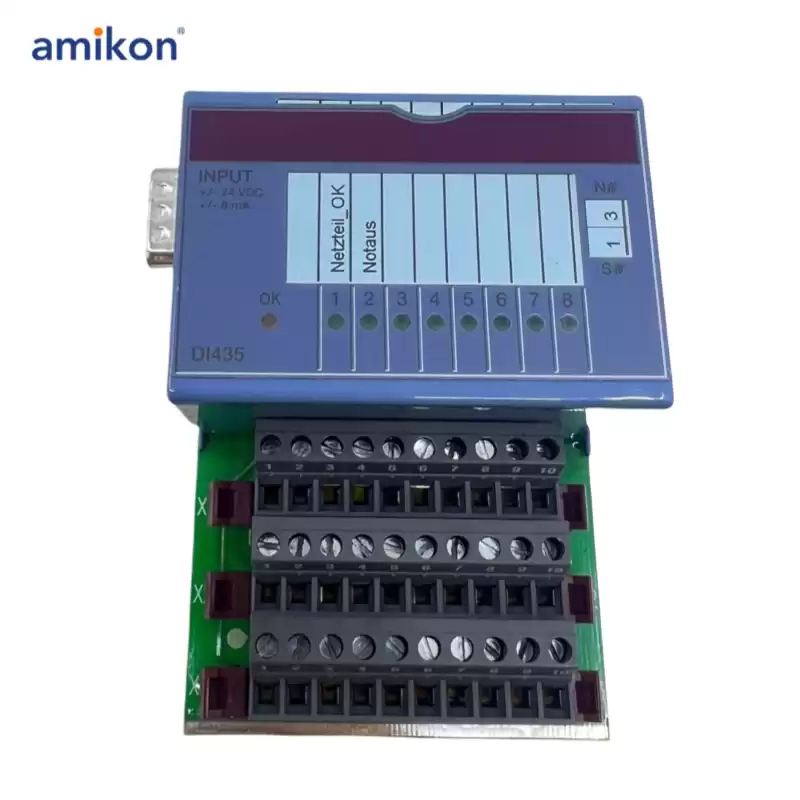

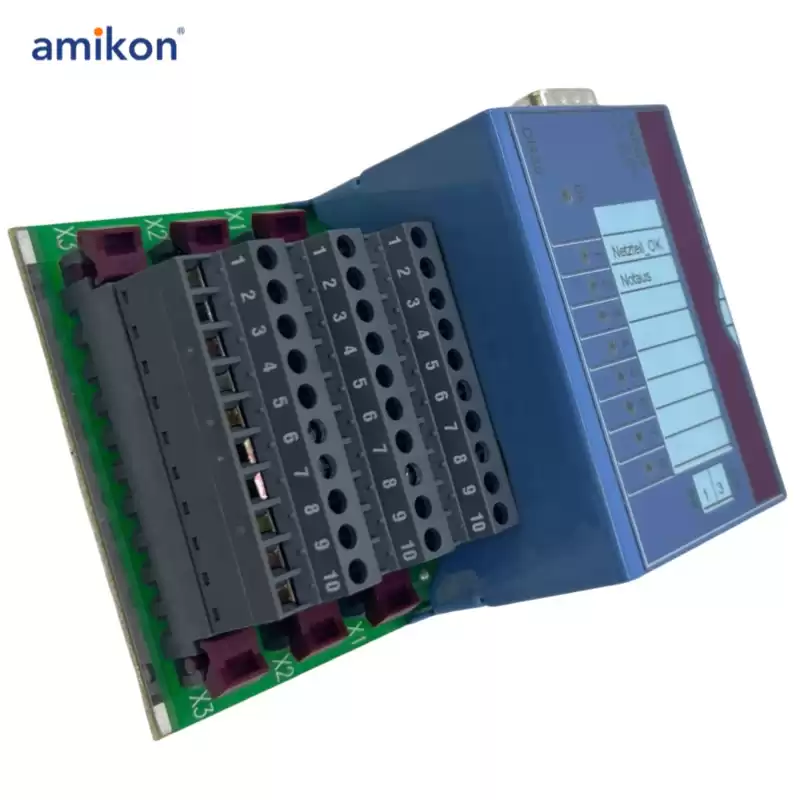

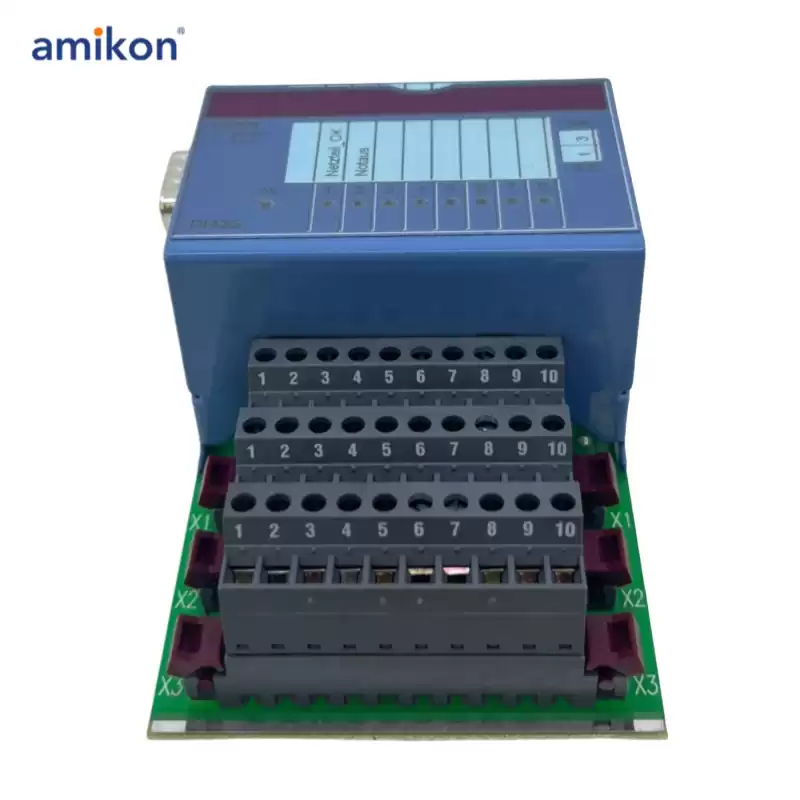

7DI435.7 BR Digital Input Module

Brand new and original sealed//Same Day Shipment


  • Dimensions12.7 cm x 5.1 cm x 17.8 cm
  • Weight0.3KG
  • Country of OriginUSA
  • Brand/ManufaturerB&R
  • Warranty PeriodOne Year Warranty
  • Payment Term100% Advance Payment T/T Bank Wire Transfer

General Information

Model Number

7DI435.7

Short Description

2003 digital input module, 8 inputs 24 VDC, 1 ms, sink/source.



Order terminal blocks separately!

C-UL-Us Listed

Yes

B&R ID Code

$E1

Static Characteristics

Module Type

B&R 2003 I/O Module

Number of Inputs

8

Wiring

Sink or source

Input Delay

Max. 1 ms (at 18-30 V)

Input Current at Nominal Voltage

Approx. 8 mA (sink/source)


Status LEDs:
The status-LEDs 1 -8 (green) show the logical state of the corresponding inputs.The LED OK (orange) indicates that the input supply voltage is present. The LED is lit for input voltages from15 to 18 VDC.

7DI435.7 Variable Declaration:
The variable declaration is valid for the following controllers:
-2003 PCC CPU
-Remote l/0 Bus Controller
-CAN Bus Controller
