7W adjustable LED recessed square down light



  • This product is mainly made of Aluminum, ensuring good quality and high cost performance
  • CITIZEN COB LED Chip Is Used, Ensuring High Lumen Output And Good CCT Coherence, The Light Source Is Hidden Deep Into The Housing, Which Results In Excellent Anti-Glare Function
  • Different Lens Available, Offering Different Beam Angle Options, 15/24/36/60 Degrees, CE&Rohs Certified, Suitable For Hotels, Fancy Stores And Supermarket, etc.





  • IP RateIP20
  • FinishWhite、Black、Silver
  • Lamp Power7w

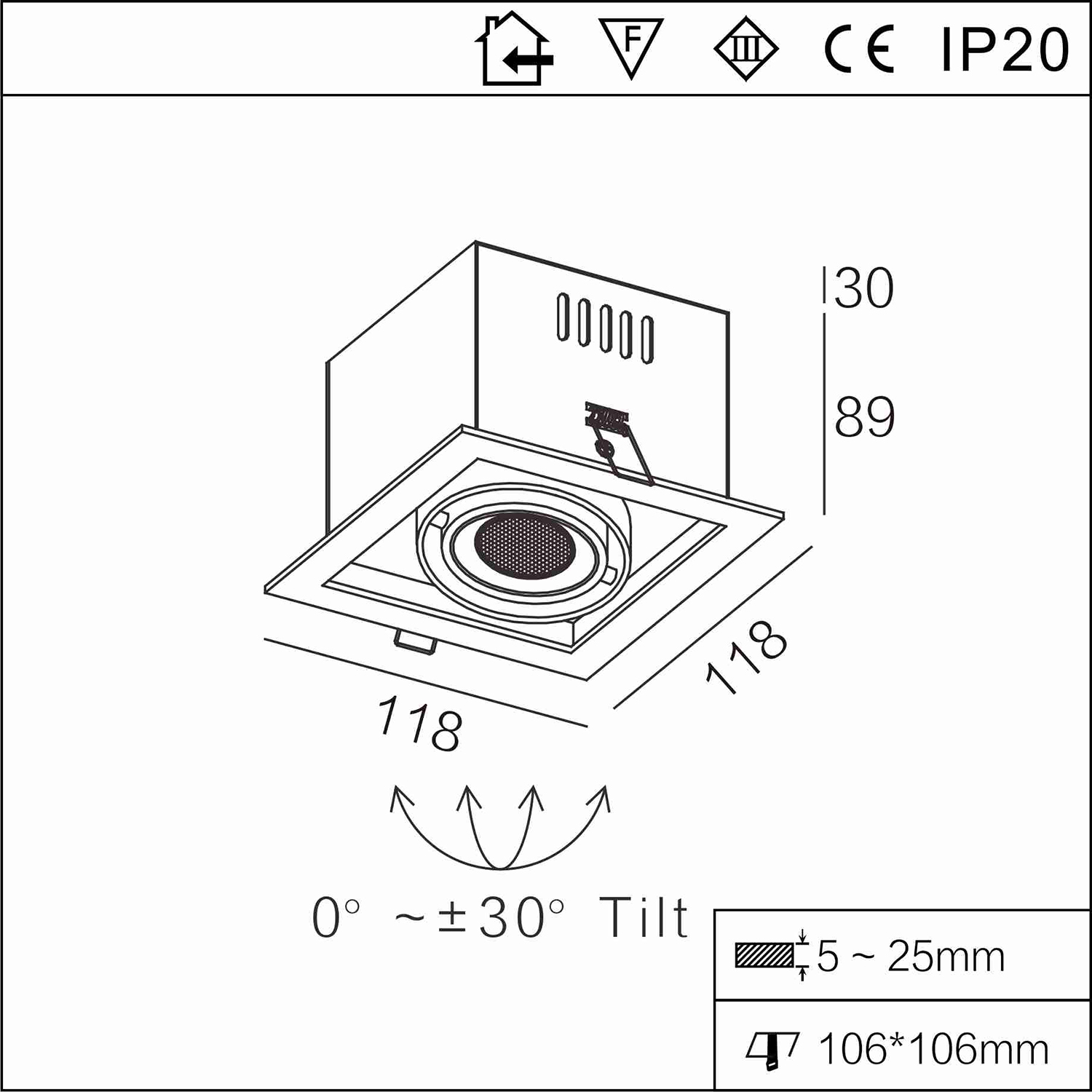

  • Product Size118*118*119mm
  • MaterialAluminum
  • Light sourceCOB LED

Model number

 R3B0080

Installation

Recessed mounted

Power

7W

Light source

 COB

Lumen

450lm

Material

Aluminum

Beam Angle

15°/24°/36° /60°

Electric Data

DC 37V 180mA

CCT

 3000K

Finish

Texture:White、Black、Silver

IP

IP20

Certification

 CE、STD、RoHS

CRIRa>)

>90

Cutout shape/siz

Ceiling Recessed

e


  106*106mm

Class

Class II

Requirements

  1-10V、SCR 、DALI


7w led gimbal downlight


  Application


lighting application cafe  lighting application club  lighting application hotel  lighting application office area  lighting application residence  lighting application restaurant  lighting application shopping mall  lighting application showroom  lighting application stroe  lighting application Villa
