7X30W LED RGBW Par Zoom Light with LED RGB Ring


LED zoom Par light with LED RGB Ring.It uses 7x30W RGBW LEDs and 96x0.2W RGB LEDs of LED ring.Besides owning zoom range of 4-60°, zoom ratio 1:15,IP65 wateproof class and following RDM&DMX control protocols.




This equipment is aluminiumstructure. Its look design is very good such as fashion,generous. It is with 7pcs 30W RGBW LEDs and 96pcs 0.2W RGB as the light source and 4-60°Zoom angle in order to make perfect color mixing effect. Due to zoom ratio 1:15 and 96pcs 0.2W RGB,it brings rich dynamic effect.Besides it has special cooling systems. It is suitable for projection lighting, stage, theatre etc due to great function. At the same time, And it is with powerful two-way RDM function besides DMX control.

●  Optics

. LED qty

※ 7x30W RGBW LED(power LED), uniform and delicate color mixing effect,

※ 96x0.2W RGB LEDlight  ring

. Beam angle4-60°Zoom

. Lifetime50000Hlow power consumption, energy conservation and environmental protection


●  Colors

. Uniform RGBWA mixing color system

. Manually adjustable White balance

. Static color set up

. RGB LED ring can create more colorful chasing effect.

Lighting Effect for 7x30W LED RGBW Par Zoom Light


●  Specification

. 5 DMX channel modes6CH/8CH_1/8CH_2/35CH/148CH international standard DMX-512 channel

. 3 control modes::DMX512SoundMaster-Salve

. Beam angle45°

. DMX functionDimmerStrobeRGBWMacro colorcolor jumping changecolor gradual change Sounddimmer curve selectionfunction setting

. Stand-alone modecolor jumping changecolor gradual changeAuto-programSoundslaveMacro colorstatic color setting

. Strobe effect0-20HZ strobePulse strobeRamp up strobeRamp down strobeRandom strobeStrobe Break Effekt, 5s…..1sStrobe0-20Hz

. Dimmer:0-100% 16bit dimming which can control brightness change and closing of 4colors at the same time

. The LED light ring with 96pcs 0.2w RGB can bring 135kinds of dynamic combinable effect

. Dimming wayLED mode and Halogen lamp mode


●  Display

. LCD screen


●  Software

. Software upgradequick software upgrade via DMX cable

. Display the use time of the light, so that customers can know the use details of the light in time

. LED refresh rate3000Hz

. 4kinds of dimming curvelinear dimmerSqaure dimmerI. Sqaure dimmerS-Curve dimmer


●  Other functions

. Setting and addressingRDM

. LEDs temperature detection system to protect the LEDs

. Fan cooling(the fan change the speed with the temperature changes

. Fan running modeAuto mode and high speed mode

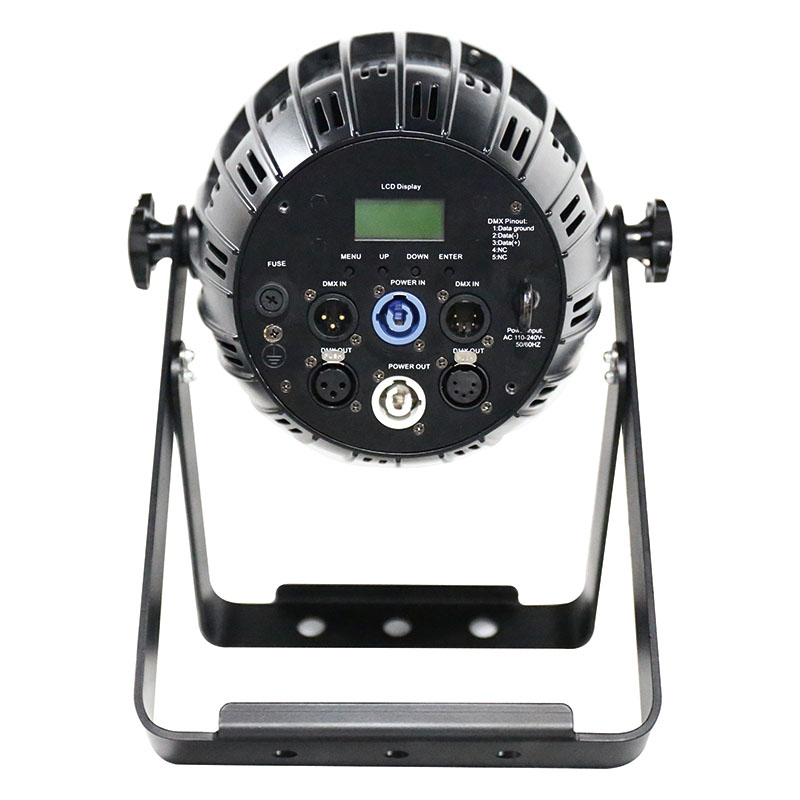

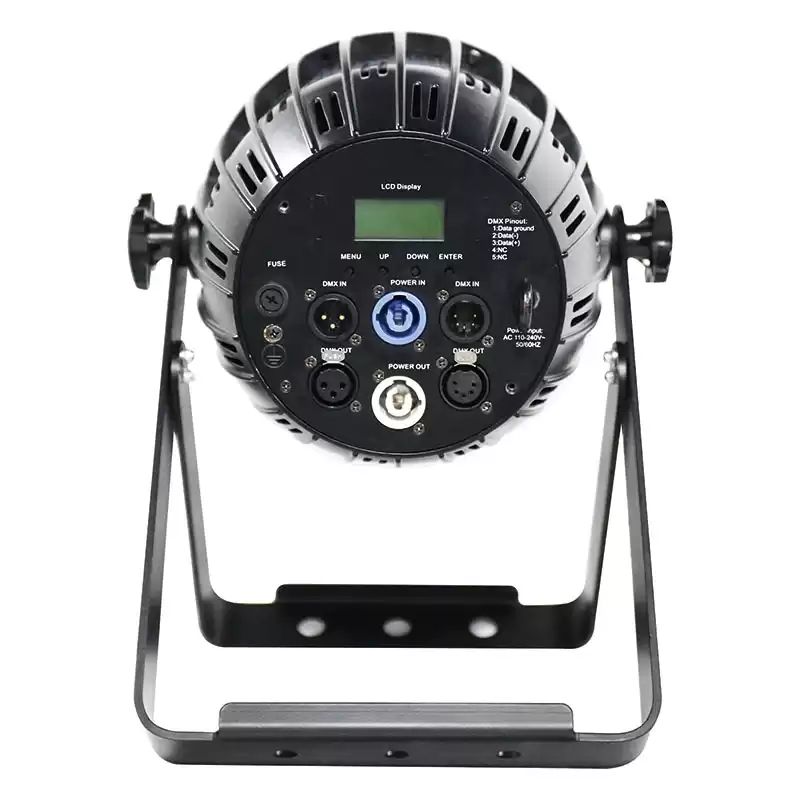

●  Power/Signal connection

. Power connectionPowerCON input/output

. DMX input3 Pin XLR

. DMX output3 Pin XLR


●  Power

. AC100-240V 50/60HZ

. Power consumption240W


●  Protection class

. HousingDie-cast aluminium

. IP classIP20


●  Operation environment

. Indoor operation temperature-20°C+40°C


●  Size/weight

. Packaging size465*355*305mm

. Net weight4.9KG

. Gross weight6.3KG


●  Certification

. CE,ROHS
